TEN Factory · MG22138
Part #: MG22138
UPC: 698231914380
Log in for inventory
Notify me when this item is in stock.
Description: High-strength Drive Axle Shaft Assembly handles maximum torque in demanding cond; This Drive Axle Shaft Assembly is heat treated and precision machined to handle maximum drivetrain torque in commercial truck and heavy-duty applications. It restores correct axle shaft geometry and drivetrain reliability.
Description:
Description
TEN Factory - Precision Forged for Quality, Strength and Performance. All TEN Factory axles feature a 10-year replacement warranty! Front axles and two axle rear kits are black oxide coated. TEN Factory is the brand you can trust for the highest-quality engineered axle shafts and replacement kits. Built with the toughest materials, the wear-resistance of forged steel is heat-treated to produce durable axle shafts for your Jeep, car or truck. Buy with confidence knowing that the latest technologies in metallurgy, heat treating and CNC machining have produced an axle you can count on in the most difficult conditions.
Features & benefits
- Direct replacement for cracked or broken axle shafts, restoring full drivetrain integrity and rated load capacity.
- Eliminates axle shaft flex and vibration that leads to premature wheel bearing, seal, and differential gear wear.
- Heat-treated alloy steel shaft handles maximum axle torque without torsional fatigue in loaded commercial truck applications.
- OEM-matched length and diameter maintain correct bearing preload and wheel hub alignment during assembly.
- Precision-machined splines and flange dimensions ensure correct engagement with differential side gears and wheel hubs.
Information

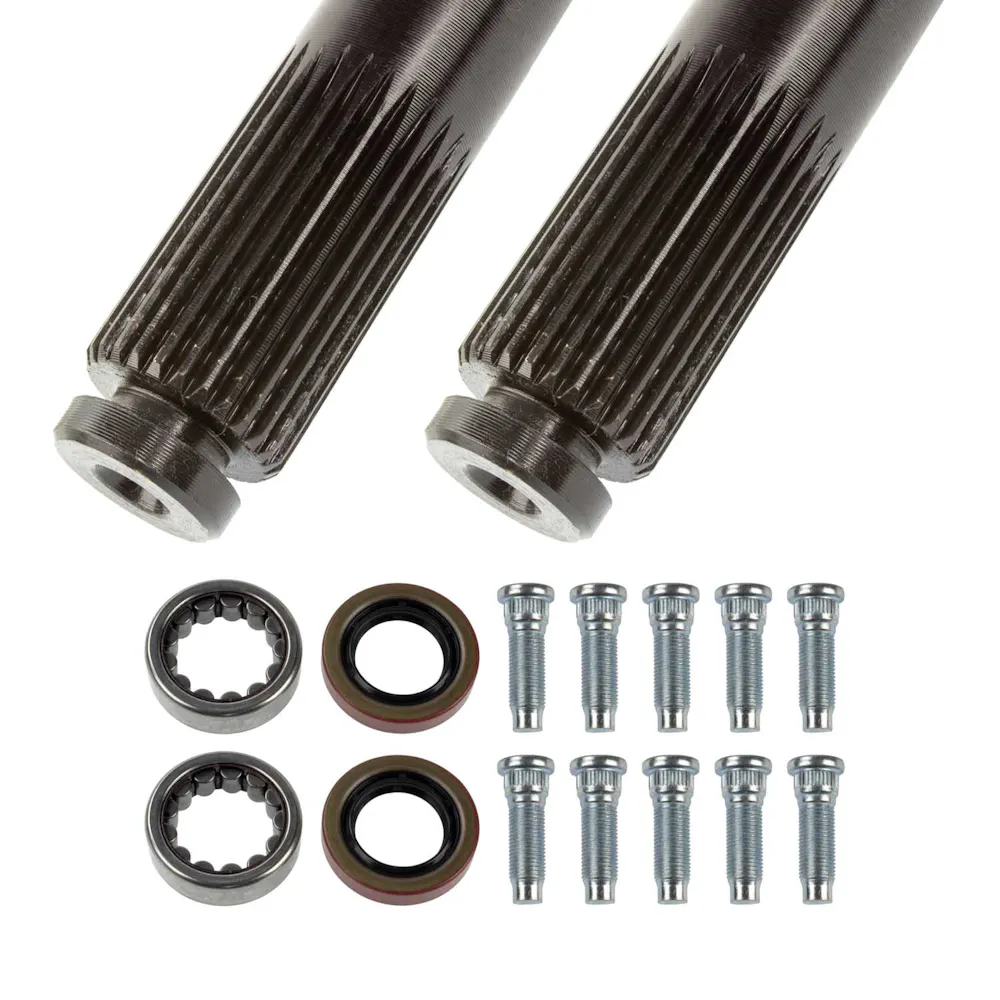

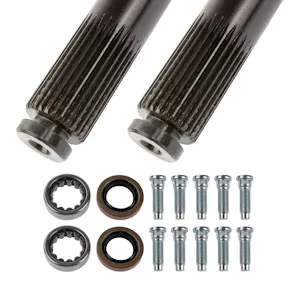

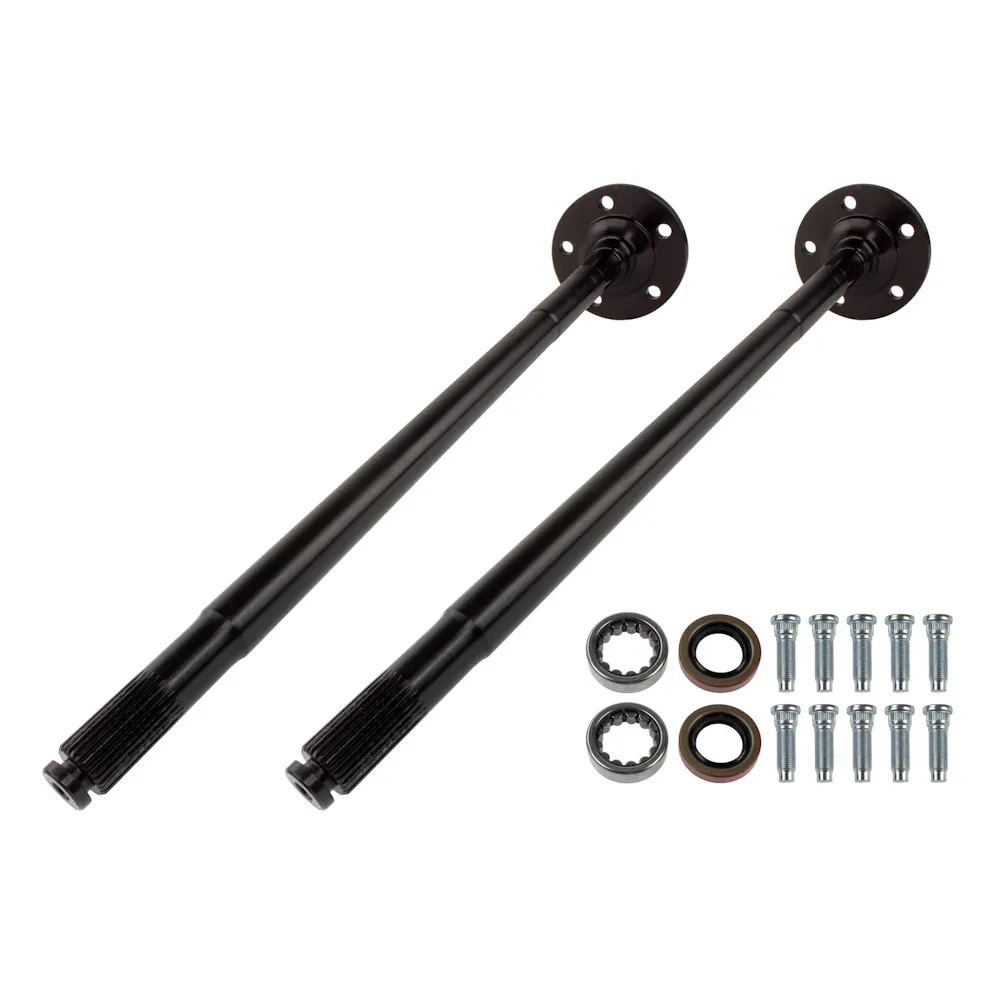

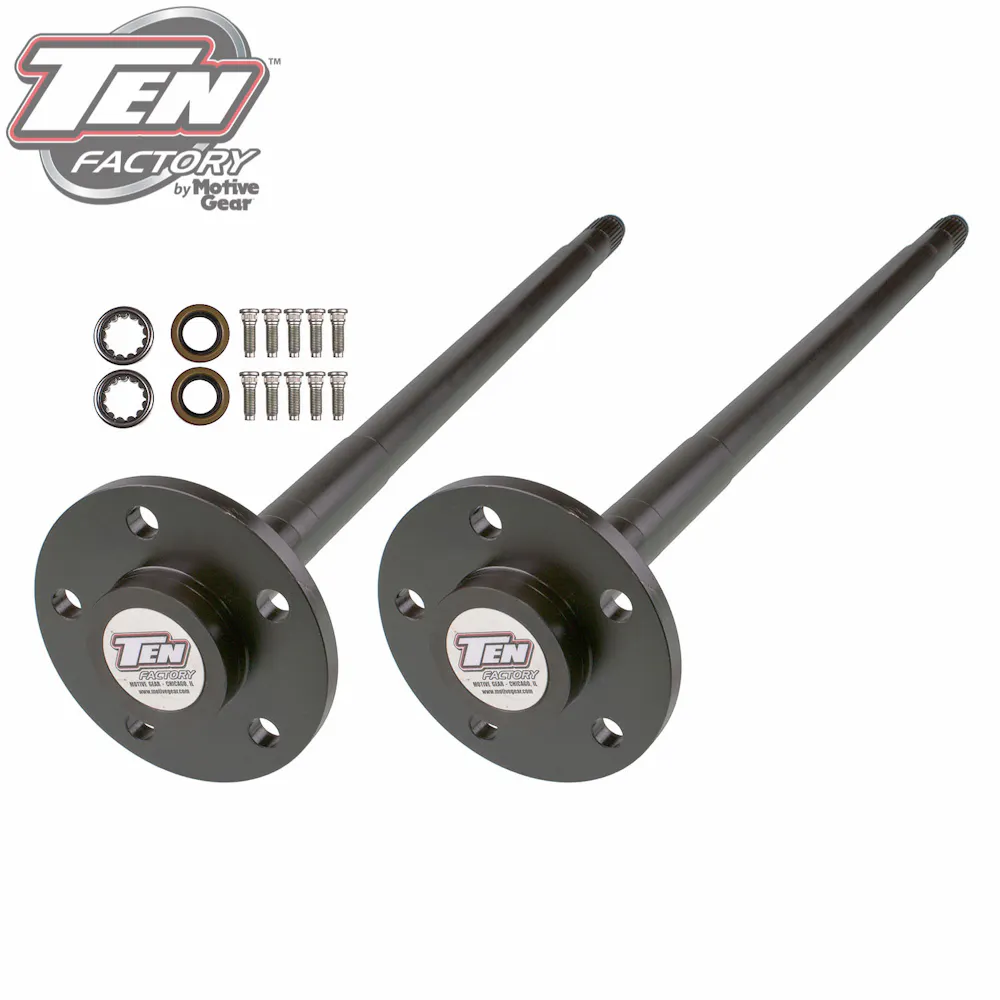

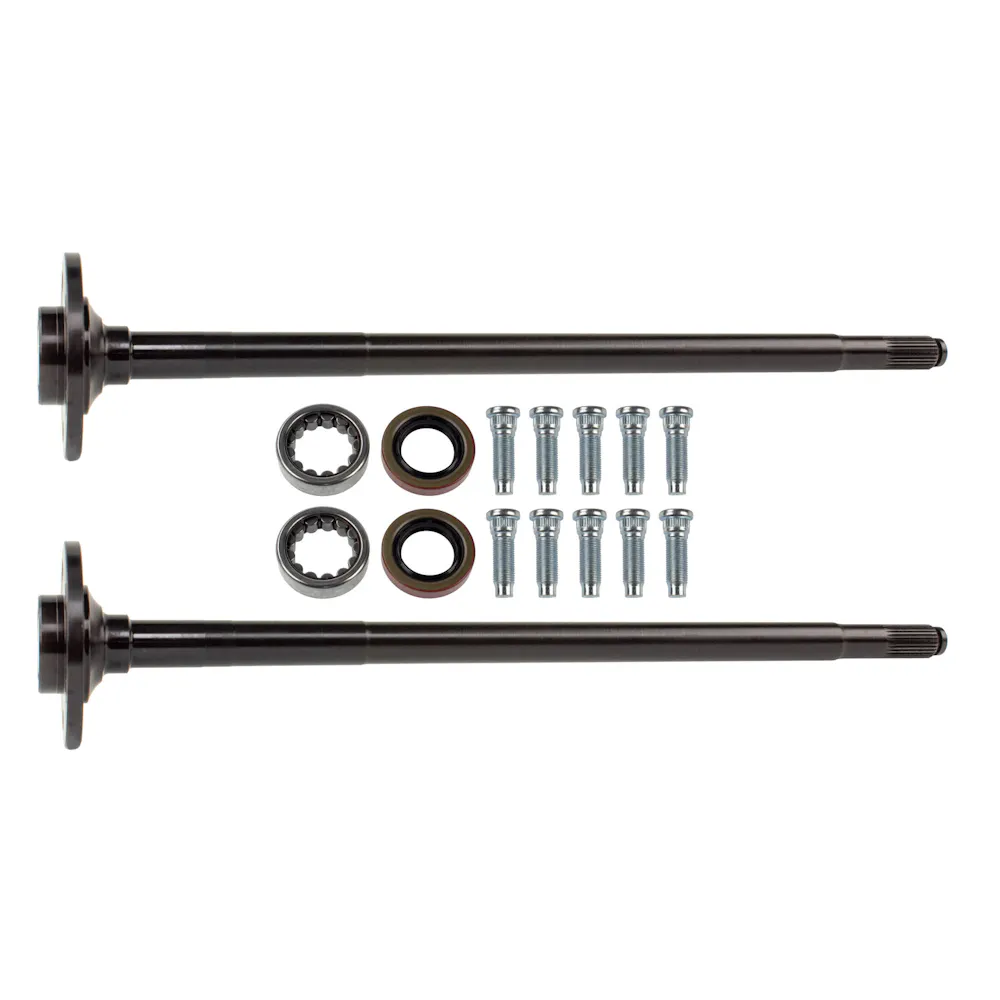

DRIVE AXLE SHAFT ASSEMBLY FOR DANA 35; PERFORMANCE REAR AXLE KIT; AXLE LENGTH 30.563"/29.04"; 5 X 4.5 LUG PATTERN; 27 SPLINE; INCLUDES LEFT & RIGHT AXLES, BEARINGS, SEALS & STUDS; 1541 MANGANESE; W/ C-CLIP; ABS READY - DOES NOT INCLUDE ABS RING
Application summary
| Year | Make / model |
|---|---|
| 1990-2001 | Jeep Cherokee |
| 1990-1992 | Jeep Comanche |
| 1993-1995 | Jeep Grand Cherokee |
| 1990-1991 | Jeep Grand Wagoneer |
| 1993 | Jeep Grand Wagoneer |
| 1997-2006 | Jeep TJ |
| 1989-1990 | Jeep Wagoneer |
| 1990-1995 | Jeep Wrangler |
| 1997-2006 | Jeep Wrangler |
Specifications
- GTIN
- 00698231914380
- Weight
- 40 lb
- Height
- 8.5 in
- Length
- 41 in
- Width
- 11 in
- EO
- Legal US
- Life cycle
- Available to Order
- AAM brand code
- TEN
- Warehouse brand code
- TEN
- AAIA brand code
- FCHM
Attributes
- 136
- 5 x 4.5
- 396
- High Manganese 1541H
- 704
- 27
- 2872
- Black Oxide
- 7801
- 33.31
- App/Model
- Dana 35 Standard
- Axle Length
- 33.31
- Axle Material
- 1541 Manganese
- Axle Shaft Spline Quantity
- 27
- California Proposition 65
- WARNING: Cancer - www.P65Warnings.ca.gov
- Coated Finish
- Black Oxide
- Differential Case Design Type
- Dana 35
- Inboard Spline Quantity
- 27
- Outboard Spline Quantity
- 27
- Position
- Rear
- Shaft Length
- 30.563 L
- Shaft Material
- 1541 Manganese
- Side
- Left and Right
- Taxonomy
- Differential LD
- Taxonomy A
- LD Differential
- Taxonomy B
- Axle Shafts
- Taxonomy C
- Axle Kits - Rear
- Taxonomy D
- Left and Right
- Title
- Axle Shaft Assembly
- Wheel Bolt Pattern Size
- 5 x 4.5
Fitment status
Select a vehicle or engine to see whether this part applies to your application.
Application summary
1990-2001 Jeep Cherokee; 1990-1992 Jeep Comanche; 1993-1995 Jeep Grand Cherokee; 1990-1991 Jeep Grand Wagoneer; 1993 Jeep Grand Wagoneer; 1997-2006 Jeep TJ; 1989-1990 Jeep Wagoneer; 1990-1995 Jeep Wrangler; 1997-2006 Jeep Wrangler
