TEN Factory · MG20661B
Part #: MG20661B
UPC: 698231878613
Log in for inventory
Notify me when this item is in stock.

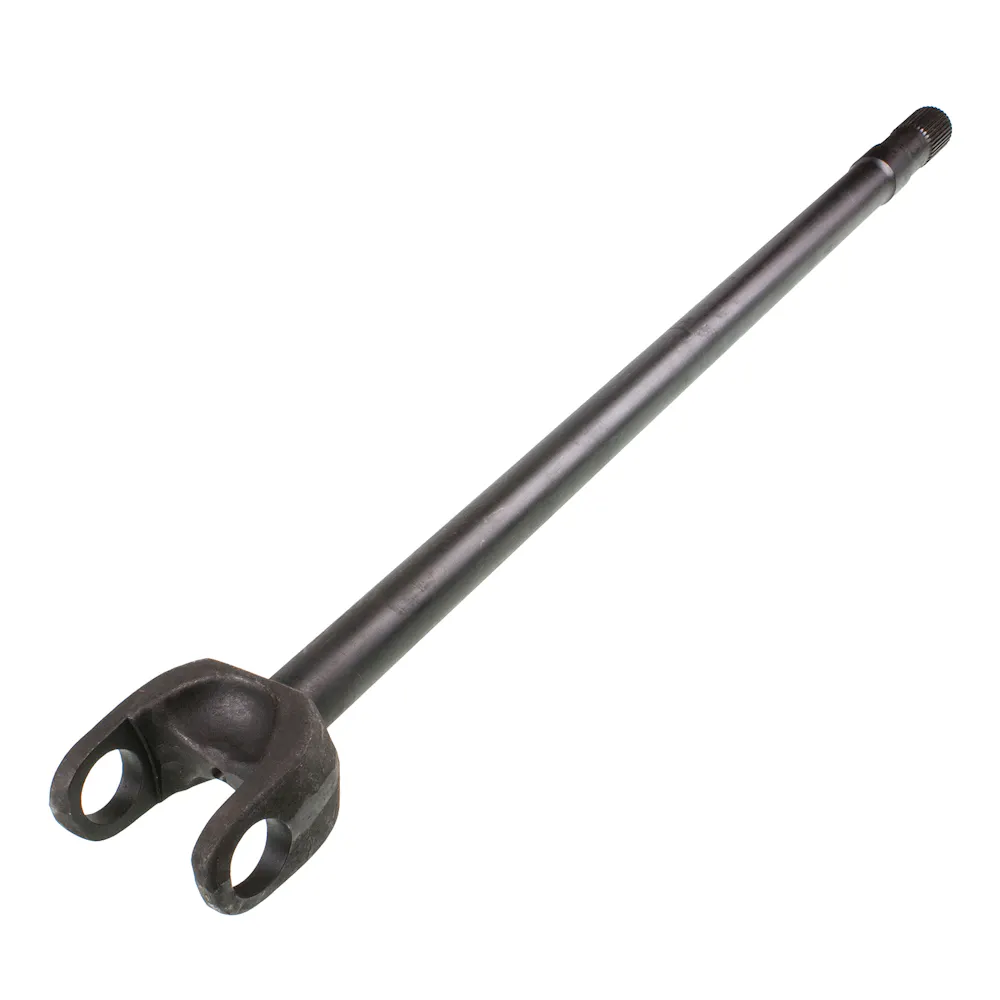

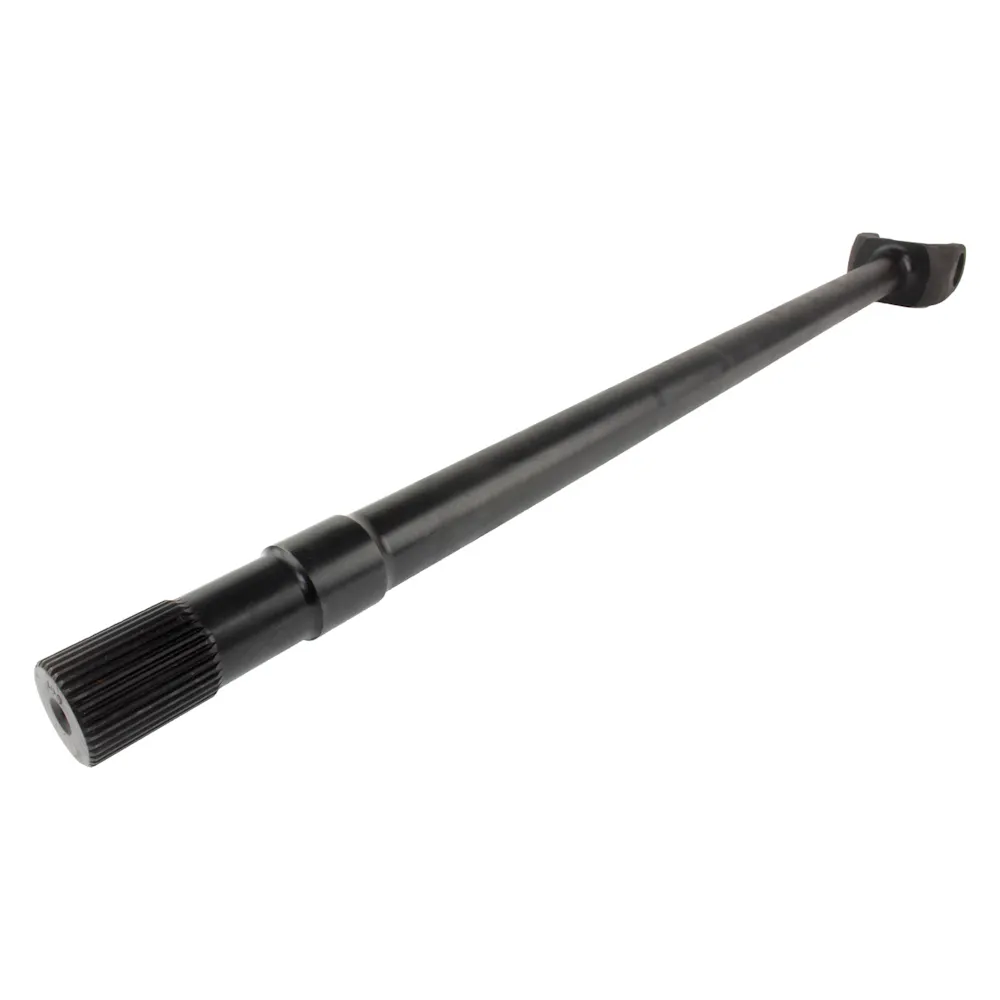

Description: High-strength Drive Axle Shaft handles maximum torque in demanding conditions.; This Drive Axle Shaft is heat treated and precision machined to handle maximum drivetrain torque in commercial truck and heavy-duty applications. It restores correct axle shaft geometry and drivetrain reliability.
Description:
Description
TEN Factory - Precision Forged for Quality, Strength and Performance. All TEN Factory axles feature a 10-year replacement warranty! Front axles and two axle rear kits are black oxide coated. TEN Factory is the brand you can trust for the highest-quality engineered axle shafts and replacement kits. Built with the toughest materials, the wear-resistance of forged steel is heat-treated to produce durable axle shafts for your Jeep, car or truck. Buy with confidence knowing that the latest technologies in metallurgy, heat treating and CNC machining have produced an axle you can count on in the most difficult conditions.
Features & benefits
- Direct replacement for cracked or broken axle shafts, restoring full drivetrain integrity and rated load capacity.
- Eliminates axle shaft flex and vibration that leads to premature wheel bearing, seal, and differential gear wear.
- Heat-treated alloy steel shaft handles maximum axle torque without torsional fatigue in loaded commercial truck applications.
- OEM-matched length and diameter maintain correct bearing preload and wheel hub alignment during assembly.

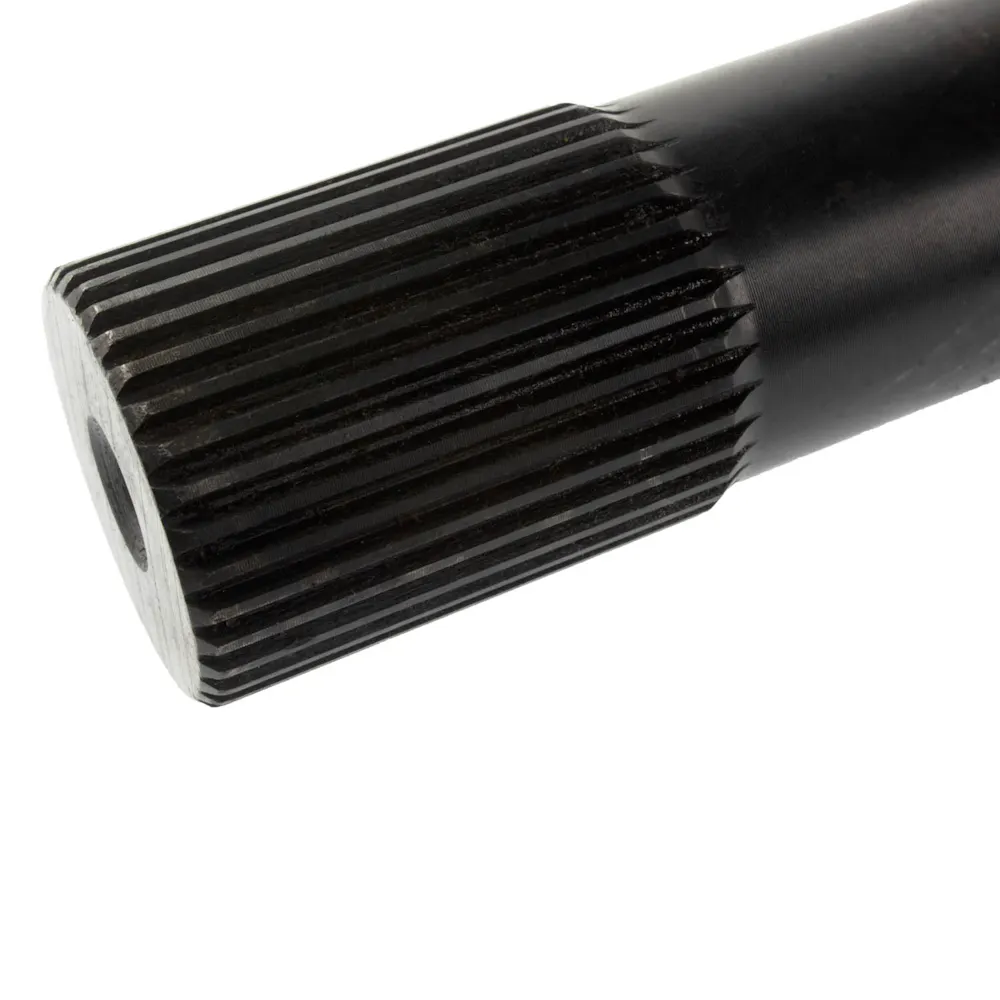

- Precision-machined splines and flange dimensions ensure correct engagement with differential side gears and wheel hubs.
Information
INNER-D60 35.07" 35SPL 78-91 GM/79-93 DG
Application summary
| Year | Make / model |
|---|---|
| 1977-1986 | Chevrolet K30 |
| 1987-1988 | Chevrolet V30 |
| 1989-1991 | Chevrolet V3500 |
| 1975-1980 | Dodge W200 |
| 1981-1993 | Dodge W250 |
| 1975-1980 | Dodge W300 |
| 1981-1993 | Dodge W350 |
| 1977-1978 | GMC K35 |
| 1979-1986 | GMC K3500 |
| 1987-1991 | GMC V3500 |
Specifications
- GTIN
- 00698231878613
- Weight
- 17.85 lb
- Height
- 8 in
- Length
- 44 in
- Width
- 8 in
- EO
- Legal US
- Life cycle
- Available to Order
- AAM brand code
- TEN
- Warehouse brand code
- TEN
- AAIA brand code
- FCHM
Attributes
- 396
- 4340 Chromoly
- 704
- 35
- 2872
- Black Oxide
- 7801
- 35.1
- App/Model
- Dana 60 Standard
- Axle Length
- 35.1
- Axle Material
- 4340 Chromoly
- Axle Shaft Spline Quantity
- 35
- Axle Type
- Dana 60
- California Proposition 65
- WARNING: Cancer - www.P65Warnings.ca.gov
- Coated Finish
- Black Oxide
- Differential Case Design Type
- Dana 60 Standard
- Inboard Spline Quantity
- 35
- Material
- Chromoly
- Outboard Spline Quantity
- 35
- Position
- Front
- Shaft Length
- 35.1
- Shaft Material
- 4340 Chromoly
- Side
- Left (Driver)
- Taxonomy
- Differential LD
- Taxonomy A
- LD Differential
- Taxonomy B
- Axle Shafts
- Taxonomy C
- Axles - Front Inner Chromoly
- Taxonomy D
- Left (Driver)
- Title
- Axle Shaft
- Universal Joint Series
- 1480 WJ
- Universal Joint Series Number
- 1480 WJ
Fitment status
Select a vehicle or engine to see whether this part applies to your application.
Application summary
1977-1986 Chevrolet K30; 1987-1988 Chevrolet V30; 1989-1991 Chevrolet V3500; 1975-1980 Dodge W200; 1981-1993 Dodge W250; 1975-1980 Dodge W300; 1981-1993 Dodge W350; 1977-1978 GMC K35; 1979-1986 GMC K3500; 1987-1991 GMC V3500

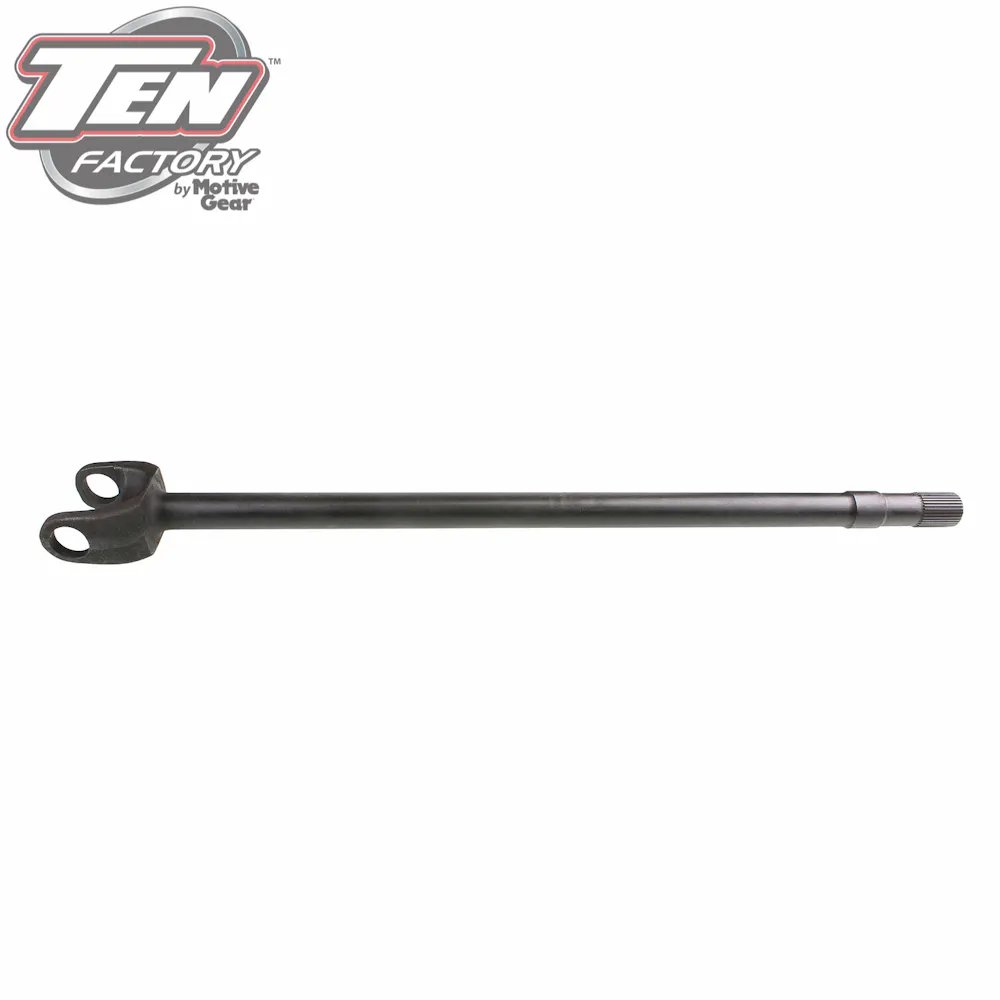

TEN Factory MG20661B
