TEN Factory · MG20221B
Part #: MG20221B
UPC: 698231878514
Log in for inventory
Notify me when this item is in stock.
Description: High-strength Drive Axle Shaft handles maximum torque in demanding conditions.; This Drive Axle Shaft is heat treated and precision machined to handle maximum drivetrain torque in commercial truck and heavy-duty applications. It restores correct axle shaft geometry and drivetrain reliability.
Description:
Description
TEN Factory - Precision Forged for Quality, Strength and Performance. All TEN Factory axles feature a 10-year replacement warranty! Front axles and two axle rear kits are black oxide coated. TEN Factory is the brand you can trust for the highest-quality engineered axle shafts and replacement kits. Built with the toughest materials, the wear-resistance of forged steel is heat-treated to produce durable axle shafts for your Jeep, car or truck. Buy with confidence knowing that the latest technologies in metallurgy, heat treating and CNC machining have produced an axle you can count on in the most difficult conditions.
Features & benefits
- Direct replacement for cracked or broken axle shafts, restoring full drivetrain integrity and rated load capacity.
- Eliminates axle shaft flex and vibration that leads to premature wheel bearing, seal, and differential gear wear.
- Heat-treated alloy steel shaft handles maximum axle torque without torsional fatigue in loaded commercial truck applications.
- OEM-matched length and diameter maintain correct bearing preload and wheel hub alignment during assembly.
- Precision-machined splines and flange dimensions ensure correct engagement with differential side gears and wheel hubs.
Information

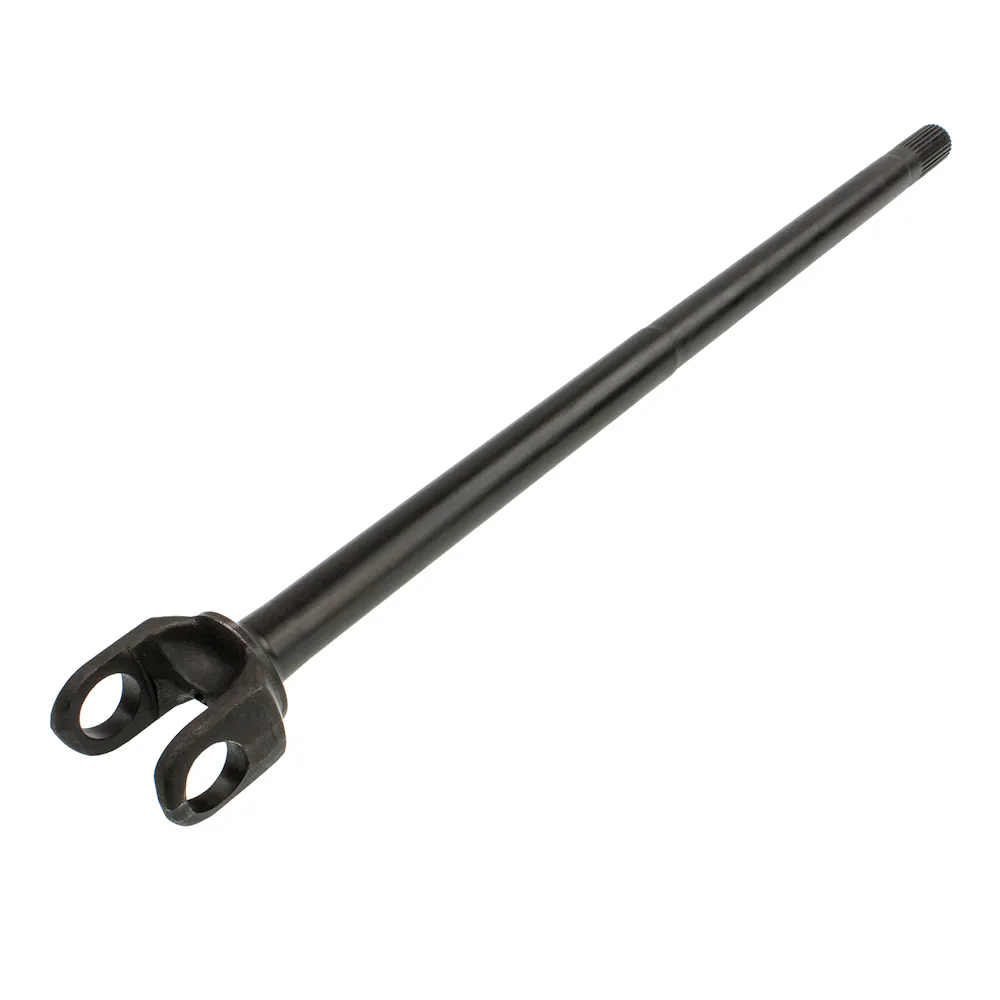

INNER-DANA 30 28.69" 27SPL 1982-86 CJ LH
Application summary
| Year | Make / model |
|---|---|
| 1982-1983 | Jeep CJ5 |
| 1982-1986 | Jeep CJ7 |
Specifications
- GTIN
- 00698231878514
- Weight
- 10.4 lb
- Height
- 8.5 in
- Length
- 36 in
- Width
- 8.5 in
- EO
- Legal US
- Life cycle
- Available to Order
- AAM brand code
- TEN
- Warehouse brand code
- TEN
- AAIA brand code
- FCHM
Attributes
- 396
- 4340 Chromoly
- 704
- 27
- 2872
- Black Oxide
- 7801
- 28.69
- App/Model
- Dana 30 Standard
- Axle Length
- 28.69
- Axle Material
- 4340 Chromoly
- Axle Shaft Spline Quantity
- 27
- Axle Type
- Dana 30
- California Proposition 65
- WARNING: Cancer - www.P65Warnings.ca.gov
- Coated Finish
- Black Oxide
- Differential Case Design Type
- Dana 30 Standard
- Inboard Spline Quantity
- 27
- Material
- Chromoly
- Outboard Spline Quantity
- 27
- Position
- Front
- Shaft Length
- 28.69
- Shaft Material
- 4340 Chromoly
- Side
- Left (Driver)
- Taxonomy
- Differential LD
- Taxonomy A
- LD Differential
- Taxonomy B
- Axle Shafts
- Taxonomy C
- Axles - Front Inner Chromoly
- Taxonomy D
- Left (Driver)
- Title
- Axle Shaft
- Universal Joint Series
- 1310 WJ
- Universal Joint Series Number
- 1310 WJ
Fitment status
Select a vehicle or engine to see whether this part applies to your application.
Application summary
1982-1983 Jeep CJ5; 1982-1986 Jeep CJ7

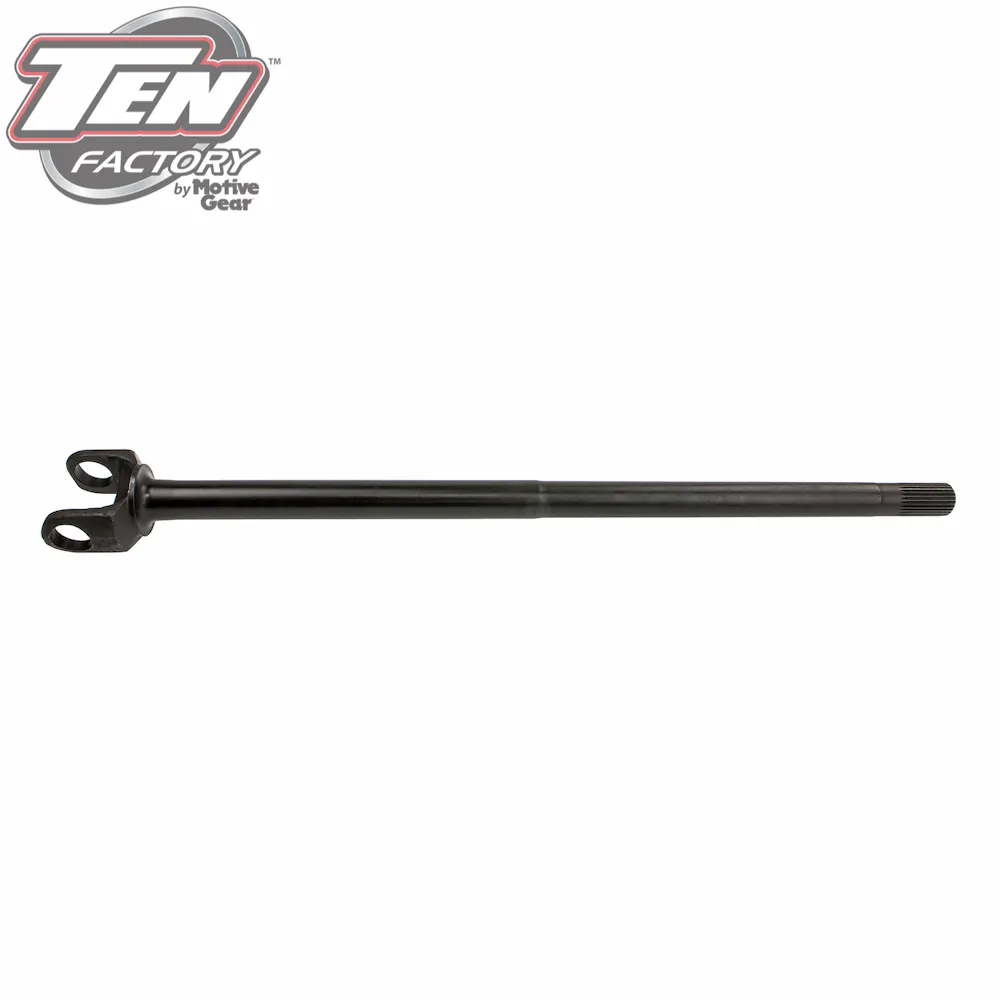

TEN Factory MG20221B
