Superwinch / 1712201

Part #: 1712201
UPC: 022705003902

Loading availability... Loading...

Notify me when this item is in stock.

Brand: Superwinch Series: SX Series Winches

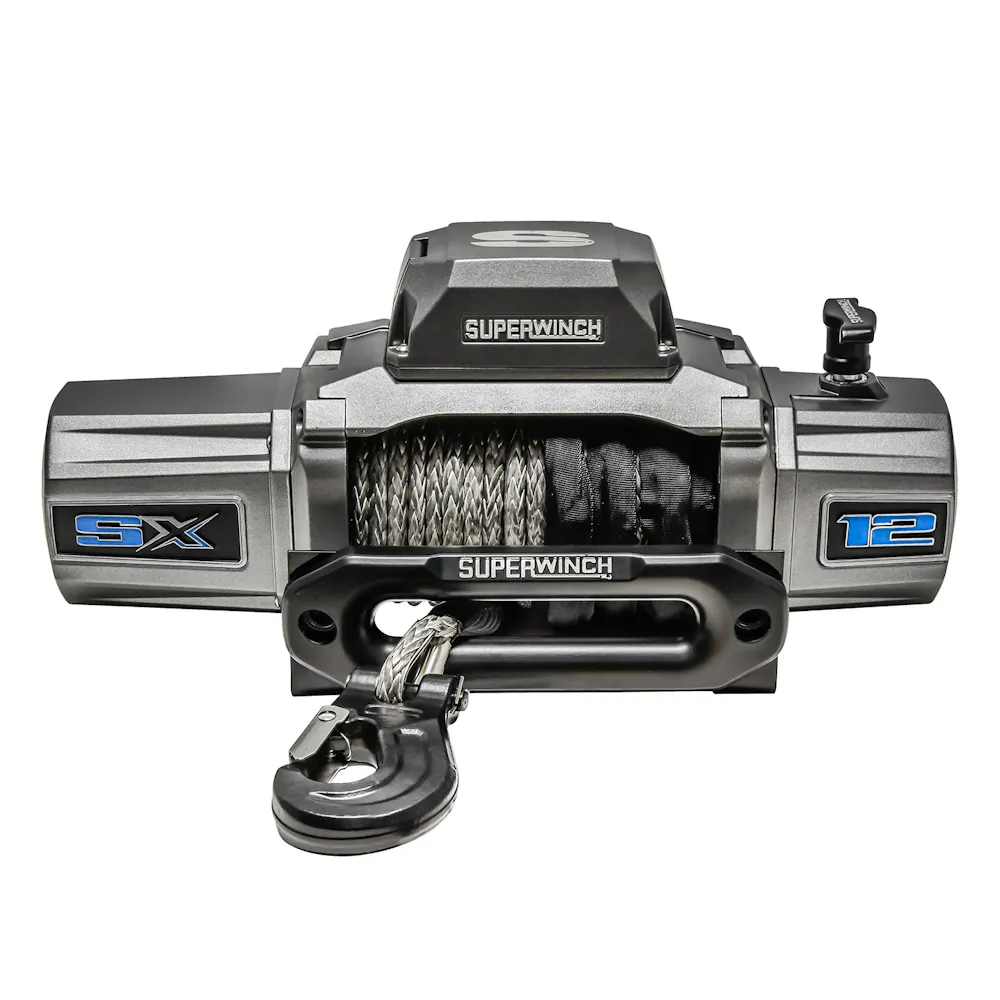

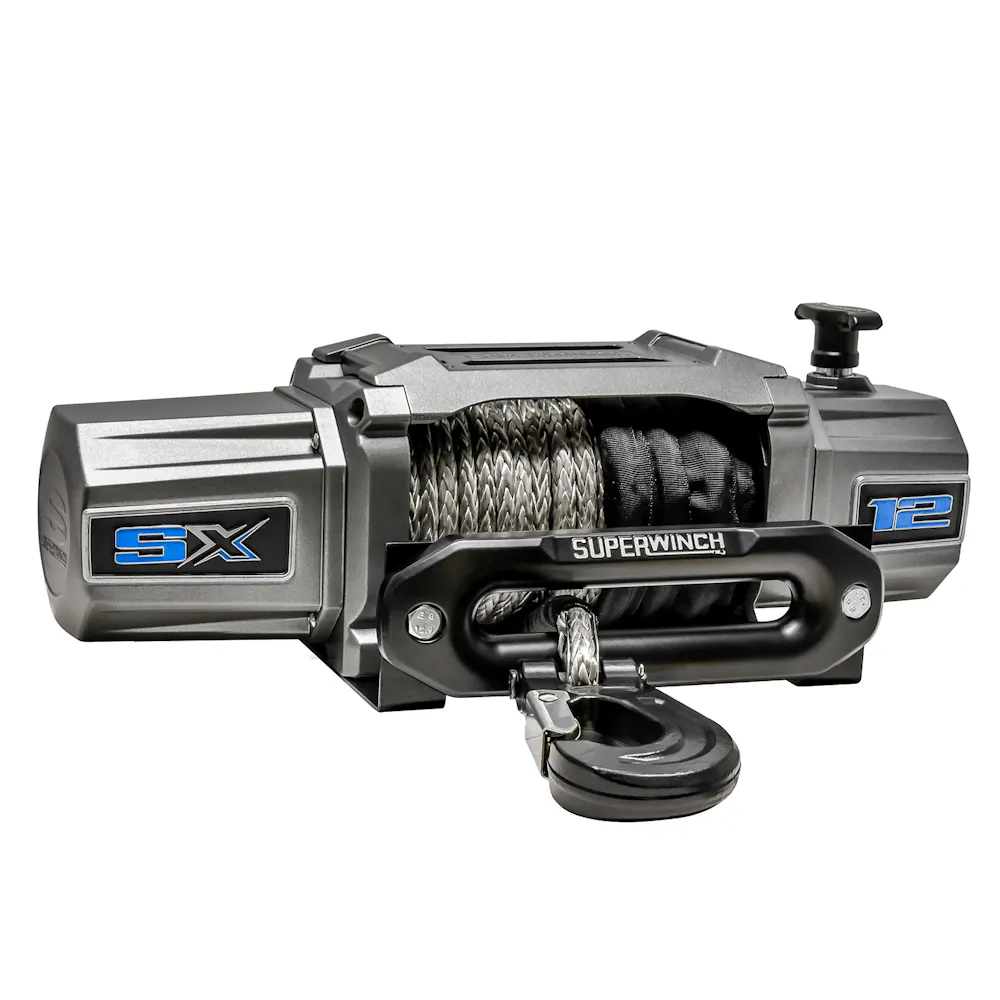

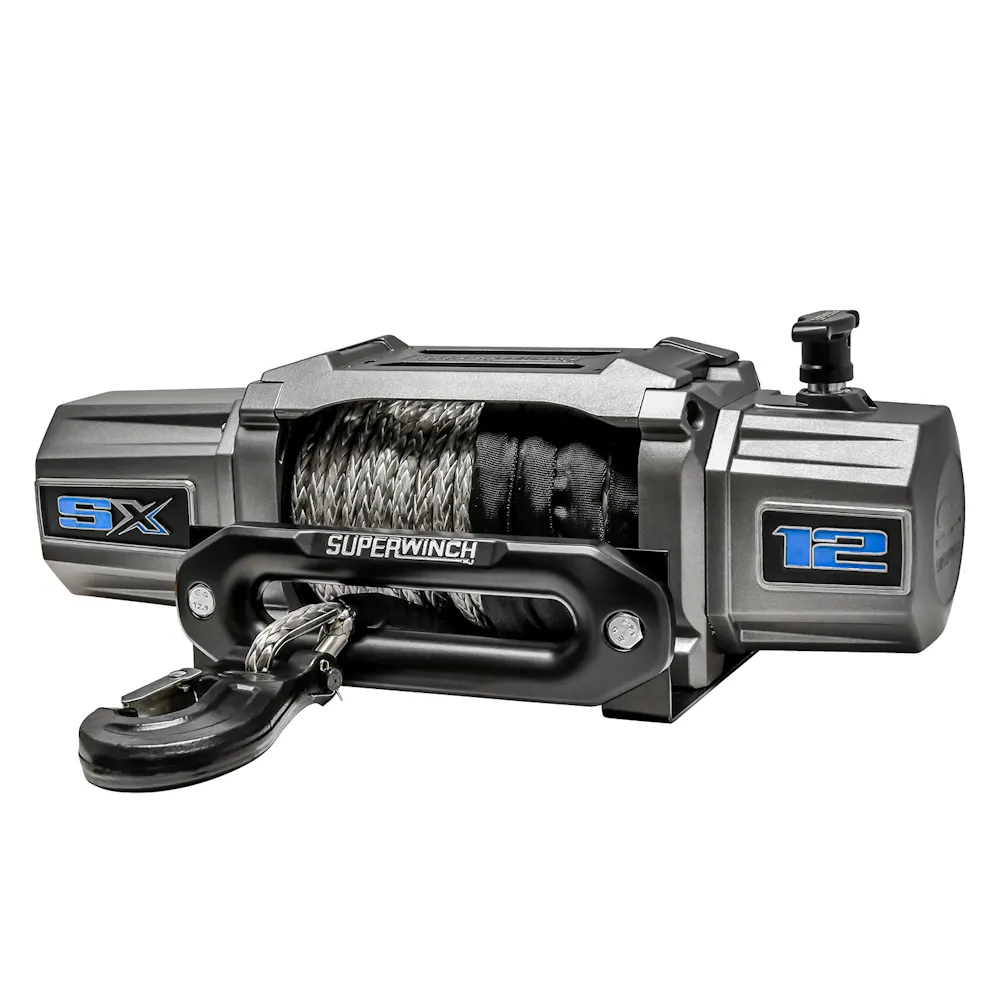

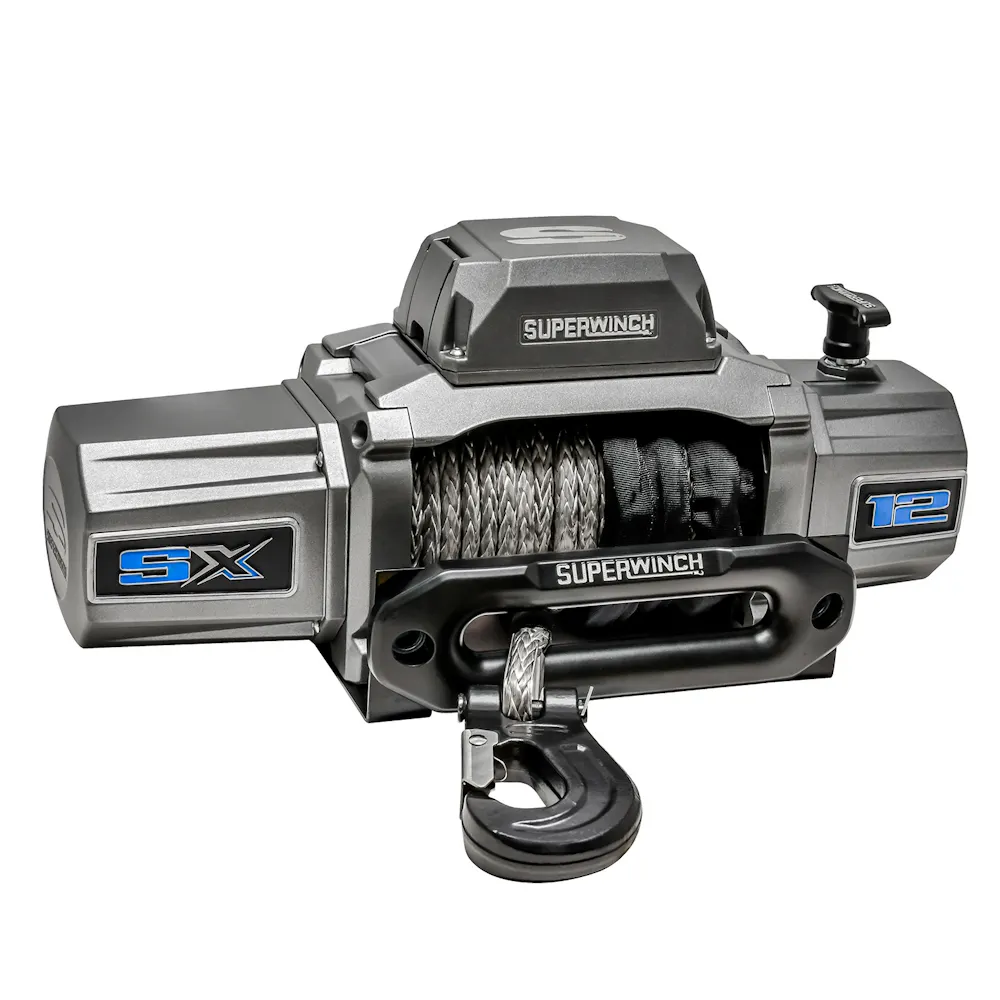

Description: SX12SR Winch; 12000 lbs.; 12 VDC; 3/8 in x 80 ft. Synthetic Rope; Handheld Remote Control; 6.0 HP; Automatic Brake; 3-Stage Planetary; Aluminum Hawse Fairlead;

Cancer and Reproductive Harm - www.P65Warnings.ca.gov

Description

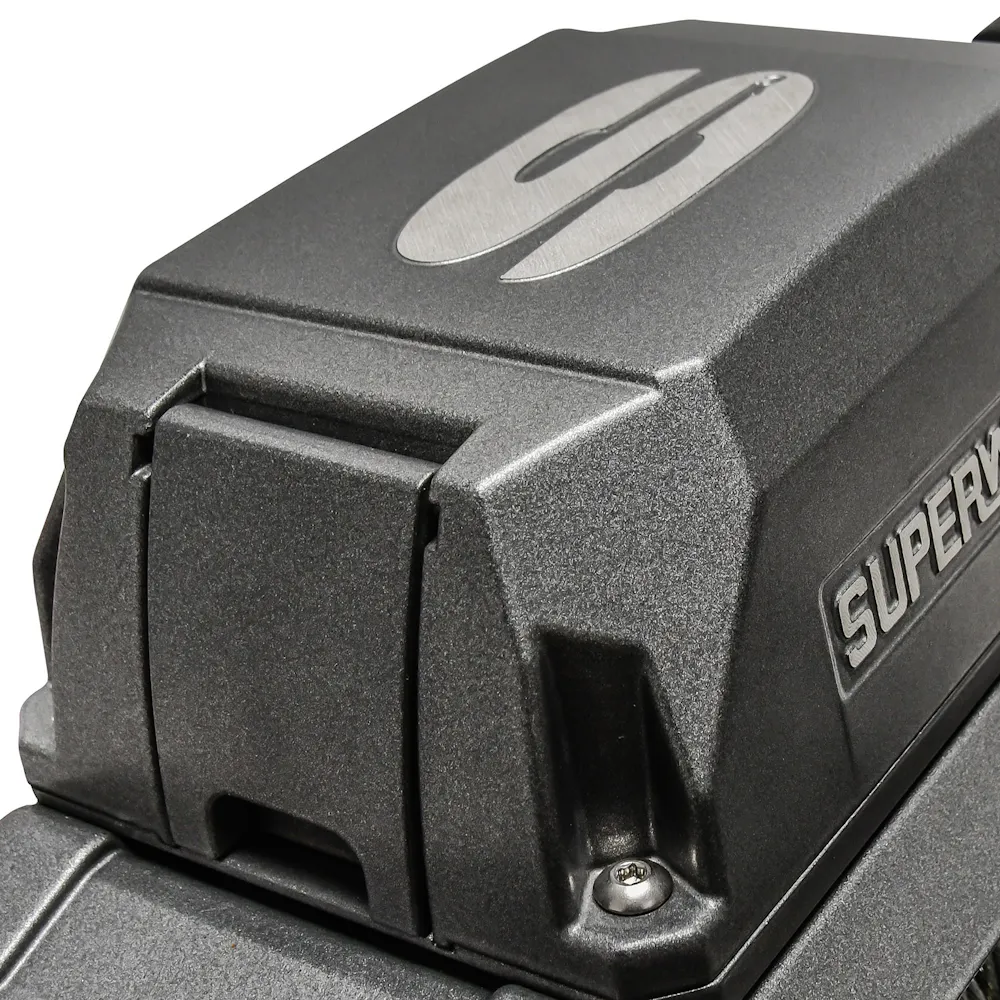

The SX12SR is engineered to provide users the ideal combination of power, speed, innovation, and proven performance they demand from Superwinch. Innovative features such as a patented drum light, relocatable die-cast aluminum control box, 3/8 in. diameter synthetic rope, a 12' lighted wired remote, and wireless handheld remote. SX Series winches exceed the most demanding standards of today's modern vehicles, while delivering an affordable and stylish design which incorporates many class leading features not found in other high-performance winches. Providing 12,000 lbs. of raw pulling power, the new SX12SR synthetic rope model has a sleek modern look and is built to last. With an IP68 rating for dustproof and waterproof operation, and a durable metallic graphite powder-coated finish this winch has it all.

Features & benefits

Rated Line Pull Of 12000 Lbs

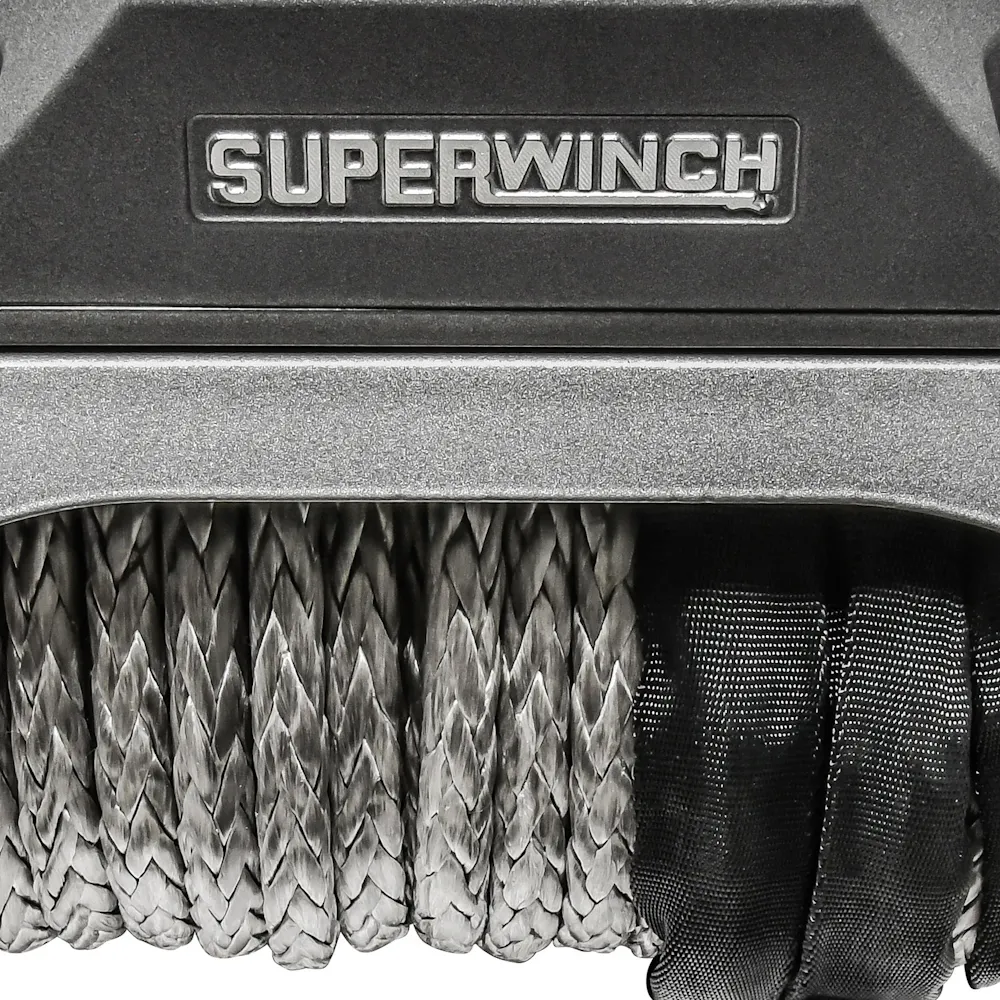

Synthetic Rope Measures 3/8 in. X 80 Ft

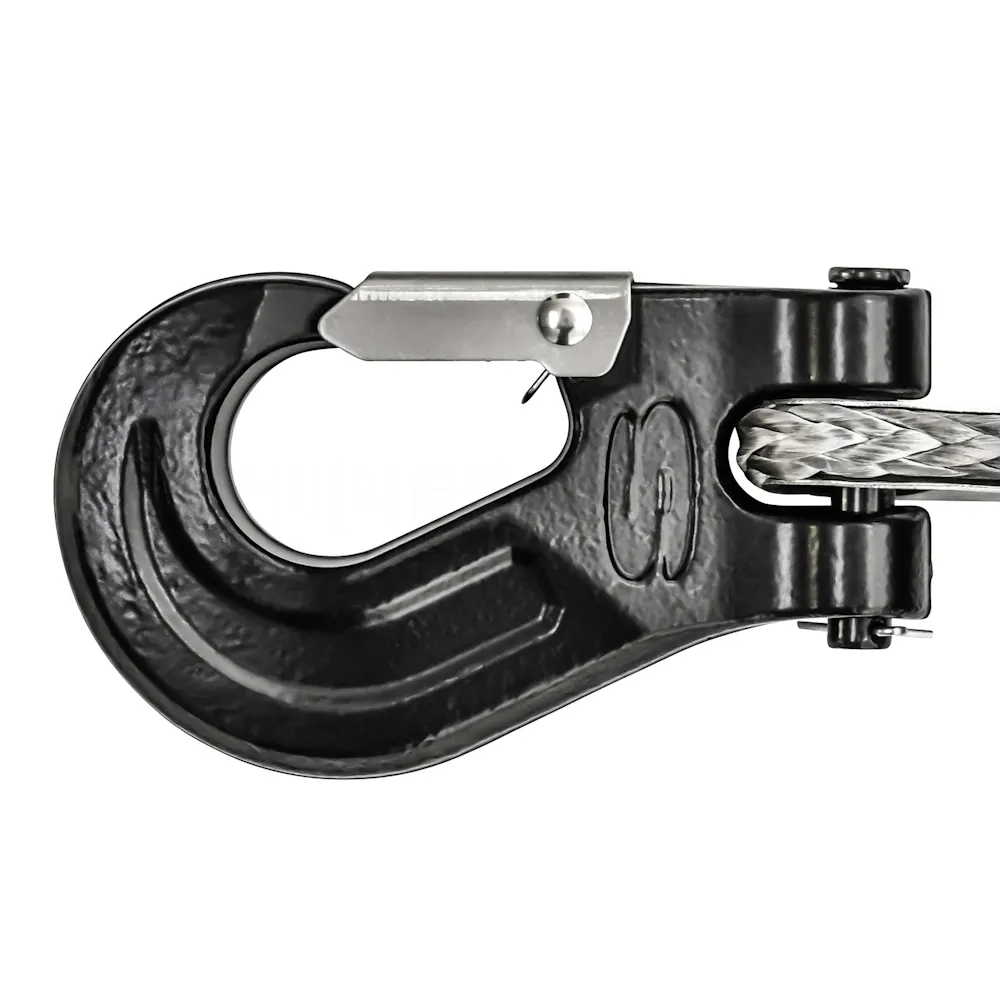

Heavy Duty Clevis Winch Hook
Aluminum Hawse Fairlead
100% Full Load Holding Automatic Mechanical Brake
IP68-Rated Waterproof And Dustproof Winch
Durable Metallic Graphite Powder Coat Finish
6.0 Hp Sealed Motor

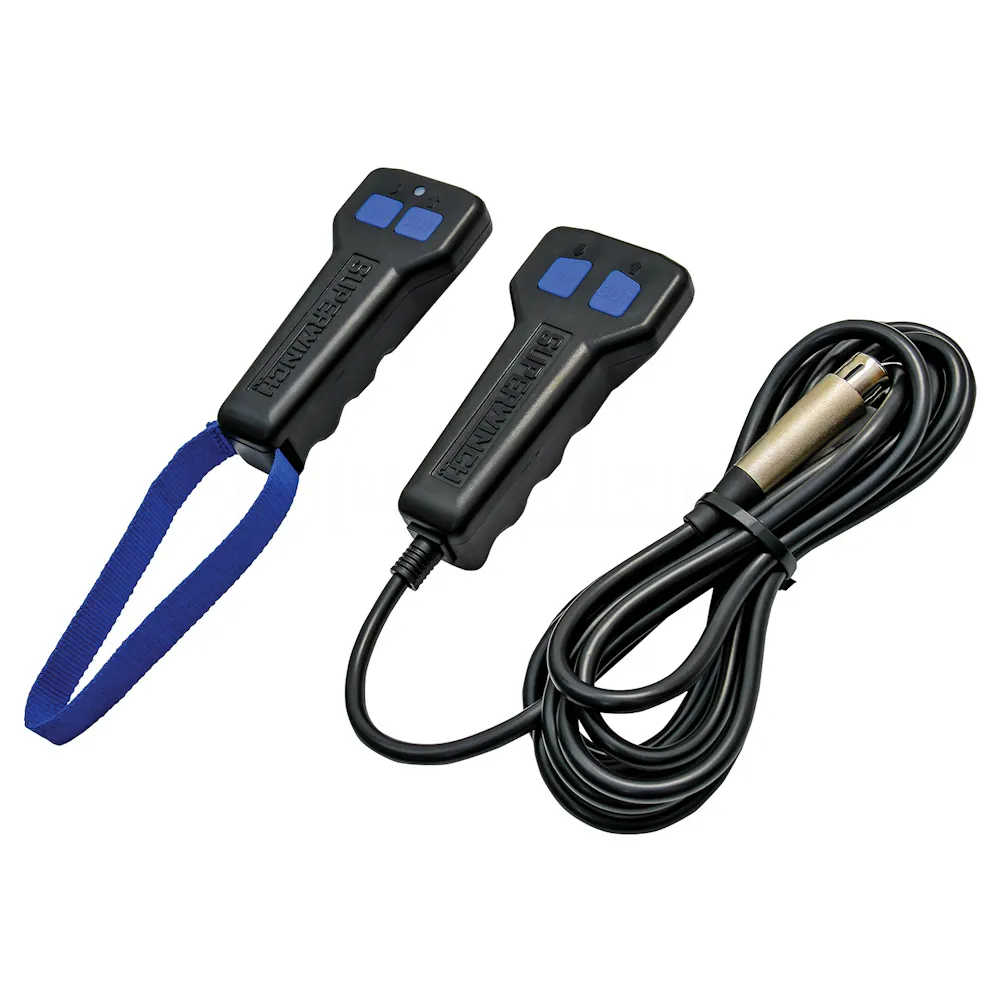

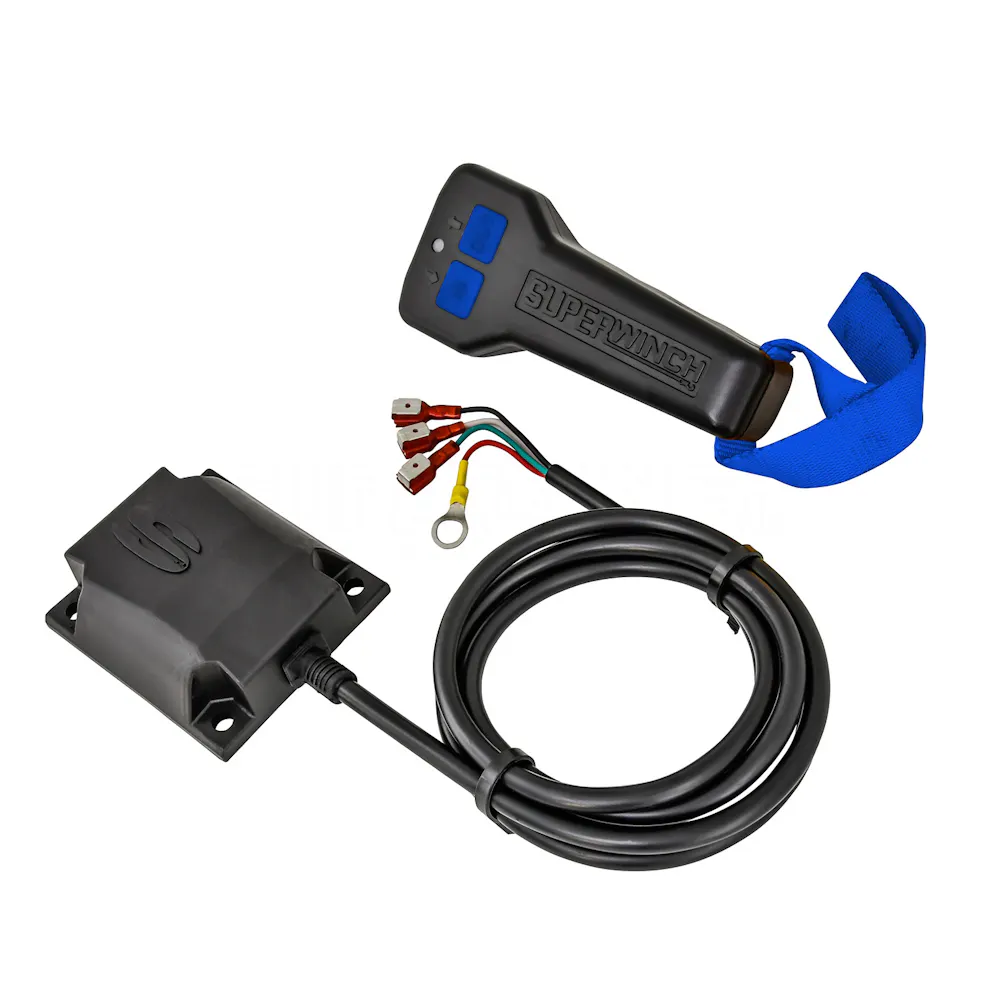

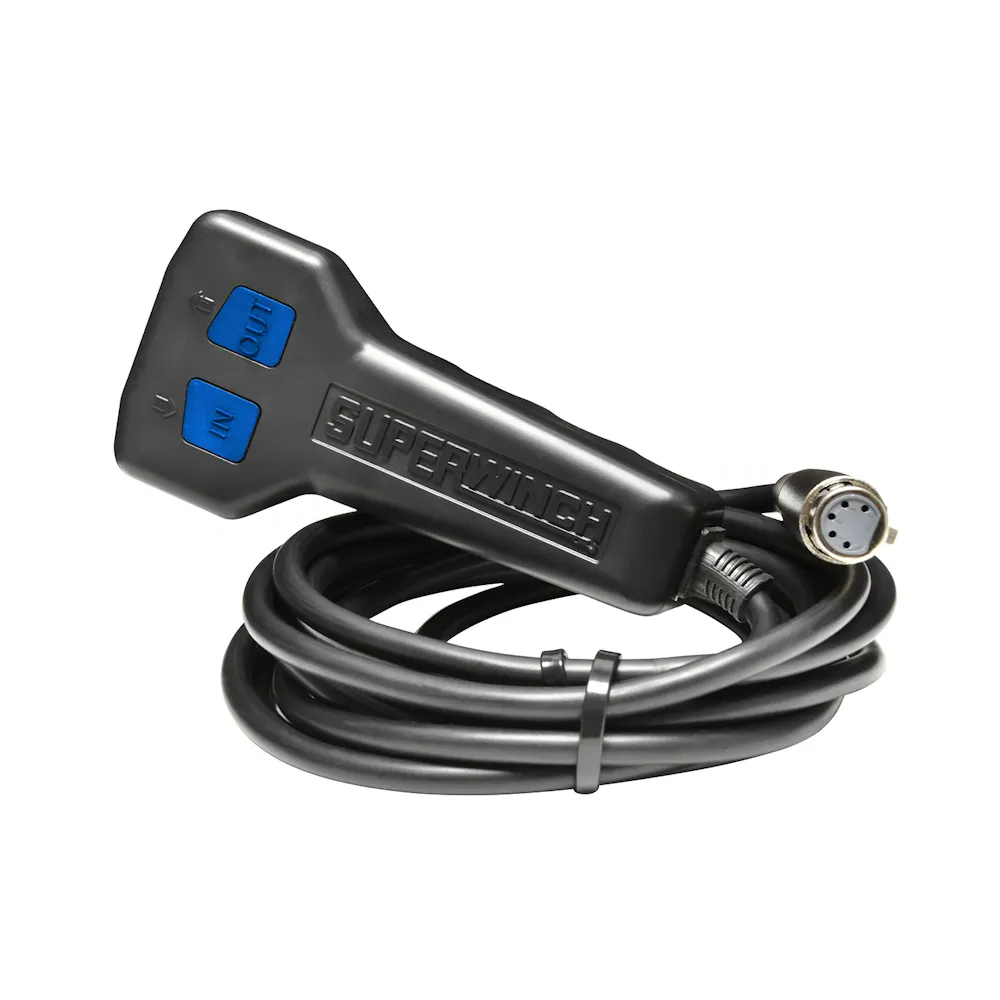

Incl. Wireless Handheld Remote And 12 Ft Handheld Wired Remote

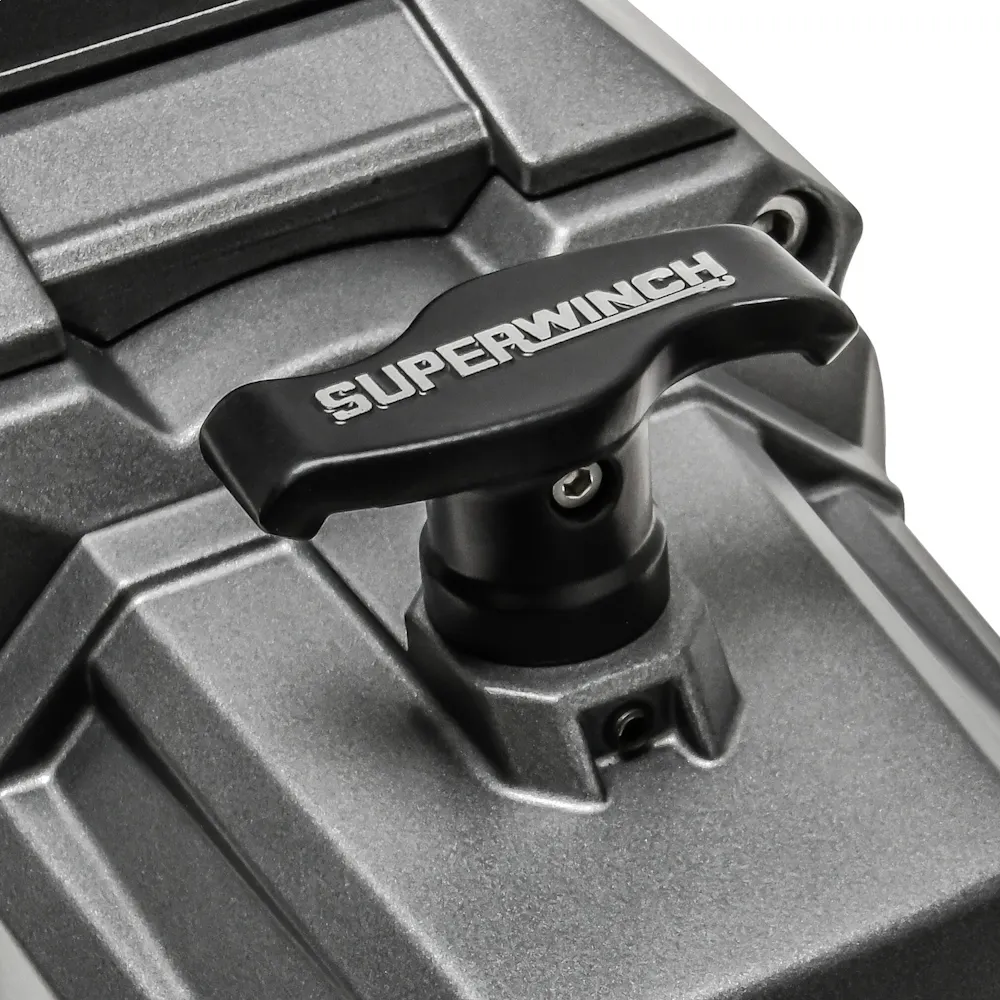

Pull-And Turn Clutch Handle
3-Stage Planetary Gearing With 231:1 Ratio
Patented Drum Light

Specifications

GTIN: 00022705003902
Weight: 62 lb
Height: 12 in
Length: 24 in
Width: 13 in
Life cycle: Available to Order
AAM brand code: SPW
Warehouse brand code: SPW
AAIA brand code: BGFJ

Attributes

California Proposition 65: WARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov
Can Ship By Ground Delivery: Yes
Dimensions: 22.04in L x 6.3in W x 9.67in H (559.8mm L x 160.02mm W x 245.62mm H)
EN Compliant: No
Finish/Color: Graphite
Freight Class: 65
Hook: Heavy-Duty, Clevis Pinned Latched
Line Speed: 68 Amps Motor Draw/23.4 FPM (7.13 MPM)
Marketing Status: Current
Mounting Bolt Pattern: 10in x 4.5in (254mm x 114.3mm)
Rated Single Line Pull (Lbs): 12000
Rated Single Line Pull (lbs.): 12000
Rope Material: Synthetic
Superwinch WEB Title: SX12SR Winch 12V 12000 lbs with Synthetic Rope & Wired Remote
Type: Automotive
Voltage: 12V DC
Warranty: Limited Lifetime Mechanical/7 Year Limited Electrical
