Superwinch / 1710200

Part #: 1710200
UPC: 022705003872

Loading availability... Loading...

Notify me when this item is in stock.

Brand: Superwinch Series: SX Series Winches

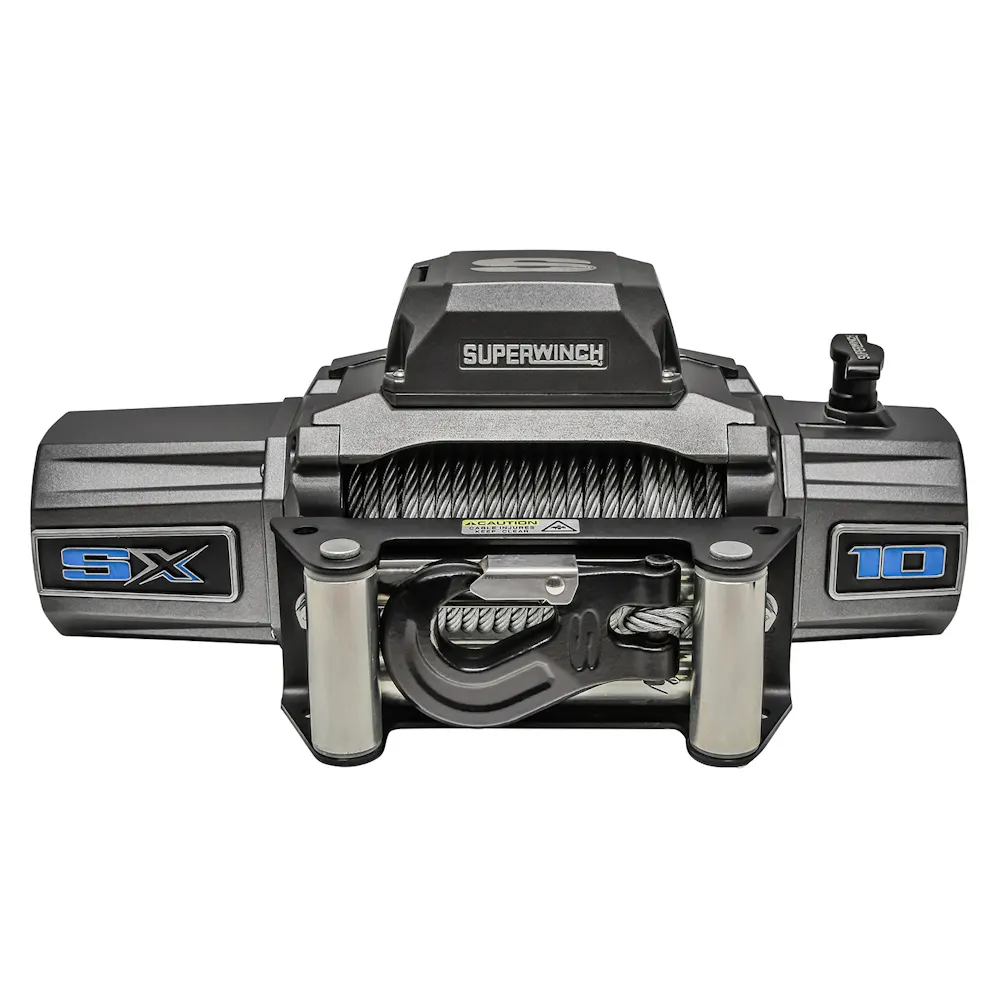

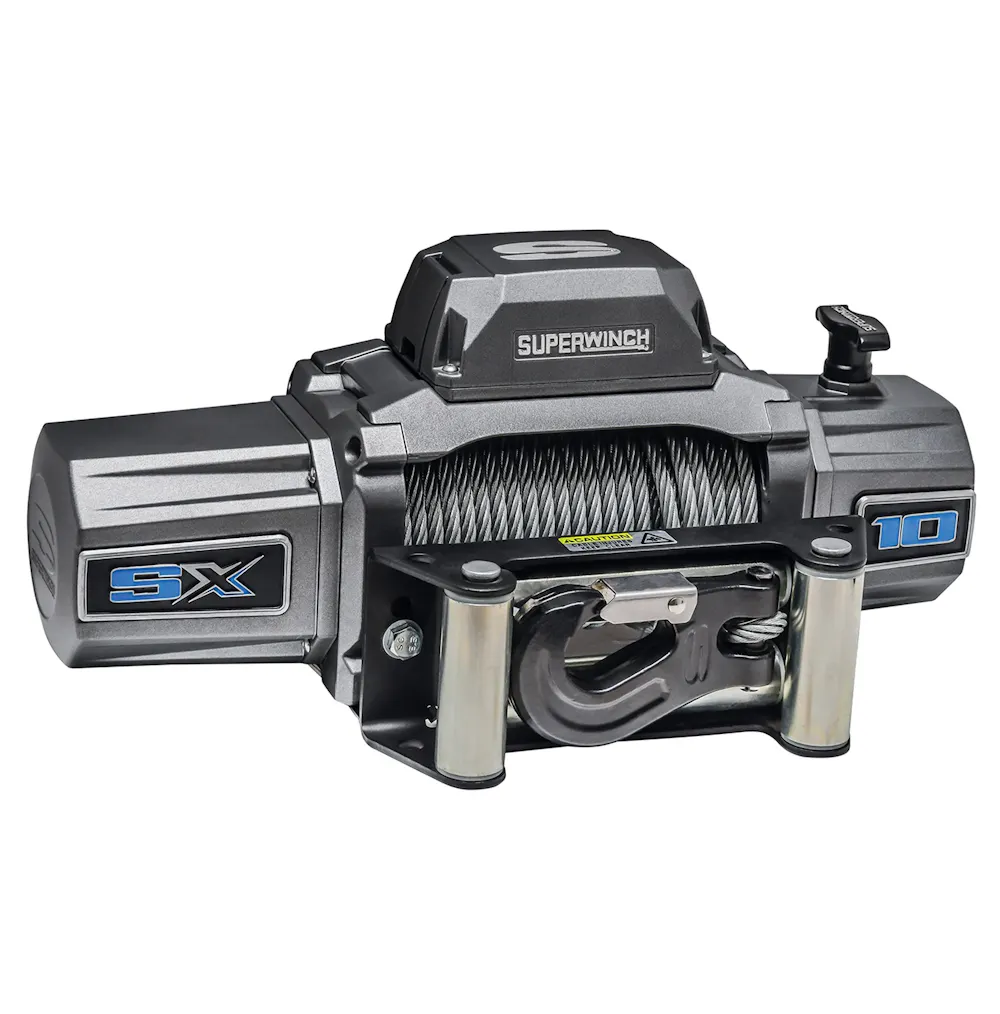

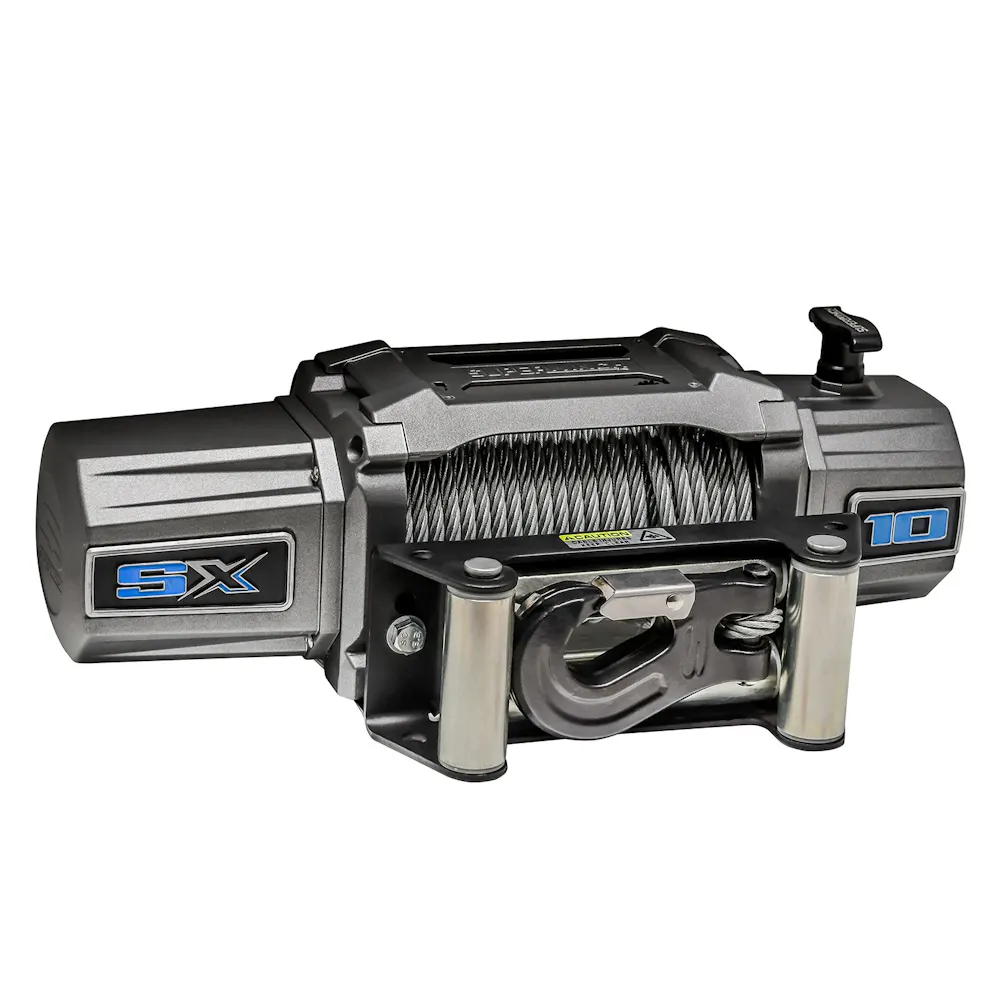

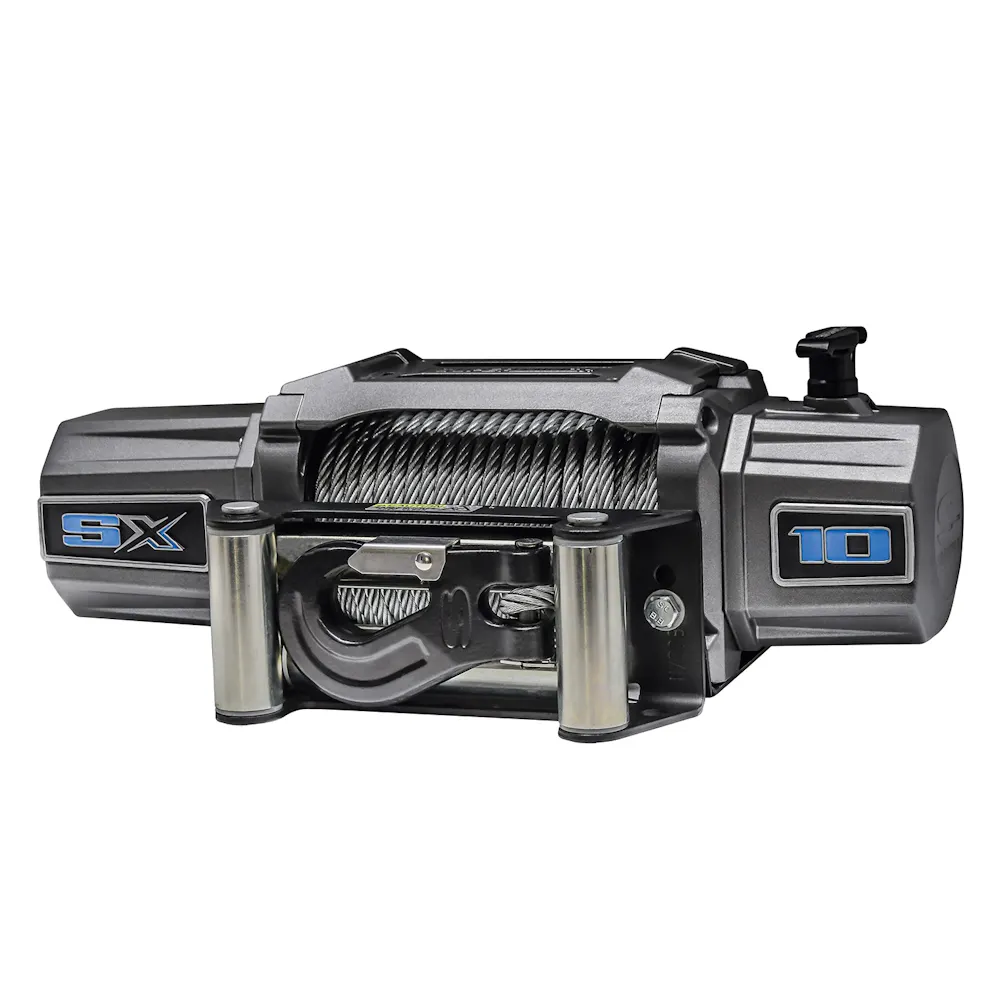

Description: SX10 Winch; 10000 lbs.; 12 VDC; 3/8 in. X 85 ft. Wire Rope; Handheld Remote Control; 5.5 HP; Automatic Brake; 3-Stage Planetary; Stainless Steel 4-Way Roller Fairlead;

Cancer and Reproductive Harm - www.P65Warnings.ca.gov

Description

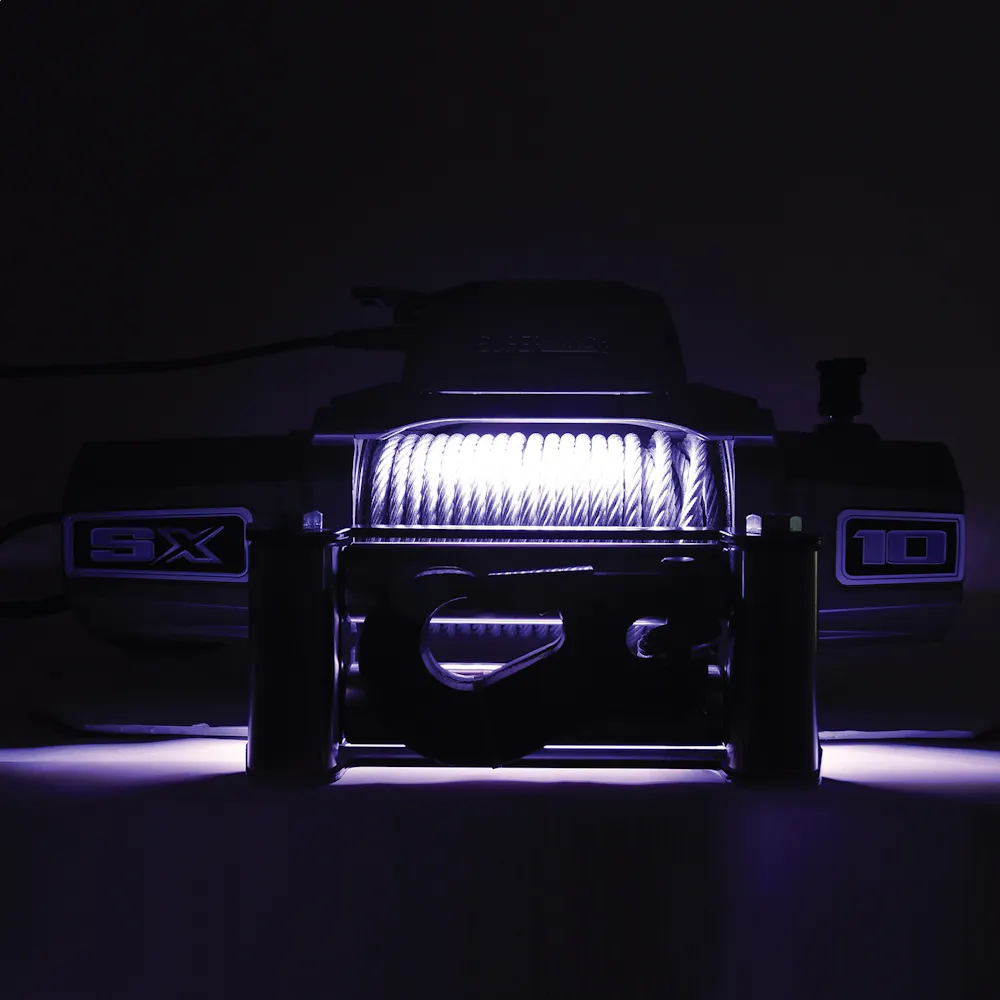

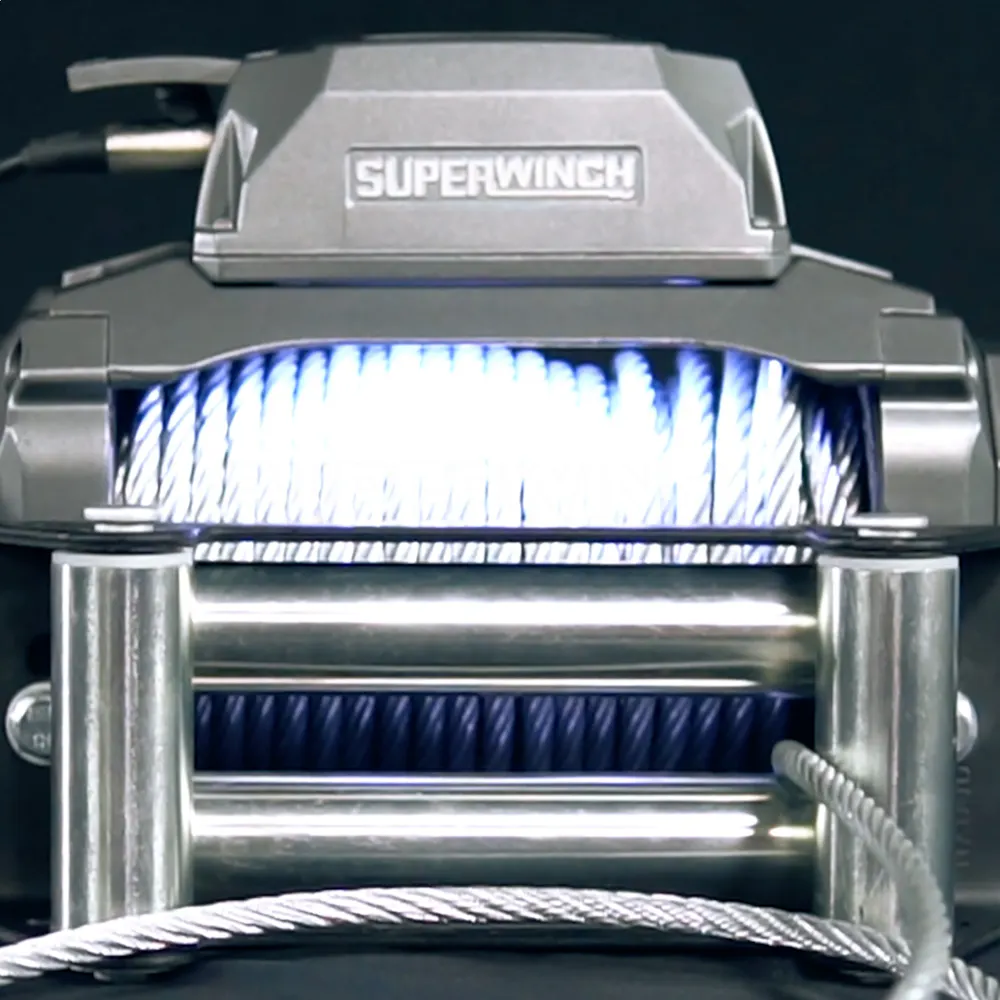

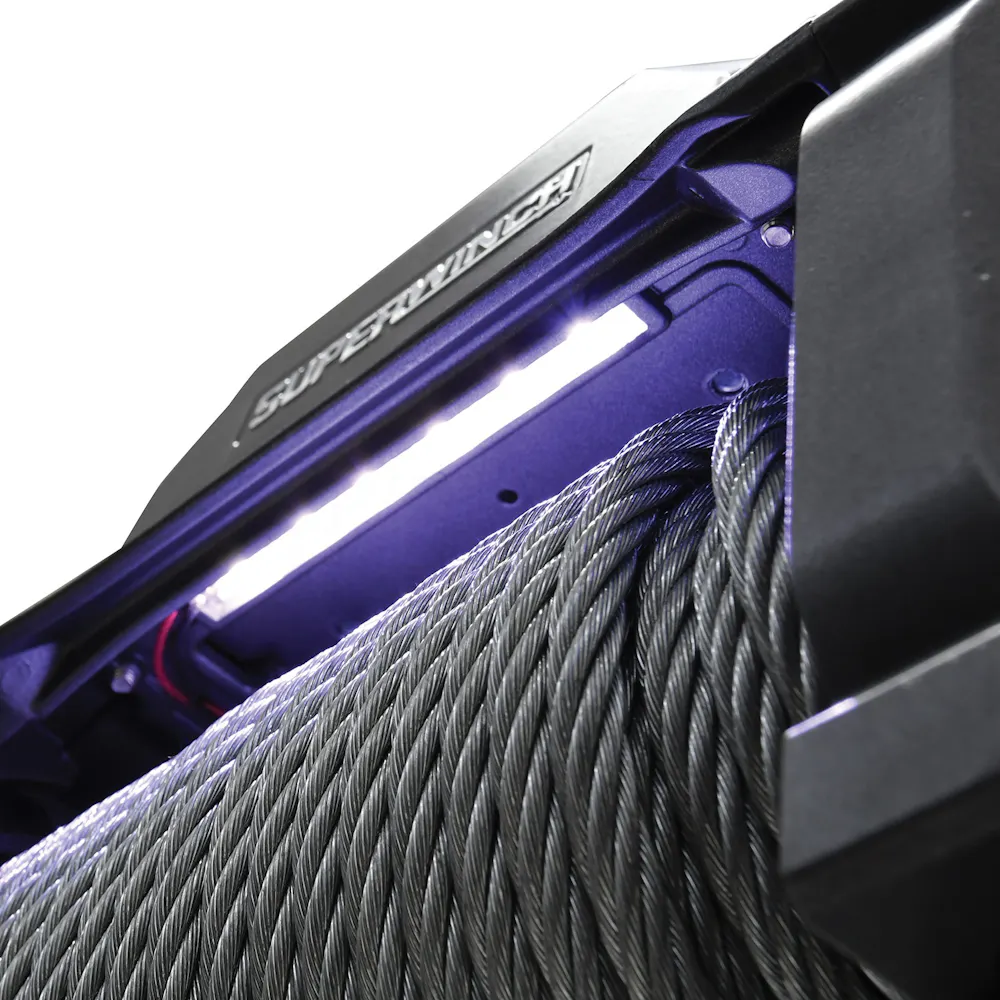

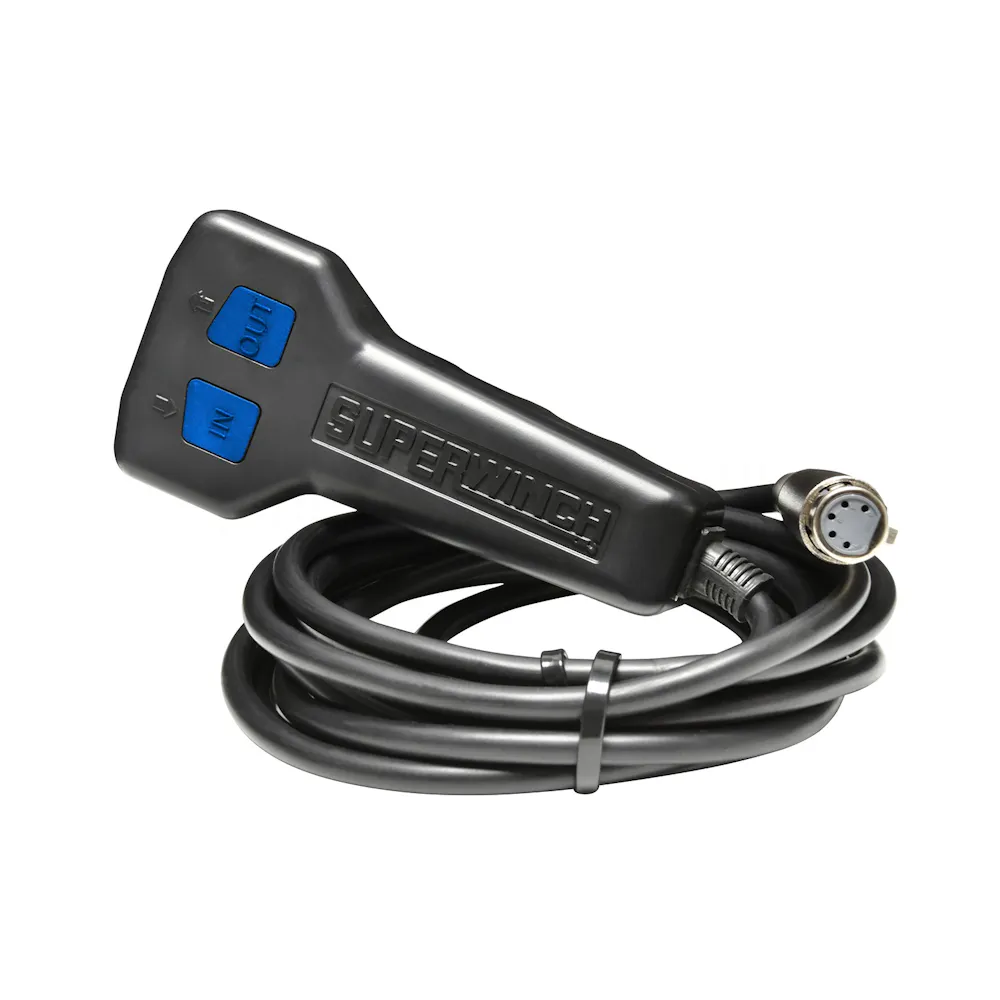

The SX10 is engineered to provide users the ideal combination of power, speed, innovation, and proven performance they demand from Superwinch. SX Series winches exceed the most demanding standards of today's modern vehicles, while delivering an affordable and stylish design which incorporates many class leading features not found in other high-performance winches. Available in 10,000 lbs. of raw pulling power, the new SX series has an IP68 rating for dustproof and waterproof operation while the sleek modern look is finished with a durable metallic graphite powder-coat that is built to last. Combined with innovative features such as a patented drum light, relocatable control box and a lighted remote, and steel winch rope, this winch has it all.

Features & benefits

Rated Line Pull Of 10000 Lbs
IP68-Rated Waterproof And Dustproof Winch
Durable Metallic Graphite Powder Coat Finish
Mechanical Warranty Limited Lifetime
Electrical Warranty Limited 7 Year
5.5 HP Sealed Motor

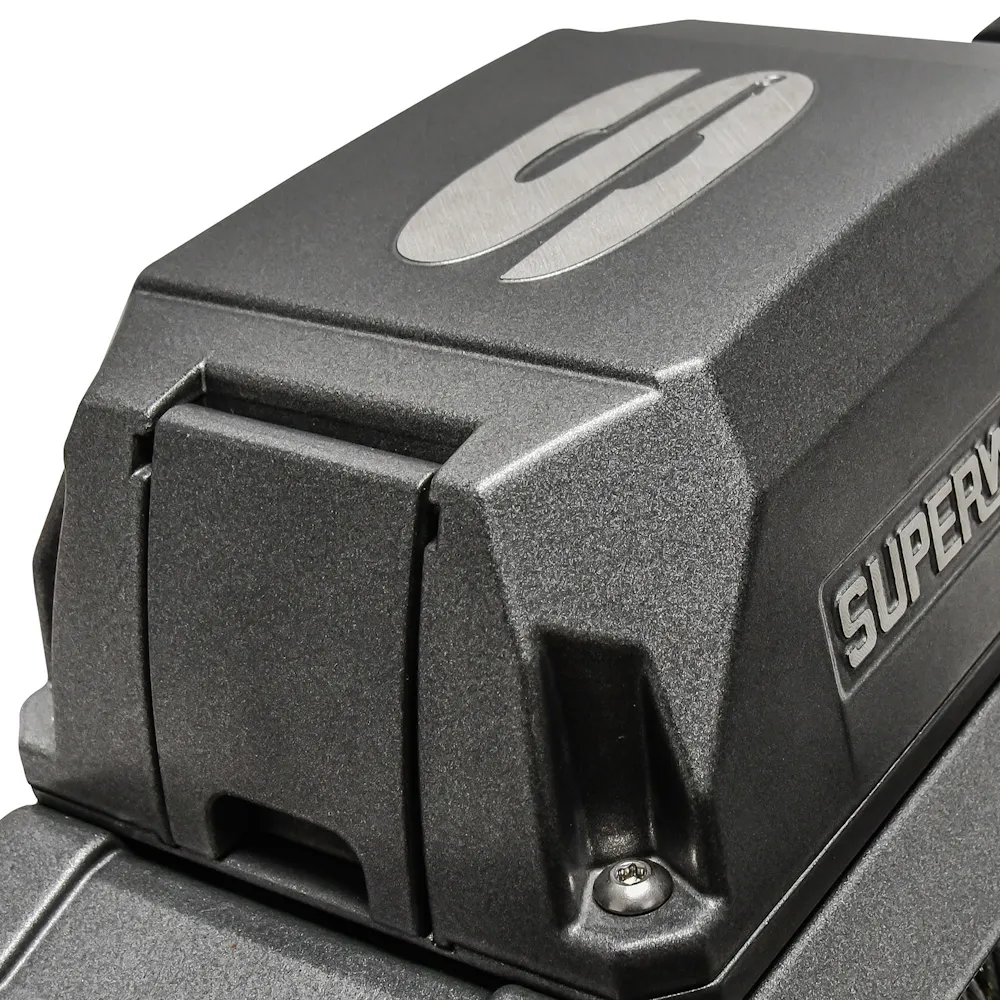

Relocatable Die-Cast Aluminum Control Box

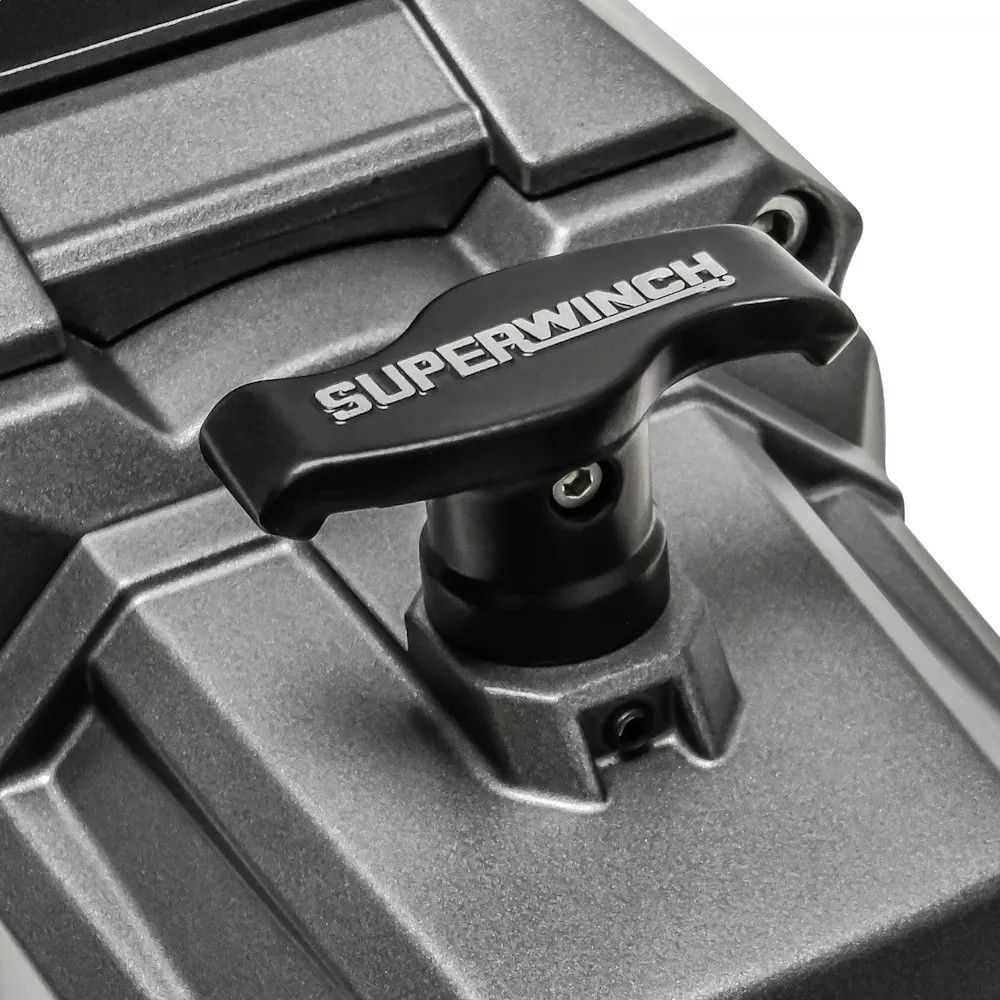

Pull-And Turn Clutch Handle
3-Stage Planetary Gearing w/218:1 Ratio

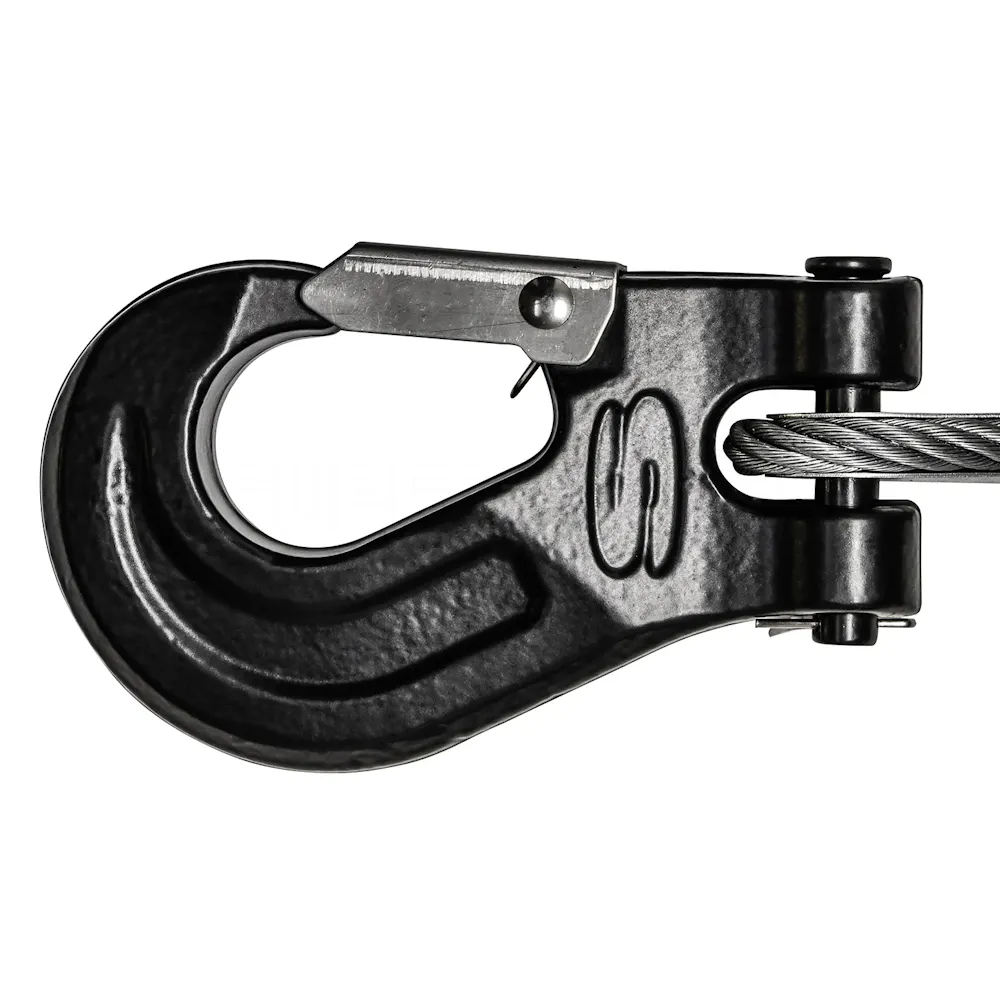

Heavy Duty Clevis Winch Hook
100% Full Load Holding Automatic Mechanical Brake

Specifications

GTIN: 00022705003872
Weight: 88 lb
Height: 12 in
Length: 24 in
Width: 13 in
Life cycle: Available to Order
AAM brand code: SPW
Warehouse brand code: SPW
AAIA brand code: BGFJ

Attributes

California Proposition 65: WARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov
Can Ship By Ground Delivery: Yes
Dimensions: 22.04in L x 6.3in W x 9.67in H (559.8mm L x 160.02mm W x 245.62mm H)
EN Compliant: No
Finish/Color: Graphite
Freight Class: 60
Hook: Heavy-Duty, Clevis Pinned Latched
Line Speed: 85 Amps Motor Draw/27.3 FPM (8.32 MPM)
Marketing Status: Current
Mounting Bolt Pattern: 10in x 4.5in (254mm x 114.3mm)
Rated Single Line Pull (Lbs): 10000
Rated Single Line Pull (lbs.): 10000

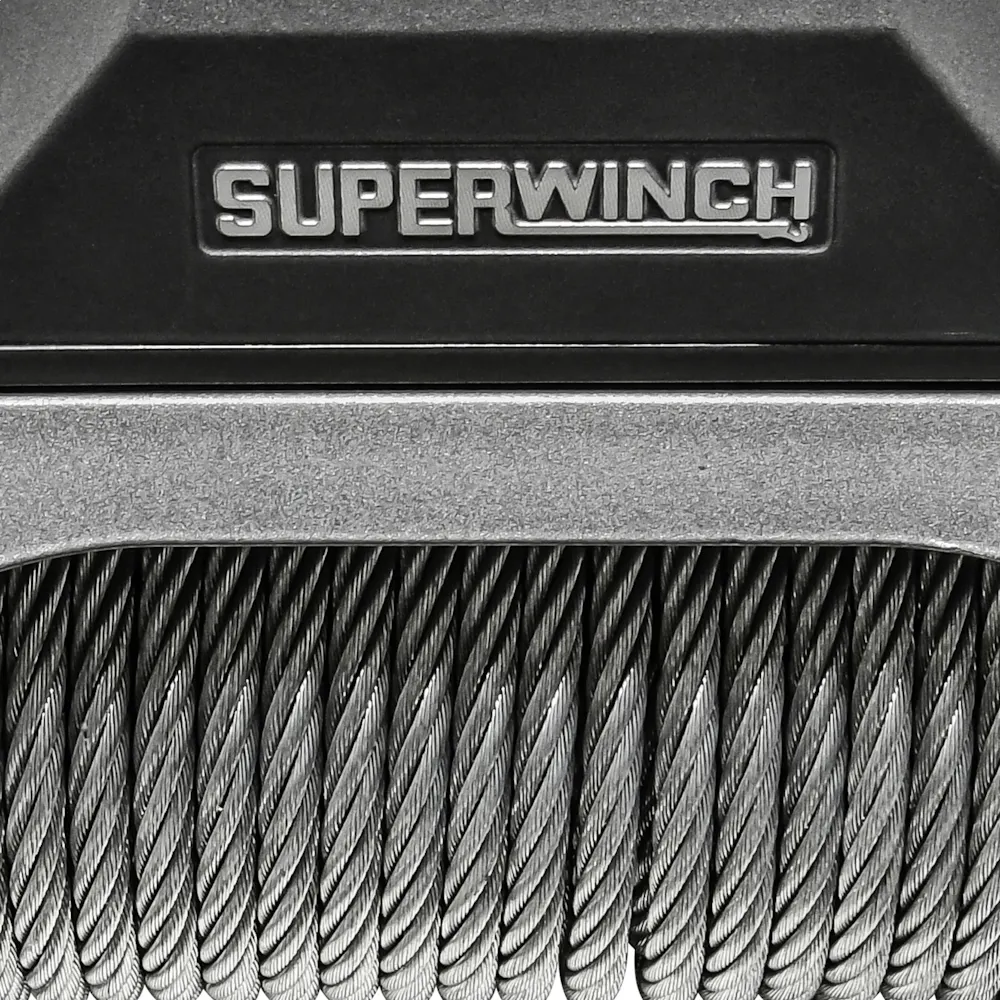

Rope Material: Steel Wire
Superwinch WEB Title: SX10 Winch 12V 10000 lbs with Steel Wire Rope & Wired Remote
Type: Universal
Voltage: 12V DC
Warranty: Limited Lifetime Mechanical/7 Year Limited Electrical
