Superwinch / 1695210

View More

Part #: 1695210
UPC: 022705169141

Loading availability... Loading...

Notify me when this item is in stock.

Brand: Superwinch

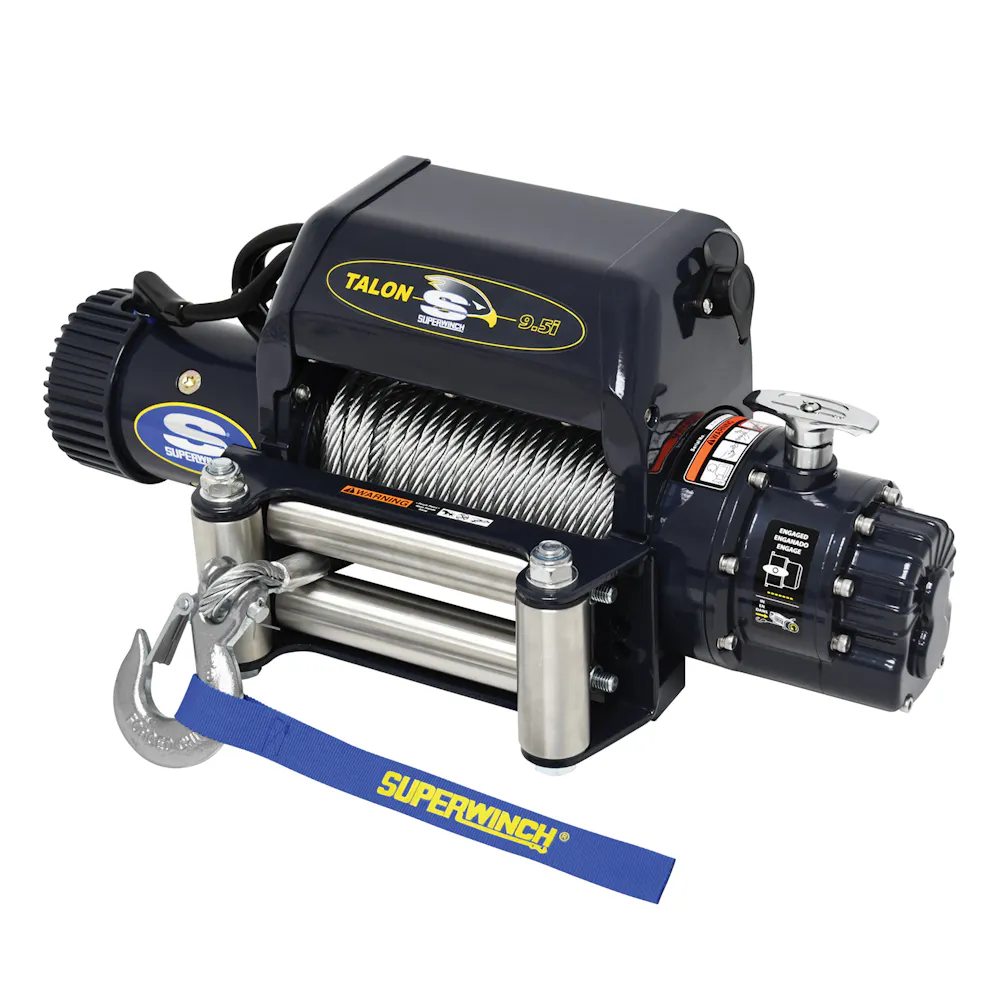

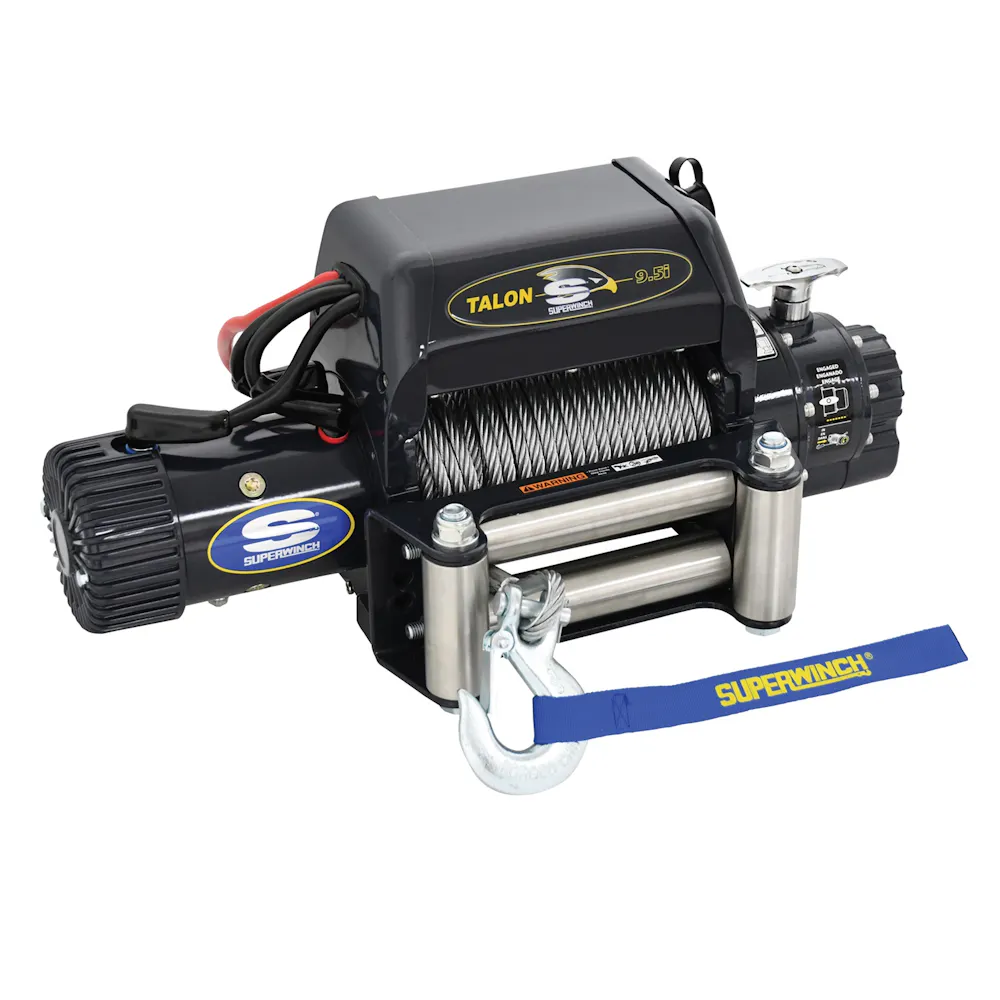

Description: Talon 9.5i Winch; 9500 lbs Integrated; 12 Vdc; 3/8 In X 85 ft Steel Rope; Submersible Solenoid; 5.2 hp; 2-Stage Spur/2-Stage Planetary; 148:1 Gear Ratio; 4-Way Roller Fairlead;

Cancer and Reproductive Harm - www.P65Warnings.ca.gov

Description

Get the Talon integrated advantage. The Talon 9.5i combines outstanding speed and durability with a work horse heavy duty integrated 5.2 HP sealed motor providing 9,500 lbs of pulling power. Talon 9.5i features stainless steel rollers designed to stand up to weather and reduce wire rope abrasion.

Features & benefits

62 Fpm No Load Line Speed

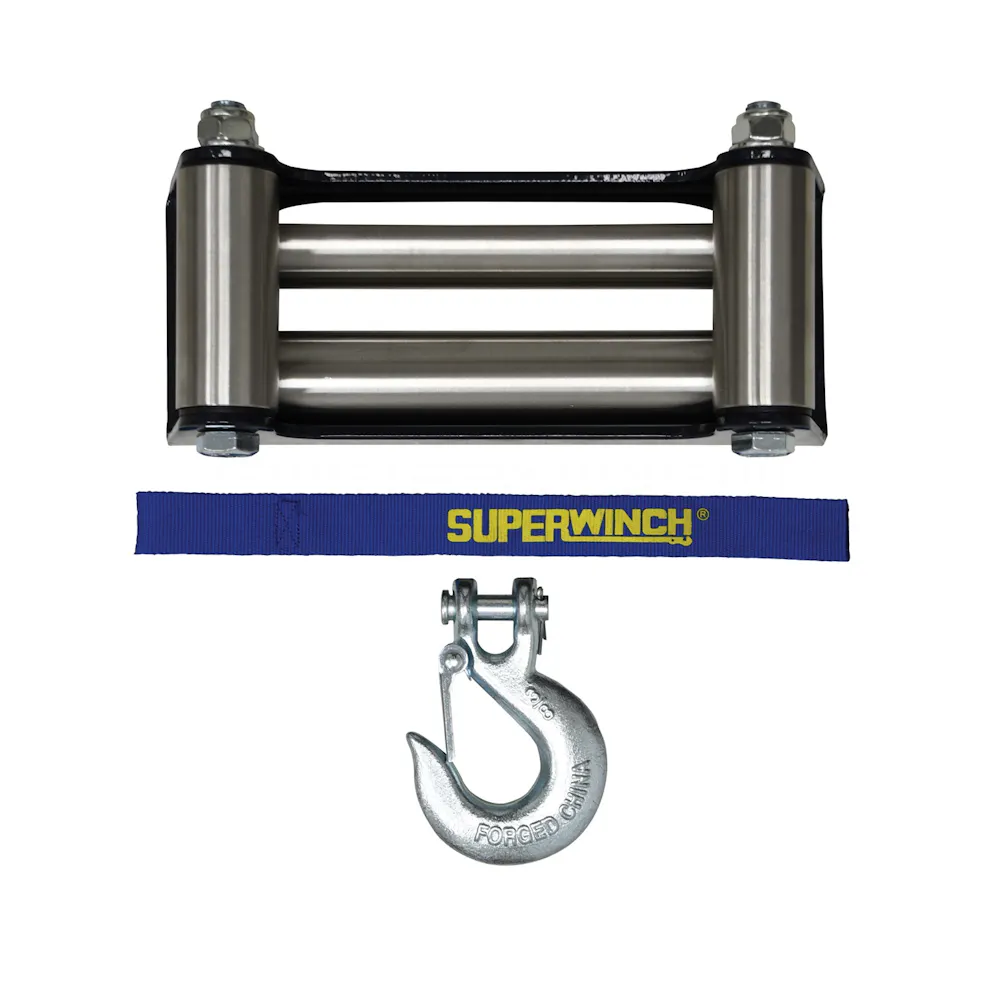

Stainless Steel 4-Way Roller Fairlead

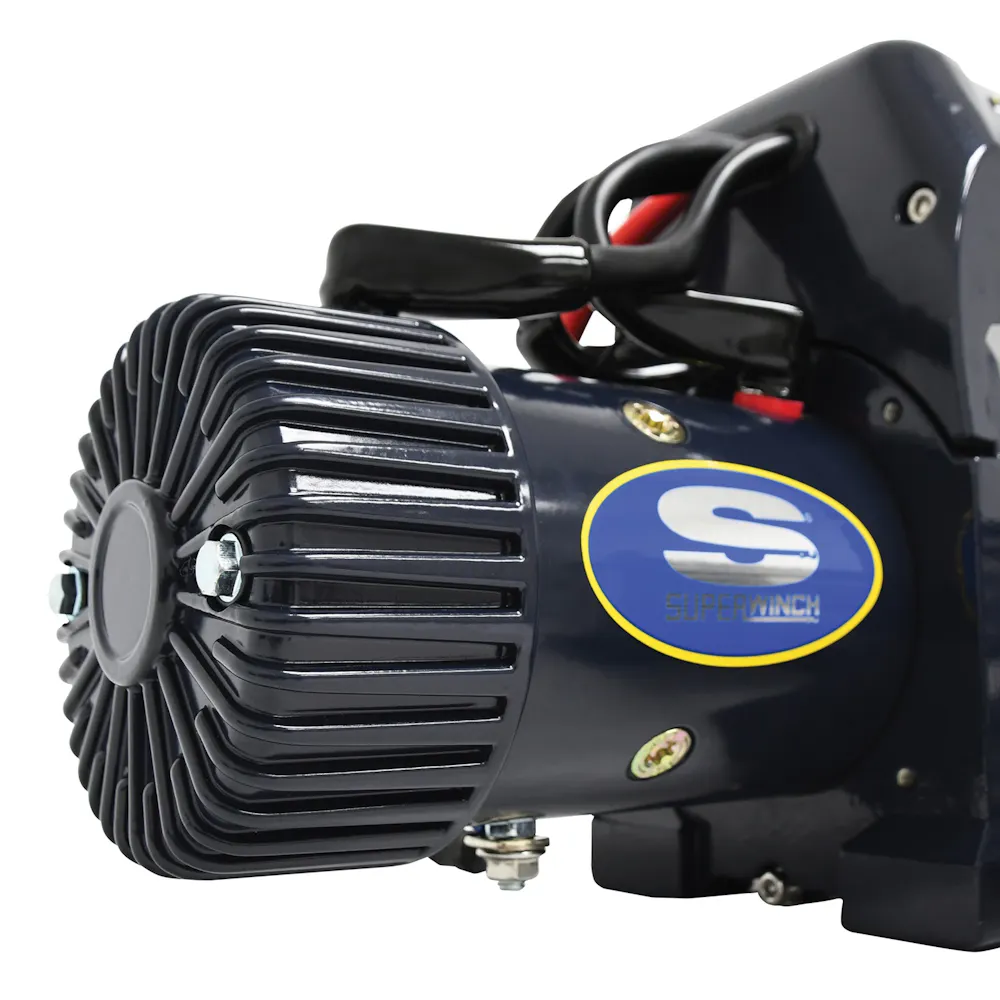

5.2 Hp Sealed Motor
Automatic Load Holding External Disc Brake Design

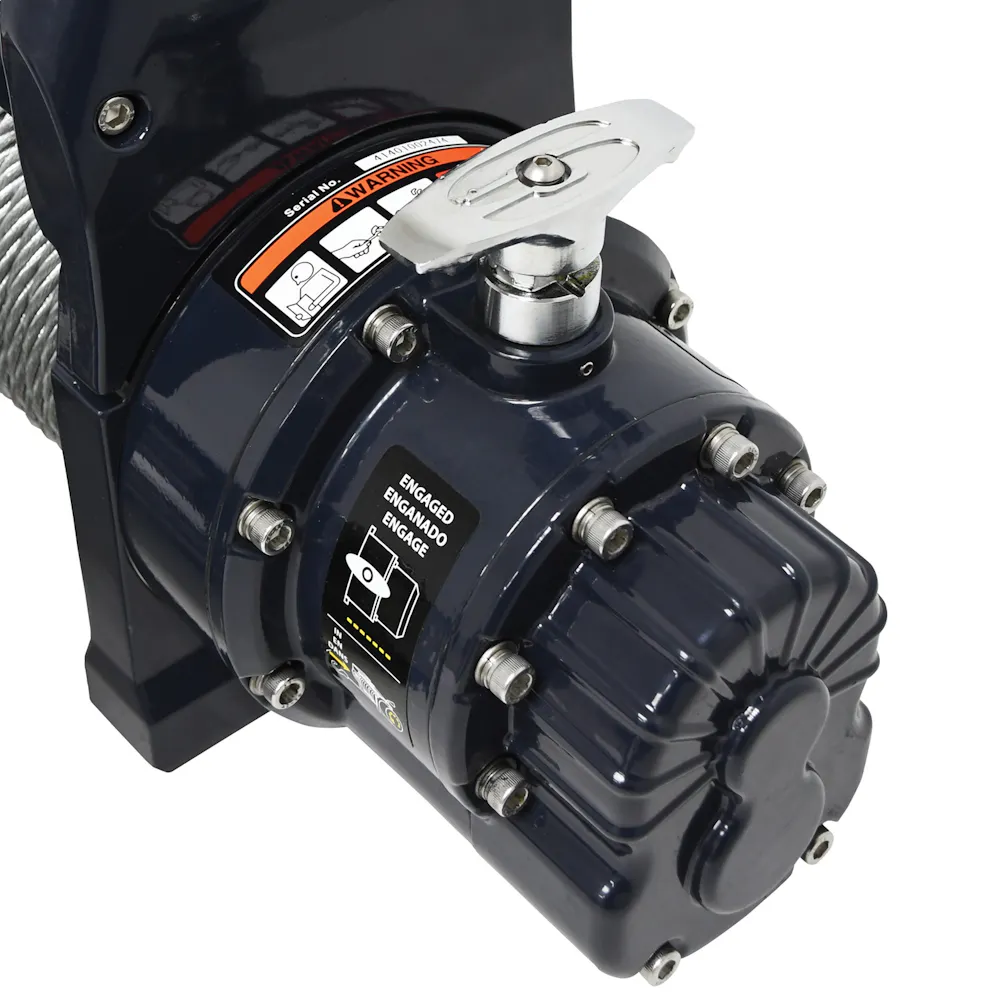

Ergonomic Free Spool Knob Lifts And Turns Effortlessly
2-Stage Spur/2-Stage Planetary Gearing With 148:1 Ratio
Sealed Submersible Vented Solenoid

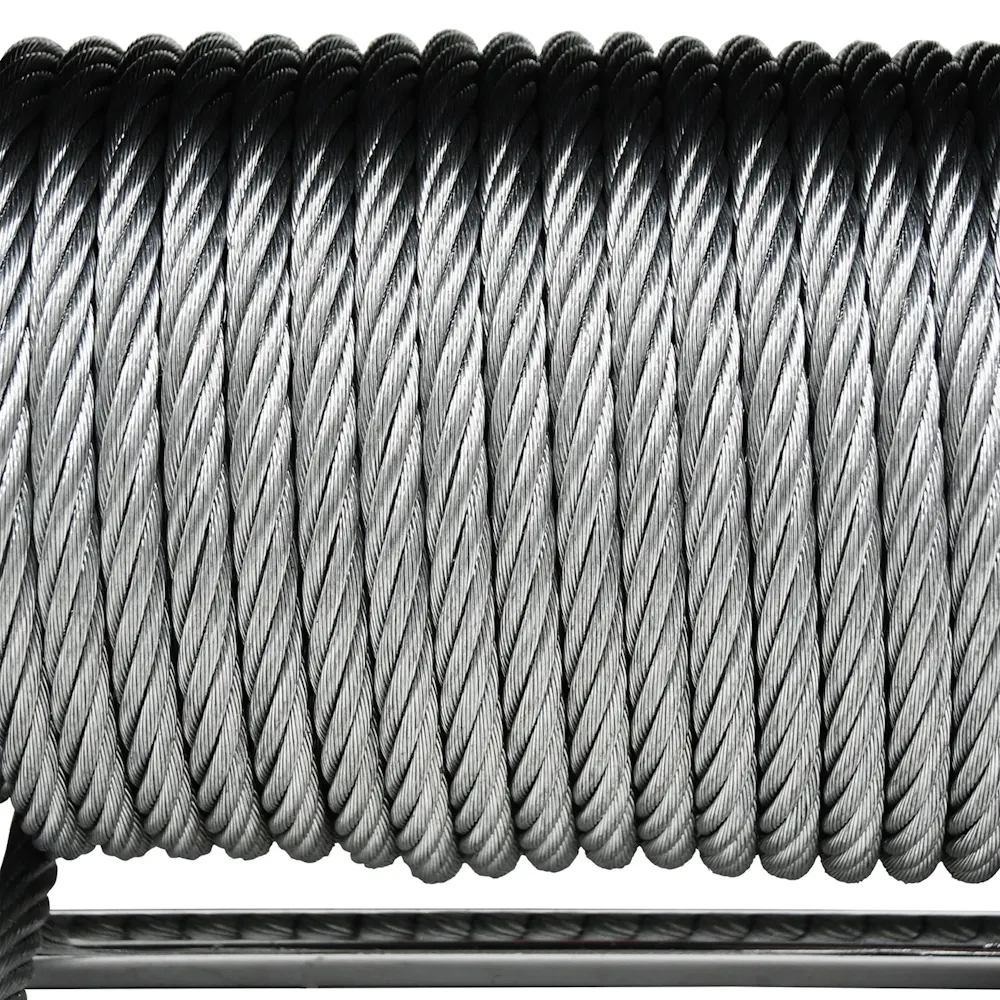

Wire Rope Measures 3/8 In. X 85 Ft.

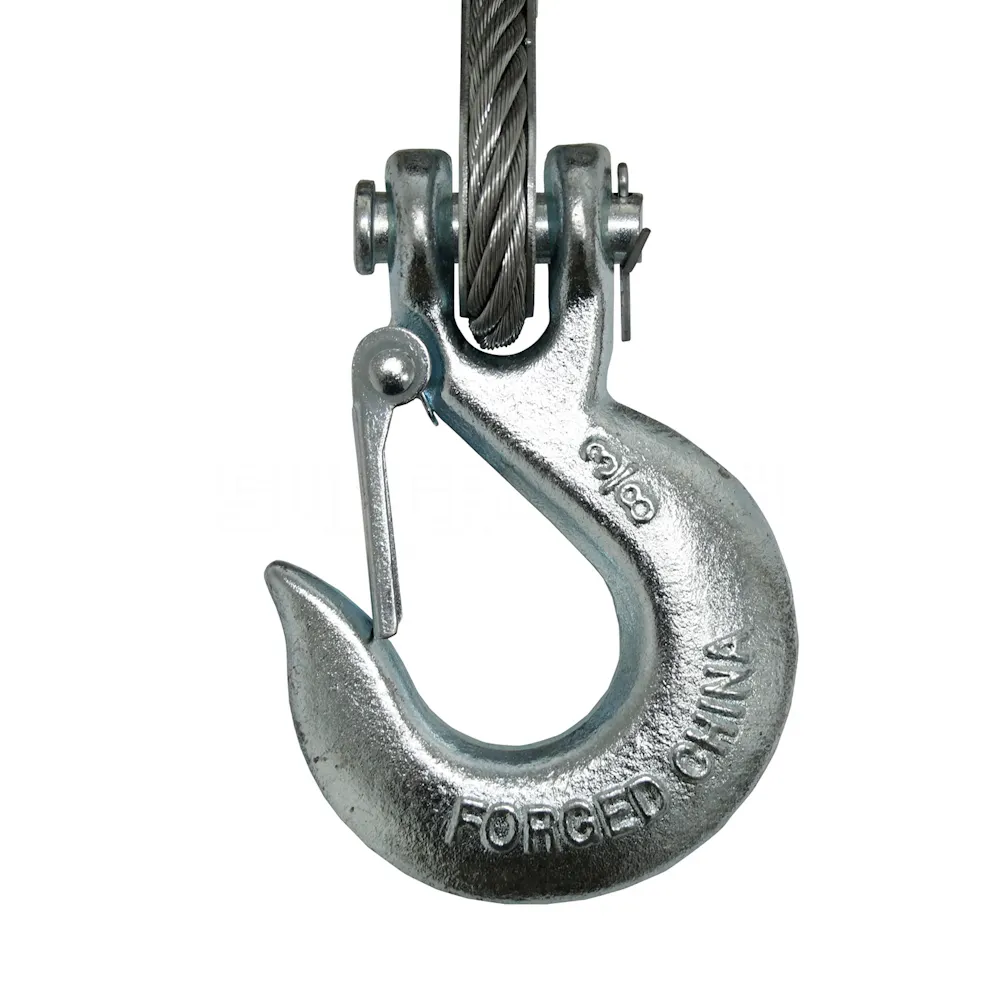

Heavy Duty Clevis Pinned Latched Hook
15 Ft. Remote Control w/Coiled Cable And Led Light Indicators

Specifications

GTIN: 00022705169141
Weight: 103 lb
Height: 15 in
Length: 30 in
Width: 14 in
Life cycle: Available Only While Supplies Last
AAM brand code: SPW
Warehouse brand code: SPW
AAIA brand code: BGFJ

Attributes

California Proposition 65: WARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov
Rated Single Line Pull (lbs.): 9500
Type: Automotive
Voltage: 12 DC

Fitment status

Select a vehicle or engine to see whether this part applies to your application.

Application summary

9;500 lbs Integrated; 12 VDC; 3/8 in x 85 ft steel rope; sealed submersible vented solenoid; ergo handheld remote control; 5.2 Hp; automatic brake; 2-stage spur/2-stage planetary; 148:1 gear ratio; 4-way roller fairlead
