Superwinch / 1595201

View More

Part #: 1595201
UPC: 022705003650

Loading availability... Loading...

Notify me when this item is in stock.

Brand: Superwinch Series: Tiger Shark Winches

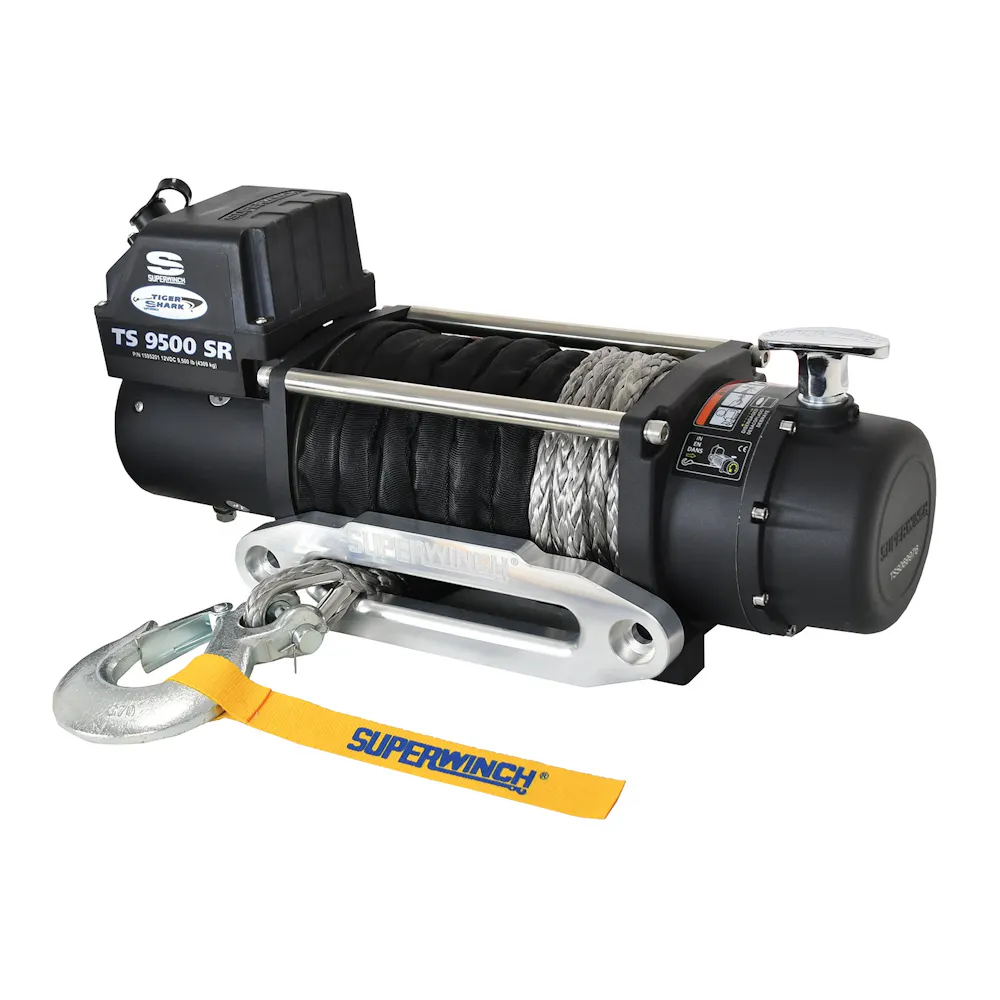

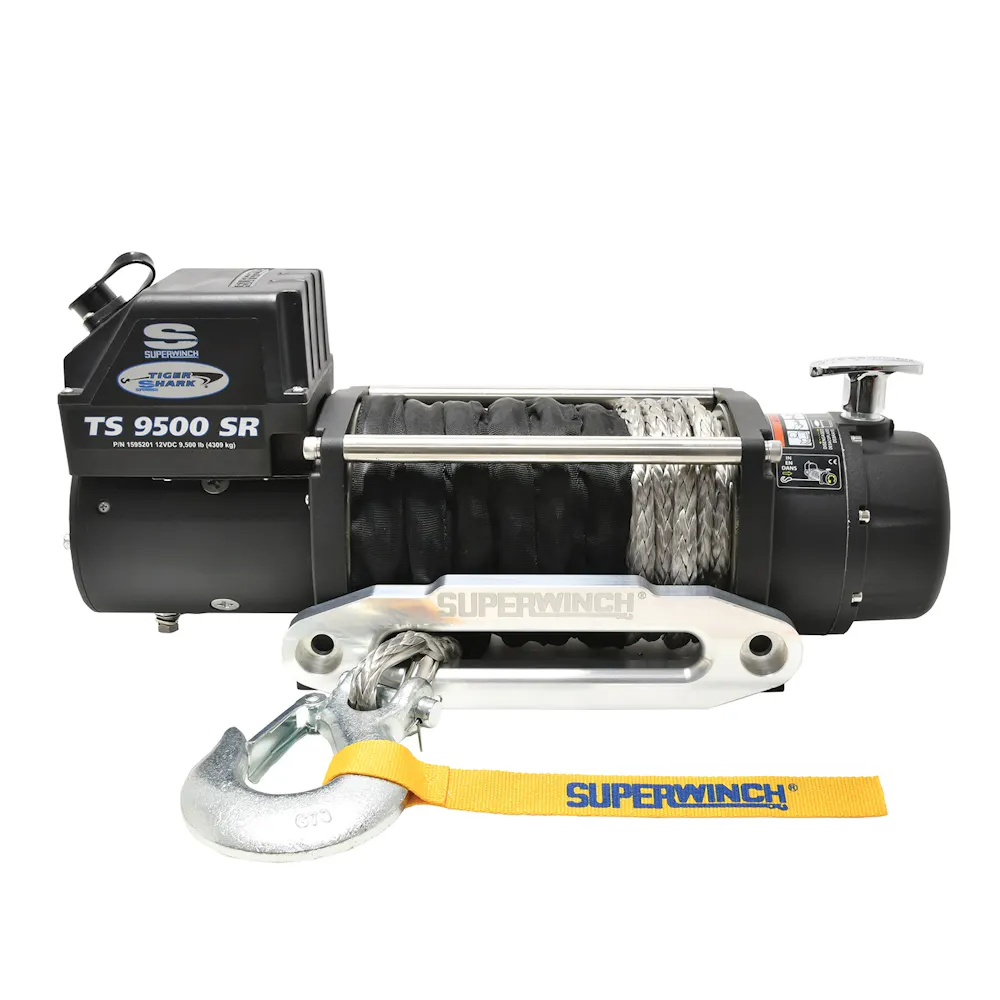

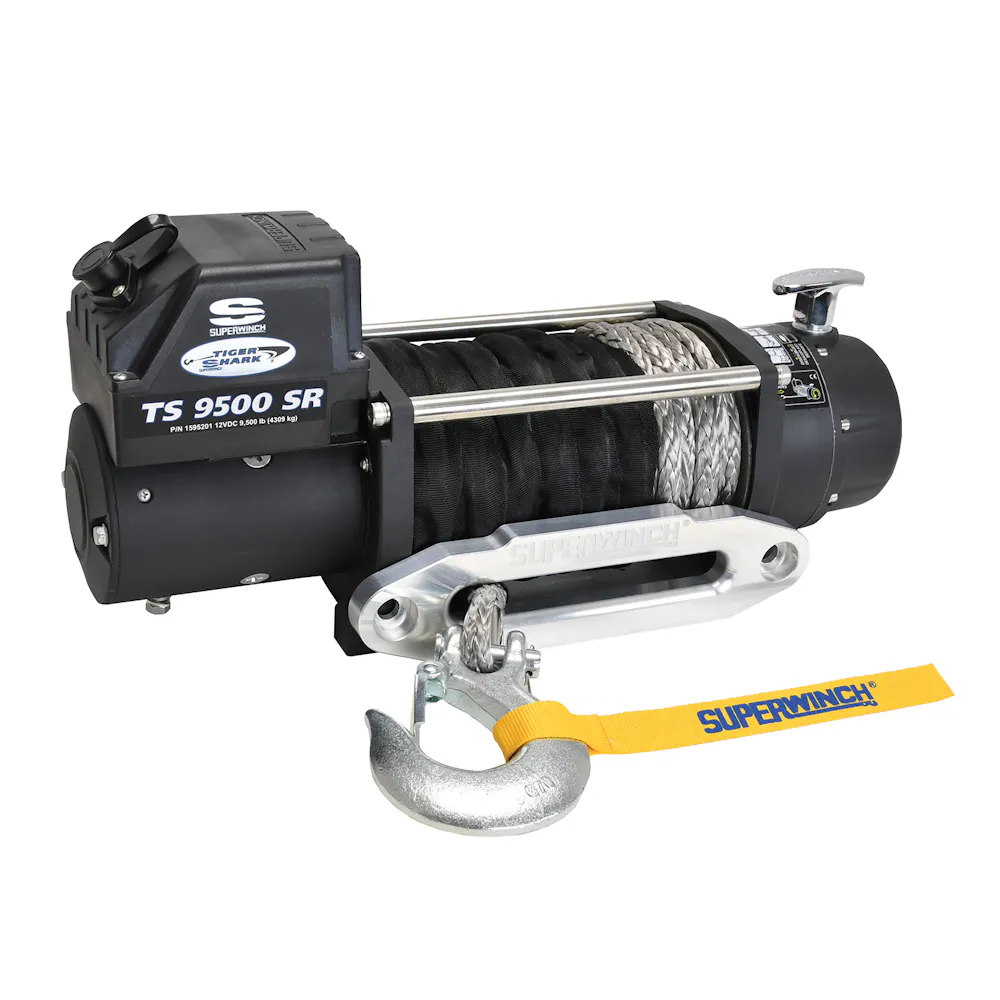

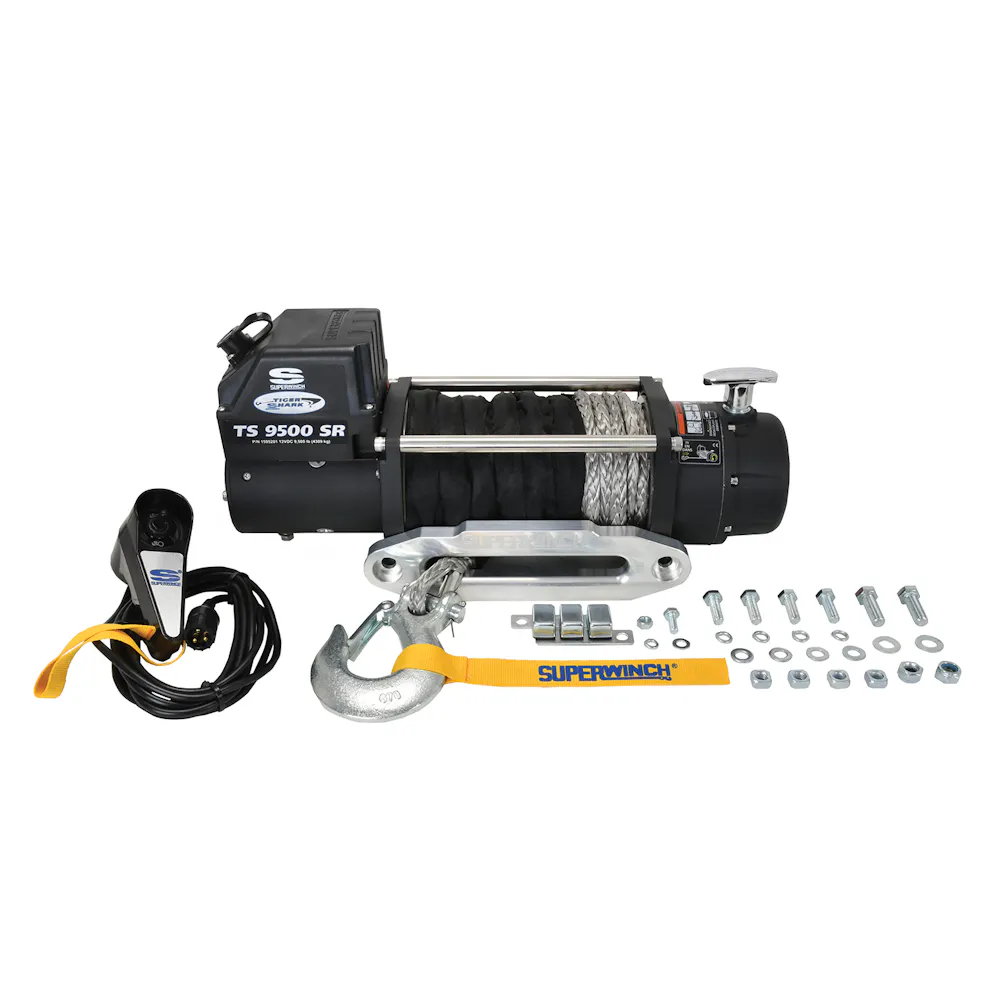

Description: Tiger Shark 9500SR Winch; 9500 lbs; 12 Vdc; 3/8 In X 80 ft Synthetic Rope; Handheld Remote Control; 5.2 hp; 3-Stage Planetary; 218:1 Gear Ratio And Hawse Fairlead;

Cancer and Reproductive Harm - www.P65Warnings.ca.gov

Description

One of Superwinch's most popular winches, the Tiger Shark 9500 is the benchmark for performance winching while not breaking the bank. From powerful motors, to strong gears, to long-life stainless steel parts, the Tiger Shark 9500 stands out from the competition.

Features & benefits

Rated Line Pull Of 9500 Lbs

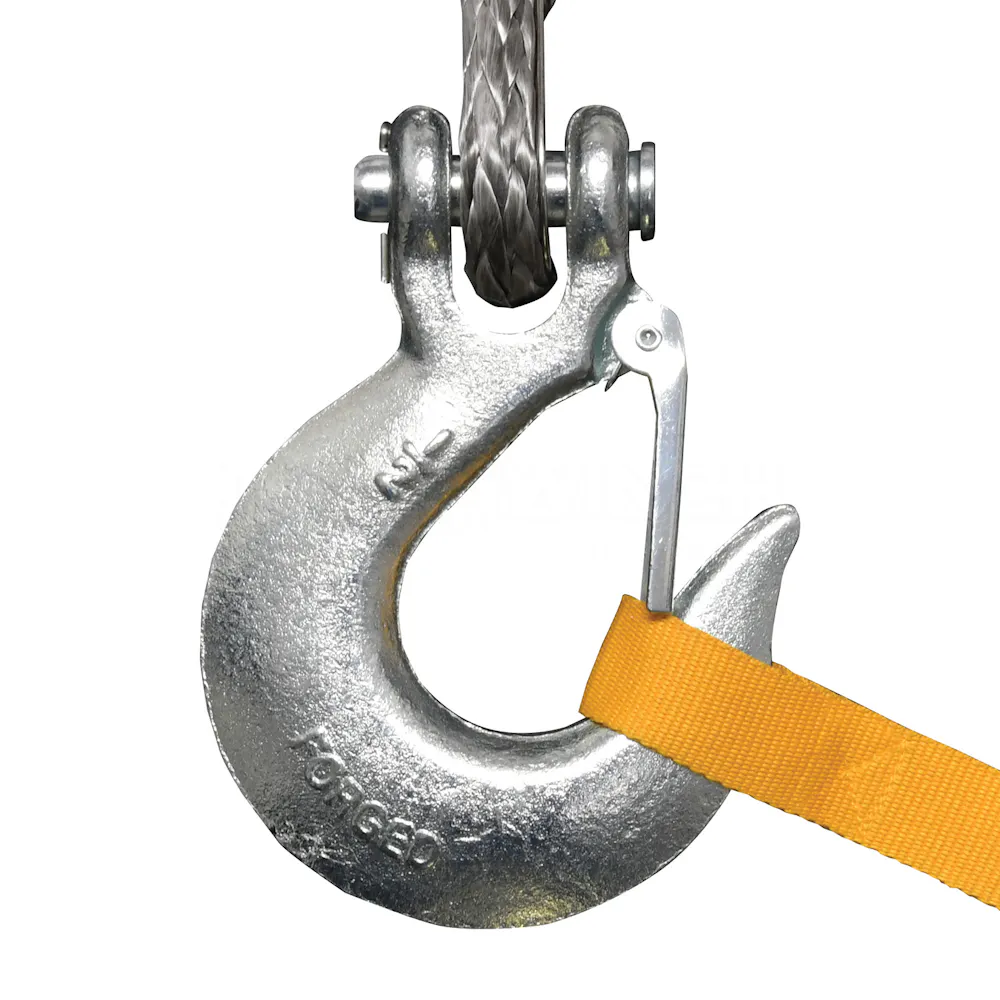

Heavy-Duty Clevis Pinned Latched Hook
Aluminum Hawse Fairlead
Rugged Handheld Remote Control
Stainless Steel Tiebars
5.2 Hp Motor
3-Stage Planetary Gearing With 218:1 Ratio

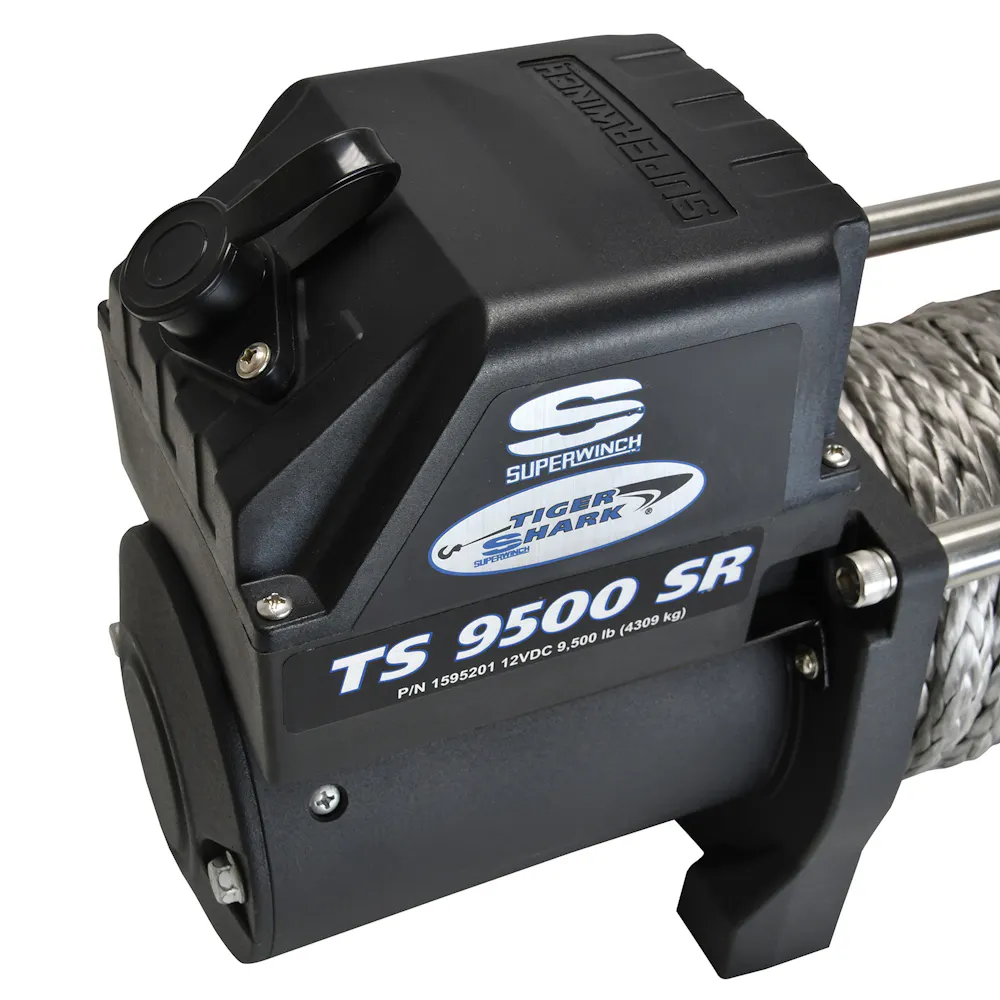

Weather Sealed Solenoid

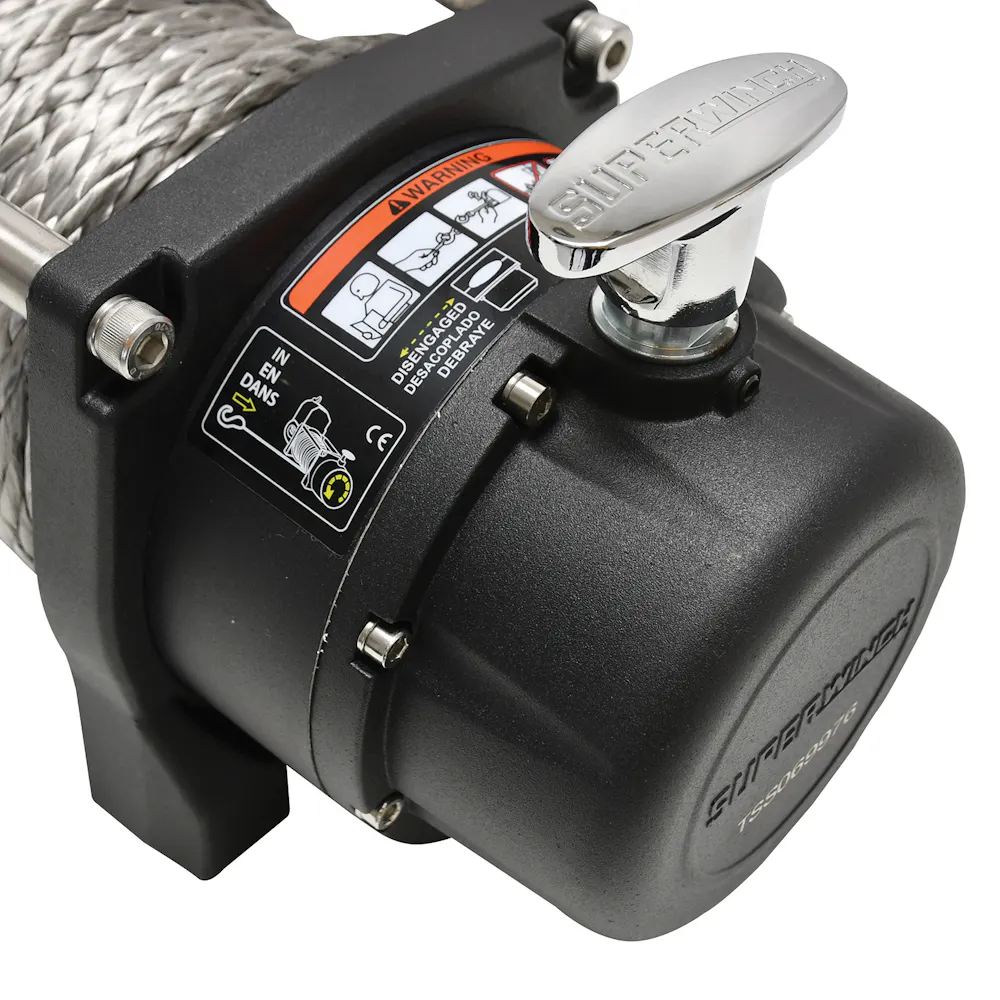

Ergonomic Pull And Turn Freespool

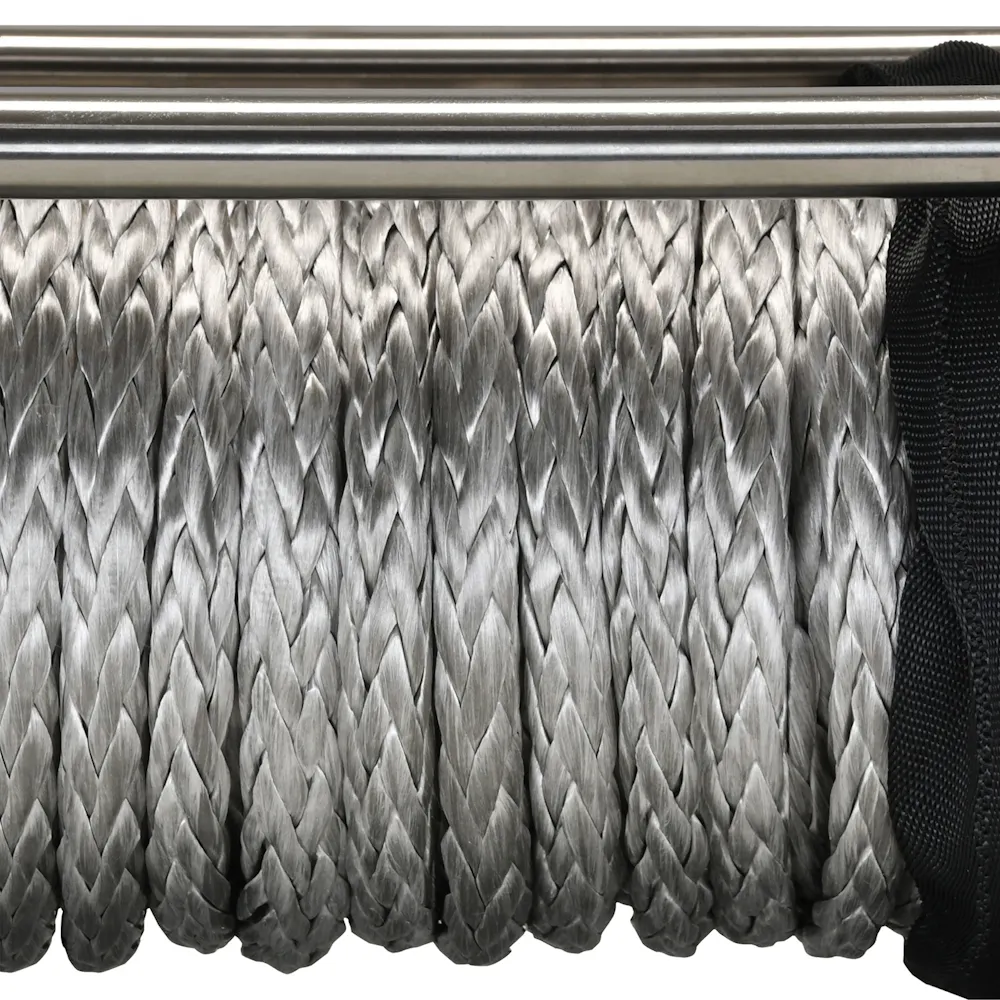

Synthetic Rope Measures 3/8 In. X 80 ft.
Automatic Load Holding Brake Design

Specifications

GTIN: 00022705003650
Weight: 63 lb
Height: 12 in
Length: 23 in
Width: 12 in
Life cycle: Available to Order
AAM brand code: SPW
Warehouse brand code: SPW
AAIA brand code: BGFJ

Attributes

Brake System: Mechanical, Automatic Load Holding
California Proposition 65: WARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov
Can Ship By Ground Delivery: Yes
Clutch: Pull and Turn, Ergo
Dimensions: 20.8in L x 6.3in W x 9.2in H (529mm L x 160mm W x 234.5mm H)
Drum Diameter (in.): 2.5
Drum Length (in.): 9.0
EN Compliant: No
Fairlead Type: Hawse
Finish/Color: Black
Freight Class: 60
Gear Ratio: 218:1
Gear System: 3-stage planetary
Hook: Heavy-Duty, Clevis Pinned Latched
Horsepower: 5.2
Line Speed: 80 Amps Motor Draw/19 FPM (5.7 MPM)
Marketing Status: Current
Motor Type: 12V DC
Mounting Bolt Pattern: 10in x 4.5in (254mm x 114.3mm) & 10in x 6.5in (254mm x 165.1mm)
Rated Single Line Pull (Lbs): 9500
Rated Single Line Pull (lbs.): 9500

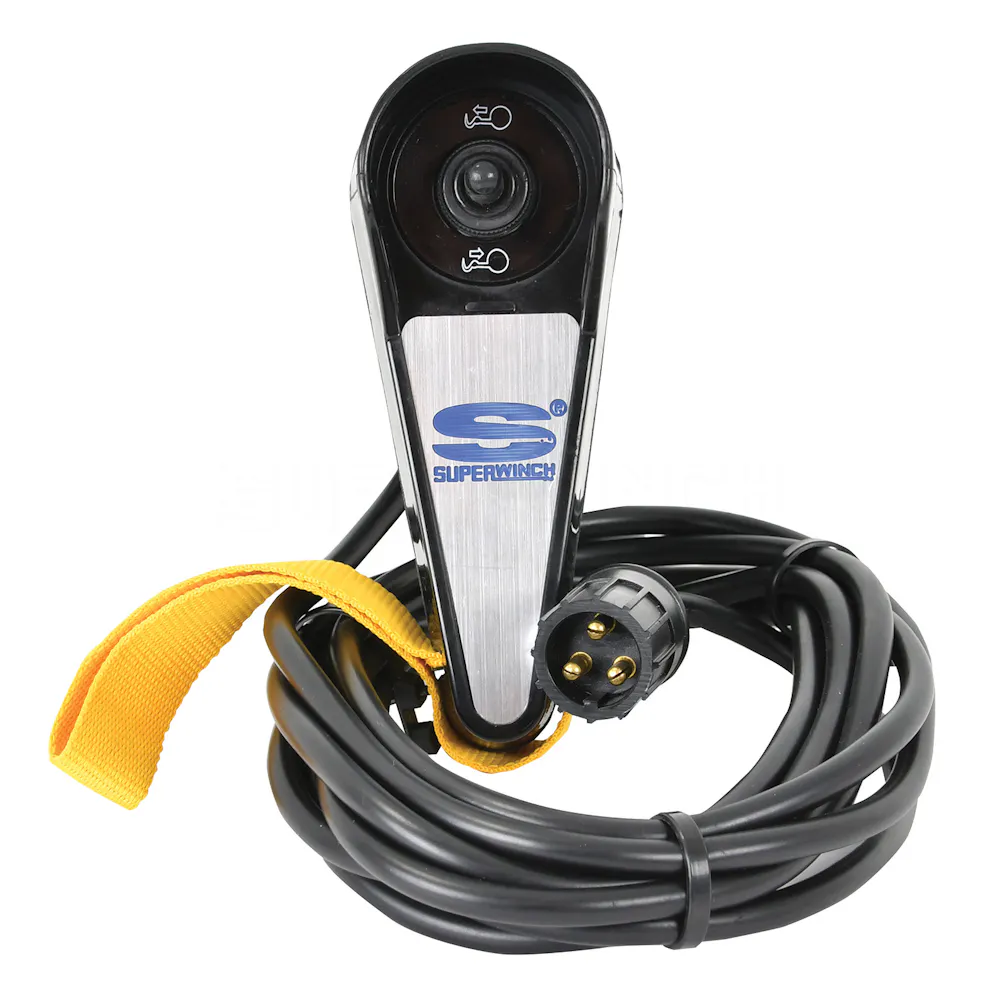

Remote: 12ft Rubber Sealed Hand-held
Rope Length: 3/8 in x 80 ft
Rope Material: Synthetic
Solenoid: Weather Sealed Solenoid and Circuit Breaker Protected
Superwinch WEB Title: Tiger Shark 9500SR Winch 12V with Synthetic Rope
Type: Automotive
Voltage: 12 DC
Warranty: Limited Lifetime Mechanical/7 Year Limited Electrical
Winch Color: Black
Winch Dimension (IN): 20.8 x 6.3 x 9.2

Fitment status

This product is universal and will fit your application.

Application summary

9;500 lbs; 12 VDC; 3/8 in x 80 ft synthetic rope; weather sealed solenoid; handheld remote control; 5.2 Hp; 3-stage planetary; 218:1 gear ratio and hawse fairlead
