Superwinch · 1595200

View More

Part #: 1595200
UPC: 022705003605

Loading availability... Loading...

Notify me when this item is in stock.

Brand: Superwinch Series: Tiger Shark Winches

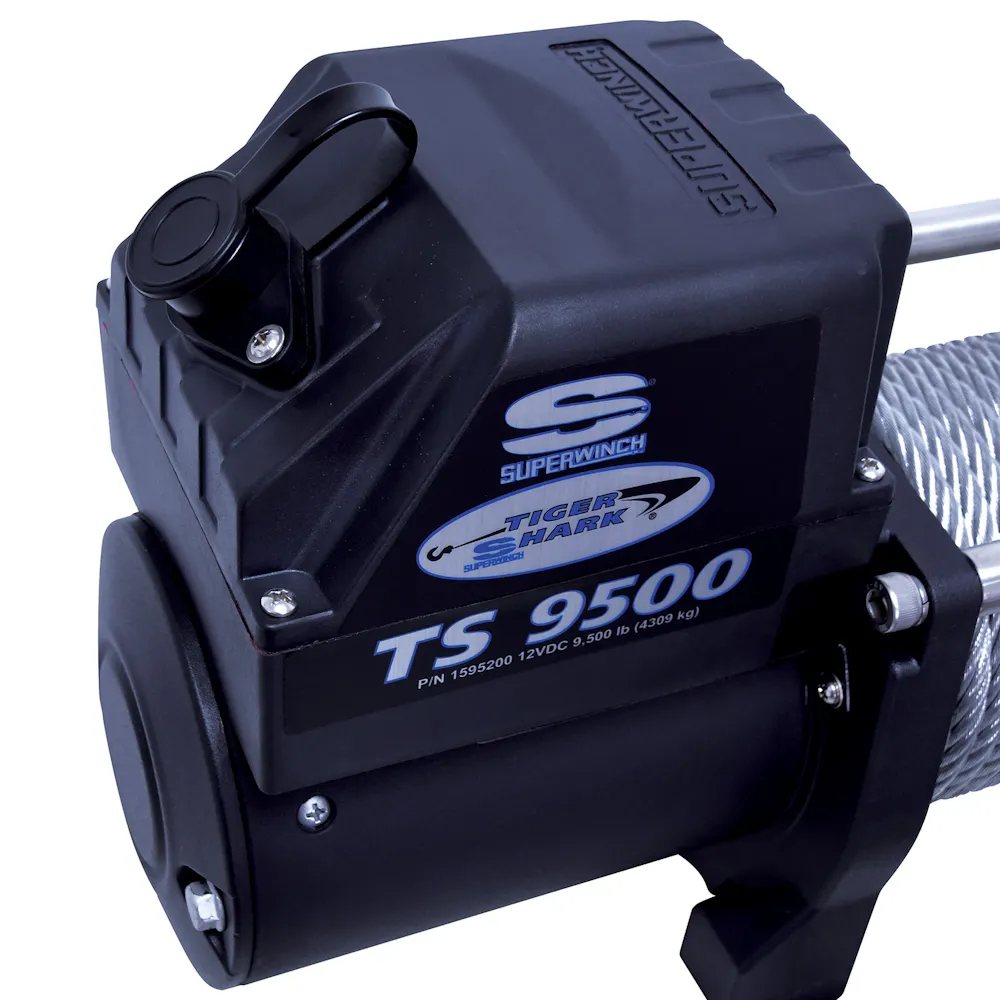

Description: Tiger Shark 9500 Winch; 9500 lbs; 12 Vdc; 11/32 In X 95 ft Steel Rope; Handheld Remote Control; 5.2 hp; 3-Stage Planetary; 218:1 Gear Ratio And 4-Way Roller Fairlead;

Cancer and Reproductive Harm - www.P65Warnings.ca.gov

Description

One of Superwinch's most popular winches, the Tiger Shark 9500 is the benchmark for performance winching while not breaking the bank. From powerful motors, to strong gears, to long-life stainless steel parts, the Tiger Shark 9500 stands out from the competition.

Features & benefits

Rated Line Pull Of 9500 Lbs
Rugged Handheld Remote Control
Stainless Steel Tiebars
5.2 Hp Motor
3-Stage Planetary Gearing With 218:1 Ratio
Weather Sealed Solenoid

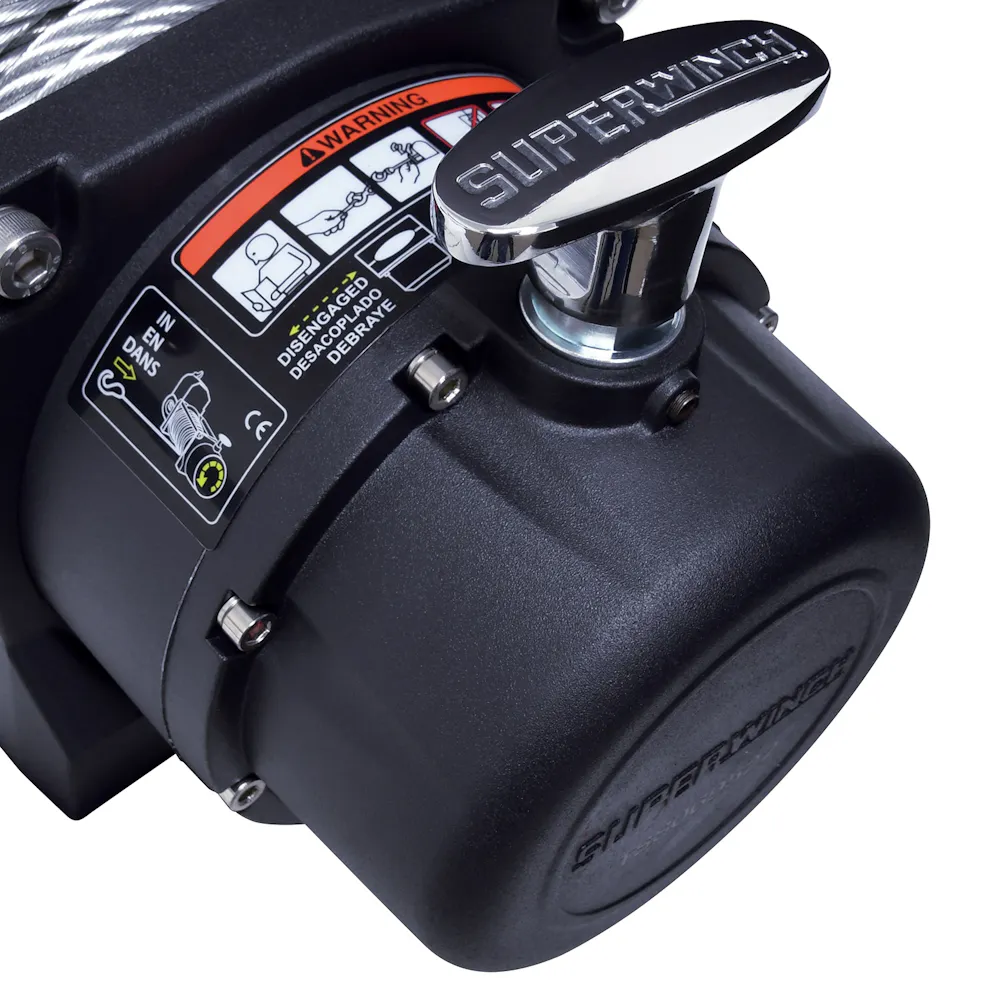

Ergonomic Pull And Turn Freespool

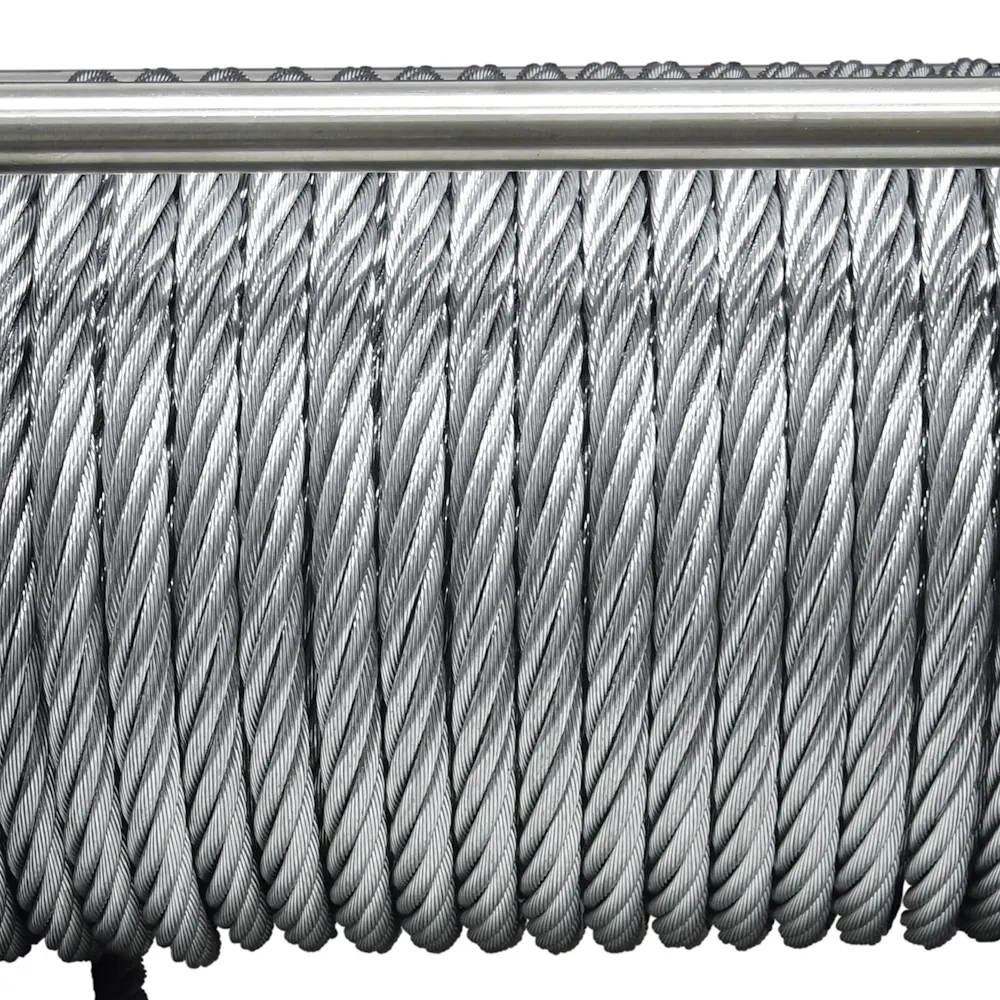

Wire Rope Measures 21/64 In. X 95 ft.

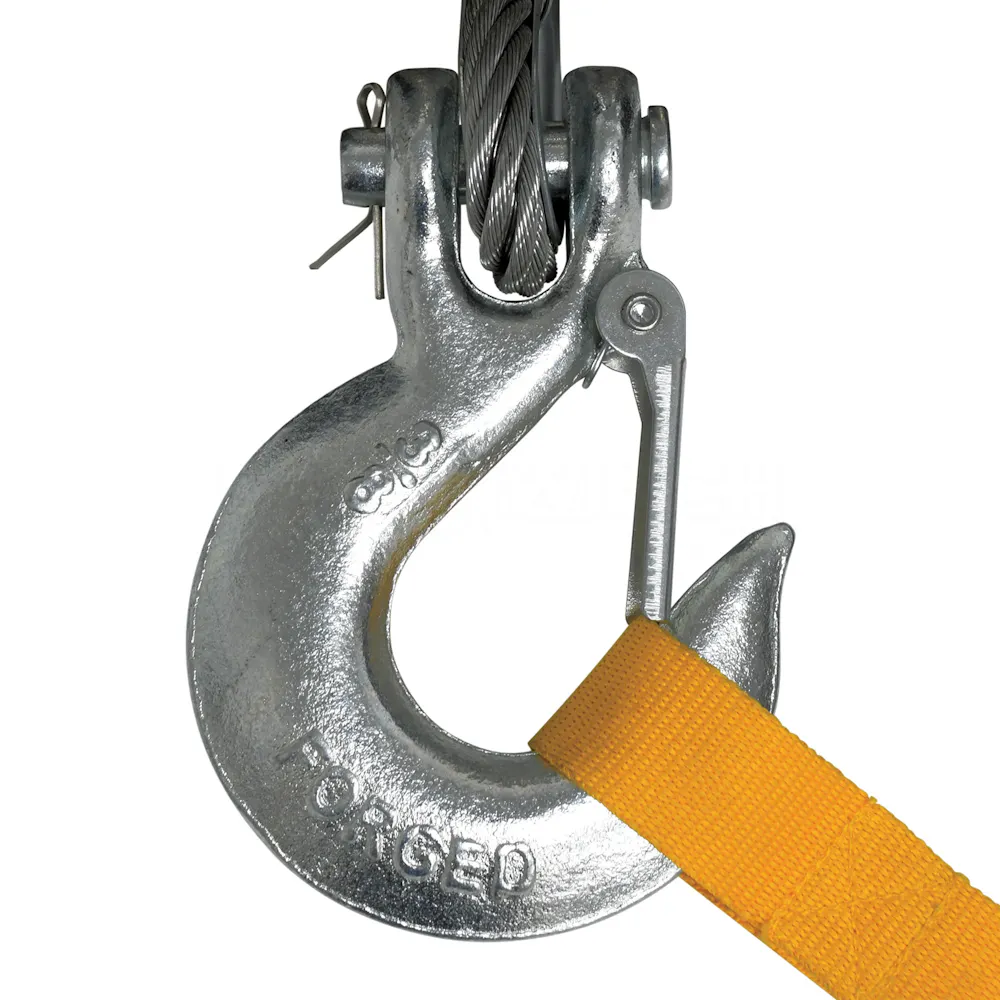

Heavy-Duty Clevis Pinned Latched Hook
Stainless Steel 4-Way Roller Fairlead

Specifications

GTIN: 00022705003605
Weight: 82 lb
Height: 12 in
Length: 23 in
Width: 12 in
Life cycle: Available to Order
AAM brand code: SPW
Warehouse brand code: SPW
AAIA brand code: BGFJ

Attributes

Brake System: Mechanical, Automatic Load Holding
California Proposition 65: WARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov
Can Ship By Ground Delivery: Yes
Clutch: Pull and Turn, Ergo
Dimensions: 20.8in L x 6.3in W x 9.2in H (529mm L x 160mm W x 234.5mm H)
Drum Diameter (in.): 2.5
Drum Length (in.): 9.0
EN Compliant: No
Fairlead Type: 4-Way Roller
Finish/Color: Black
Freight Class: 60
Gear Ratio: 218:1
Gear System: 3-stage planetary
Hook: Heavy-Duty, Clevis Pinned Latched
Horsepower: 5.2
Line Speed: 80 Amps Motor Draw/19 FPM (5.7 MPM)
Marketing Status: Current
Motor Type: 12V DC
Mounting Bolt Pattern: 10in x 4.5in (254mm x 114.3mm) & 10in x 6.5in (254mm x 165.1mm)
Rated Single Line Pull (Lbs): 9500
Rated Single Line Pull (lbs.): 9500
Remote: 12ft Rubber Sealed Hand-held
Rope Length: 11/32 in x 95 ft
Rope Material: Steel Wire
Solenoid: Weather Sealed Solenoid and Circuit Breaker Protected
Superwinch WEB Title: Tiger Shark 9500 Winch 12V with Steel Wire Rope
Type: Automotive
Voltage: 12 DC
Warranty: Limited Lifetime Mechanical/7 Year Limited Electrical
Winch Color: Black
Winch Dimension (IN): 20.8 x 6.3 x 9.2

Fitment status

This product is universal and will fit your application.

Application summary

9;500 lbs; 12 VDC; 11/32 in x 95 ft steel rope; weather sealed solenoid; handheld remote control; 5.2 Hp; 3-stage planetary; 218:1 gear ratio and 4-way roller fairlead
