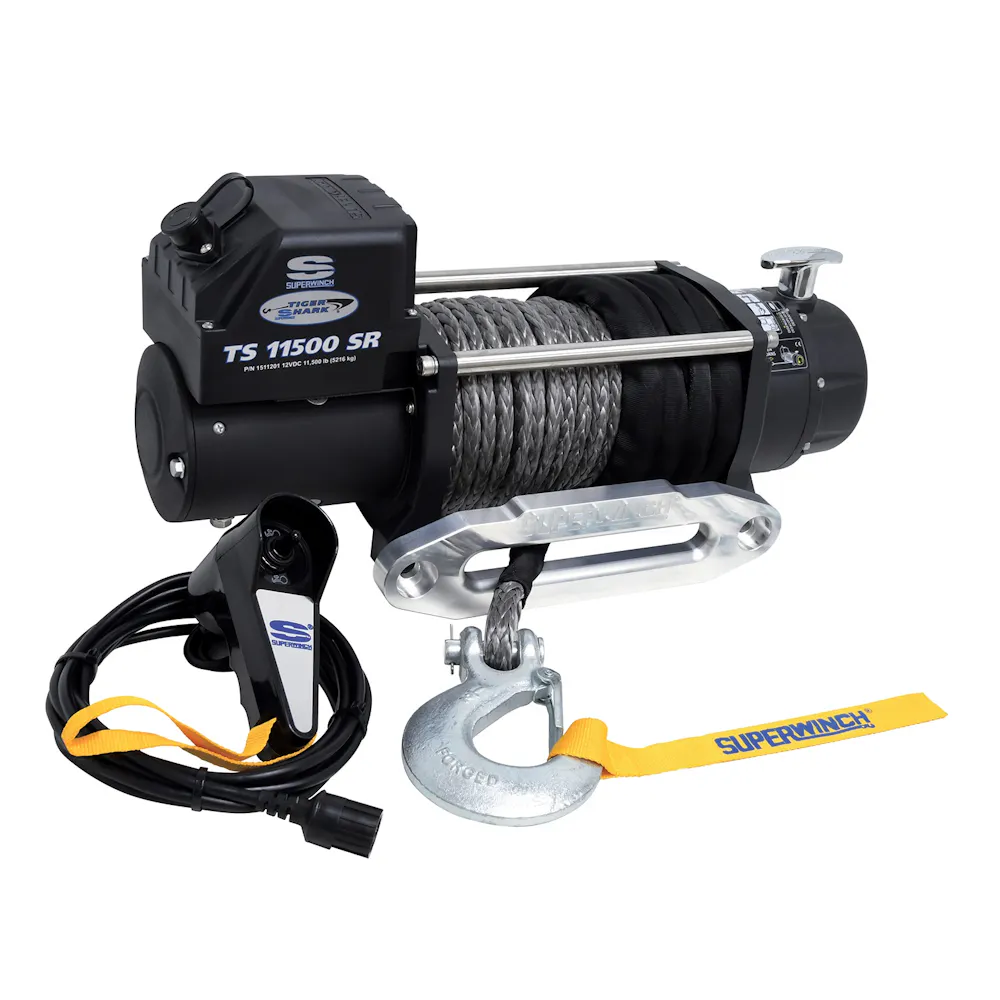

Superwinch · 1511201
Part #: 1511201
UPC: 022705003674
Loading...
Notify me when this item is in stock.
Description: Tiger Shark 11500SR Winch; 11500 lbs; 12 Vdc; 3/8 In X 80 ft Synthetic Rope; Handheld Remote Control; 5.2 hp; 3-Stage Planetary; 218:1 Gear Ratio And Hawse Fairlead;
Description:
Description
One of Superwinch's most popular winches, the Tiger Shark 11500 is the benchmark for performance winching while not breaking the bank. From powerful motors, to strong gears to long-life stainless steel parts, the Tiger Shark 11500 stands out from the competition. It is easy to see why the Tiger Shark remains one of Superwinch's most popular winches year after year.
Features & benefits
- Rated Line Pull Of 11500 Lbs
- Aluminum Hawse Fairlead
- Rugged Handheld Remote Control
- 6.0 Hp Motor
- 3-Stage Planetary Gearing With 218:1 Ratio
- Weather Sealed Solenoid To Reduce Damage From The Elements
- Ergonomic Pull And Turn Freespool
- Synthetic Rope Measures 3/8 In. X 80 ft.
- Automatic Load Holding Brake Design
- Heavy-Duty Clevis Pinned Latched Hook
Specifications
- GTIN
- 00022705003674
- Weight
- 63 lb
- Height
- 12 in
- Length
- 23 in
- Width
- 12 in
- Life cycle
- Available to Order
- AAM brand code
- SPW
- Warehouse brand code
- SPW
- AAIA brand code
- BGFJ
Attributes
- Brake System
- Mechanical, Automatic Load Holding
- California Proposition 65
- WARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov
- Can Ship By Ground Delivery
- Yes
- Clutch
- Pull and Turn, Ergo
- Dimensions
- 20.8in L x 6.3in W x 9.2in H (529mm L x 160mm W x 234.5mm H)
- Drum Diameter (in.)
- 2.5
- Drum Length (in.)
- 9.0
- EN Compliant
- No
- Fairlead Type
- 4-Way Roller |Hawse
- Finish/Color
- Black
- Freight Class
- 60
- Gear Ratio
- 218:1
- Gear System
- 3-stage planetary
- Hook
- Heavy-Duty, Clevis Pinned Latched
- Horsepower
- 5.2
- Line Speed
- 80 Amps Motor Draw/19 FPM (5.7 MPM)
- Marketing Status
- Current
- Motor Type
- 12V DC
- Mounting Bolt Pattern
- 10in x 4.5in (254mm x 114.3mm) & 10in x 6.5in (254mm x 165.1mm)
- Rated Single Line Pull (Lbs)
- 11500
- Rated Single Line Pull (lbs.)
- 11500
- Remote
- 12ft Rubber Sealed Hand-held
- Rope Length
- 3/8 in x 80 ft
- Rope Material
- Synthetic
- Solenoid
- Weather Sealed Solenoid and Circuit Breaker Protected
- Superwinch WEB Title
- Tiger Shark 11500SR Winch 12V with Synthetic Rope
- Type
- Automotive
- Voltage
- 12 DC
- Warranty
- Limited Lifetime Mechanical/7 Year Limited Electrical
- Winch Color
- Black
- Winch Dimension (IN)
- 20.8 x 6.3 x 9.2
Fitment status
This product is universal and will fit your application.
Application summary
11;500 lbs; 12 VDC; 3/8 in x 80 ft synthetic rope; weather sealed solenoid; handheld remote control; 5.2 Hp; 3-stage planetary; 218:1 gear ratio and hawse fairlead
