Superwinch / 1511200
Part #: 1511200
UPC: 022705003612
Loading...
Notify me when this item is in stock.
Description: Tiger Shark 11500 Winch; 11500 lbs; 12 Vdc; 3/8 In X 84 ft Steel Rope; Handheld Remote Control; 5.2 hp; 3-Stage Planetary; 218:1 Gear Ratio And 4-Way Roller Fairlead;
Description:
Description
One of Superwinch's most popular winches, the Tiger Shark 11500 is the benchmark for performance winching while not breaking the bank. From powerful motors, to strong gears to long-life stainless steel parts, the Tiger Shark 11500 stands out from the competition. It is easy to see why the Tiger Shark remains one of Superwinch's most popular winches year after year.
Features & benefits
- Rated Line Pull Of 11500 Lbs
- 6.0 Hp Motor
- 3-Stage Planetary Gearing With 218:1 Ratio
- Weather Sealed Solenoid
- Ergonomic Pull And Turn Freespool
- Wire Rope Measures 3/8 In. X 84 ft.
- Heavy-Duty Clevis Pinned Latched Hook
- Stainless Steel 4-Way Roller Fairlead
- Rugged Handheld Remote Control
Specifications
- GTIN
- 00022705003612
- Weight
- 86 lb
- Height
- 12 in
- Length
- 23 in
- Width
- 12 in
- Life cycle
- Available to Order
- AAM brand code
- SPW
- Warehouse brand code
- SPW
- AAIA brand code
- BGFJ
Attributes
- Brake System
- Mechanical, Automatic Load Holding
- California Proposition 65
- WARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov
- Can Ship By Ground Delivery
- Yes
- Clutch
- Pull and Turn, Ergo
- Dimensions
- 20.8in L x 6.3in W x 9.2in H (529mm L x 160mm W x 234.5mm H)
- Drum Diameter (in.)
- 2.5
- Drum Length (in.)
- 9.0
- EN Compliant
- No
- Fairlead Type
- 4-Way Roller
- Finish/Color
- Black
- Freight Class
- 60
- Gear Ratio
- 218:1
- Gear System
- 3-stage planetary
- Hook
- Heavy-Duty, Clevis Pinned Latched
- Horsepower
- 5.2
- Line Speed
- 80 Amps Motor Draw/19 FPM (5.7 MPM)
- Marketing Status
- Current
- Motor Type
- 12V DC
- Mounting Bolt Pattern
- 10in x 4.5in (254mm x 114.3mm) & 10in x 6.5in (254mm x 165.1mm)
- Rated Single Line Pull (Lbs)
- 11500
- Rated Single Line Pull (lbs.)
- 11500
- Remote
- 12ft Rubber Sealed Hand-held
- Rope Length
- 3/8 in x 84 ft
- Rope Material
- Steel Wire
- Solenoid
- Weather Sealed Solenoid and Circuit Breaker Protected
- Superwinch WEB Title
- Tiger Shark 11500 Winch 12V with Steel Wire Rope
- Type
- Automotive
- Voltage
- 12 DC
- Warranty
- Limited Lifetime Mechanical/7 Year Limited Electrical
- Winch Color
- Black
- Winch Dimension (IN)
- 20.8 x 6.3 x 9.2
Fitment status
This product is universal and will fit your application.
Application summary
11;500 lbs; 12 VDC; 3/8 in x 84 ft steel rope; weather sealed solenoid; handheld remote control; 5.2 Hp; 3-stage planetary; 218:1 gear ratio and 4-way roller fairlead

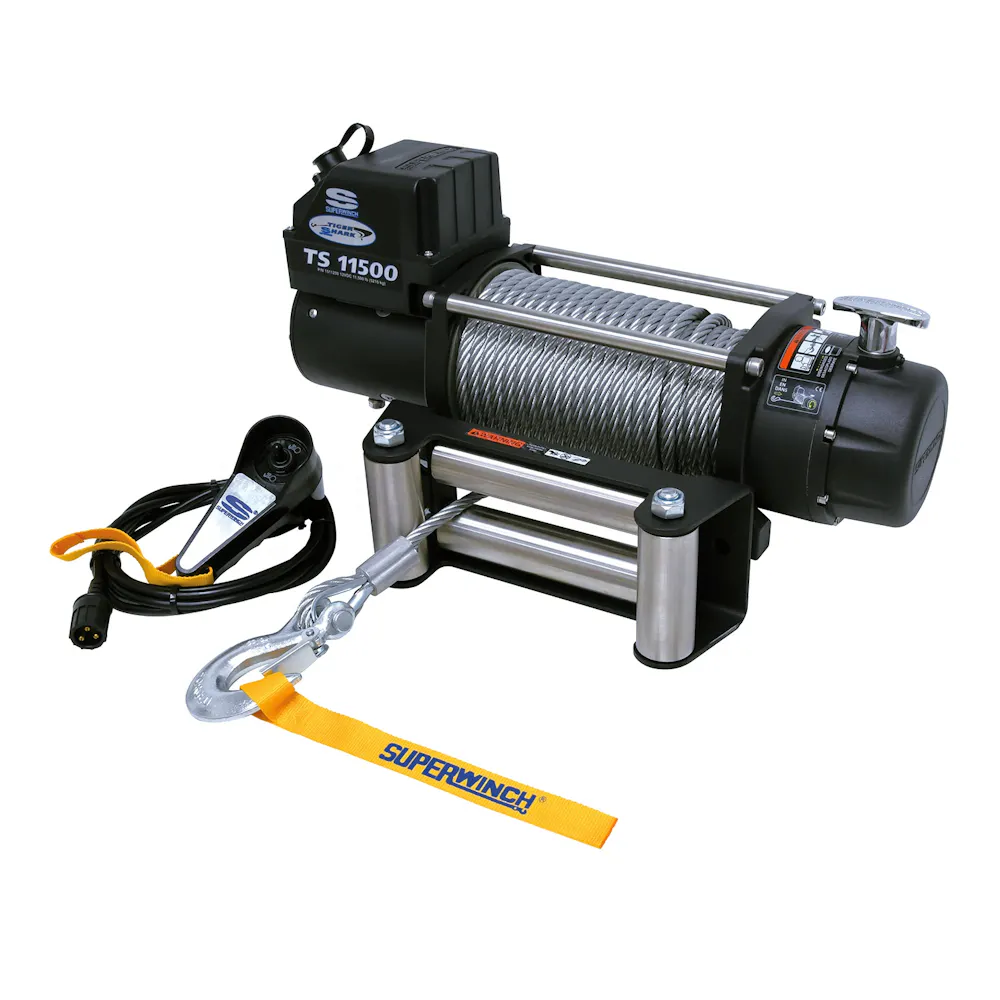

Superwinch 1511200
