Superwinch · 1475201
Part #: 1475201
UPC: 022705006057
Log in for inventory
Notify me when this item is in stock.
Description: S7500SR Winch; 7500 lbs; 12 Vdc; 5/16 In X 54 ft Synthetic Rope; 30.5 ft Handheld Remote Control; 3.6 hp; Mechanical Brake; 3-Stage Planetary; 249:1 Gear Ratio; 2-Way Fairlead;
Description:
Description
The S7500 Winch pulls 7,500 lbs with a 3.6 hp permanent magnet motor driven through an all steel 3-stage planetary gear box. The tinted protective cover protects the cable, drum and operators fingers. Machined aluminum freespool lever can be easily operated by foot. Innovative 2-hole drum prevents steel cable from detaching from drum.
Features & benefits
- Rated Line Pull Of 7500 Lbs
- 3.6 Hp Permanent Magnet Motor Provides Dynamic Braking
- 3-Stage Planetary Gearing With 249:1 Ratio
- Sealed Solenoid
- Lever Style Freespool Allows Hand Or Foot Operation
- Steel Cut Gears For Better Engagement And Longevity
- Synthetic Rope Measures 5/16 In. X 54 Ft.
- Automatic Load Holding Brake
- Stainless Steel 2-Way Fairlead
Specifications
- GTIN
- 00022705006057
- Weight
- 40 lb
- Height
- 9 in
- Length
- 22 in
- Width
- 13 in
- Life cycle
- Available to Order
- AAM brand code
- SPW
- Warehouse brand code
- SPW
- AAIA brand code
- BGFJ
Attributes
- Brake System
- Mechanical
- California Proposition 65
- WARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov
- Can Ship By Ground Delivery
- Yes
- EN Compliant
- No
- Finish/Color
- Yellow
- Freight Class
- 65
- Gear Ratio
- 249:1
- Hook
- Heavy-Duty, Clevis Pinned Latched
- Horsepower
- 3.6
- Line Speed
- 80 Amps Motor Draw/19 FPM (5.8 MPM)
- Marketing Status
- Current
- Rated Single Line Pull (Lbs)
- 7500
- Rated Single Line Pull (lbs.)
- 7500
- Remote
- 30.5 ft handheld remote control
- Rope Length
- 5/16 in x 54 ft
- Rope Material
- Synthetic
- Superwinch WEB Title
- S7500SR Winch with Synthetic Rope
- Type
- Automotive
- Voltage
- 12 DC
- Warranty
- 2 Year Limited
- Winch Color
- Yellow
Fitment status
This product is universal and will fit your application.
Application summary
7;500 lbs; 12 VDC; 5/16 in x 54 ft synthetic rope; 30.5 ft handheld remote control; 3.6 Hp; mechanical brake; 3-stage planetary; 249:1 gear ratio; 2-way fairlead

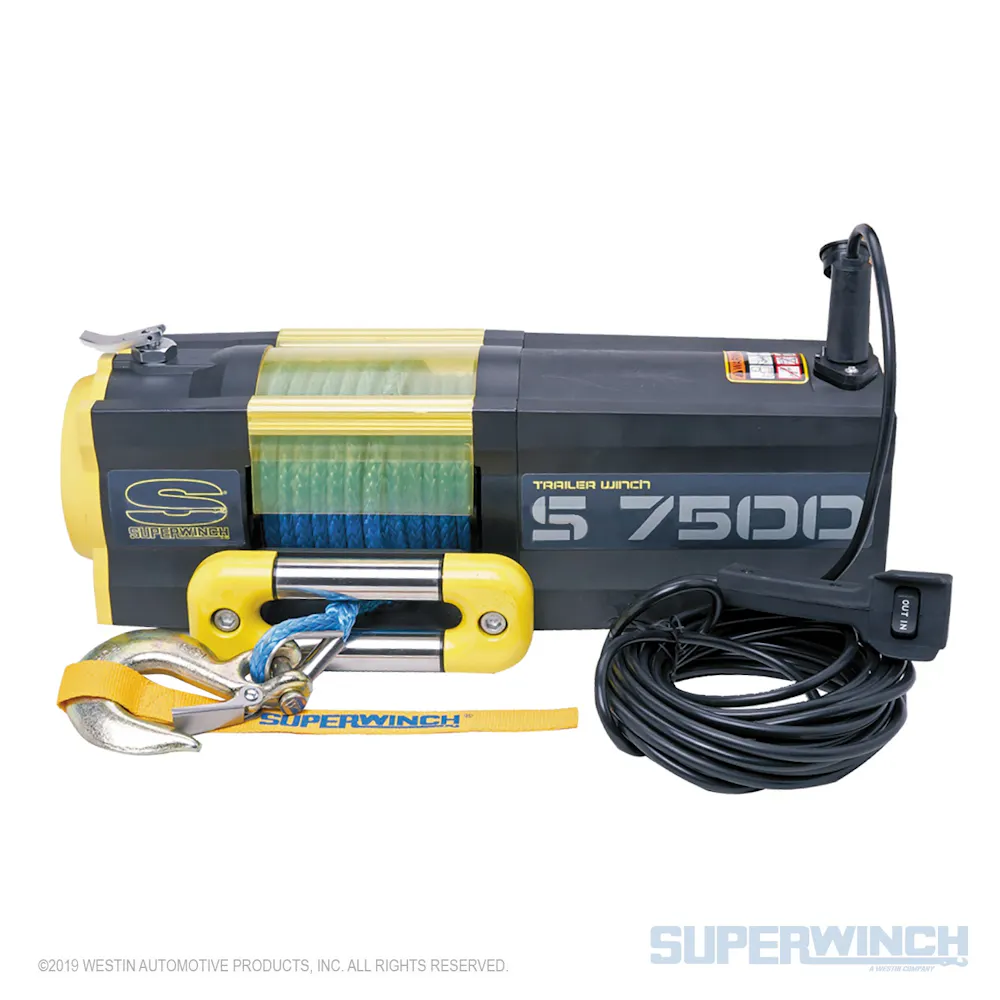

Superwinch 1475201
