Superwinch · 1331200
Part #: 1331200
UPC: 022705002721
Log in for inventory
Notify me when this item is in stock.
Description: UT3000 Winch; 3000 lbs; 12 Vdc; 3/16 In X 40 ft Steel Rope; Circuit Breaker; Remote Control; 1.2 hp; Dynamic Brake; 1-Stage Planetary; 153:1 Gear Ratio; 4-Way Roller Fairlead;
Description:
Description

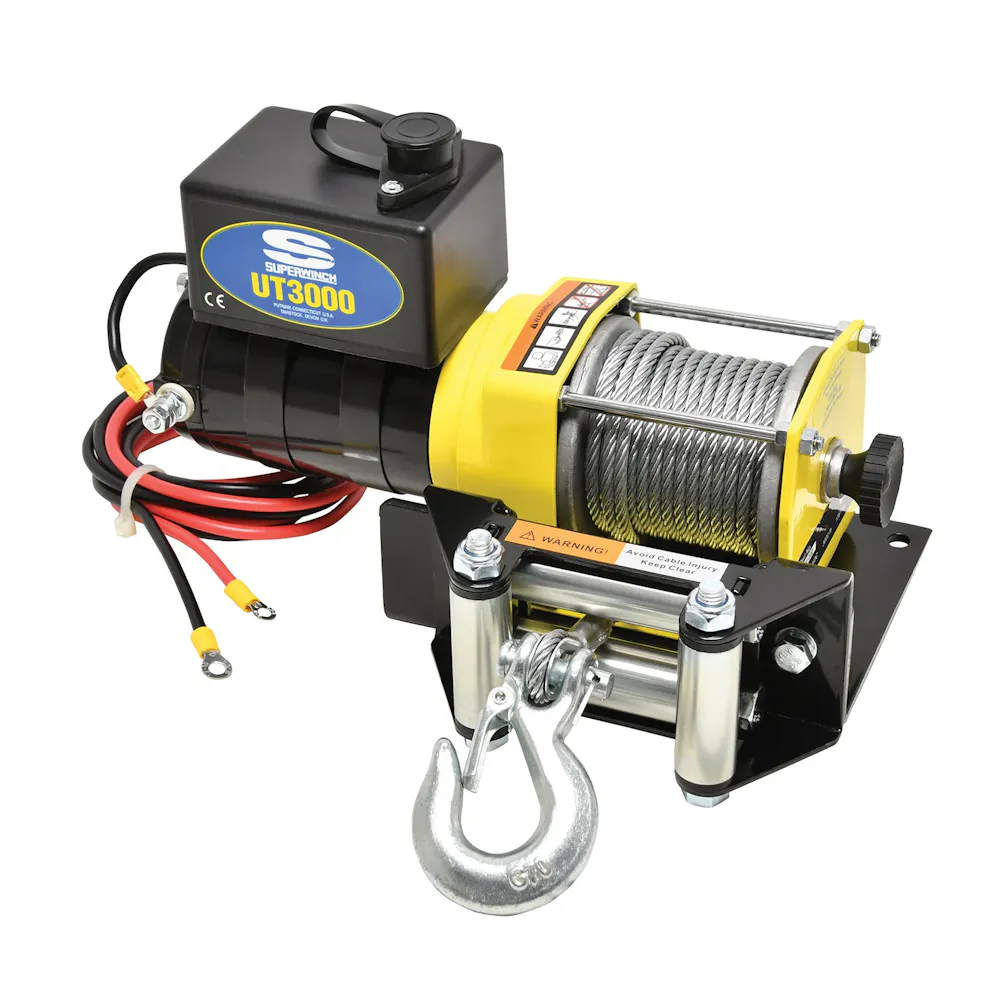

The Superwinch UT3000 Winch provides 3,000 lbs of pulling capacity, freespool control and cable tensioner to keep your cable wrap tight. Controller and roller fairlead on a mount plate makes this winch a great choice for simple jobs around the house or worksite.
Features & benefits
- Rated Line Pull Of 3000 Lbs
- 1.2 Hp Permanent Magnet Motor Provides Dynamic Braking
- 1-Stage Planetary Gearing With 153:1 Ratio
- Circuit Breaker Protected
- Free-Spooling Pull And Turn Clutch
- Wire Rope Measures 3/16 In. X 40 Ft.
- Clevis Pinned Hook
- Zinc Plated 4-Way Fairlead
- 12 Ft. Wired Hand-Held Remote
Specifications
- GTIN
- 00022705002721
- Weight
- 22 lb
- Height
- 6 in
- Length
- 13 in
- Width
- 11 in
- Life cycle
- Available to Order
- AAM brand code
- SPW
- Warehouse brand code
- SPW
- AAIA brand code
- BGFJ
Attributes
- Brake System
- Dynamic
- California Proposition 65
- WARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov
- Can Ship By Ground Delivery
- Yes
- Clutch
- Free-Spooling, Pull and Turn
- Dimensions
- 12.0in L x 7.5in D x 7.0in H (304.8mm L x 190.5mm D x 177.8mm H)
- Drum Diameter (in.)
- 1.25
- Drum Length (in.)
- 2.83
- EN Compliant
- No
- Fairlead Type
- 4-Way Roller
- Finish/Color
- Black
- Freight Class
- 60
- Gear Ratio
- 153:1
- Gear System
- 1-stage planetary
- Hook
- Removable Clevis Pinned
- Horsepower
- 1.2
- Line Speed
- 5 Amps Motor Draw/8.5 FPM (2.58 MPM)
- Marketing Status
- Current
- Motor Type
- 12V DC
- Mounting Bolt Pattern
- 2 Hole, 3.15in (80mm) on Center
- Rated Single Line Pull (Lbs)
- 3000
- Rated Single Line Pull (lbs.)
- 3000
- Remote
- 12ft Rubber Hand-held
- Rope Length
- 3/16 in x 40 ft
- Rope Material
- Steel Wire
- Solenoid
- Circuit Breaker Protected
- Superwinch WEB Title
- UT3000 Winch with Steel Wire Rope
- Type
- Automotive
- Voltage
- 12 DC
- Winch Color
- Black
- Winch Dimension (IN)
- 12.0 x 7.5 x 7.0
Fitment status
This product is universal and will fit your application.
Application summary
3;000 lbs; 12 VDC; 3/16 in x 40 ft steel rope; circuit breaker protected; 12 ft handheld remote control; 1.2 Hp; dynamic brake; 1-stage planetary; 153:1 gear ratio; 4-way roller fairlead
