Superwinch · 1145270
Part #: 1145270
UPC: 022705005623
Log in for inventory
Notify me when this item is in stock.

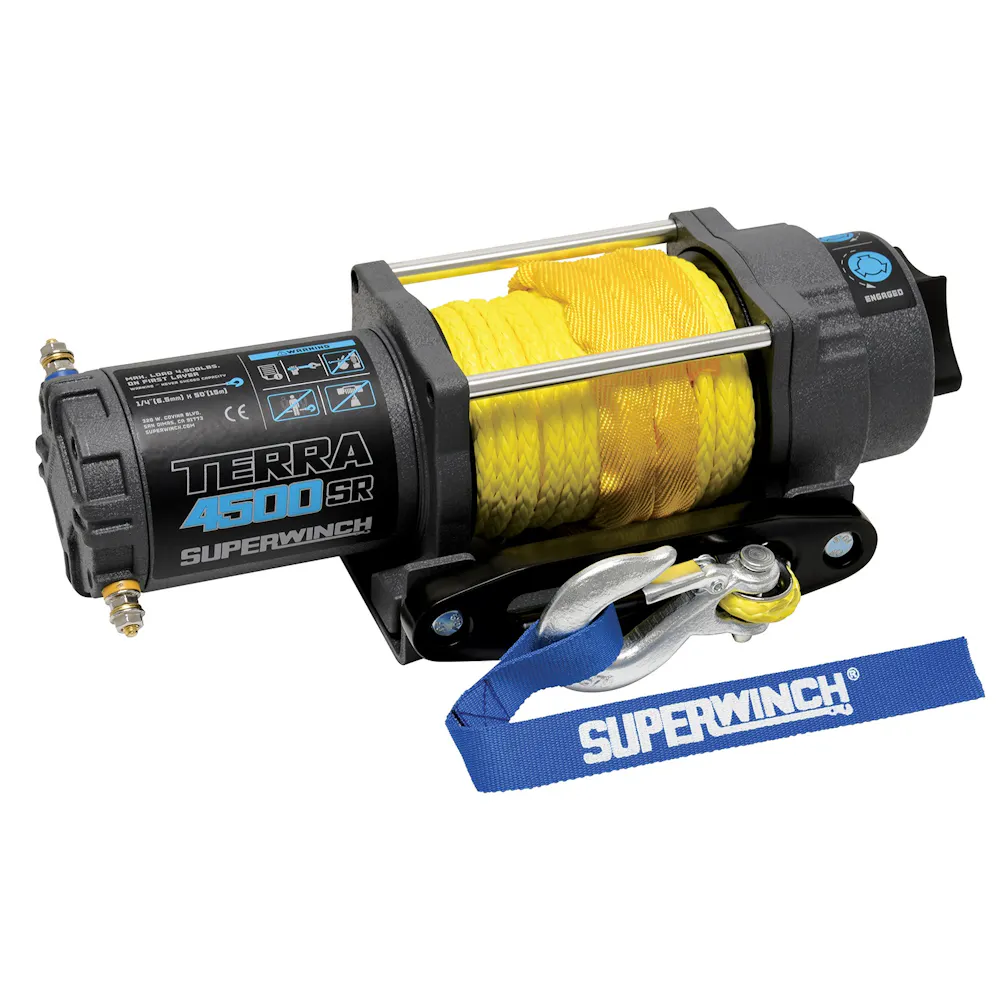

Description: Terra 4500SR Winch; 4500 lbs; 12 Vdc; 1/4 In X 50 ft Synthetic Rope; Solenoid w/Circuit Breaker; Remote And Switch; 1.8 hp; 3-Stage Planetary; 198:1 Gear Ratio; Hawse Fairlead;
Description:
Description
The new generation Terra Series winches from Superwinch are engineered specifically to meet the rugged demands of ATV and UTV enthusiasts. Available 4500 lbs. capacities with a choice of wire or synthetic rope, these powerful winches have been redesigned and improved inside and out. Each winch is loaded with a powerful motor, strong all steel gearing and a steel drum for superior performance and durability. All Terra Series winches are equipped with a remotely mountable control box that houses a sealed solenoid and circuit breaker to ensure reliable operation. Free spool function is simple to manage with an easy to engage ergonomic control knob. Each winch includes a 10' wired remote control and a handlebar mounted rocker switch for dependable control and maximum versatility. The Terra Series winches have an IP67 rating for water and dust protection so they are always ready for action.
Features & benefits
- Rated Line Pull Of 4500 Lbs
- Heavy-Duty Clevis Pinned Latched Hook
- Aluminum Hawse Fairlead
- 10 Ft. Rugged Remote Control With Handlebar Mounted Rocker Switch
- Narrow Drum Allows Easier Mounting In Tight Spaces
- Universal Mounting Plate
- Mounting Bolt Pattern 3 in. X 6.66 in.
- 1.8 Hp Permanent Magnetic Motor
- 3-Stage Planetary Gearing With 198:1 Ratio
- Sealed Solenoid With Circuit Breaker
- Easy To Engage Ergonomic Freespool Control Knob
- IP67 Protection From Water And Dust
Specifications
- GTIN
- 00022705005623
- Weight
- 29 lb
- Height
- 8.66 in
- Length
- 17.71 in
- Width
- 9.84 in
- Life cycle
- Available to Order
- AAM brand code
- SPW
- Warehouse brand code
- SPW
- AAIA brand code
- BGFJ
Attributes
- California Proposition 65
- WARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov
- Can Ship By Ground Delivery
- Yes
- Consumer Features and Benefits
- Warranty: limited lifetime (mechanical); 3-year limited (electrical)
- Consumer Marketing Description
- When it comes to ATV/UTV powersports, Terra 4500SR winches from Superwinch are an absolute fortress thanks to the industry’s first truly sealed assembly. Every seal, from the outermost end of the motor to the free-spooling control knob, is IP67 rated; the solenoid and 10’ handheld remote also meet this mud-busting, rain-shedding, dust-scoffing standard. Superwinch designed the Terra 4500SR to deliver when it matters, engineering a stronger motor, wider gears, beefier drums, and 50 feet of 1/4” synthetic rope with a 4,500 lb line pull rating.
- EN Compliant
- No
- Finish/Color
- Gray Wrinkle
- Freight Class
- 60
- Hook
- Heavy-Duty, Clevis Pinned Latched
- Marketing Status
- Current
- Mounting Bolt Pattern
- 3.0in x 4.87in (76mm x 124mm)
- Rated Single Line Pull (Lbs)
- 4500
- Rated Single Line Pull (lbs.)
- 4500
- Rope Material
- Synthetic
- Superwinch WEB Title
- Terra 4500SR Winch with Synthetic Rope
- Type
- ATV
- Voltage
- 12 DC
- Warranty
- Limited Lifetime Mechanical/3 Year Limited Electrical
Fitment status
This product is universal and will fit your application.
