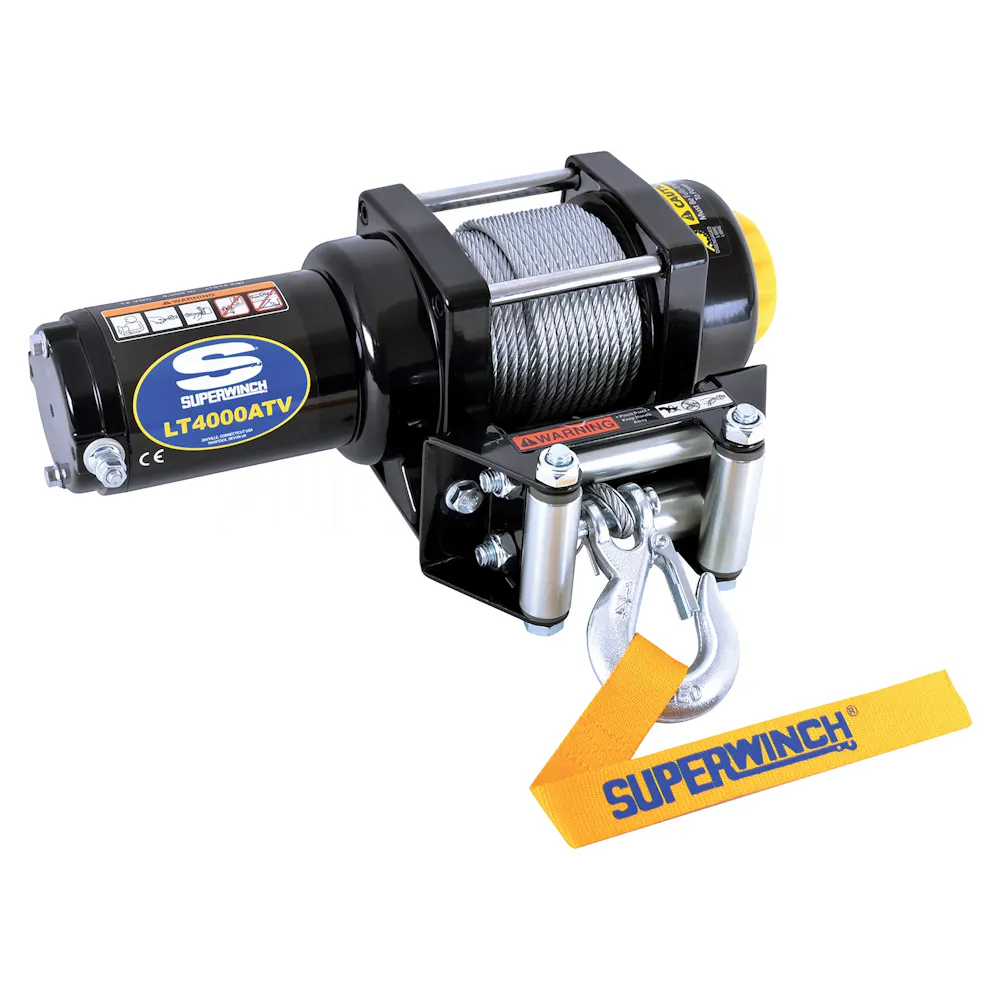

Superwinch / 1140220

View More

Part #: 1140220
UPC: 022705003346

Loading availability... Loading...

Notify me when this item is in stock.

Brand: Superwinch Series: LT Series Winches

Description: LT4000 Winch; 4000 lbs; 12 Vdc; 3/16 In X 50 ft Steel Rope; 12 ft Remote Control And Switch; 1.4 hp; Load Holding Brake; 3-Stage Planetary; 166:1 Gear Ratio; 4-Way Roller Fairlead;

Cancer and Reproductive Harm - www.P65Warnings.ca.gov

Description

Built for action, the LT4000 Winch from Superwinch provides up to 4,000 lbs of reliable pulling power. The LT4000 is a great choice for a quality, well-built winch that delivers a powerful pull season after season. Tried and true designs, perfected over the years, the LT Series offer unmatched durability and performance.

Features & benefits

Rated Line Pull Of 4000 Lbs
Sealed 1.4 Hp Permanent Magnet Motor
3-Stage Planetary Gearing With 136:1 Ratio
Sealed Solenoid Circuit Breaker Protected
Free-Spooling Ergonomic Control Clutch
Synthetic Rope Measures 3/16 In. X 50 Ft.
Heavy-Duty Clevis Pinned Latched Hook
Aluminum Hawse Fairlead
12 Ft. Hand-Held Remote With Handlebar Mounted Rocker Switch

Specifications

GTIN: 00022705003346
Weight: 29 lb
Height: 6 in
Length: 15 in
Width: 10 in
Life cycle: Available to Order
AAM brand code: SPW
Warehouse brand code: SPW
AAIA brand code: BGFJ

Attributes

Brake System: Automatic, 100% Load Holding
California Proposition 65: WARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov
Can Ship By Ground Delivery: Yes
Clutch: Free Spooling, Ergonomic Control
Drum Diameter (in.): 2
Drum Length (in.): TBD
EN Compliant: No
Fairlead Type: 4-Way Roller
Finish/Color: Black
Freight Class: 60
Gear Ratio: 166:1
Gear System: 3-stage planetary
Hook: Heavy-Duty, Clevis Pinned Latched
Horsepower: 1.4
Line Speed: 20 Amps Motor Draw/18 FPM (5.4 MPM)
Marketing Status: Current
Motor Type: 12V DC
Mounting Bolt Pattern: 3.0in x 4.87in (76mm x 124mm)
Rated Single Line Pull (Lbs): 4000
Rated Single Line Pull (lbs.): 4000
Remote: 12ft Handheld plus Handle Bar Rocker Switch
Rope Length: 3/16 in x 50 ft
Rope Material: Steel Wire
Solenoid: Sealed Solenoid; Circuit Breaker Protected
Superwinch WEB Title: LT4000 Winch with Steel Wire Rope
Type: Automotive
Voltage: 12 DC
Winch Color: Black
Winch Dimension (IN): 13.2 x 4.25 x 4.25

Fitment status

This product is universal and will fit your application.

Application summary

4;000 lbs; 12 VDC; 3/16 in x 50 ft steel rope; sealed solenoid; 12 ft handheld remote control and handle bar switch; 1.4 Hp; automatic load holding brake; 3-stage planetary; 166:1 gear ratio; 4-way roller fairlead
