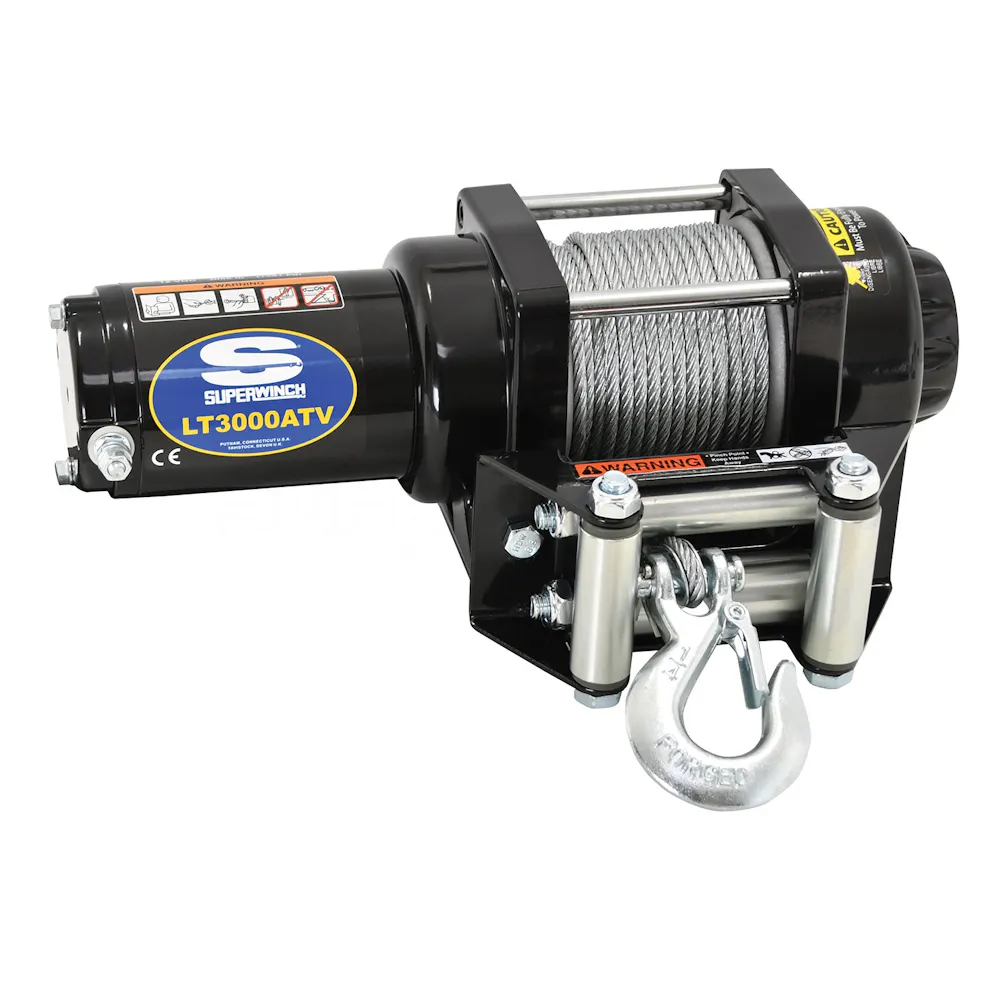

Superwinch · 1130220
Part #: 1130220
UPC: 022705003162
Loading...
Notify me when this item is in stock.
Description: LT3000 Winch; 3000 lbs; 12 Vdc; 3/16 In X 50 ft Steel Rope; 12 ft Handheld Remote; 1.2 hp; Automatic Load Holding Brake; 1-Stage Planetary; 136:1 Gear Ratio; 4-Way Roller Fairlead;
Description:
Description
LT3000 is legendary because it survives pull after pull, season after season. Built for action, the LT3000 Winch from Superwinch provides up to 3,000 lbs of reliable pulling power. Industrial-style remote control and pull and turn freespool lever are standard features and offer great value, durability and ease of operation.
Features & benefits
- Rated Line Pull Of 3000 Lbs
- Sealed 1.2 Hp Permanent Magnet Motor
- 3-Stage Planetary Gearing With 136:1 Ratio
- Sealed Solenoid Circuit Breaker Protected
- Free-Spooling Ergonomic Control Clutch
- Wire Rope Measures 3/16 In. X 50 Ft.
- Heavy-Duty Clevis Pinned Latched Hook
- Zinc Plated 4-Way Roller Fairlead
- 12 Ft. Hand-Held Remote With Handlebar Mounted Rocker Switch
Specifications
- GTIN
- 00022705003162
- Weight
- 26 lb
- Height
- 6 in
- Length
- 15 in
- Width
- 10 in
- Life cycle
- Available to Order
- AAM brand code
- SPW
- Warehouse brand code
- SPW
- AAIA brand code
- BGFJ
Attributes
- Brake System
- Automatic, 100% Load Holding
- California Proposition 65
- WARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov
- Can Ship By Ground Delivery
- Yes
- Clutch
- Free-Spooling, Ergonomic Control
- Dimensions
- 13.2 L x 4.25 W x 4.25 H (335.3mm L x 108mm W x 108mm H)
- Drum Diameter (in.)
- 2.0
- Drum Length (in.)
- 2.9
- EN Compliant
- No
- Fairlead Type
- 4-Way Roller
- Finish/Color
- Black
- Freight Class
- 60
- Gear Ratio
- 136:1
- Gear System
- 1-stage planetary
- Hook
- Heavy-Duty, Clevis Pinned Latched
- Horsepower
- 1.2
- Line Speed
- 15 Amps Motor Draw/27 FPM (8.3 MPM)
- Marketing Status
- Current
- Motor Type
- 12V DC
- Mounting Bolt Pattern
- 3.0in x 4.87in (76mm x 124mm)
- Rated Single Line Pull (Lbs)
- 3000
- Rated Single Line Pull (lbs.)
- 3000
- Remote
- 12ft Hand-Held
- Rope Length
- 3/16 in x 50 ft
- Rope Material
- Steel Wire
- Solenoid
- Sealed Solenoid, Circuit Breaker Protected
- Superwinch WEB Title
- LT3000 Winch with Steel Wire Rope
- Type
- Automotive
- Voltage
- 12 DC
- Winch Color
- Black
- Winch Dimension (IN)
- 13.2 x 4.25 x 4.25
Fitment status
This product is universal and will fit your application.
Application summary
3;000 lbs; 12 VDC; 3/16 in x 50 ft steel rope; sealed solenoid; 12 ft handheld remote; 1.2 Hp; automatic load holding brake; 1-stage planetary; 136:1 gear ratio; 4-way roller fairlead
