Superwinch · 1125270

Superwinch 1125270

Part #: 1125270
UPC: 022705005463

Log in for inventory
Notify me when this item is in stock.

Brand: Superwinch Series: Terra Series Winches
Log in to order

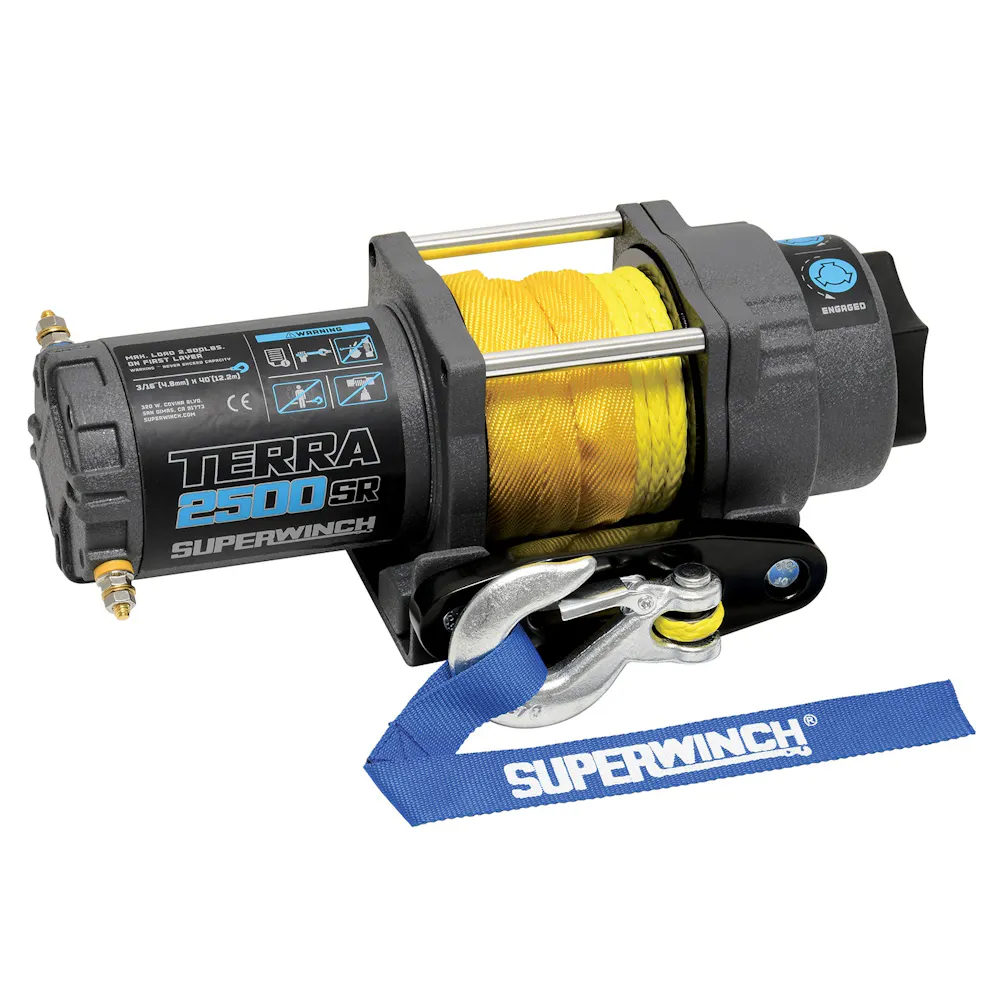

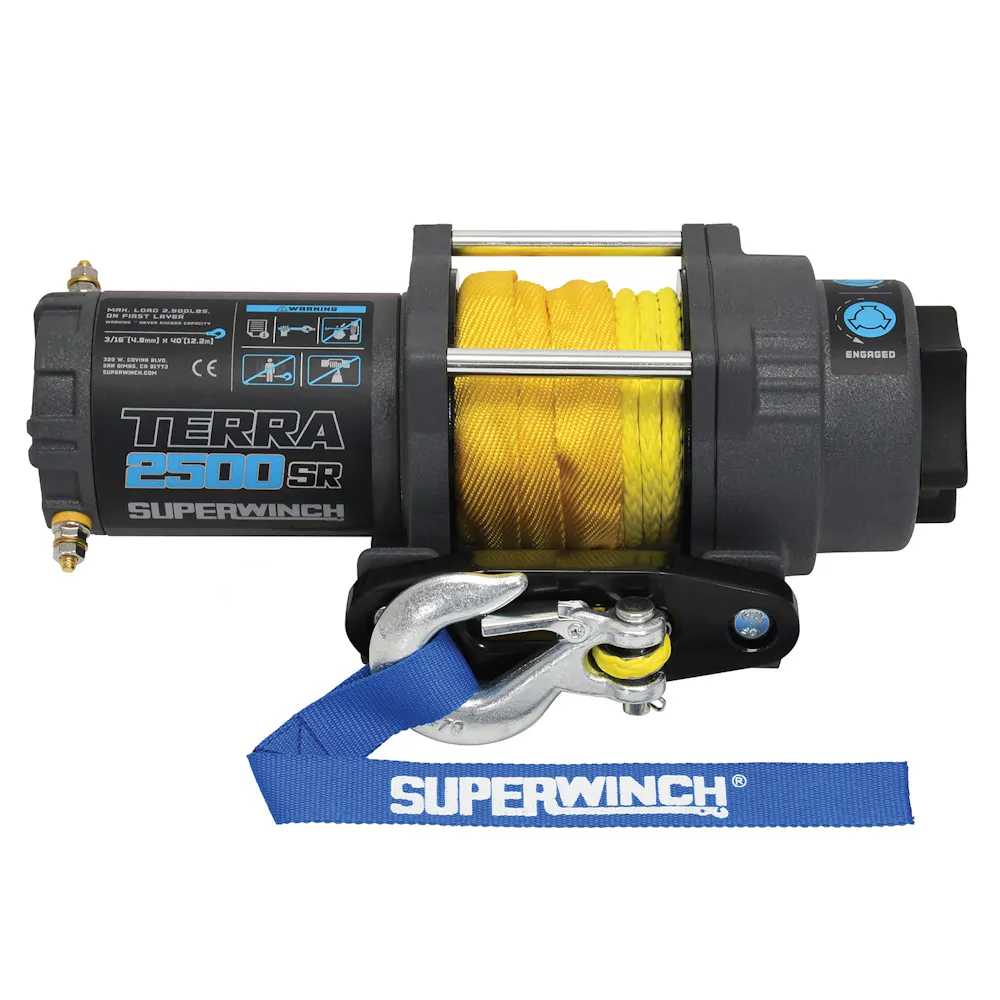

Description: Terra 2500SR Winch; 2500 lbs; 12 Vdc; 3/16 In X 40 ft Steel Rope; Solenoid W/Circuit Breaker; Remote And Switch; 1.5 hp; 3-Stage Planetary; 138:1 Gear Ratio; Hawse Fairlead;

Description:

Proposition 65 WarningCancer and Reproductive Harm - www.P65Warnings.ca.gov

Description

The new generation Terra Series winches from Superwinch are engineered specifically to meet the rugged demands of ATV and UTV enthusiasts. Available 2500 lbs. capacities with a choice of wire or synthetic rope, these powerful winches have been redesigned and improved inside and out. Each winch is loaded with a powerful motor, strong all steel gearing and a steel drum for superior performance and durability. All Terra Series winches are equipped with a remotely mountable control box that houses a sealed solenoid and circuit breaker to ensure reliable operation. Free spool function is simple to manage with an easy to engage ergonomic control knob. Each winch includes a 10' wired remote control and a handlebar mounted rocker switch for dependable control and maximum versatility. The Terra Series winches have an IP67 rating for water and dust protection so they are always ready for action.

Features & benefits

  • Rated Line Pull Of 2500 Lbs
  • Heavy-Duty Clevis Pinned Latched Hook
  • Aluminum Hawse Fairlead

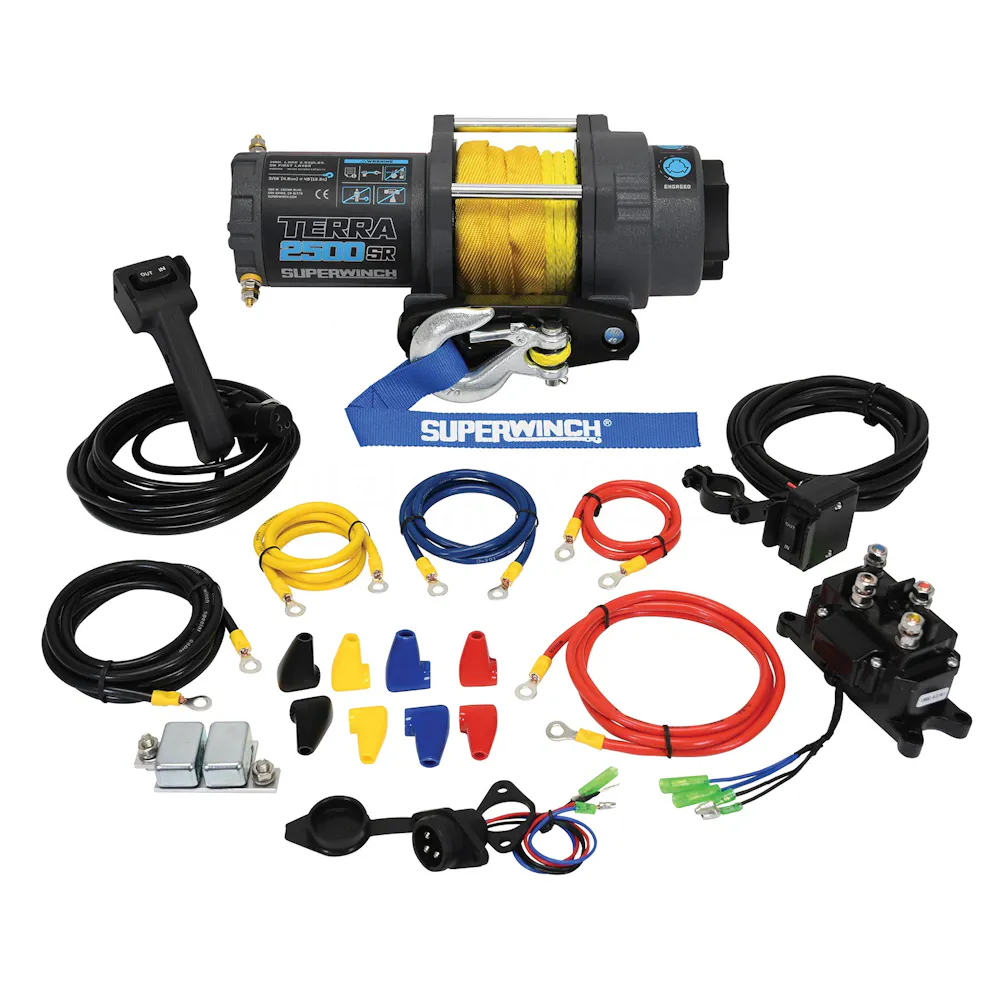

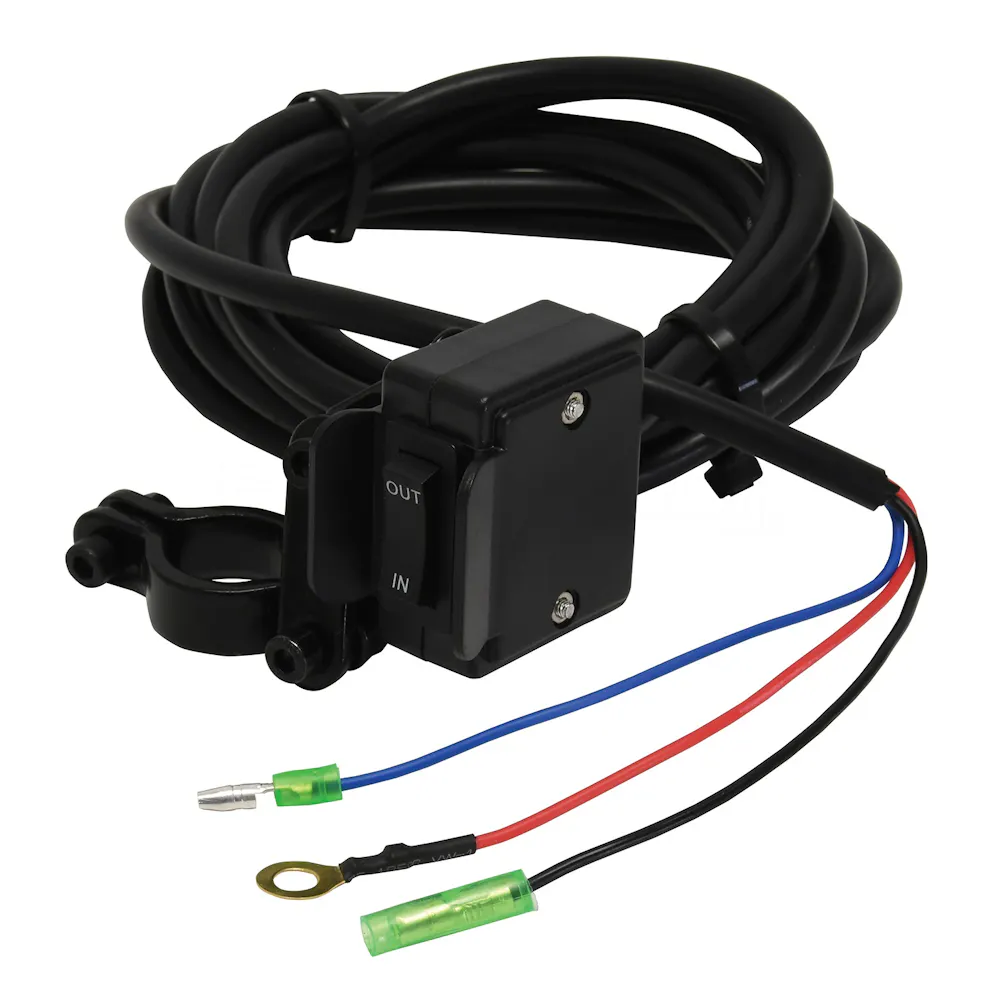

  • 10 Ft. Rugged Remote Control With Handlebar Mounted Rocker Switch
  • Narrow Drum Allows Easier Mounting In Tight Spaces
  • Universal Mounting Plate
  • Mounting Bolt Pattern 3 in. X 4.9 in.

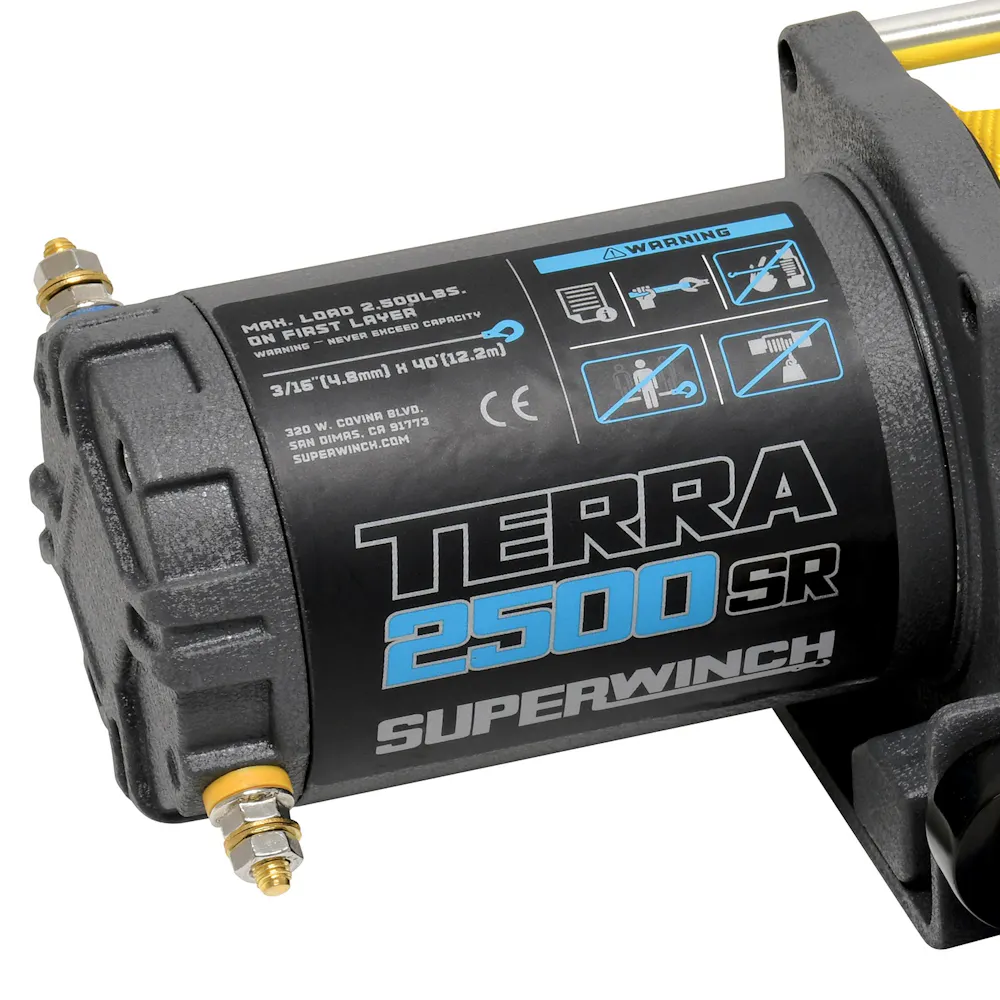

  • 1.5 Hp Permanent Magnetic Motor
  • 3-Stage Planetary Gearing With 138:1 Ratio
  • Sealed Solenoid With Circuit Breaker

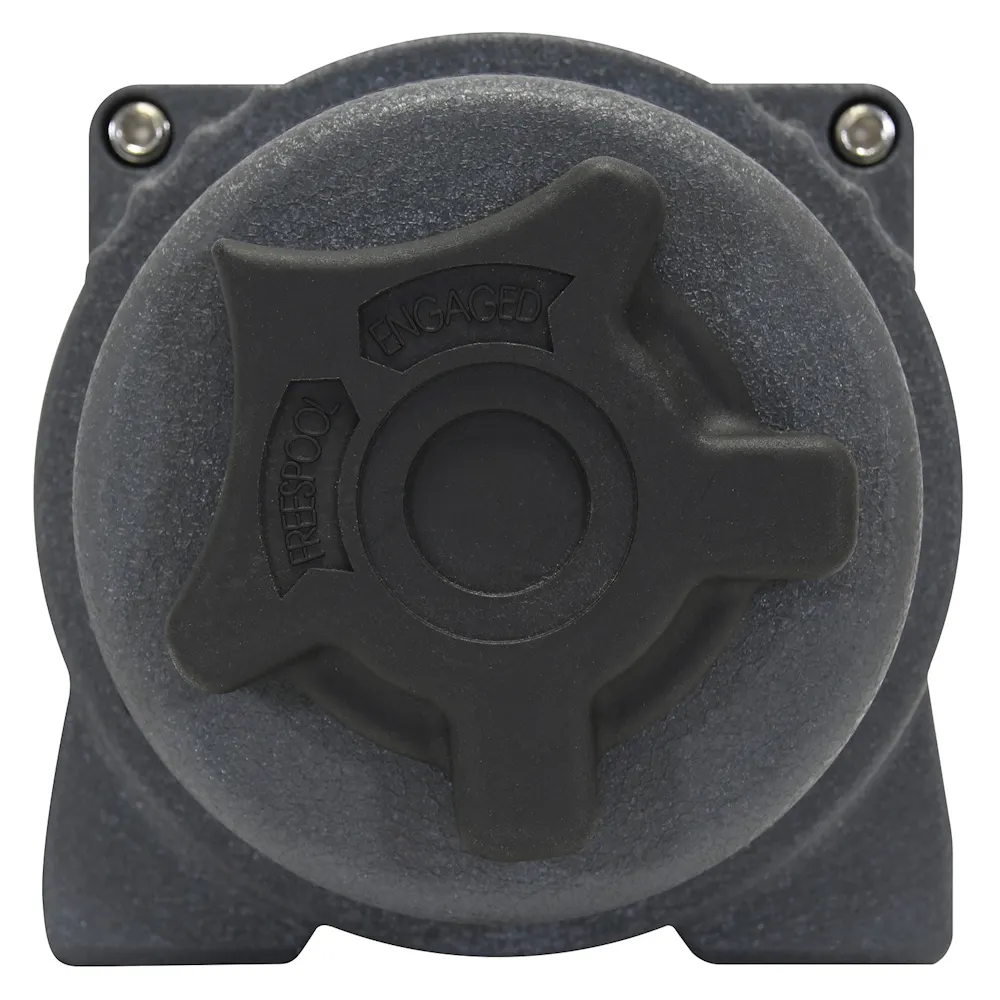

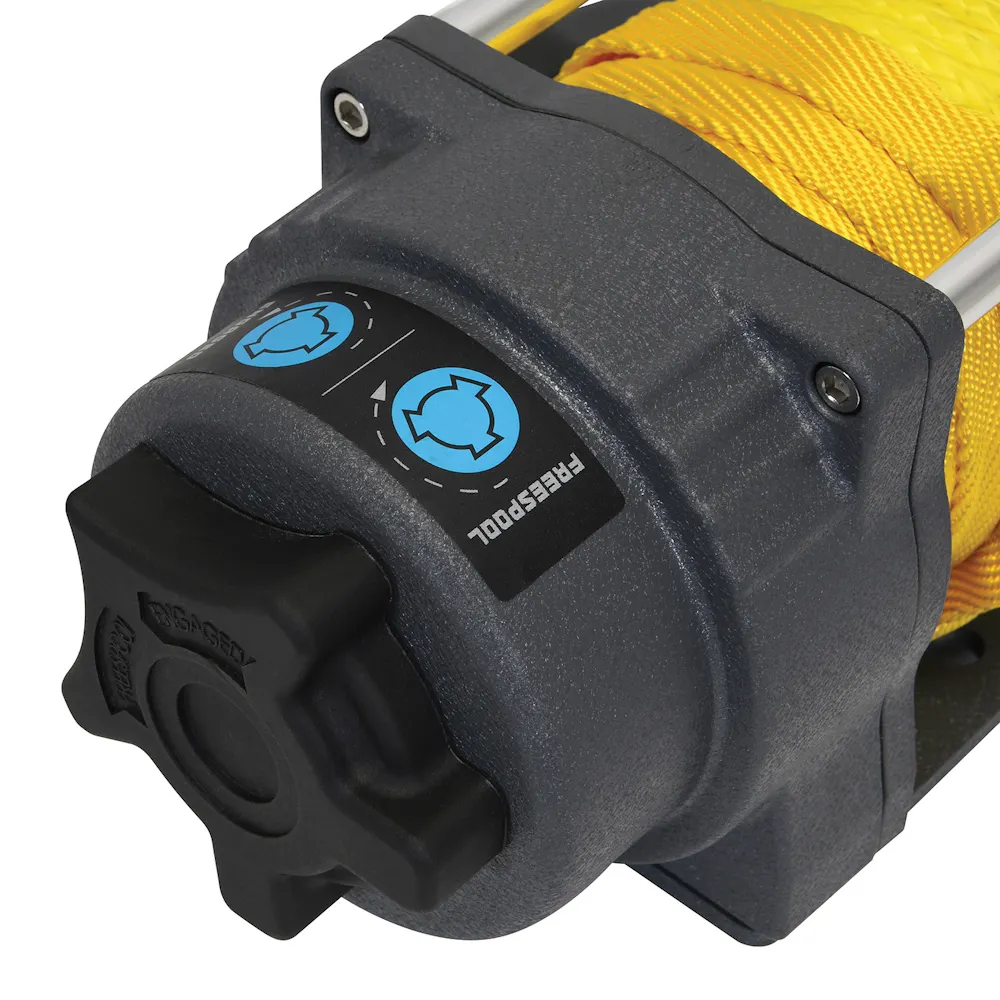

  • Easy To Engage Ergonomic Freespool Control Knob
  • IP67 Protection From Water And Dust

Specifications

GTIN
00022705005463
Weight
24 lb
Height
8.66 in
Length
16.14 in
Width
9.84 in
Life cycle
Available to Order
AAM brand code
SPW
Warehouse brand code
SPW
AAIA brand code
BGFJ

Attributes

California Proposition 65
WARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov
Can Ship By Ground Delivery
Yes
EN Compliant
No
Finish/Color
Gray Wrinkle
Freight Class
60
Hook
Heavy-Duty, Clevis Pinned Latched
Marketing Status
Current
Mounting Bolt Pattern
3.0in x 4.87in (76mm x 124mm)
Rated Single Line Pull (Lbs)
2500
Rated Single Line Pull (lbs.)
2500

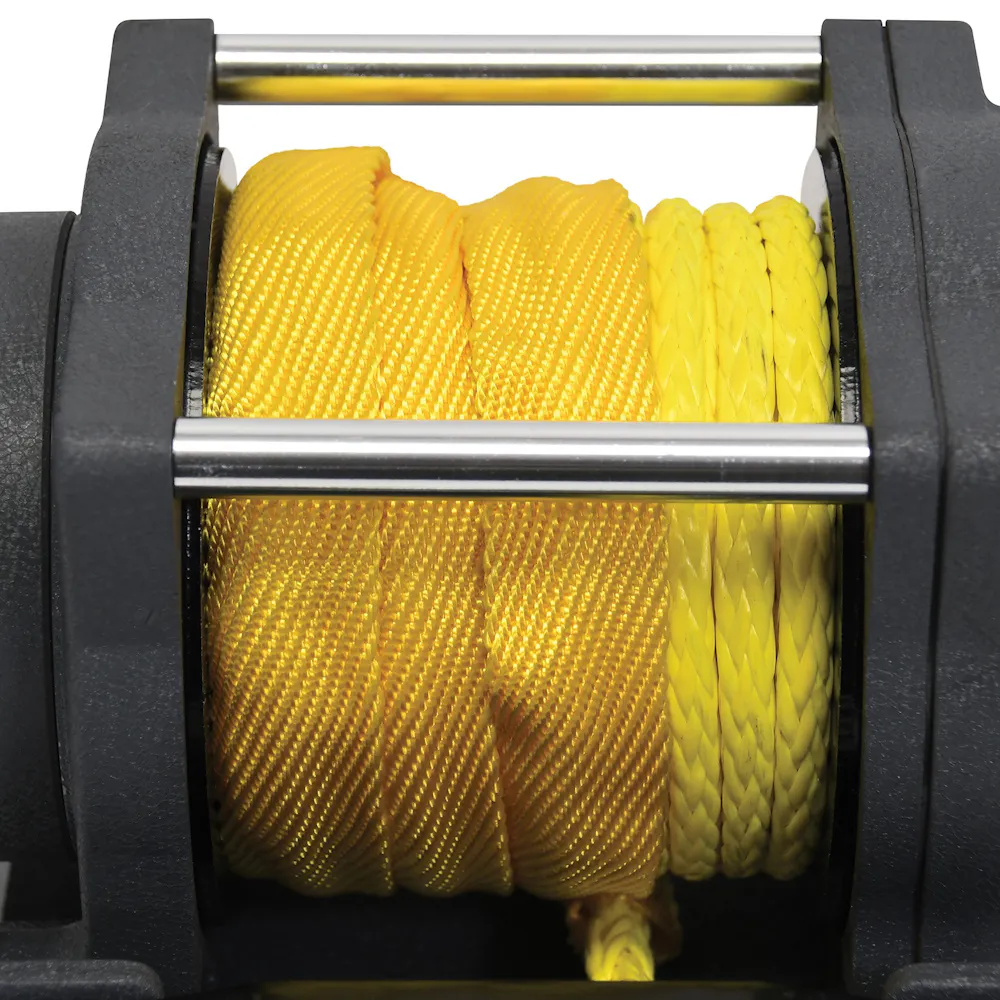

Rope Material
Synthetic
Superwinch WEB Title
Terra 2500SR Winch with Synthetic Rope
Type
ATV
Voltage
12 DC
Warranty
Limited Lifetime Mechanical/3 Year Limited Electrical

Fitment status

This product is universal and will fit your application.

Retail View

Equivalent Parts

WARN - 101020
