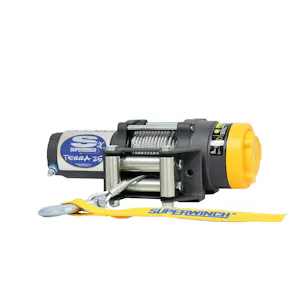

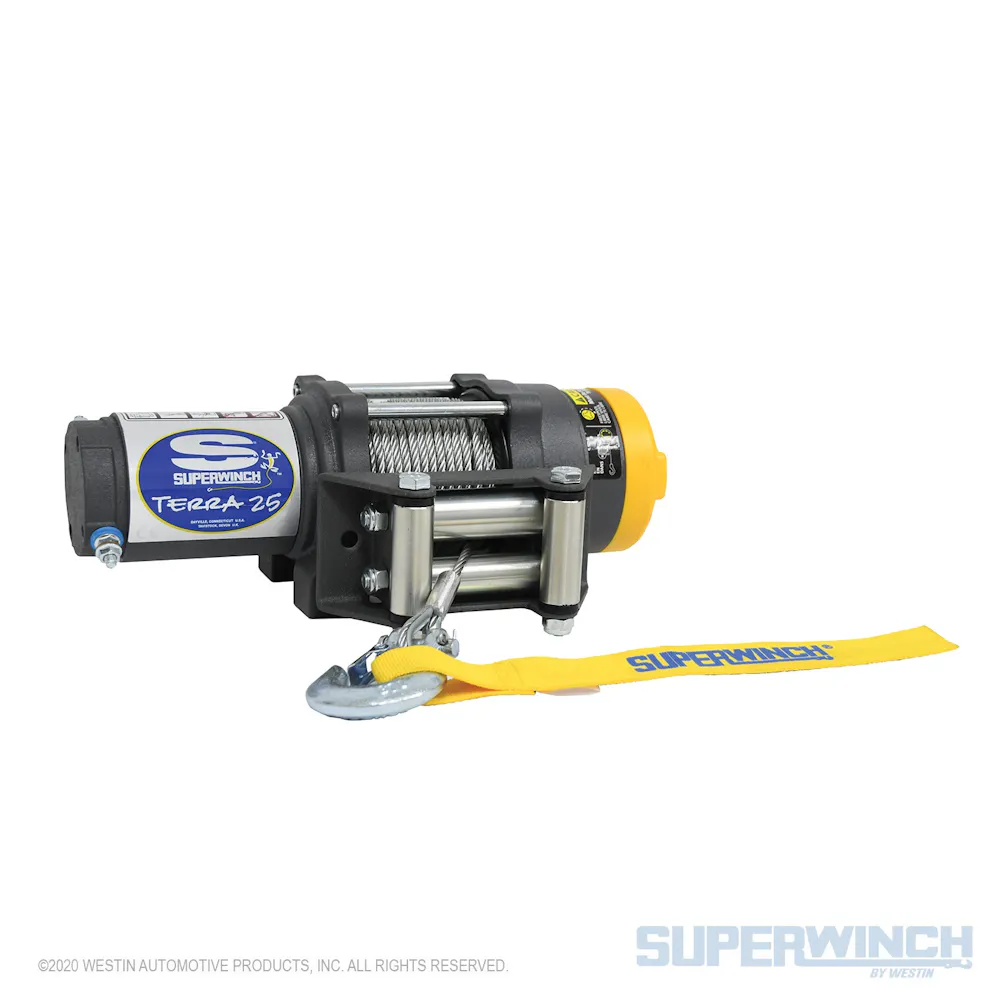

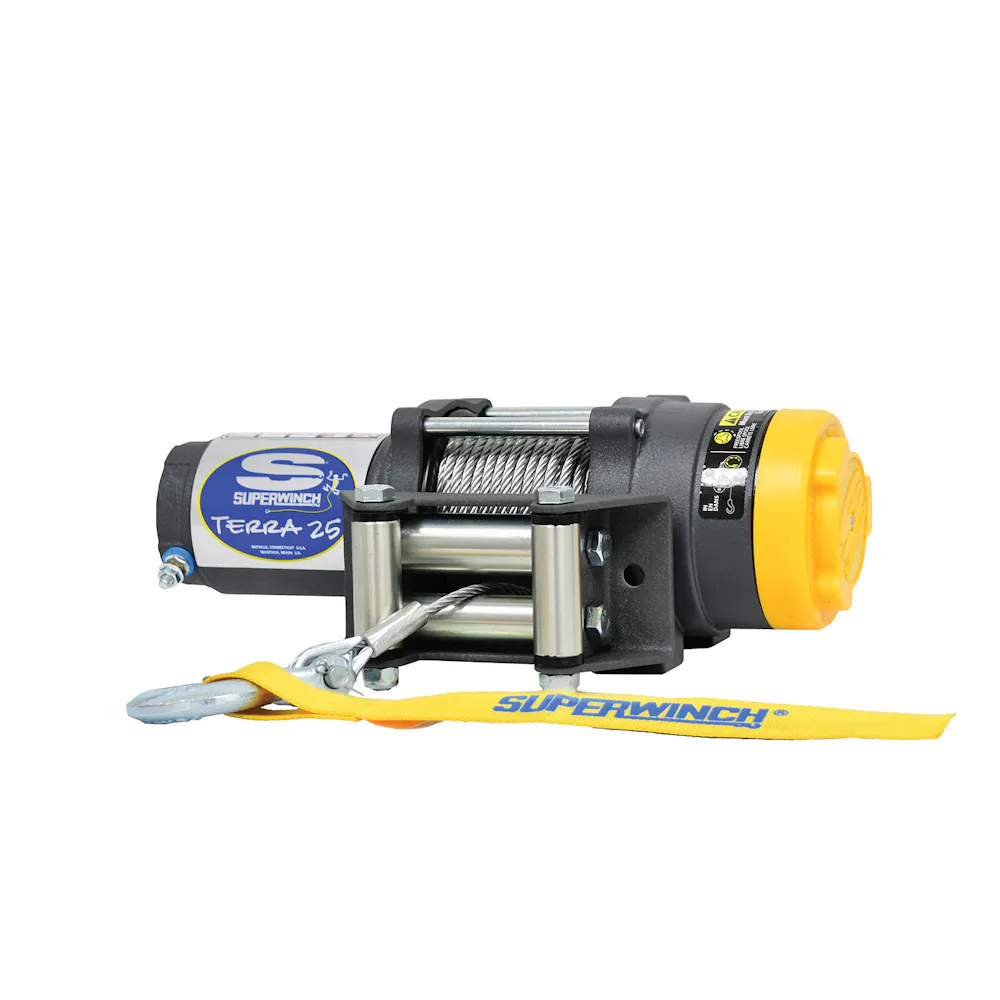

Superwinch · 1125220
Part #: 1125220
UPC: 022705003421
Log in for inventory
Notify me when this item is in stock.
Description: Terra 25 Winch; 2500 lbs; 12 Vdc; 3/16 In X 50 ft Steel Rope; Solenoid W/Circuit Breaker; Remote And Switch; 1.3 hp; 3-Stage Planetary; 140:1 Gear Ratio; 4-Way Roller Fairlead;
Description:
Description
The SuperWinch Terra 25 is the standout performer in powersports ATV/UTV Winching. Its not a claim we make lightly and we back it up with stronger motors, wider gears, beefed up drums and durable steel cable. Designed with the toughest terrains in mind, this series of ATV and side by side w inches, delivers a pull rating of 2,500 lbs. Features rugged all metal 3-stage planetary gear train construction.
Features & benefits
- Narrow Drum Allows Easier Mounting In Tight Spaces
- 3-Stage Planetary Gearing With 140:1 Ratio
- Sealed Solenoid With Circuit Breaker
- Easy To Engage Ergonomic Freespool Control Knob
- Wire Rope Measures 3/16 In. X 50 Ft.
- Heavy-Duty Clevis Pinned Latched Hook
- Blue Anodized Aluminum Hawse Fairlead
- 10 Ft. Rugged Remote Control With Handlebar Mounted Rocker Switch
Specifications
- GTIN
- 00022705003421
- Weight
- 31 lb
- Height
- 8 in
- Length
- 16 in
- Width
- 13 in
- Life cycle
- Available to Order
- AAM brand code
- SPW
- Warehouse brand code
- SPW
- AAIA brand code
- BGFJ
Attributes
- California Proposition 65
- WARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov
- Rated Single Line Pull (lbs.)
- 2500
- Type
- Automotive
- Voltage
- 12 DC
Fitment status
This product is universal and will fit your application.
Application summary
2;500 lbs; 12 VDC; 3/16 in x 50 ft steel rope; sealed solenoid with circuit breaker; handheld remote control and handlebar switch; 1.3 Hp; 3-stage planetary; 140:1 gear ratio; 4-way roller fairlead
Equivalent Parts
Superwinch 1125220
