Superwinch / 1120210
Part #: 1120210
UPC: 022705002653
Loading...
Notify me when this item is in stock.
Description: LT2000 Winch; 2000 lbs; 12 Vdc; 5/32 In X 49 ft Steel Rope; Handle Bar Mounted Switch; 1.0 hp; Dynamic Brake; 1-Stage Planetary; 153:1 Gear Ratio; 4-Way Roller Fairlead;
Description:
Description

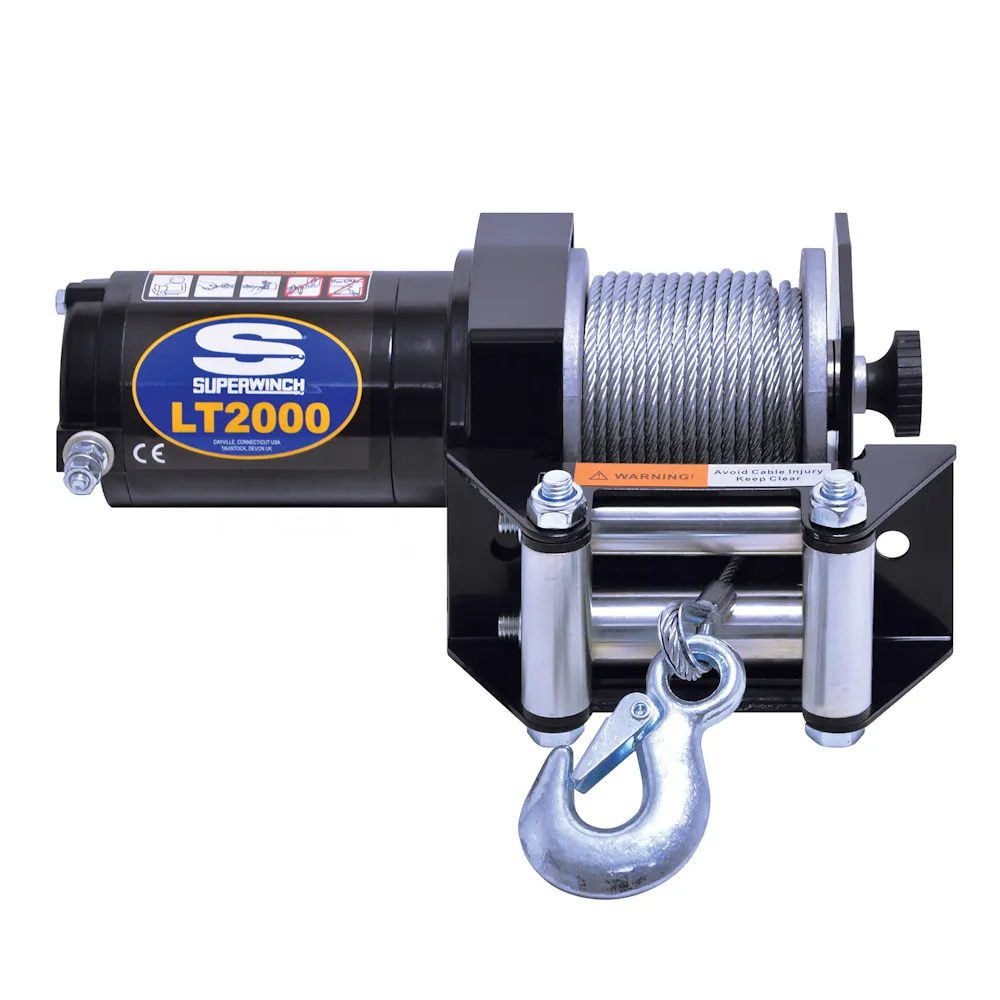

Built for action, the LT2000 Winch from Superwinch provides up to 2,000 lbs of reliable pulling power. This utility/multi-purpose winch features freespooling "pull and turn" clutch and a Handle bar mounted rocker switch remote, perfect for a variety of uses. Perfected over the years, the LT Series offer unmatched durability and performance.
Features & benefits
- Rated Line Pull Of 2000 Lbs
- Sealed 1.0 Hp Permanent Magnet Motor
- 1-Stage Planetary Gearing With 153:1 Ratio
- Circuit Breaker Protected
- Free-Spooling Pull And Turn Clutch
- Wire Rope Measures 5/32 In. X 50 ft.
- Permanent/Latched Hook
- Zinc Plated 4-Way Roller Fairlead
- Handle Bar Mounted Rocker Switch
Specifications
- GTIN
- 00022705002653
- Weight
- 18 lb
- Height
- 6 in
- Length
- 15 in
- Width
- 10 in
- Life cycle
- Available to Order
- AAM brand code
- SPW
- Warehouse brand code
- SPW
- AAIA brand code
- BGFJ
Attributes
- Brake System
- Dynamic
- California Proposition 65
- WARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov
- Can Ship By Ground Delivery
- Yes
- Clutch
- Free-Spooling, Pull and Turn
- Dimensions
- 11.0in L x 4.1in D x 4.1in H (285mm L x 105mm D x 105mm H)
- Drum Diameter (in.)
- 1.25
- Drum Length (in.)
- 2.83
- EN Compliant
- No
- Fairlead Type
- 4-Way Roller
- Finish/Color
- Black
- Freight Class
- 60
- Gear Ratio
- 153:1
- Gear System
- 1-stage planetary
- Hook
- Latched with Rope Thimble, Permanent
- Horsepower
- 1.0
- Line Speed
- 10 Amps Motor Draw/10.0 FPM (3.0 MPM)
- Marketing Status
- Current
- Motor Type
- 12V DC
- Mounting Bolt Pattern
- 2 Hole, 3.15in (80mm) on Center
- Rated Single Line Pull (Lbs)
- 2000
- Rated Single Line Pull (lbs.)
- 2000
- Remote
- Handle Bar Mounted Rocker Switch
- Rope Length
- 5/32 in x 49 ft
- Rope Material
- Steel Wire
- Solenoid
- Dual Relays and Circuit Breaker Protected
- Superwinch WEB Title
- LT2000 Winch 12V 2100 lbs with Steel Wire Rope
- Type
- Automotive
- Voltage
- 12 DC
- Winch Color
- Black
- Winch Dimension (IN)
- 11.0 x 4.1 x 4.1
Fitment status
This product is universal and will fit your application.
Application summary
2;000 lbs; 12 VDC; 5/32 in x 49 ft steel rope; dual relays and circuit breaker protected; handle bar mounted switch; 1.0 Hp; dynamic brake; 1-stage planetary; 153:1 gear ratio; 4-way roller fairlead
Equivalent Parts
Superwinch 1120210
