Speed Pro · L-2291F
Part #: L-2291F
UPC: 087674708869
Loading...
Notify me when this item is in stock.

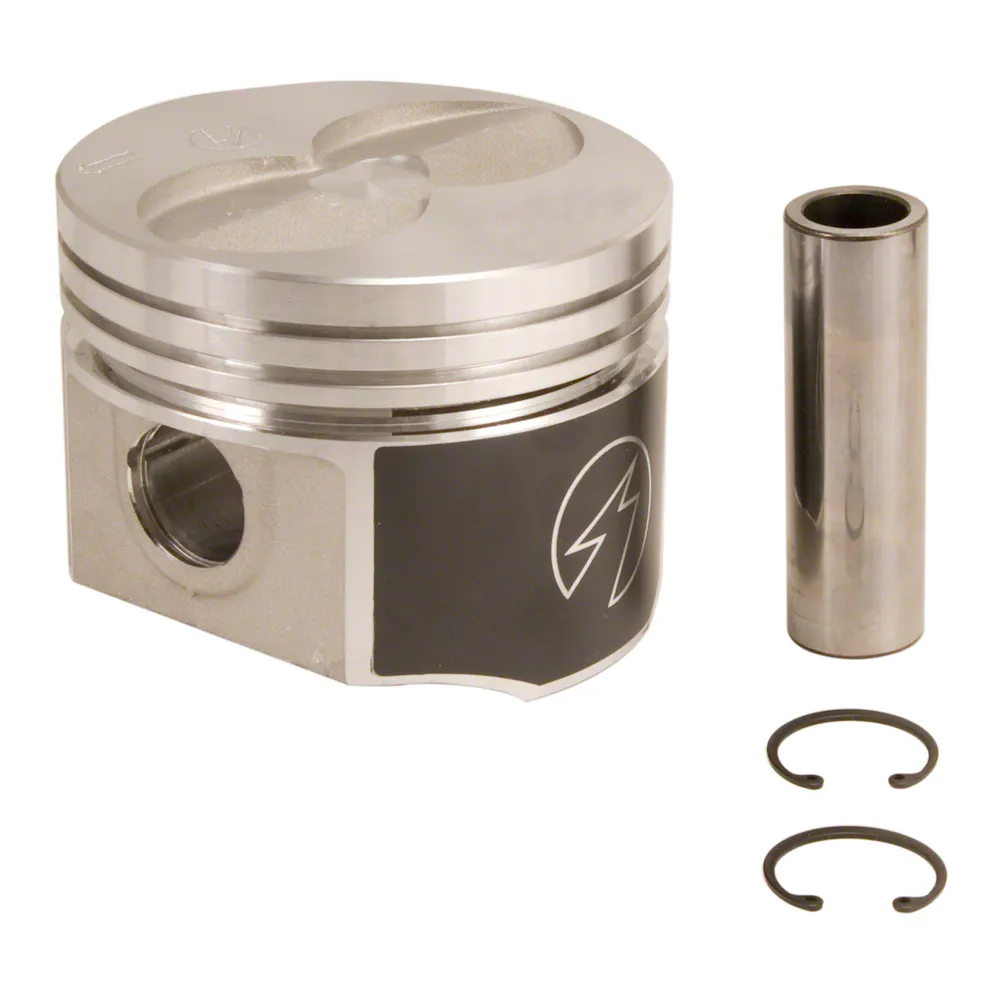

Description: POWERFORGED Piston Set; Speed-Pro L-2291F POWERFORGED Piston (Carton of 8)
Description:
Description
Speed-Pro® delivers the power you need and the value & quality that you deserve. Whether you are running at the track, chasing trophies on the strip, or just cruising down the road, count on Speed-Pro® to provide the best value in HP engine components.
Features & benefits
- Forged under 3,000 tons of force.
- Fully updated skirt profiles
- Exclusive DUROSHIELD® skirt coating. DUROSHIELD® provides scuff resistance, reduced bore clearances and enhanced ring sealing.
- SPEED-PRO® POWERFORGED® pistons are built to stringent specifications with a precision CNC-machined dome and skirts and microfinished ring grooves.
- The manufacturing process ensures that piston weights within a boxed set will not vary more than 4 grams and that skirt sizes are matched to within 0.016mm (0.0006”) per set.
- Machined valve reliefs and circlip grooves; includes N5400-98 Seger Clip for floated applications
Specifications
- GTIN
- 00087674708869
- Weight
- 15.52 lb
- Height
- 4.54 in
- Length
- 19.42 in
- Width
- 9.31 in
- EO
- Legal US
- Life cycle
- Available to Order
- AAM brand code
- SPP
- Warehouse brand code
- BHVW
- AAIA brand code
- BHVW
Attributes
- Bore (Inch)
- 4.050
- Compression Distance
- 1.776
- Dome Volume CC
- -10.0
- Groove 1 Qty
- 1
- Groove 1 Width
- 5/64
- Groove 2 Qty
- 1
- Groove 2 Width
- 3/32
- Groove 3 Qty
- 1
- Groove 3 Width
- 3/16

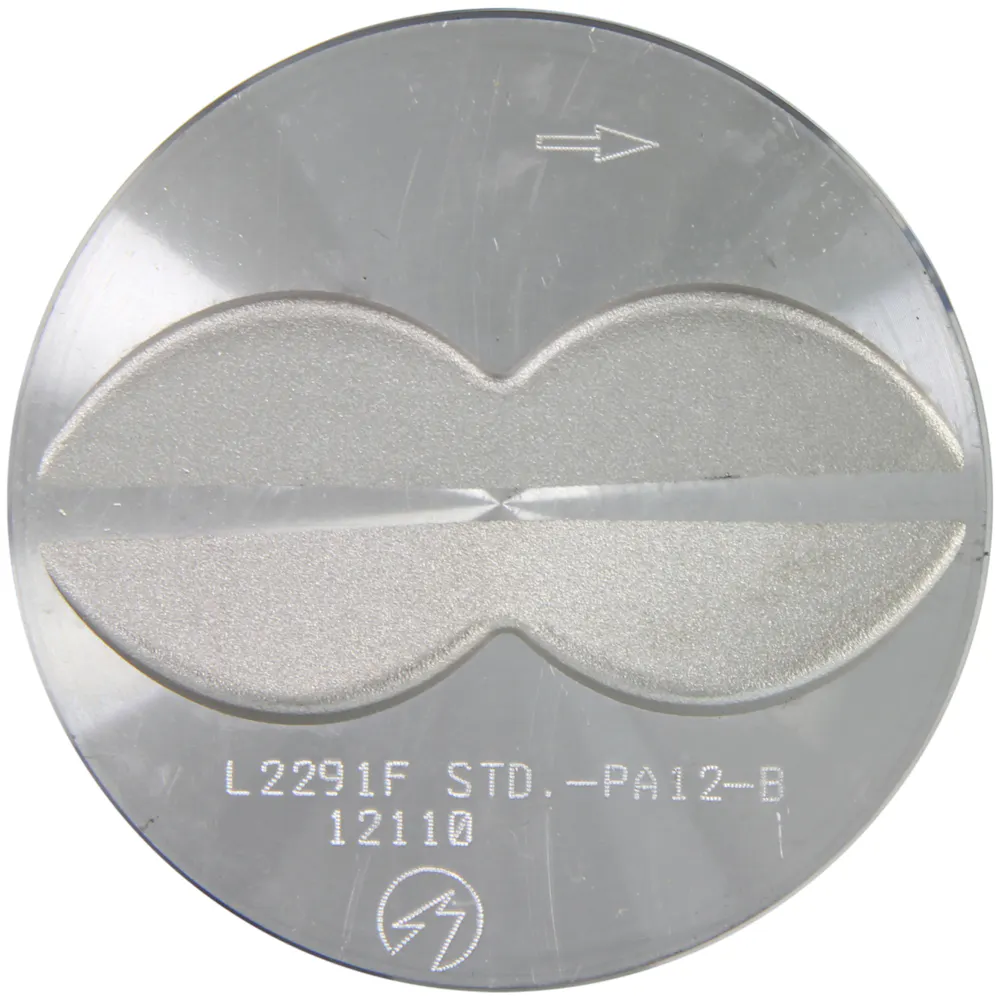

- Head Illustration
- 7
- Head Type
- Flat, 4 reliefs; DUROSHIELD skirt coated piston
- Lock Ring
- Included
- Minimum Clearance
- .0020
- Part Material
- POWERFORGED®
- Pin Diameter (Inch)
- 0.975
- Pin Type
- F
- Pin Weight Gram
- 151
- Standard Size
- Standard
- Weight W Pin Gram
- 784
- Weight w/o Pin Gram
- 633
Fitment status
Select a vehicle or engine to see whether this part applies to your application.
Application summary
Performance
Resources
Speed Pro L-2291F
