Speed Pro / 8-7200CHA
Part #: 8-7200CHA
UPC: 724956274949
Loading...
Notify me when this item is in stock.

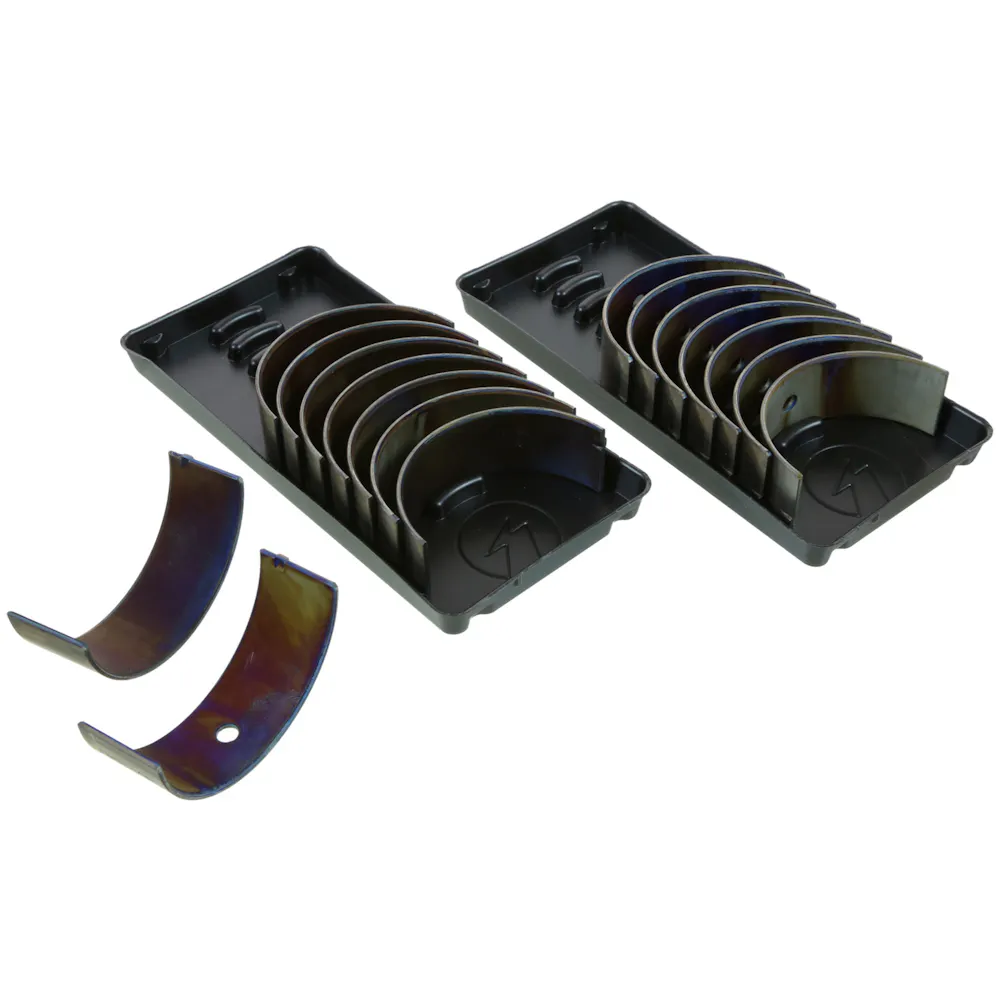

Description: Speed Pro 8-7200CHA Engine Connecting Rod Bearing Set
Description:
Description
Speed-Pro(R) delivers the power you need and the value & quality that you deserve. Whether you are running at the track, chasing trophies on the strip, or just cruising down the road, count on Speed-Pro(R) to provide the best value in HP engine components.
Features & benefits
- H14 Super Duty alloy material
- Our best bronze alloy material - extreme fatigue resistance & strength.
- Does not have flash tin plating
- Ensures dependable performance and superior service life
- Application specific design to ensure a perfect fit and correct operation for unsurpassed quality that you can trust
- Application-specific design for perfect fit and correct operation
Specifications
- GTIN
- 00724956274949
- Weight
- 0.95 lb
- Height
- 5.81 in
- Length
- 2.81 in
- Width
- 2.25 in
- Life cycle
- Available to Order
- AAM brand code
- SPP
- Warehouse brand code
- BHVW
- AAIA brand code
- BHVW
Attributes
- Application
- Competition Series
- California Proposition 65
- No
- Design Feature 1
- w/dowel hole; Chamfered on one side
- Displacement
- 396, 402, 427, 454
- Engine Family
- Big Block
- Features
- Chamfer, Dowel hole
- Flange OD Max
- 0
- Flange OD Max (Inch)
- 0
- Grade Type
- Performance
- Housing Bore Max
- 2.3252
- Housing Bore Max (Inch)
- 2.3252
- Housing Bore Min
- 2.3247
- Housing Bore Min (Inch)
- 2.3247
- Length Flange Max
- 0
- Length Flange Max (Inch)
- 0
- Length Flange Min
- 0
- Length Flange Min (Inch)
- 0
- Manufacture
- Chevrolet
- Material
- Super Duty Alloy
- Oil Clearance Max
- 0.0034
- Oil Clearance Max (Inch)
- 0.0034
- Oil Clearance Min
- 0.0009
- Oil Clearance Min (Inch)
- 0.0009
- Overall Length Max
- 0.8650
- Overall Length Max (Inch)
- 0.8650
- Overall Length Min
- 0
- Overall Length Min (Inch)
- 0
- Part Description
- Engine Connecting Rod Bearing Set
- Part Material
- Steel backed overplated bronze alloy
- Set Type
- Rod Set
- Sizes
- Std-1-1X-9-10
- Standard Shaft Max
- 2.1998
- Standard Shaft Max (Inch)
- 2.1998
- Standard Shaft Min
- 2.1988
- Standard Shaft Min (Inch)
- 2.1988
- Standard Size
- Standard
- Wall Thickness Max
- 0.0620
- Wall Thickness Max (Inch)
- 0.0620
Fitment status
This product is universal and will fit your application.
Application summary
Performance
Resources
Equivalent Parts
Speed Pro 8-7200CHA
