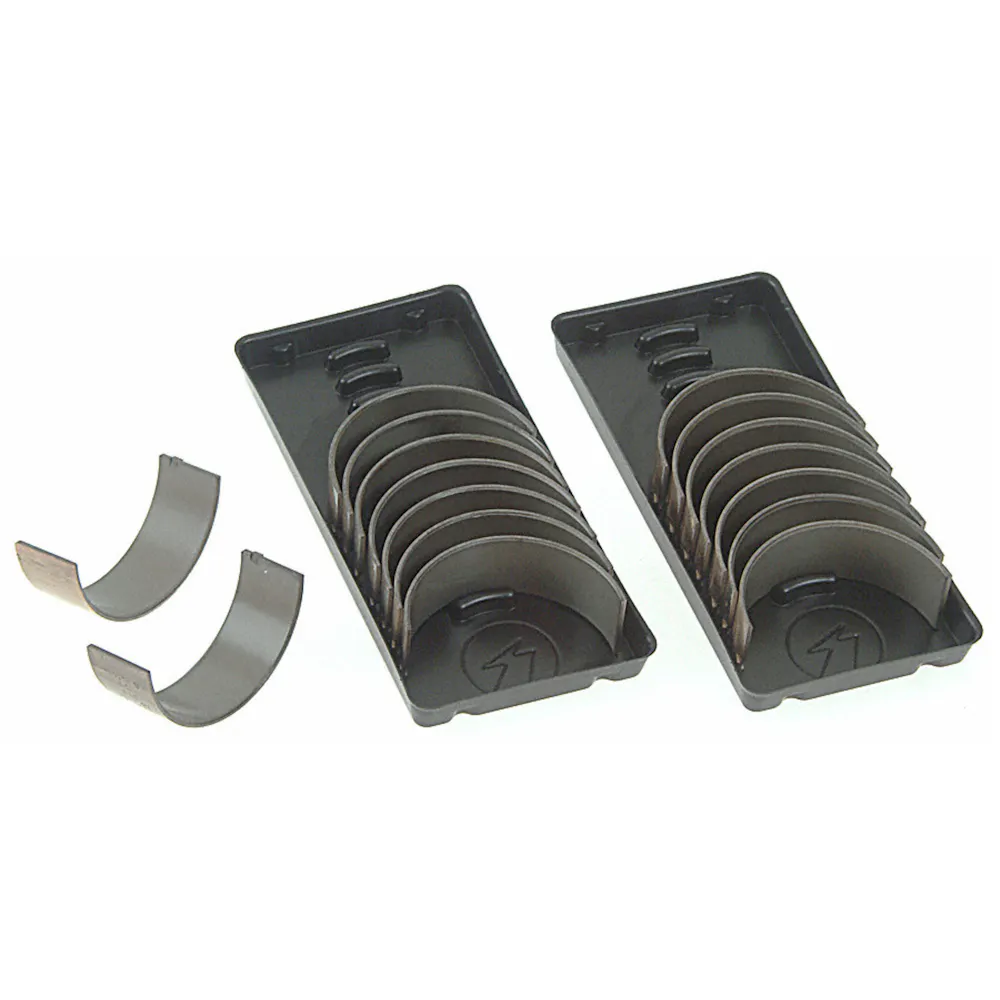

Speed Pro / 8-7200CH
Part #: 8-7200CH
UPC: 724956265602
Loading...
Notify me when this item is in stock.
Description: Speed Pro 8-7200CH Engine Connecting Rod Bearing Set for Chevrolet Corvette
Description:
Description
Speed-Pro(R) delivers the power you need and the value & quality that you deserve. Whether you are running at the track, chasing trophies on the strip, or just cruising down the road, count on Speed-Pro(R) to provide the best value in HP engine components.
Features & benefits
- H14 Super Duty alloy material
- Our best bronze alloy material - extreme fatigue resistance & strength.
- Does not have flash tin plating
- Ensures dependable performance and superior service life
- Application specific design to ensure a perfect fit and correct operation for unsurpassed quality that you can trust
- Application-specific design for perfect fit and correct operation
Application summary
| Year | Make / model |
|---|---|
| 1970-1975 | Chevrolet Bel Air |
| 1970-1972 | Chevrolet Biscayne |
| 1970-1972 | Chevrolet Brookwood |
| 1970-1976 | Chevrolet Caprice |
| 1970-1973 | Chevrolet Chevelle |
| 1970-1974 | Chevrolet Corvette |
| 1970 | Chevrolet Estate |
| 1970-1976 | Chevrolet Impala |
| 1970-1972 | Chevrolet Kingswood |
| 1970-1975 | Chevrolet Monte Carlo |
| 1970-1971 | Chevrolet Nova |
| 1970-1972 | Chevrolet Townsman |
| 1970-1971 | Pontiac Acadian |
| 1970 | Pontiac Laurentian |
| 1970 | Pontiac Parisienne |
| 1970 | Pontiac Strato-Chief |
Specifications
- GTIN
- 00724956265602
- Weight
- 0.96 lb
- Height
- 5.81 in
- Length
- 2.81 in
- Width
- 2.25 in
- Life cycle
- Available to Order
- AAM brand code
- SPP
- Warehouse brand code
- BHVW
- AAIA brand code
- BHVW
Attributes
- Application
- Competition Series
- California Proposition 65
- No
- Design Feature 1
- Chamfered on one side
- Displacement
- 396, 402, 427, 454
- Engine Family
- Big Block
- Features
- Chamfer
- Flange OD Max
- 0
- Flange OD Max (Inch)
- 0
- Grade Type
- Performance
- Housing Bore Max
- 2.3252
- Housing Bore Max (Inch)
- 2.3252
- Housing Bore Min
- 2.3247
- Housing Bore Min (Inch)
- 2.3247
- Length Flange Max
- 0
- Length Flange Max (Inch)
- 0
- Length Flange Min
- 0
- Length Flange Min (Inch)
- 0
- Manufacture
- Chevrolet
- Material
- Super Duty Alloy
- Oil Clearance Max
- 0.0034
- Oil Clearance Max (Inch)
- 0.0034
- Oil Clearance Min
- 0.0009
- Oil Clearance Min (Inch)
- 0.0009
- Overall Length Max
- 0.8650
- Overall Length Max (Inch)
- 0.8650
- Overall Length Min
- 0
- Overall Length Min (Inch)
- 0
- Part Description
- Engine Connecting Rod Bearing Set
- Part Material
- Steel backed overplated bronze alloy
- Set Type
- Rod Set
- Sizes
- Std-1-1X-9-10-11-20-21-30
- Standard Shaft Max
- 2.1998
- Standard Shaft Max (Inch)
- 2.1998
- Standard Shaft Min
- 2.1988
- Standard Shaft Min (Inch)
- 2.1988
- Standard Size
- Standard
- Wall Thickness Max
- 0.0620
- Wall Thickness Max (Inch)
- 0.0620
Fitment status
Select a vehicle or engine to see whether this part applies to your application.
Application summary
1970-1975 Chevrolet Bel Air; 1970-1972 Chevrolet Biscayne; 1970-1972 Chevrolet Brookwood; 1970-1976 Chevrolet Caprice; 1970-1973 Chevrolet Chevelle; 1970-1974 Chevrolet Corvette; 1970 Chevrolet Estate; 1970-1976 Chevrolet Impala; 1970-1972 Chevrolet Kingswood; 1970-1975 Chevrolet Monte Carlo; 1970-1971 Chevrolet Nova; 1970-1972 Chevrolet Townsman; 1970-1971 Pontiac Acadian; 1970 Pontiac Laurentian; 1970 Pontiac Parisienne; 1970 Pontiac Strato-Chief
