Silv-O-lite / SL10081-0.75K1
Part #: SL10081-0.75K1
UPC: 800745326447
Loading...
Notify me when this item is in stock.
Description: Silv-O-Lite Piston Kit - Toyota 3.5L 2GR-FE V6 2005-2018 with Rings
Description:
Description

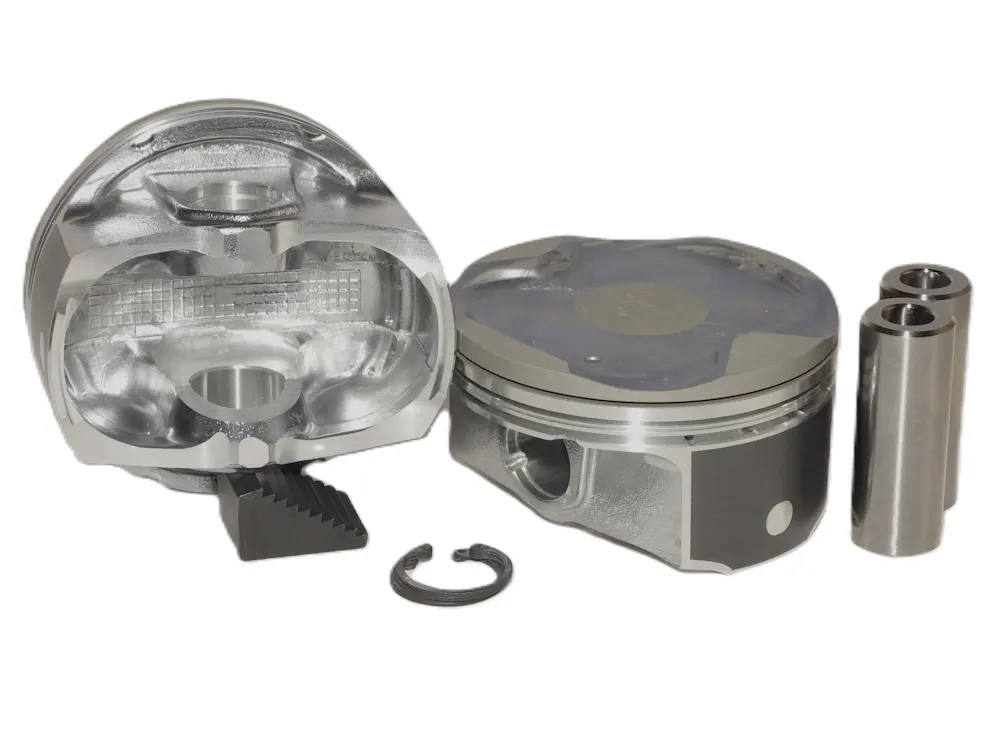

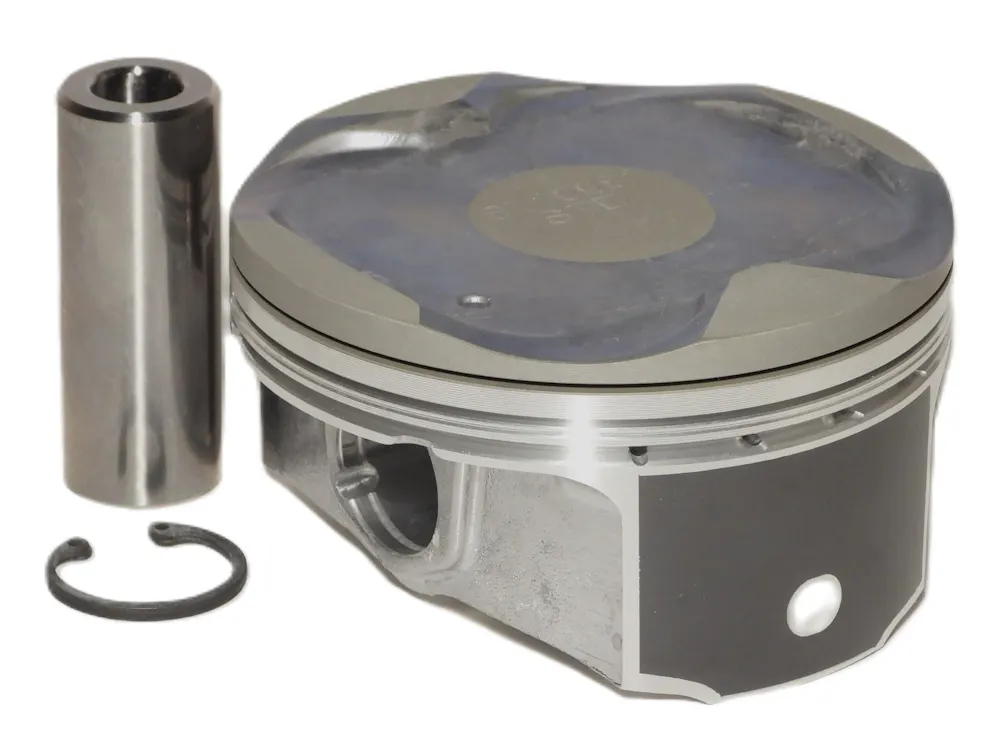

Silv-O-Lite Piston Kit - Toyota 3.5L 2GR-FE V6 2005-2018 with Rings
Features & benefits
- .010" Reduced Compression Height, Piston & Ring Kit, .032" pin offset, Anodized crown, 1st land & top groove, M42 skirt coating.
Application summary
| Year | Make / model |
|---|---|
| 2010-2018 | Lexus ES350 |
| 2010-2015 | Lexus RX350 |
| 2010-2011 | Toyota Camry |
| 2010-2011 | Toyota Highlander |
| 2013-2016 | Toyota Highlander |
| 2010-2012 | Toyota RAV4 |
| 2012 | Toyota Venza |
Specifications
- GTIN
- 00800745326447
- Weight
- 14 lb
- Height
- 5.25 in
- Length
- 17.5 in
- Width
- 9.75 in
- Life cycle
- Available to Order
- AAM brand code
- SOL
- Warehouse brand code
- BCRJ
- AAIA brand code
- BCRJ
Attributes
- Alloy
- Cast 390 Hypereutectic Alloy
- Base Number
- SL10081
- Bore (in)
- 3.4133
- Bore (mm)
- 86.7
- Bore Diameter
- 3.4133
- Compression Ratio
- 10.5:1
- Crown (cc)
- -2.5
- Crown Type
- Dome
- Eng. Disp. In.
- 227
- Eng. Disp. Liters
- 3.7
- Engine Family
- Duratec
- Engine Manufacturer
- Ford
- Grade Type
- Standard
- Includes Ring Set
- 22005.75MM
- Lock
- SRW-004
- Oe Assembly
- BA5Z-6108-L
- Oil Ring Thickness
- 2.5
- Oversize
- .75mm
- Oversized
- Yes
- Oversized Amount
- 0.75
- Oversizes
- STD, .5MM, .75MM, 1.0MM
- Pin Configuration
- Offset
- Pin Diameter (in)
- .866
- Pin Diameter (mm)
- 21.99
- Pin Number
- .866X2.250X.160C-SCR415H
- Pin Type
- Floating
- Piston Material
- Cast 390 Hypereutectic Alloy
- Piston Pin Outside Diameter
- .866
- Piston Rings Included
- Yes
- Ring Pack
- 1.2, 1.5, 2.5mm
- Rod (in)
- 6.010
- Rod (mm)
- 152.65
- Second Compression Ring Thickness
- 1.5
- Sold As

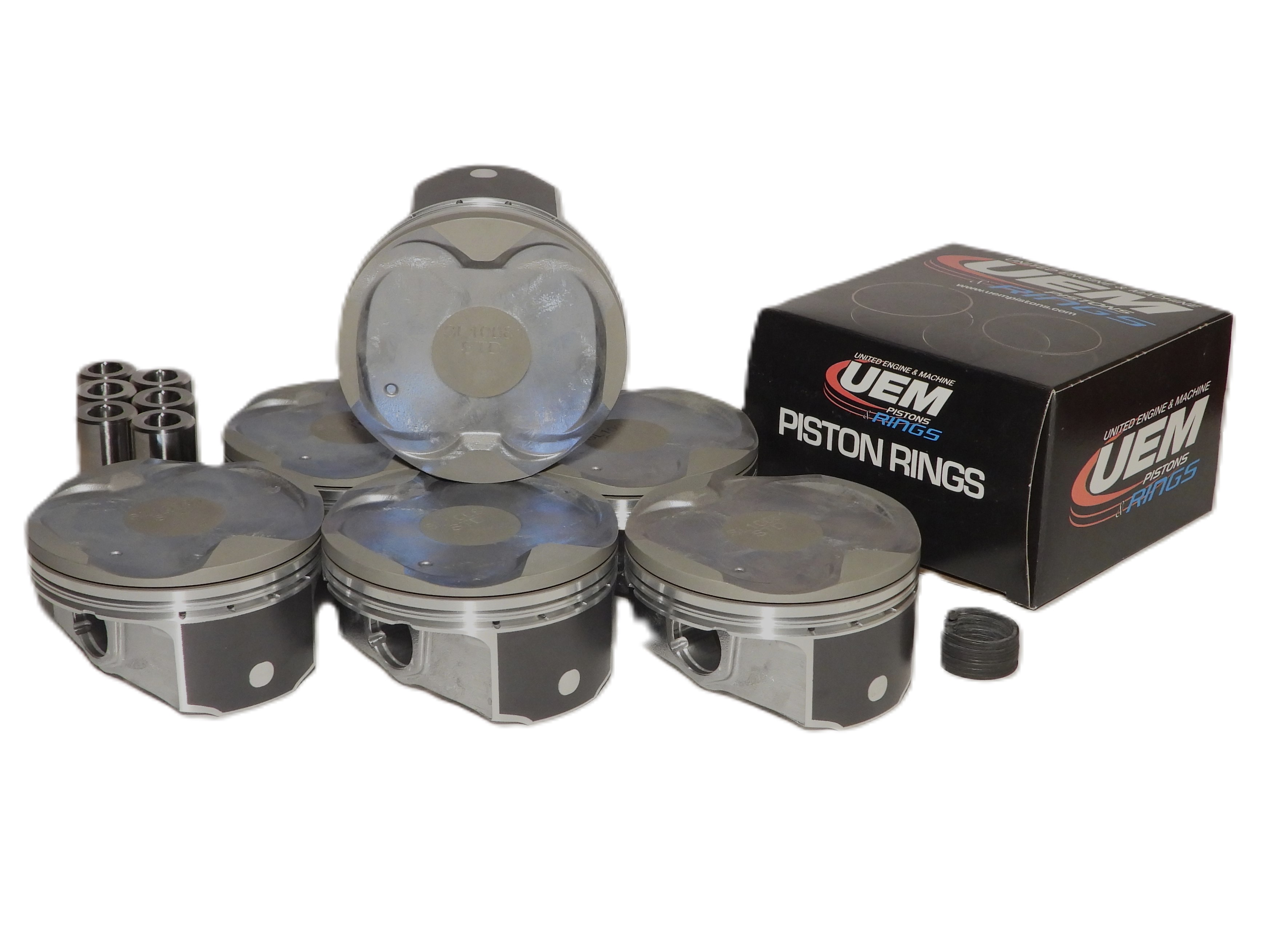

- Complete Piston and Ring Kit
- Stroke (in)
- 3.4133
- Stroke (mm)
- 86.7
- Top Compression Ring Thickness
- 1.2
- Top Land
- .200
- Uses Ring Set
- 22005.75MM
- Valve Reliefs
- 4
- Vin Code
- K, M, R
- Year From
- 2012
- Year Range
- 2012-2020
- Year To
- 2020
Fitment status
Select a vehicle or engine to see whether this part applies to your application.
Application summary
2010-2018 Lexus ES350; 2010-2015 Lexus RX350; 2010-2011 Toyota Camry; 2010-2011 Toyota Highlander; 2013-2016 Toyota Highlander; 2010-2012 Toyota RAV4; 2012 Toyota Venza
