Silv-O-lite / SL10073-0.25K1
Part #: SL10073-0.25K1
UPC: 800745289896
Loading...
Notify me when this item is in stock.
Description: Silvolite Piston Kit - GM 4.3L V6 GenV Ecotec GDI 2014-2021 with Rings
Description:
Description
Silvolite Piston Kit - GM 4.3L V6 GenV Ecotec GDI 2014-2021 with Rings
Features & benefits
- .010" shorter compression height than OE, Annodized top groove, M42 skirt coating, Lefts/Rights, .022" offset pin, LV1 and LV3 engine codes.
Application summary
| Year | Make / model |
|---|---|
| 2018-2021 | Chevrolet Express 2500 |
| 2018-2021 | Chevrolet Express 3500 |
| 2014-2021 | Chevrolet Silverado 1500 |
| 2018-2021 | GMC Savana 2500 |
| 2018-2021 | GMC Savana 3500 |
| 2014-2021 | GMC Sierra 1500 |
Specifications
- GTIN
- 00800745289896
- Weight
- 14 lb
- Height
- 5.25 in
- Length
- 17.5 in
- Width
- 9.75 in
- Life cycle
- Available to Order
- AAM brand code
- SOL
- Warehouse brand code
- BCRJ
- AAIA brand code
- BCRJ
Attributes
- Alloy
- Cast 390 Hypereutectic Alloy
- Base Number
- SL10073
- Bore (in)
- 3.921
- Bore (mm)
- 99.59
- Bore Diameter
- 3.921
- Compression Ratio
- 11.0:1
- Crown (cc)
- -0.89
- Crown Type
- Dome
- Eng. Disp. In.
- 262
- Eng. Disp. Liters
- 4.3
- Engine Family
- 4.3L V6 LV1/LV3
- Engine Manufacturer
- General Motors
- Grade Type
- Regular
- Lock
- SRW-028
- Make For Engine Family
- General Motors
- Oe Assembly
- 12675714 / 12656878
- Oe Deck Height
- 9.24
- Oil Ring Thickness
- 2.5mm
- Oversize
- 0.25MM
- Oversized
- Yes
- Oversized Amount
- 0.25
- Oversizes
- STD, 0.25, 0.5, 0.75, 1.0mm
- Pin Configuration
- Offset
- Pin Diameter (in)
- 0.943
- Pin Diameter (mm)
- 23.95
- Pin Number
- 0943X223A
- Pin Type
- Floating
- Piston Material
- Cast 390 Hypereutectic Alloy
- Piston Pin Outside Diameter
- 0.943
- Ring Pack
- 1.2, 1.5, 2.5MM
- Rod (in)
- 6.125
- Rod (mm)
- 155.57
- Second Compression Ring Thickness
- 1.5mm
- Sold As
- Complete Piston and Ring Kit
- Stroke (in)
- 3.622
- Stroke (mm)
- 92
- Top Compression Ring Thickness
- 1.2mm
- Top Land
- 0.409
- Uses Ring Pack
- 3921UN6
- Uses Ring Set
- 3921UN6
- Year From
- 2014
- Year Range
- 2014-2021
- Year To
- 2021
Fitment status
Select a vehicle or engine to see whether this part applies to your application.
Application summary
2018-2021 Chevrolet Express 2500; 2018-2021 Chevrolet Express 3500; 2014-2021 Chevrolet Silverado 1500; 2018-2021 GMC Savana 2500; 2018-2021 GMC Savana 3500; 2014-2021 GMC Sierra 1500

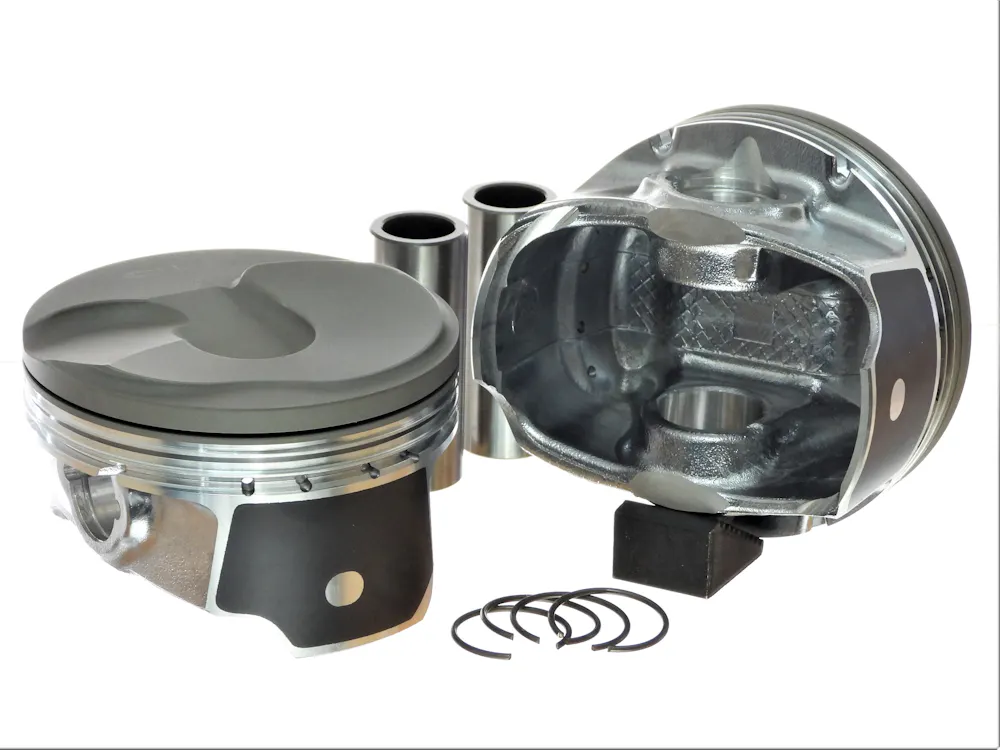

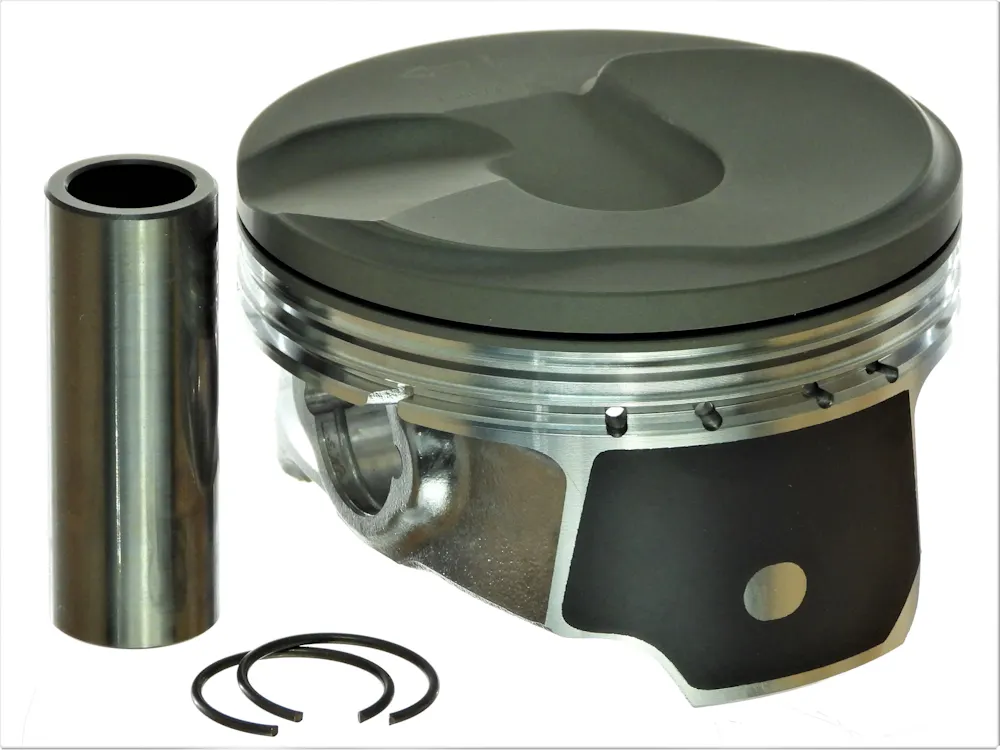

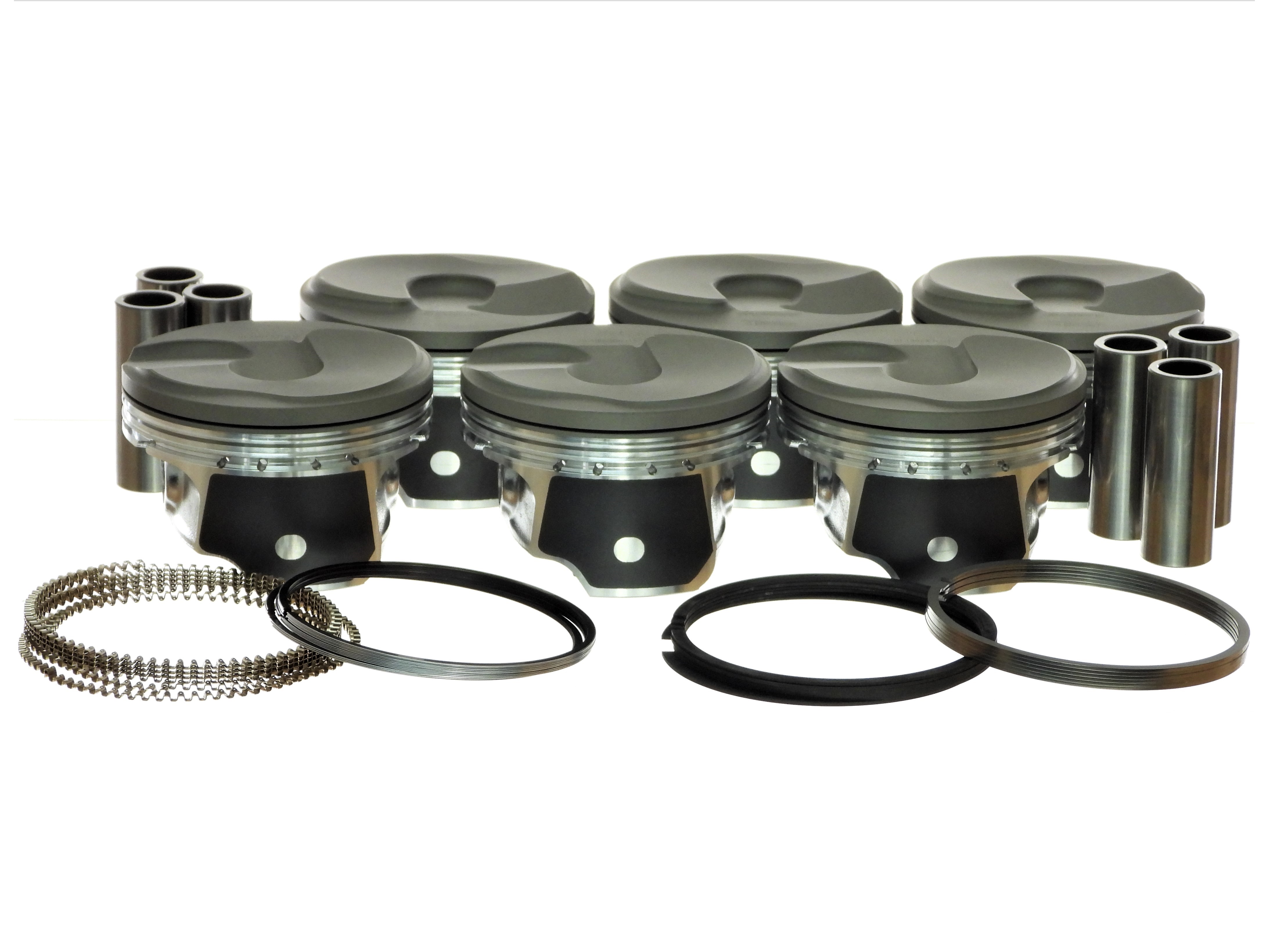

Silv-O-lite SL10073-0.25K1
