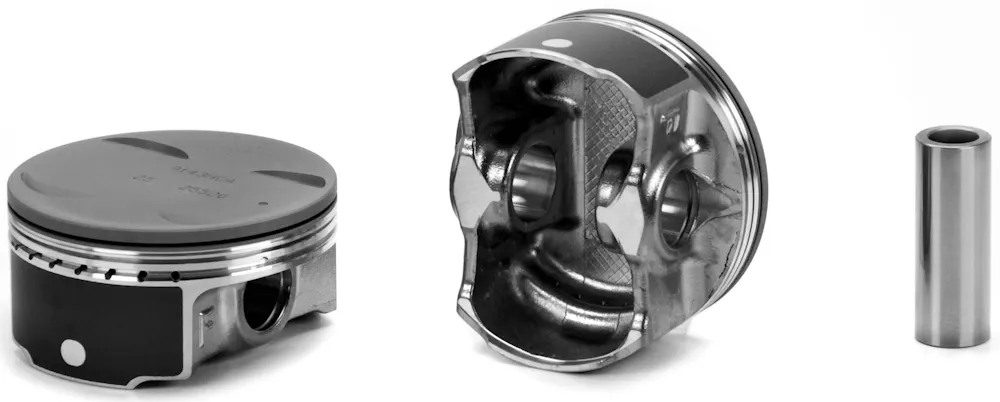

Silv-O-lite · 9143HCA-STDK1

Silv-O-lite 9143HCA-STDK1

Part #: 9143HCA-STDK1
UPC: 800745300461

Loading availability... Log in for inventory

Notify me when this item is in stock.

Brand: Silv-O-lite Series: Hypereutectic Dish Coated Skirt Piston and Ring Sets

Log in to order

Description: Silv-O-Lite Piston & Ring Kit - Subaru 153ci/2.5L (H4)

Description

Silv-O-Lite Piston & Ring Kit - Subaru 153ci/2.5L (H4)

Features & benefits

- Improved design.
- Hard anodized top ring groove and crown.
- M42 Coated Skirts.
- SOHC
- Piston & Ring Kit.

Application summary

Year	Make / model
1999	Subaru Forester
1999	Subaru Impreza

Specifications

GTIN: 00800745300461
Weight: 8 lb
Height: 5.25 in
Length: 17.75 in
Width: 9.75 in
Life cycle: Available to Order
AAM brand code: SOL
Warehouse brand code: BCRJ
AAIA brand code: BCRJ

Attributes

Base Number: 9143HCA
Bore (in): 3.917
Bore (mm): 99.5
Bore Diameter: 3.917
Crown (cc): +11cc
Crown Type: DISH
Eng. Disp. In.: 151
Eng. Disp. Liters: 2.5
Engine Family: Subaru H4
Engine Manufacturer: Subaru
Includes Ring Set: 3917NSC4.STD
Lock: LR906F
Oe Assembly: 12006AB510, 12006AC470, 1220AC070
Oil Ring Thickness: 2
Oversize: STD
Oversized: No
Oversizes: STD .25mm .50mm .75mm 1.0mm
Pin Configuration: Offset
Pin Number: P906A
Pin Type: Floating
Piston Head Type: Dish
Piston Material: Cast 390 Hypereutectic Alloy
Piston Pin Outside Diameter: 0.906
Piston Rings Included: Yes
Ring Pack: 1.2mm, 1.2mm, 2.0mm
Second Compression Ring Thickness: 1.2
Sold As: Complete Piston and Ring Kit
Top Compression Ring Thickness: 1.2
Top Land: 0.165
Year From: 1999
Year Range: 1999-2005
Year To: 2005

Fitment status

Select a vehicle or engine to see whether this part applies to your application.

Application summary

1999 Subaru Forester; 1999 Subaru Impreza
