Silv-O-lite · 9113.1.0MM

Silv-O-lite 9113.1.0MM

Part #: 9113.1.0MM
UPC: 800745038517

Loading availability... Log in for inventory

Notify me when this item is in stock.

Brand: Silv-O-lite Series: Dish Piston Sets

Log in to order

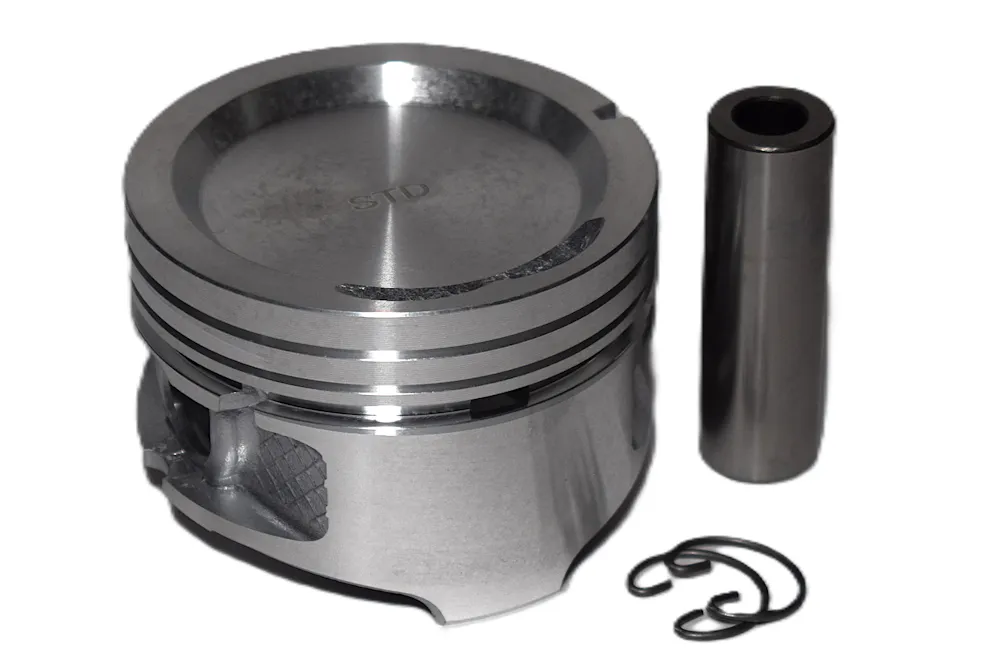

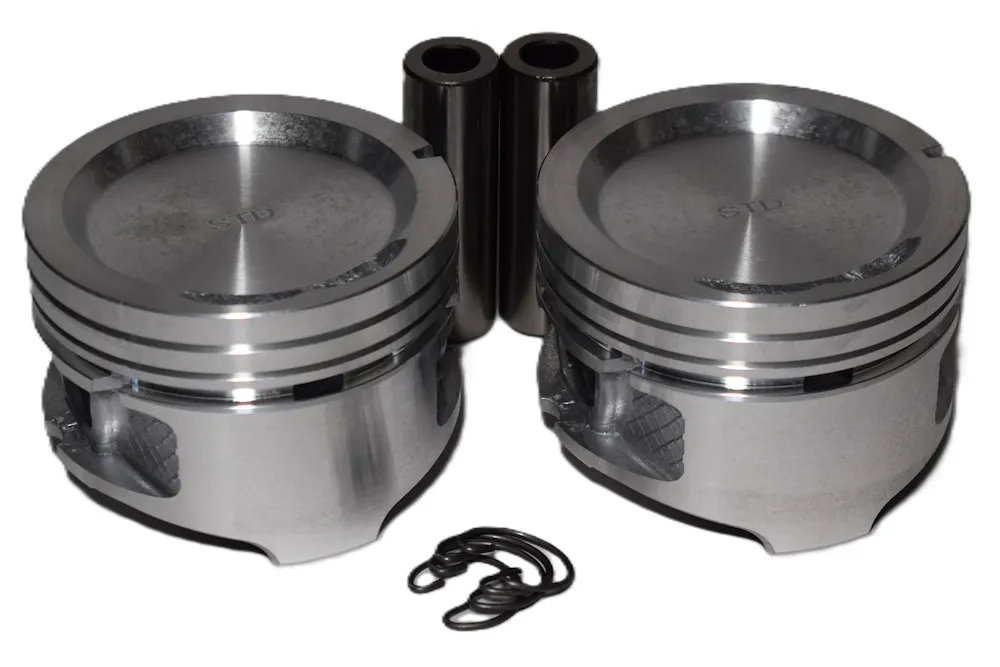

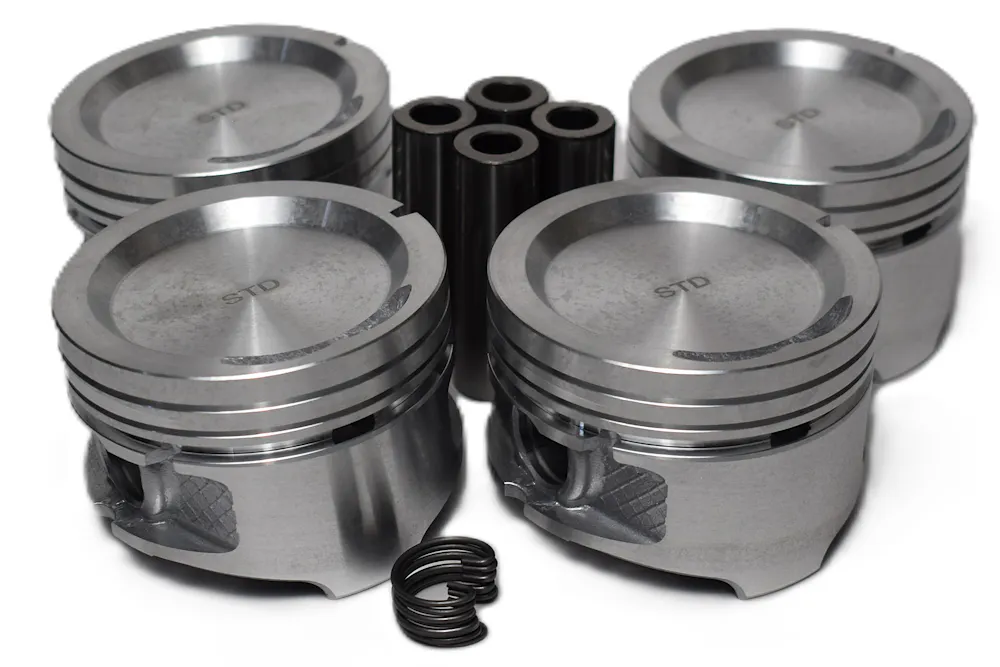

Description: Silv-O-Lite Piston - Toyota 146.4ci/2.4L (L4)

Description

Silv-O-Lite Piston - Toyota 146.4ci/2.4L (L4)

Features & benefits

- 22RTEC engine.
- 2.900" diameter recess .218" deep.
- 2 valve reliefs.
- Turbo.

Specifications

GTIN: 00800745038517
Weight: 6 lb
Height: 9.13 in
Length: 4.5 in
Width: 9.13 in
Life cycle: Available to Order
AAM brand code: SOL
Warehouse brand code: BCRJ
AAIA brand code: BCRJ

Attributes

Base Number: 9113
Bore (in): 3.622
Bore (mm): 92
Bore Diameter: 3.622
Compression Ratio: 7.5
Crown Type: DISH
Eng. Disp Liters: 2.4
Eng. Disp. In.: 144
Eng. Disp. Liters: 2.4
Engine Family: Toyota 4-Cylinder
Engine Manufacturer: Toyota
Lock: 62A
Oe Assembly: 13101-35032-02
Oil Ring Thickness: 4.0000
Oversize: 1.0mm
Oversized: Yes
Oversizes: STD .5mm .75mm 1.0mm
Pin Configuration: Offset
Pin Number: 0866x224B
Pin Type: Floating
Piston Head Type: Dish
Piston Material: Cast 332 Alloy
Piston Pin Outside Diameter: .866
Ring Pack: 1.5mm, 1.5mm, 4.0mm
Second Compression Ring Thickness: 1.5
Sold As: Complete Piston Set
Top Compression Ring Thickness: 1.5
Top Land: .280
Year From: 1985
Year Range: 1985-1994
Year To: 1994

Fitment status

This product is universal and will fit your application.
