Silv-O-lite · 9107.25MM
Part #: 9107.25MM
UPC: 800745185471
Log in for inventory
Notify me when this item is in stock.
Description: Silv-O-Lite Piston - Toyota 110ci/1.8L (L4)
Description:
Description
Silv-O-Lite Piston - Toyota 110ci/1.8L (L4)
Features & benefits
- 7AFE engine.
- DOHC.
- 2.650" diameter recess .130" deep.
- 4 valve reliefs.
Application summary
| Year | Make / model |
|---|---|
| 1995-1997 | Toyota Celica |
| 1995-1997 | Toyota Corolla |
Specifications
- GTIN
- 00800745185471
- Weight
- 4 lb
- Height
- 9.13 in
- Length
- 4.5 in
- Width
- 9.13 in
- Life cycle
- Available to Order
- AAM brand code
- SOL
- Warehouse brand code
- BCRJ
- AAIA brand code
- BCRJ
Attributes
- Base Number
- 9107
- Bore (in)
- 3.189
- Bore (mm)
- 81
- Bore Diameter
- 3.189
- Compression Ratio
- 9.5
- Crown Type
- DISH
- Eng. Disp Liters
- 1.8
- Eng. Disp. In.
- 110
- Eng. Disp. Liters
- 1.8
- Engine Family
- Toyota 4-Cylinder
- Engine Manufacturer
- Toyota
- Oe Assembly
- 13101-16150-01
- Oil Ring Thickness
- 3.0000
- Oversize
- .25mm
- Oversized
- Yes
- Oversizes
- STD .5mm .75mm 1.0mm
- Pin Configuration
- Offset
- Pin Number
- 0787x207A
- Pin Type
- Press
- Piston Head Type
- Dish
- Piston Material
- Cast 332 Alloy
- Piston Pin Outside Diameter
- .788
- Ring Pack
- 1.2mm, 1.5mm, 3.0mm
- Second Compression Ring Thickness
- 1.5
- Sold As
- Complete Piston Set
- Top Compression Ring Thickness
- 1.2
- Top Land
- .203
- Year From
- 1993
- Year Range
- 1993-1997
- Year To
- 1997
Fitment status
Select a vehicle or engine to see whether this part applies to your application.
Application summary
1995-1997 Toyota Celica; 1995-1997 Toyota Corolla

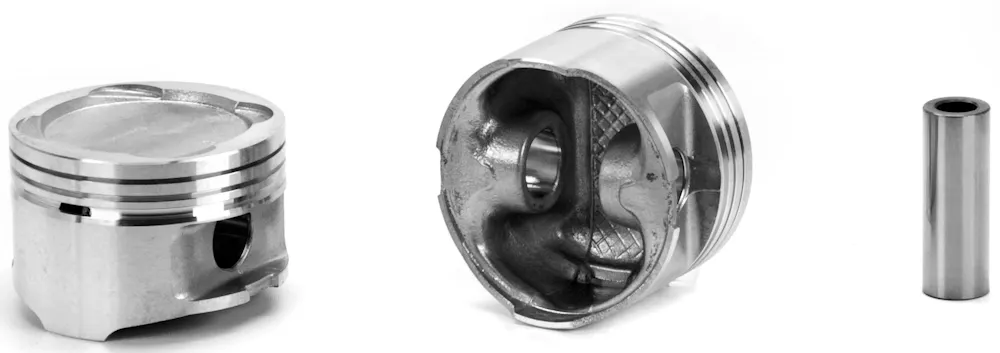

Silv-O-lite 9107.25MM
