Silv-O-lite · 9084.5MM
Part #: 9084.5MM
UPC: 800745037152
Log in for inventory
Notify me when this item is in stock.
Description: Silv-O-Lite Piston - Isuzu 140.4ci/2.3L (L4)
Description:
Description
Silv-O-Lite Piston - Isuzu 140.4ci/2.3L (L4)
Features & benefits
- 4ZD1 engine.
- OHC.
- 3.050" diameter recess .140" deep.
- Fits all 2.3 engines to 7/94 except Calif.
- to 8/93.
Application summary
| Year | Make / model |
|---|---|
| 1989-1993 | Isuzu Amigo |
| 1988-1989 | Isuzu Impulse |
| 1986-1995 | Isuzu Pickup |
| 1986-1987 | Isuzu Trooper |
Specifications
- GTIN
- 00800745037152
- Weight
- 6 lb
- Height
- 9.13 in
- Length
- 4.5 in
- Width
- 9.13 in
- Life cycle
- Available to Order
- AAM brand code
- SOL
- Warehouse brand code
- BCRJ
- AAIA brand code
- BCRJ
Attributes
- Base Number
- 9084
- Bore (in)
- 3.5157
- Bore (mm)
- 89.3
- Bore Diameter
- 3.5157
- Compression Ratio
- 8.6
- Crown Type
- DISH
- Eng. Disp Liters
- 2.3
- Eng. Disp. In.
- 140
- Eng. Disp. Liters
- 2.3
- Engine Family
- Isuzu 4-Cylinder
- Engine Manufacturer
- Isuzu
- Oe Assembly
- 8-94438-625-1
- Oil Ring Thickness
- 4.0000
- Oversize
- .50mm
- Oversized
- Yes
- Oversizes
- STD .5mm .75mm 1.0mm
- Pin Configuration
- Offset
- Pin Number
- 0905x224A
- Pin Type
- Press
- Piston Head Type
- Dish
- Piston Material
- Cast 332 Alloy
- Piston Pin Outside Diameter
- .905
- Ring Pack
- 1.5mm, 1.5mm, 4.0mm
- Second Compression Ring Thickness
- 1.5
- Sold As
- Complete Piston Set
- Top Compression Ring Thickness
- 1.5
- Top Land
- .288
- Year From
- 1986
- Year Range
- 1986-1994
- Year To
- 1994
Fitment status
Select a vehicle or engine to see whether this part applies to your application.
Application summary
1989-1993 Isuzu Amigo; 1988-1989 Isuzu Impulse; 1986-1995 Isuzu Pickup; 1986-1987 Isuzu Trooper

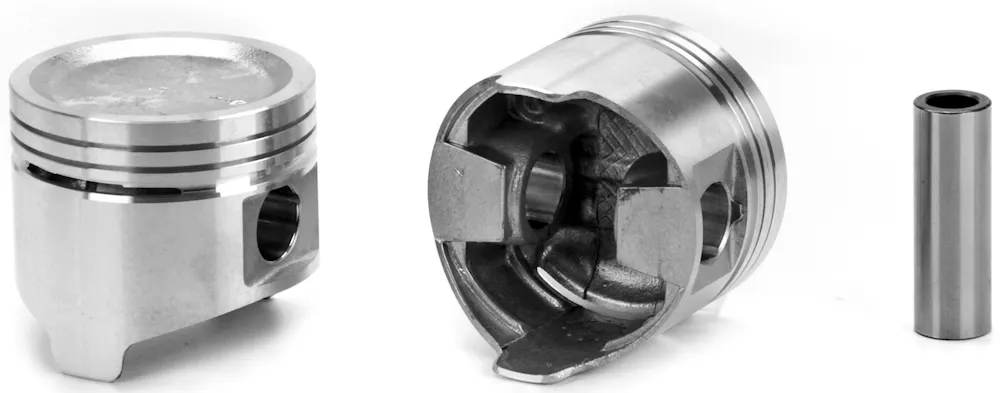

Silv-O-lite 9084.5MM
