Silv-O-lite · 9049.5MM

Silv-O-lite 9049.5MM

Part #: 9049.5MM
UPC: 800745035004

Loading availability... Log in for inventory

Notify me when this item is in stock.

Brand: Silv-O-lite Series: Flat Top Piston Sets

Log in to order

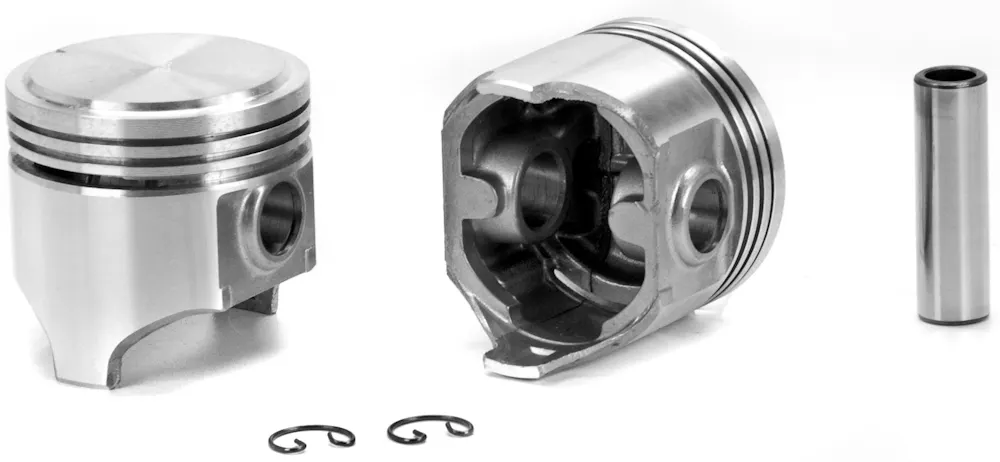

Description: Silv-O-Lite Piston - Toyota 134.2ci/2.2L (L4)

Description

Silv-O-Lite Piston - Toyota 134.2ci/2.2L (L4)

Features & benefits

- 20R engine.
- Dome .110" high.

Specifications

GTIN: 00800745035004
Weight: 5 lb
Height: 9.13 in
Length: 4.5 in
Width: 9.13 in
Life cycle: Available to Order
AAM brand code: SOL
Warehouse brand code: BCRJ
AAIA brand code: BCRJ

Attributes

Base Number: 9049
Bore (in): 3.4842
Bore (mm): 88.5
Bore Diameter: 3.4842
Compression Ratio: 8.4
Crown (cc): -12.7cc
Crown Type: FLAT TOP
Eng. Disp Liters: 2.2
Eng. Disp. In.: 134
Eng. Disp. Liters: 2.2
Engine Family: Toyota 4-Cylinder
Engine Manufacturer: Toyota
Lock: 62A
Oe Assembly: 13101-38020, 13103-38020
Oil Ring Thickness: 4.0000
Oversize: .50mm
Oversized: Yes
Oversizes: STD .5mm .75mm 1.0mm 1.5mm
Pin Configuration: Offset
Pin Number: 0866x231A
Pin Type: Floating
Piston Head Type: Flat
Piston Material: Cast 332 Alloy
Piston Pin Outside Diameter: .866
Ring Pack: 2.0mm, 2.5mm, 4.0mm
Second Compression Ring Thickness: 2.5
Sold As: Complete Piston Set
Top Compression Ring Thickness: 2.0000
Top Land: .250
Year From: 1975
Year Range: 1975-1980
Year To: 1980

Fitment status

This product is universal and will fit your application.
