Silv-O-lite · 3550HCA.5K1
Part #: 3550HCA.5K1
UPC: 800745290151
Log in for inventory
Notify me when this item is in stock.
Description: Silvolite Piston and Ring Kit - Toyota 5.7L (V8) 2007-2013
Description:
Description

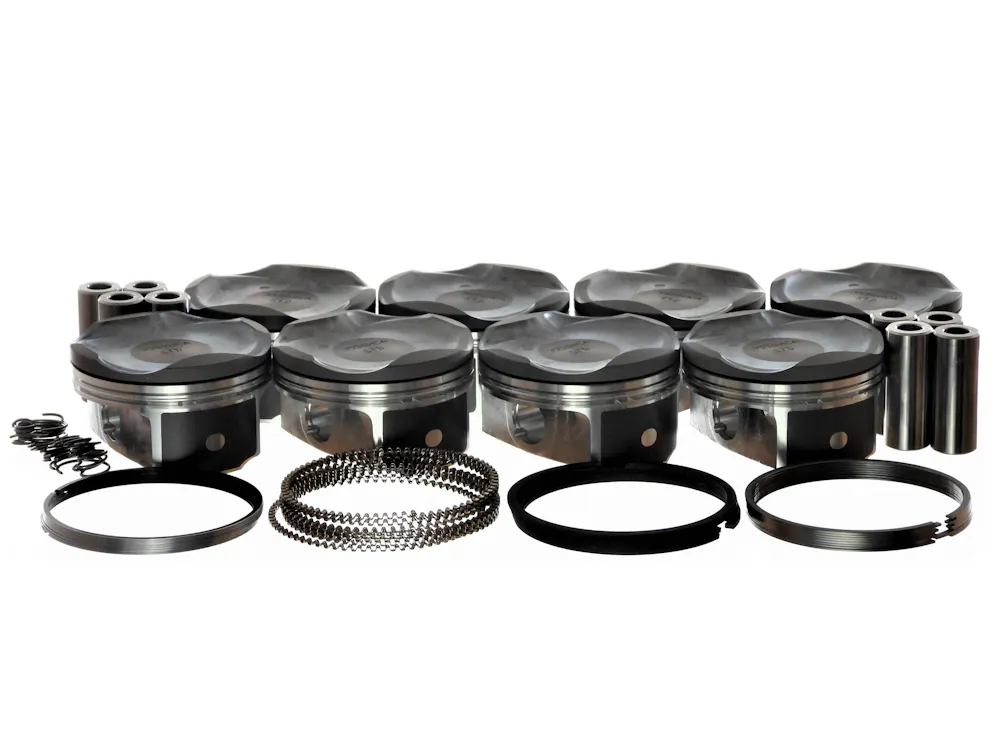

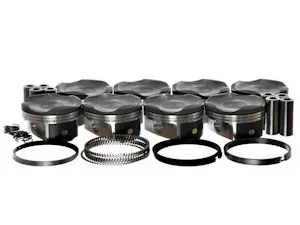

Silvolite Piston and Ring Kit - Toyota 5.7L (V8) 2007-2013
Features & benefits
- Hard Anodized Crown, Top Land, and 1st Ring Groove.
- M42 Skirt Coating.
- Kit with Rings, Pins & Retainers
Application summary
| Year | Make / model |
|---|---|
| 2008-2011 | Lexus LX570 |
| 2013 | Lexus LX570 |
| 2008-2011 | Toyota Land Cruiser |
| 2013 | Toyota Land Cruiser |
| 2008-2013 | Toyota Sequoia |
| 2007-2013 | Toyota Tundra |
Specifications
- GTIN
- 00800745290151
- Weight
- 16 lb
- Height
- 5.25 in
- Length
- 22.25 in
- Width
- 9.5 in
- Life cycle
- Available to Order
- AAM brand code
- SOL
- Warehouse brand code
- BCRJ
- AAIA brand code
- BCRJ
Attributes
- Alloy
- Cast 390 Hypereutectic Alloy
- Base Number
- 3550HCA
- Bore (in)
- 3.7
- Bore (mm)
- 94
- Bore Diameter
- 3.7
- Compression Ratio
- 10.2:1
- Crown Type
- Dish
- Eng. Disp. In.
- 345
- Eng. Disp. Liters
- 5.7
- Engine Family
- 3UR-FE
- Engine Manufacturer
- Toyota
- Grade Type
- Regular
- Lock
- SRW-024
- Make For Engine Family
- Toyota
- Oe Assembly
- 13101-0S011
- Oe Deck Height
- 9.797
- Oil Ring Thickness
- 2
- Oversize
- .5MM
- Oversized
- Yes
- Oversized Amount
- 0.5
- Oversizes
- STD .25mm .5mm .75mm 1.0mm
- Pin Configuration
- Offset
- Pin Diameter (in)
- 0.866
- Pin Diameter (mm)
- 21.99
- Pin Number
- .866X2.250X.160-CSCR-415H
- Pin Type
- Floating
- Piston Material
- Cast 390 Hypereutectic Alloy
- Piston Pin Outside Diameter
- 0.866
- Ring Pack
- 1.2, 1.2, 2.0mm
- Rod (in)
- 6.476
- Rod (mm)
- 102
- Second Compression Ring Thickness
- 1.2
- Sold As
- Complete Piston Set
- Stroke (in)
- 4.02
- Stroke (mm)
- 102
- Top Compression Ring Thickness
- 1.2
- Top Land
- 0.271"
- Uses Ring Pack
- 3701NN8
- Uses Ring Set
- 3701NN8
- Year From
- 2007
- Year Range
- 2007-2013
- Year To
- 2013
Fitment status
Select a vehicle or engine to see whether this part applies to your application.
Application summary
2008-2011 Lexus LX570; 2013 Lexus LX570; 2008-2011 Toyota Land Cruiser; 2013 Toyota Land Cruiser; 2008-2013 Toyota Sequoia; 2007-2013 Toyota Tundra
