Silv-O-lite / 3547HCA.1.0K1
Part #: 3547HCA.1.0K1
UPC: 800745293657
Loading...
Notify me when this item is in stock.

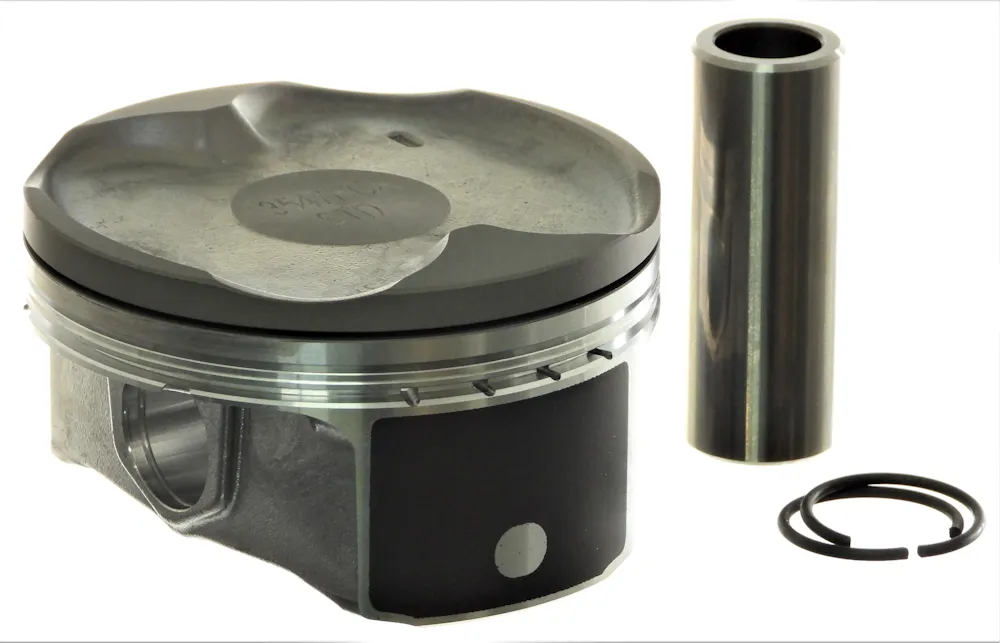

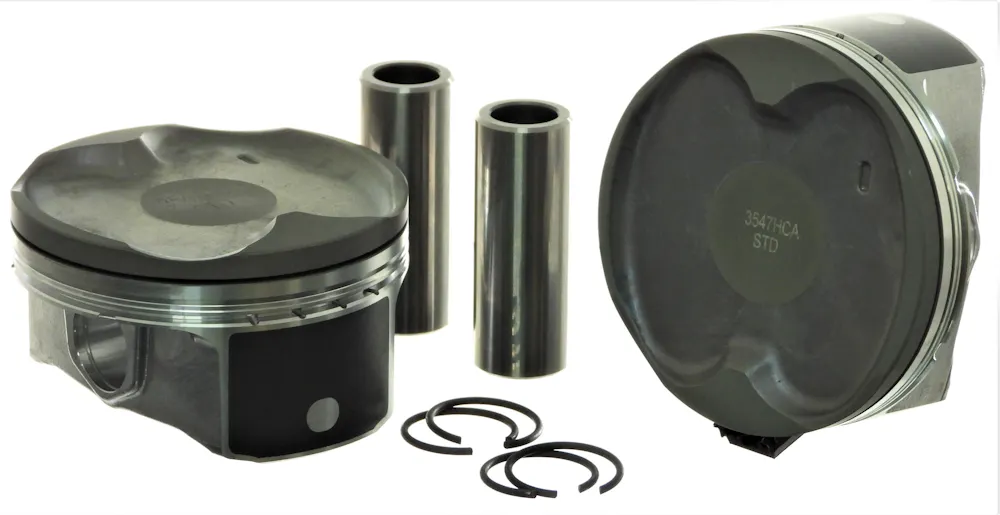

Description: Silv-O-Lite Piston - Toyota 4.0L/3956cc (V6) 2010-2022 Kit with Rings
Description:
Description
Silv-O-Lite Piston - Toyota 4.0L/3956cc (V6) 2010-2022 Kit with Rings
Features & benefits
- Hard anodized crown.
- M42 Skirt Coating
Specifications
- GTIN
- 00800745293657
- Weight
- 12 lb
- Height
- 5.25 in
- Length
- 17.75 in
- Width
- 9.75 in
- Life cycle
- Available to Order
- AAM brand code
- SOL
- Warehouse brand code
- BCRJ
- AAIA brand code
- BCRJ
Attributes
- Base Number
- 3547HCA
- Bore (in)
- 3.7
- Bore (mm)
- 94
- Bore Diameter
- 3.7
- Compression Ratio
- 10.0:1
- Crown Type
- Dome
- Eng. Disp. In.
- 241
- Eng. Disp. Liters
- 4
- Engine Family
- 1GR-FE
- Engine Manufacturer
- Toyota
- Includes Ring Set
- 22000.1.0MM
- Oe Deck Height
- 8.97
- Oil Ring Thickness
- 2
- Oversize
- 1.0MM
- Oversized
- Yes
- Oversizes
- STD .50mm .75mm 1.0mm
- Pin Configuration
- Offset
- Pin Number
- .8660X2.250X.160CSCR415H
- Pin Type
- Floating
- Piston Head Type
- Dome
- Piston Material
- Cast 390 Hypereutectic Alloy
- Piston Pin Outside Diameter
- 0.866
- Piston Rings Included
- Yes
- Ring Pack
- 1.2, 1.2, 2.0
- Rod (in)
- 6.243
- Rod (mm)
- 158.572
- Second Compression Ring Thickness
- 1.2
- Sold As
- Complete Piston Set
- Stroke (in)
- 3.74
- Stroke (mm)
- 95
- Top Compression Ring Thickness
- 1.2
- Top Land
- 0.226
- Vin Code
- U
- Year From
- 2010
- Year Range
- 2010-2022
- Year To
- 2022
