Silv-O-lite · 3540HCA-0.25K1
Part #: 3540HCA-0.25K1
UPC: 800745295736
Log in for inventory
Notify me when this item is in stock.
Description: Silv-O-Lite Piston Kit - GM 6.2L V8 L86 L87 LT1 LT2 2014-25 w/ Rings
Description:
Description
Silv-O-Lite Piston Kit - GM 6.2L V8 L86 L87 LT1 LT2 2014-25 w/ Rings
Features & benefits
- L86, L87, LT1, LT2, GDI Engines.
- Aluminum block/canted valve heads.
- Hypereutectic.
- Hard anodized crown.
- Coated skirts.
- Floating pin.
Specifications
- GTIN
- 00800745295736
- Weight
- 17 lb
- Height
- 5.25 in
- Length
- 22.25 in
- Width
- 9.5 in
- Life cycle
- Available to Order
- AAM brand code
- SOL
- Warehouse brand code
- BCRJ
- AAIA brand code
- BCRJ
Attributes
- Alloy
- Cast 390 Hypereutectic Alloy
- Base Number
- 3540HCA
- Bore (in)
- 4.065
- Bore (mm)
- 103.25
- Compression Ratio
- 11.5:1
- Crown (cc)
- +1cc
- Crown Type
- DOME
- Cylinder Bore Diameter
- 4.065
- Eng. Disp. In.
- 376
- Eng. Disp. Liters
- 6.2
- Engine Family
- LT1 HO Direct Injection
- Engine Manufacturer
- GM
- Grade Type
- Regular
- Includes Ring Set
- 22003.25MM
- Lock
- SRW-028
- Oe Assembly
- 12658743 / 81314A FMA S2N
- Oil Ring Thickness
- 2.5
- Oversize
- 0.25
- Oversized
- Yes
- Oversized Amount
- 0.25
- Oversizes
- STD, .25mm, .50mm, .75mm
- Pin Configuration
- Centered
- Pin Diameter (in)
- .943
- Pin Diameter (mm)
- 23.95
- Pin Number
- 0943x223A
- Pin Type
- Floating
- Piston Material
- Cast 390 Hypereutectic Alloy
- Piston Pin Outside Diameter
- .943
- Piston Rings Included
- Yes
- Ring Pack
- 1.2mm, 1.5mm, 2.5mm
- Rod (in)
- 6.098
- Rod (mm)
- 154.89
- Second Compression Ring Thickness
- 1.5
- Sold As
- Complete Piston and Ring Kit
- Stroke (in)
- 3.622
- Stroke (mm)
- 92
- Top Compression Ring Thickness
- 1.2
- Top Land
- 0.245
- Year From
- 2014
- Year Range
- 2014-2025
- Year To
- 2025
Fitment status
Select a vehicle or engine to see whether this part applies to your application.

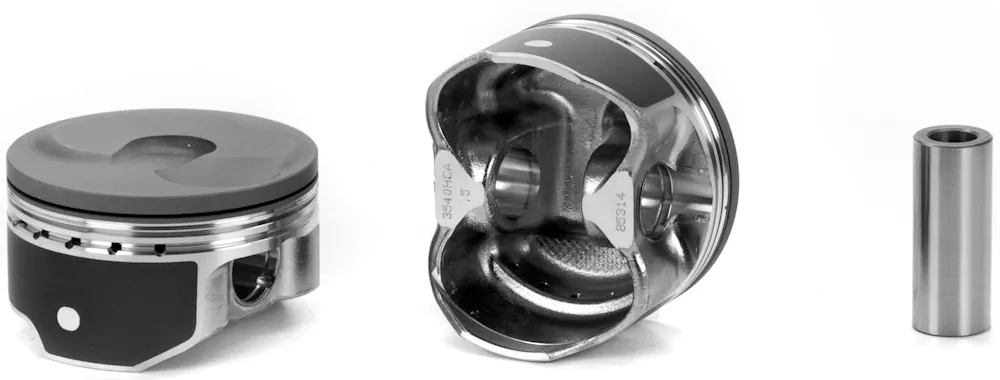

Silv-O-lite 3540HCA-0.25K1
