Silv-O-lite / 3538HCA.25MM
Part #: 3538HCA.25MM
UPC: 800745252982
Loading...
Notify me when this item is in stock.
Description: Silv-O-Lite Piston - GM 220ci/3.6L (V6)
Description:
Description
Silv-O-Lite Piston - GM 220ci/3.6L (V6)
Features & benefits
- Hypereutectic.
- Coated skirts.
- Anodized crown and top ring groove.
- Direct injection GDI, DOHC.
Application summary
| Year | Make / model |
|---|---|
| 2010 | Buick Allure |
| 2009-2017 | Buick Enclave |
| 2010-2012 | Buick LaCrosse |
| 2008-2012 | Cadillac CTS |
| 2014 | Cadillac CTS |
| 2008-2011 | Cadillac STS |
| 2010-2011 | Chevrolet Camaro |
| 2009-2017 | Chevrolet Traverse |
| 2009-2016 | GMC Acadia |
| 2017 | GMC Acadia Limited |
| 2009-2010 | Saturn Outlook |
Specifications
- GTIN
- 00800745252982
- Weight
- 10 lb
- Height
- 18 in
- Length
- 4.25 in
- Width
- 9 in
- Life cycle
- Available to Order
- AAM brand code
- SOL
- Warehouse brand code
- BCRJ
- AAIA brand code
- BCRJ
Attributes
- Base Number
- 3538HCA
- Bore (in)
- 3.701
- Bore (mm)
- 94
- Bore Diameter
- 3.701
- Compression Ratio
- 0.3
- Crown Type
- DOME
- Eng. Disp Liters
- 3.6
- Eng. Disp. In.
- 217
- Eng. Disp. Liters
- 3.6
- Engine Family
- GM V6
- Engine Manufacturer
- GM
- Lock
- LR927A
- Model
- Enclave CTS STS Camaro Traverse Acadia Outlook
- Oe Assembly
- 12616972
- Oil Ring Thickness
- 2.5
- Oversize
- .25mm
- Oversized
- Yes
- Oversizes
- STD .10mm .25mm .50mm .75mm
- Pin Configuration
- Centered
- Pin Number
- .9448x2.500x162-SCR415H
- Pin Type
- FLoating
- Piston Head Type
- Dome
- Piston Material
- Cast 390 Hypereutectic Alloy
- Piston Pin Outside Diameter
- .945
- Ring Pack
- 1.2mm, 1.5mm, 2.5mm
- Rod (in)
- 5.921
- Rod (mm)
- 150.4
- Second Compression Ring Thickness
- 1.5
- Sold As
- Complete Piston Set
- Stroke (in)
- 3.37
- Stroke (mm)
- 85.6
- Top Compression Ring Thickness
- 1.2
- Top Land
- .180
- Vin Code
- D, V
- Year From
- 2007
- Year Range
- 2007-2017
- Year To
- 2017
Fitment status
Select a vehicle or engine to see whether this part applies to your application.
Application summary
2010 Buick Allure; 2009-2017 Buick Enclave; 2010-2012 Buick LaCrosse; 2008-2012 Cadillac CTS; 2014 Cadillac CTS; 2008-2011 Cadillac STS; 2010-2011 Chevrolet Camaro; 2009-2017 Chevrolet Traverse; 2009-2016 GMC Acadia; 2017 GMC Acadia Limited; 2009-2010 Saturn Outlook

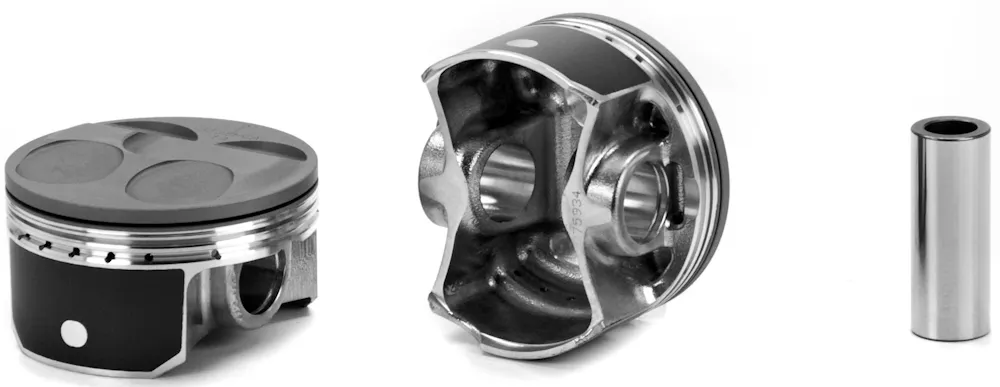

Silv-O-lite 3538HCA.25MM
