Silv-O-lite · 3537HCA-0.5K1
Part #: 3537HCA-0.5K1
UPC: 800745303493
Log in for inventory
Notify me when this item is in stock.
Description: Silv-O-Lite Piston - GM 146.4ci/2.4L (L4) Kit with Rings
Description:
Description

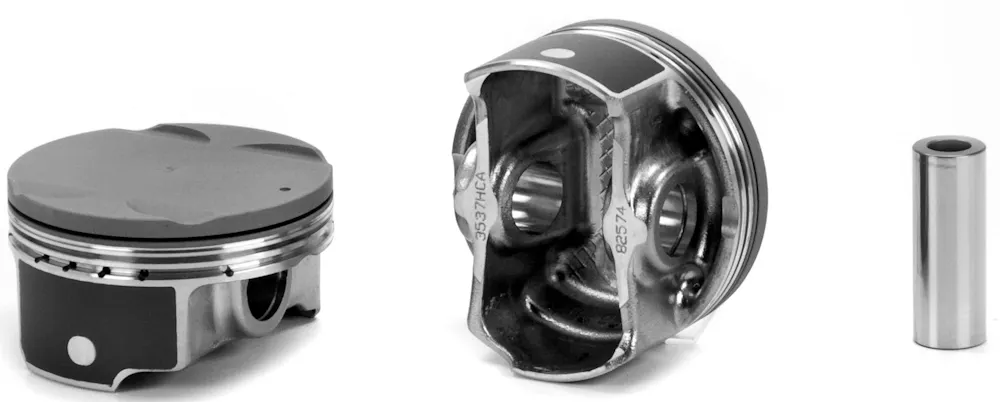

Silv-O-Lite Piston - GM 146.4ci/2.4L (L4) Kit with Rings
Features & benefits
- DOHC 4 cylinder.
- Ecotec, Cobalt, HHR, G6.
- Floating pin.
Application summary
| Year | Make / model |
|---|---|
| 2010 | Buick Allure |
| 2010-2016 | Buick LaCrosse |
| 2011-2017 | Buick Regal |
| 2012-2017 | Buick Verano |
| 2012-2015 | Chevrolet Captiva Sport |
| 2006-2008 | Chevrolet Cobalt |
| 2010-2017 | Chevrolet Equinox |
| 2006-2011 | Chevrolet HHR |
| 2008-2014 | Chevrolet Malibu |
| 2012-2014 | Chevrolet Orlando |
| 2010-2017 | GMC Terrain |
| 2006 | Pontiac G4 |
| 2007-2008 | Pontiac G5 |
| 2006-2010 | Pontiac G6 |
| 2006 | Pontiac Pursuit |
| 2006-2009 | Pontiac Solstice |
| 2007-2009 | Saturn Aura |
| 2006-2007 | Saturn Ion |
| 2007-2010 | Saturn Sky |
| 2007-2010 | Saturn Vue |
Specifications
- GTIN
- 00800745303493
- Weight
- 7 lb
- Height
- 5.25 in
- Length
- 17.75 in
- Width
- 9.75 in
- Life cycle
- Available to Order
- AAM brand code
- SOL
- Warehouse brand code
- BCRJ
- AAIA brand code
- BCRJ
Attributes
- Base Number
- 3537HCA
- Bore (in)
- 3.4646
- Bore (mm)
- 88
- Bore Diameter
- 3.4646
- Compression Ratio
- 12/31/1899 10:00:00 AM
- Crown (cc)
- +1.4cc
- Crown Type
- FLAT TOP
- Eng. Disp. In.
- 146
- Eng. Disp. Liters
- 2.4
- Engine Family
- EcoTec L4
- Engine Manufacturer
- GM
- Includes Ring Set
- 22001.5MM
- Lock
- LR787F
- Oe Assembly
- 12646457
- Oil Ring Thickness
- 2
- Oversize
- .50mm
- Oversized
- Yes
- Oversizes
- STD .25mm .50mm .75mm, 1.00mm
- Pin Configuration
- Offset
- Pin Number
- P787A
- Pin Type
- Floating
- Piston Head Type
- Flat
- Piston Material
- Cast 390 Hypereutectic Alloy
- Piston Pin Outside Diameter
- 0.787
- Piston Rings Included
- Yes
- Ring Pack
- 1.2mm, 1.5mm, 2.0mm
- Second Compression Ring Thickness
- 1.5
- Sold As
- Complete Piston and Ring Kit
- Top Compression Ring Thickness
- 1.2
- Top Land
- 0.21
- Vin Code
- B, C, K, P, U, V, W, Z, 0, 1, 5
- Year From
- 2005
- Year Range
- 2005-2015
- Year To
- 2015
Fitment status
Select a vehicle or engine to see whether this part applies to your application.
Application summary
2010 Buick Allure; 2010-2016 Buick LaCrosse; 2011-2017 Buick Regal; 2012-2017 Buick Verano; 2012-2015 Chevrolet Captiva Sport; 2006-2008 Chevrolet Cobalt; 2010-2017 Chevrolet Equinox; 2006-2011 Chevrolet HHR; 2008-2014 Chevrolet Malibu; 2012-2014 Chevrolet Orlando; 2010-2017 GMC Terrain; 2006 Pontiac G4; 2007-2008 Pontiac G5; 2006-2010 Pontiac G6; 2006 Pontiac Pursuit; 2006-2009 Pontiac Solstice; 2007-2009 Saturn Aura; 2006-2007 Saturn Ion; 2007-2010 Saturn Sky; 2007-2010 Saturn Vue
