Silv-O-lite · 3535HC-STDK1
Part #: 3535HC-STDK1
UPC: 800745296061
Log in for inventory
Notify me when this item is in stock.
Description: Silv-O-Lite Piston - GM 327ci/5.3L (V8) Kit with Rings
Description:
Description

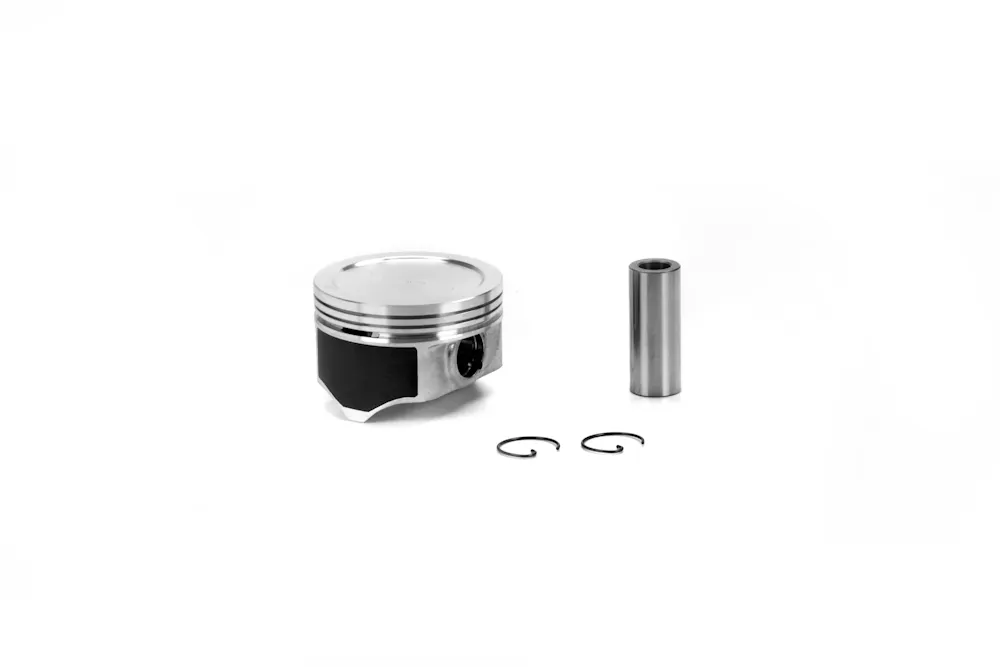

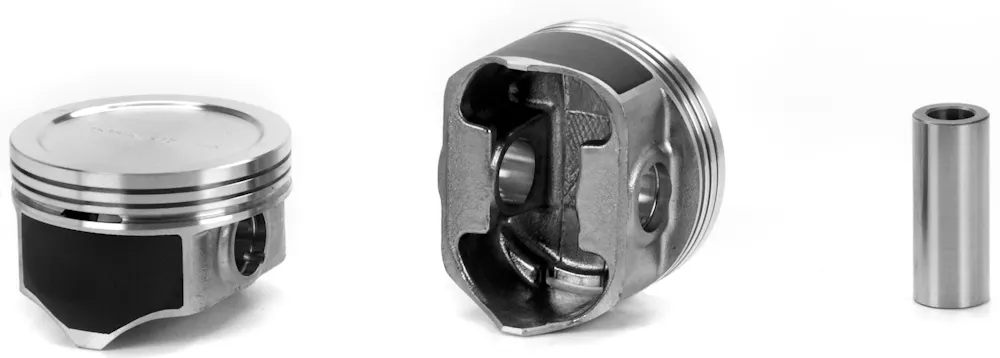

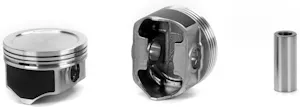

Silv-O-Lite Piston - GM 327ci/5.3L (V8) Kit with Rings
Features & benefits
- 3472HC w/ floating pin.
- DO NOT use w/ press pin rods.
- Hypereutectic.
- 3.050" dia. recess .068" deep.
- Truck engine.
- Coated skirts.
Application summary
| Year | Make / model |
|---|---|
| 2004 | Buick Rainier |
| 2002-2004 | Cadillac Escalade |
| 2002-2004 | Chevrolet Avalanche 1500 |
| 2003-2004 | Chevrolet Express 1500 |
| 2003-2004 | Chevrolet Express 2500 |
| 2003 | Chevrolet Express 3500 |
| 1999-2004 | Chevrolet Silverado 1500 |
| 1999-2003 | Chevrolet Silverado 2500 |
| 2003 | Chevrolet Sonora |
| 2004 | Chevrolet SSR |
| 2000-2004 | Chevrolet Suburban 1500 |
| 2000-2004 | Chevrolet Tahoe |
| 2003-2004 | Chevrolet Trailblazer EXT |
| 2003-2004 | GMC Envoy XL |
| 2004 | GMC Envoy XUV |
| 2003-2004 | GMC Savana 1500 |
| 2003-2004 | GMC Savana 2500 |
| 1999-2004 | GMC Sierra 1500 |
| 1999-2000 | GMC Sierra 2500 |
| 2000-2004 | GMC Yukon |
| 2000-2004 | GMC Yukon XL 1500 |
Specifications
- GTIN
- 00800745296061
- Weight
- 17 lb
- Height
- 5.25 in
- Length
- 22.25 in
- Width
- 9.5 in
- Life cycle
- Available to Order
- AAM brand code
- SOL
- Warehouse brand code
- BCRJ
- AAIA brand code
- BCRJ
Attributes
- Base Number
- 3535HC
- Bore (in)
- 3.78
- Bore (mm)
- 96
- Bore Diameter
- 3.78
- Compression Ratio
- 9.45
- Crown (cc)
- +7.85cc
- Crown Type
- DISH
- Eng. Disp. In.
- 327
- Eng. Disp. Liters
- 5.3
- Engine Family
- Chevy Small Block Gen I
- Engine Manufacturer
- GM
- Includes Ring Set
- 3780CS8.STD
- Lock
- SWR-012
- Oe Assembly
- 88894397
- Oil Ring Thickness
- 3
- Oversize
- STD
- Oversized
- No
- Oversizes
- STD .5mm .75mm 1.0mm
- Pin Configuration
- Offset
- Pin Number
- 0945x2.500x.2075SCR415H
- Pin Type
- Floating
- Piston Head Type
- Dish
- Piston Material
- Cast 390 Hypereutectic Alloy
- Piston Pin Outside Diameter
- 0.945
- Piston Rings Included
- Yes
- Ring Pack
- 1.5mm, 1.5mm, 3.0mm
- Second Compression Ring Thickness
- 1.5
- Sold As
- Complete Piston and Ring Kit
- Top Compression Ring Thickness
- 1.5
- Top Land
- 0.216
- Vin Code
- T
- Year From
- 1999
- Year Range
- 1999-2003
- Year To
- 2003
Fitment status
Select a vehicle or engine to see whether this part applies to your application.
Application summary
2004 Buick Rainier; 2002-2004 Cadillac Escalade; 2002-2004 Chevrolet Avalanche 1500; 2003-2004 Chevrolet Express 1500; 2003-2004 Chevrolet Express 2500; 2003 Chevrolet Express 3500; 1999-2004 Chevrolet Silverado 1500; 1999-2003 Chevrolet Silverado 2500; 2003 Chevrolet Sonora; 2004 Chevrolet SSR; 2000-2004 Chevrolet Suburban 1500; 2000-2004 Chevrolet Tahoe; 2003-2004 Chevrolet Trailblazer EXT; 2003-2004 GMC Envoy XL; 2004 GMC Envoy XUV; 2003-2004 GMC Savana 1500; 2003-2004 GMC Savana 2500; 1999-2004 GMC Sierra 1500; 1999-2000 GMC Sierra 2500; 2000-2004 GMC Yukon; 2000-2004 GMC Yukon XL 1500
