Silv-O-lite · 3531HC.1.0MM

Silv-O-lite 3531HC.1.0MM

Part #: 3531HC.1.0MM
UPC: 800745235572

Loading availability... Log in for inventory

Notify me when this item is in stock.

Brand: Silv-O-lite Series: Hypereutectic Dish Coated Skirt Piston Sets

Log in to order

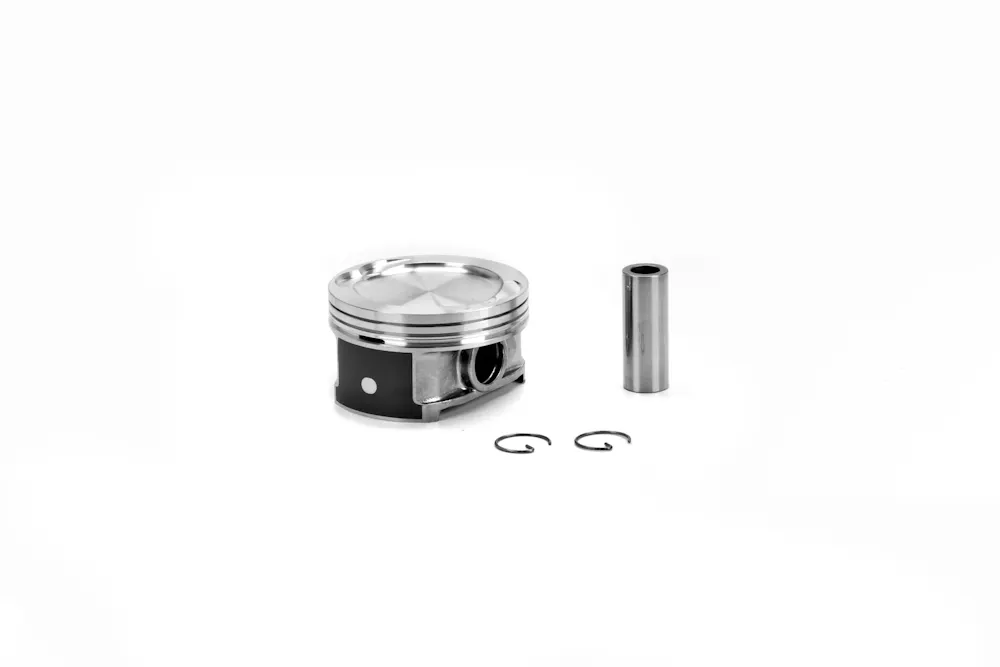

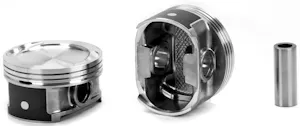

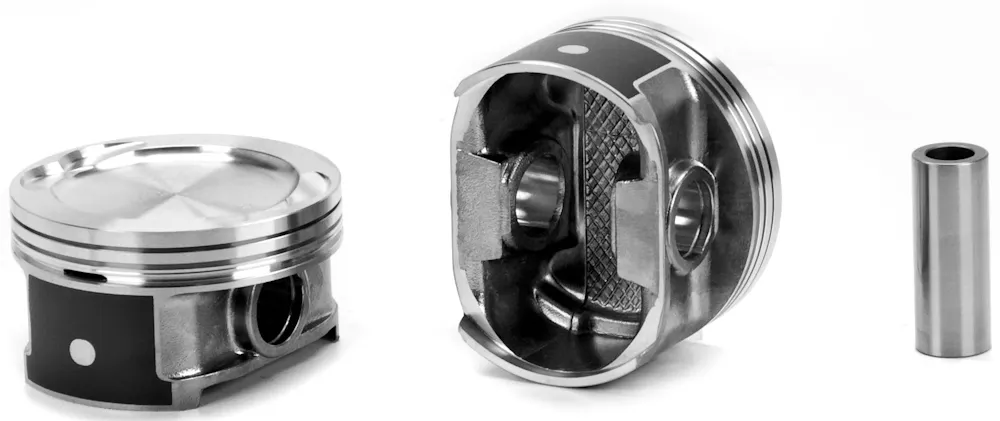

Description: Silv-O-Lite Piston - GM 238ci/3.9L (V6)

Description

Silv-O-Lite Piston - GM 238ci/3.9L (V6)

Features & benefits

- Coated skirts.

Specifications

GTIN: 00800745235572
Weight: 10 lb
Height: 13.63 in
Length: 3.38 in
Width: 9 in
Life cycle: Available to Order
AAM brand code: SOL
Warehouse brand code: BCRJ
AAIA brand code: BCRJ

Attributes

Base Number: 3531HC
Bore (in): 3.8976
Bore (mm): 99
Bore Diameter: 3.8976
Crown (cc): +17.43cc
Crown Type: DISH
Eng. Disp Liters: 3.9
Eng. Disp. In.: 238
Eng. Disp. Liters: 3.9
Engine Family: GM V6
Engine Manufacturer: GM
Lock: SRW-012
Oe Assembly: 89018066
Oil Ring Thickness: 2.5
Oversize: 1.0mm
Oversized: Yes
Oversizes: STD .5mm .75mm 1.0mm
Pin Configuration: Offset
Pin Number: 0943x223A
Pin Type: Floating
Piston Head Type: Dish
Piston Material: Cast 390 Hypereutectic Alloy
Piston Pin Outside Diameter: .943
Ring Pack: 1.2mm, 1.5mm, 2.5mm
Second Compression Ring Thickness: 1.5
Sold As: Complete Piston Set
Top Compression Ring Thickness: 1.2
Top Land: .199
Year From: 2006
Year Range: 2006-2011
Year To: 2011

Fitment status

This product is universal and will fit your application.
