Silv-O-lite · 3525HC.1.0MM
Part #: 3525HC.1.0MM
UPC: 800745280206
Log in for inventory
Notify me when this item is in stock.
Description: Silv-O-Lite Piston - GM 214ci/3.5L (V6)
Description:
Description
Silv-O-Lite Piston - GM 214ci/3.5L (V6)
Features & benefits
- Hypereutectic.
- 2.920" diameter head recess .154" deep.
- 4 valve reliefs.
- Coated skirts.
- Floating pin.
Application summary
| Year | Make / model |
|---|---|
| 2009-2011 | Buick Lucerne |
| 2006-2007 | Buick Terraza |
| 2006-2011 | Chevrolet Impala |
| 2006-2010 | Chevrolet Malibu |
| 2006-2007 | Chevrolet Monte Carlo |
| 2006-2009 | Chevrolet Uplander |
| 2006-2010 | Pontiac G6 |
| 2008-2009 | Pontiac G8 |
| 2006-2009 | Pontiac Montana |
| 2007-2008 | Saturn Aura |
| 2006-2007 | Saturn Relay |
| 2008-2009 | Saturn Vue |
Specifications
- GTIN
- 00800745280206
- Weight
- 10 lb
- Height
- 13.63 in
- Length
- 3.38 in
- Width
- 9 in
- Life cycle
- Available to Order
- AAM brand code
- SOL
- Warehouse brand code
- BCRJ
- AAIA brand code
- BCRJ
Attributes
- Base Number
- 3525HC
- Bore (in)
- 3.8976
- Bore (mm)
- 99
- Bore Diameter
- 3.8976
- Crown Type
- DISH
- Eng. Disp Liters
- 3.5
- Eng. Disp. In.
- 214
- Eng. Disp. Liters
- 3.5
- Engine Family
- GM V6
- Engine Manufacturer
- GM
- Lock
- SRW-012
- Oe Assembly
- 8901865
- Oil Ring Thickness
- 2.5
- Oversize
- 1.0mm
- Oversized
- Yes
- Oversizes
- STD .5mm .75mm 1.0mm
- Pin Configuration
- Offset
- Pin Number
- 0943x223A
- Pin Type
- Floating
- Piston Head Type
- Dish
- Piston Material
- Cast 390 Hypereutectic Alloy
- Piston Pin Outside Diameter
- .943
- Ring Pack
- 1.2mm, 1.5mm, 2.5mm
- Second Compression Ring Thickness
- 1.5
- Sold As
- Complete Piston Set
- Top Compression Ring Thickness
- 1.2
- Top Land
- .199
- Vin Code
- K, N
- Year From
- 2009
- Year Range
- 2009-2009
- Year To
- 2009
Fitment status
Select a vehicle or engine to see whether this part applies to your application.
Application summary
2009-2011 Buick Lucerne; 2006-2007 Buick Terraza; 2006-2011 Chevrolet Impala; 2006-2010 Chevrolet Malibu; 2006-2007 Chevrolet Monte Carlo; 2006-2009 Chevrolet Uplander; 2006-2010 Pontiac G6; 2008-2009 Pontiac G8; 2006-2009 Pontiac Montana; 2007-2008 Saturn Aura; 2006-2007 Saturn Relay; 2008-2009 Saturn Vue

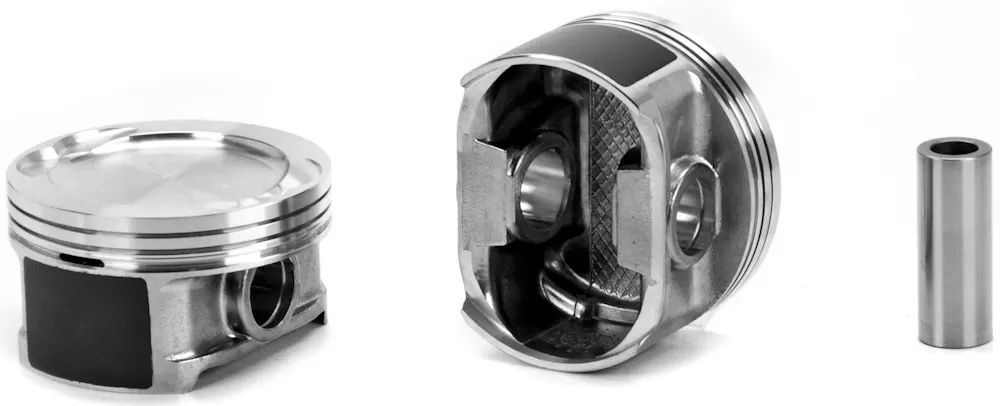

Silv-O-lite 3525HC.1.0MM
