Silv-O-lite · 3520HC.1.0MM
Part #: 3520HC.1.0MM
UPC: 800745152626
Log in for inventory
Notify me when this item is in stock.
Description: Silv-O-Lite Piston - Chevrolet 325ci/5.3L (V8)
Description:
Description
Silv-O-Lite Piston - Chevrolet 325ci/5.3L (V8)
Features & benefits
- Hypereutectic.
- Flat top.
- High output / Flex Fuel.
- Coated skirts.
- Floating pin.
- LS4, LM4, L33, LH8, LH6, LMG, LY5 Engines.
Application summary
| Year | Make / model |
|---|---|
| 2008-2009 | Buick Allure |
| 2008-2009 | Buick LaCrosse |
| 2006-2007 | Buick Rainier |
| 2007-2008 | Chevrolet Avalanche |
| 2007-2009 | Chevrolet Cheyenne |
| 2007-2008 | Chevrolet Silverado 1500 |
| 2007-2009 | Chevrolet Silverado 2500 |
| 2007-2008 | Chevrolet Suburban 1500 |
| 2006-2008 | Chevrolet Trailblazer |
| 2006 | Chevrolet Trailblazer EXT |
| 2006-2009 | GMC Envoy |
| 2006 | GMC Envoy XL |
| 2007-2009 | GMC Sierra |
| 2007-2008 | GMC Sierra 1500 |
| 2007-2009 | GMC Yukon |
| 2007-2008 | GMC Yukon XL 1500 |
| 2005-2006 | Isuzu Ascender |
| 2005-2007 | Pontiac Grand Prix |
| 2005-2009 | Saab 9-7x |
Specifications
- GTIN
- 00800745152626
- Weight
- 11 lb
- Height
- 18 in
- Length
- 3.38 in
- Width
- 9 in
- Life cycle
- Available to Order
- AAM brand code
- SOL
- Warehouse brand code
- BCRJ
- AAIA brand code
- BCRJ
Attributes
- Base Number
- 3520HC
- Bore (in)
- 3.78
- Bore (mm)
- 96
- Bore Diameter
- 3.78
- Compression Ratio
- 9.45, 9.9
- Crown Type
- FLAT TOP
- Eng. Disp Liters
- 5.3
- Eng. Disp. In.
- 325
- Eng. Disp. Liters
- 5.3
- Engine Family
- Chevy Small Block Gen III/IV (LS Based Engine)
- Engine Manufacturer
- Chevrolet
- Lock
- SRW-012
- Oe Assembly
- 89017577
- Oil Ring Thickness
- 3.0000
- Oversize
- 1.0mm
- Oversized
- Yes
- Oversizes
- STD .25mm .5mm .75mm 1.0mm
- Pin Configuration
- Offset
- Pin Number
- 0943x223A
- Pin Type
- Floating
- Piston Head Type
- Flat
- Piston Material
- Cast 390 Hypereutectic Alloy
- Piston Pin Outside Diameter
- .943
- Ring Pack
- 1.5mm, 1.5mm, 3.0mm Shallow Oil Groove
- Second Compression Ring Thickness
- 1.5
- Sold As
- Complete Piston Set
- Top Compression Ring Thickness
- 1.5
- Top Land
- .216
- Vin Code
- V, C, K, B, M, J, 0, 3, C
- Year From
- 1999
- Year Range
- 1999-2009
- Year To
- 2009
Fitment status
Select a vehicle or engine to see whether this part applies to your application.
Application summary
2008-2009 Buick Allure; 2008-2009 Buick LaCrosse; 2006-2007 Buick Rainier; 2007-2008 Chevrolet Avalanche; 2007-2009 Chevrolet Cheyenne; 2007-2008 Chevrolet Silverado 1500; 2007-2009 Chevrolet Silverado 2500; 2007-2008 Chevrolet Suburban 1500; 2006-2008 Chevrolet Trailblazer; 2006 Chevrolet Trailblazer EXT; 2006-2009 GMC Envoy; 2006 GMC Envoy XL; 2007-2009 GMC Sierra; 2007-2008 GMC Sierra 1500; 2007-2009 GMC Yukon; 2007-2008 GMC Yukon XL 1500; 2005-2006 Isuzu Ascender; 2005-2007 Pontiac Grand Prix; 2005-2009 Saab 9-7x

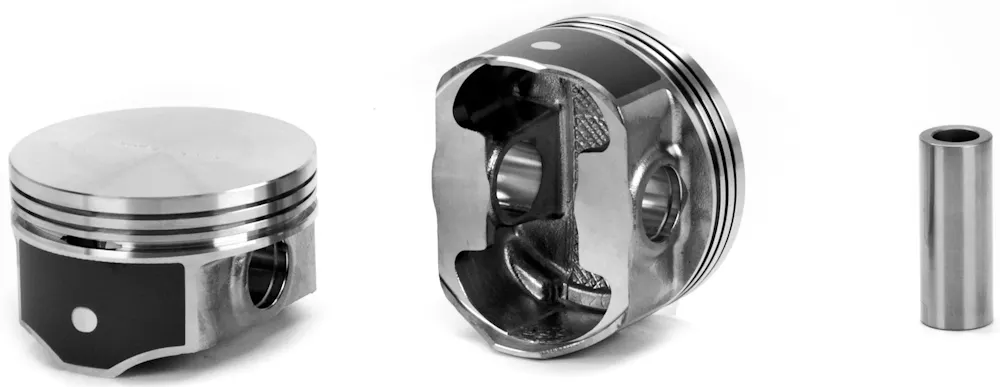

Silv-O-lite 3520HC.1.0MM
