Silv-O-lite · 3519HC.5MM
Part #: 3519HC.5MM
UPC: 800745199591
Log in for inventory
Notify me when this item is in stock.
Description: Silv-O-Lite Piston - Chevrolet 325ci/5.3L (V8)
Description:
Description

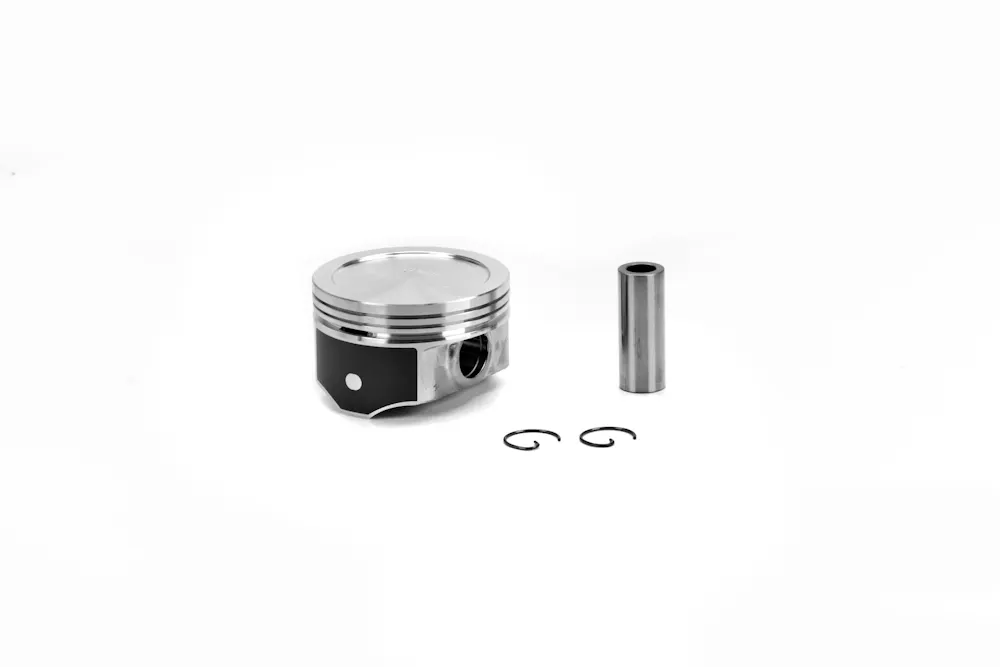

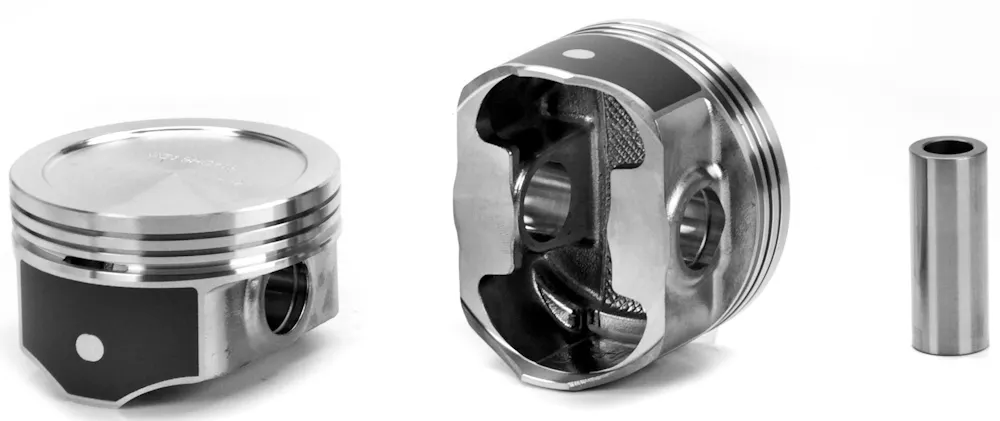

Silv-O-Lite Piston - Chevrolet 325ci/5.3L (V8)
Features & benefits
- Hypereutectic.
- 3.100" diameter head recess .068" deep.
- LM7, L59, LM4 Engines.
- Coated skirts.
- Floating pin.
Application summary
| Year | Make / model |
|---|---|
| 2005 | Chevrolet Express 2500 |
| 2004-2007 | Chevrolet Express 3500 |
| 2004-2006 | Chevrolet Silverado 2500 |
| 2004-2006 | Chevrolet Sonora |
| 2006 | Chevrolet Suburban 1500 |
| 2005 | GMC Savana 2500 |
| 2006 | GMC Yukon |
| 2005-2006 | GMC Yukon XL 1500 |
| 2004 | Isuzu Ascender |
Specifications
- GTIN
- 00800745199591
- Weight
- 11 lb
- Height
- 18 in
- Length
- 3.38 in
- Width
- 9 in
- Life cycle
- Available to Order
- AAM brand code
- SOL
- Warehouse brand code
- BCRJ
- AAIA brand code
- BCRJ
Attributes
- Base Number
- 3519HC
- Bore (in)
- 3.78
- Bore (mm)
- 96
- Bore Diameter
- 3.78
- Compression Ratio
- 9.45
- Crown (cc)
- +7.8cc
- Crown Type
- DISH
- Eng. Disp Liters
- 5.3
- Eng. Disp. In.
- 325
- Eng. Disp. Liters
- 5.3
- Engine Family
- Chevy Small Block Gen III/IV (LS Based Engine)
- Engine Manufacturer
- Chevrolet
- Lock
- SRW-012
- Oe Assembly
- 89017579
- Oil Ring Thickness
- 3.0000
- Oversize
- .50mm
- Oversized
- Yes
- Oversizes
- STD .25mm .5mm .75mm 1.0mm
- Pin Configuration
- Offset
- Pin Number
- 0943x223A
- Pin Type
- Floating
- Piston Head Type
- Dish
- Piston Material
- Cast 390 Hypereutectic Alloy
- Piston Pin Outside Diameter
- .943
- Ring Pack
- 1.5mm, 1.5mm, 3.0mm Shallow Oil Groove
- Second Compression Ring Thickness
- 1.5
- Sold As
- Complete Piston Set
- Top Compression Ring Thickness
- 1.5
- Top Land
- .216
- Vin Code
- P, T, Z
- Year From
- 2004
- Year Range
- 2004-2007
- Year To
- 2007
Fitment status
Select a vehicle or engine to see whether this part applies to your application.
Application summary
2005 Chevrolet Express 2500; 2004-2007 Chevrolet Express 3500; 2004-2006 Chevrolet Silverado 2500; 2004-2006 Chevrolet Sonora; 2006 Chevrolet Suburban 1500; 2005 GMC Savana 2500; 2006 GMC Yukon; 2005-2006 GMC Yukon XL 1500; 2004 Isuzu Ascender
Equivalent Parts
Silv-O-lite 3519HC.5MM
