Silv-O-lite · 3517HC.5MM

Silv-O-lite 3517HC.5MM

Part #: 3517HC.5MM
UPC: 800745151902

Loading availability... Log in for inventory

Notify me when this item is in stock.

Brand: Silv-O-lite Series: Hypereutectic Flat Top Coated Skirt Piston Sets

Log in to order

Description: Silv-O-Lite Piston - Chevrolet 364ci/6.0L (V8)

Description

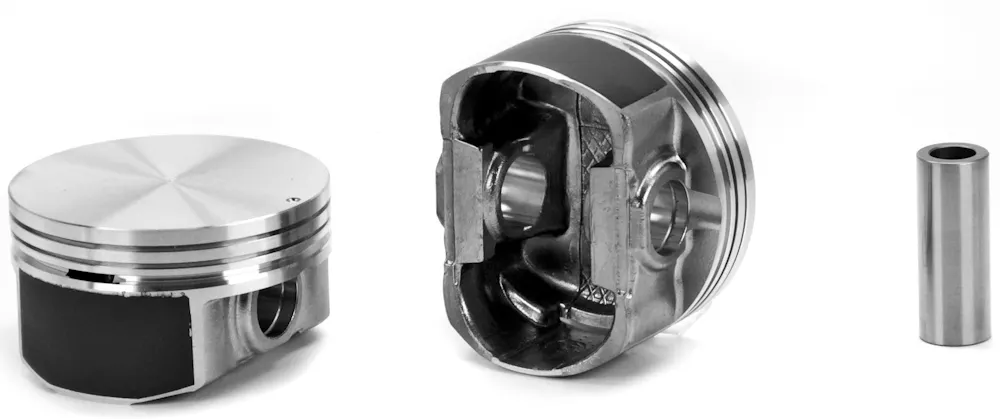

Silv-O-Lite Piston - Chevrolet 364ci/6.0L (V8)

Features & benefits

- Hypereutectic.
- Flat top.
- LQ9, LS2 Escalade, Corvette, GTO, SSR, CTS-V.
- Coated skirts.
- Floating pin.

Application summary

Year	Make / model
2004	GMC Sierra 1500
2007-2008	Isuzu NPR
2007-2008	Isuzu NPR-HD

Specifications

GTIN: 00800745151902
Weight: 12 lb
Height: 18 in
Length: 3.38 in
Width: 9 in
Life cycle: Available to Order
AAM brand code: SOL
Warehouse brand code: BCRJ
AAIA brand code: BCRJ

Attributes

Base Number: 3517HC
Bore (in): 4
Bore (mm): 101.6
Bore Diameter: 4
Compression Ratio: 10.0, 10.9
Crown Type: FLAT TOP
Eng. Disp Liters: 6.0
Eng. Disp. In.: 364
Eng. Disp. Liters: 6
Engine Family: Chevy Small Block Gen III/IV (LS Based Engine)
Engine Manufacturer: Chevrolet
Lock: SRW-012
Oil Ring Thickness: 3.0000
Oversize: .50mm
Oversized: Yes
Oversizes: STD .25mm .5mm .75mm 1.0mm
Pin Configuration: Offset
Pin Number: 0943x223A
Pin Type: Floating
Piston Head Type: Flat
Piston Material: Cast 390 Hypereutectic Alloy
Piston Pin Outside Diameter: .942
Ring Pack: 1.5mm, 1.5mm, 3.0mm Shallow Oil Groove
Second Compression Ring Thickness: 1.5
Sold As: Complete Piston Set
Top Compression Ring Thickness: 1.5
Top Land: .218
Vin Code: N, U
Year From: 2002
Year Range: 2002-2008
Year To: 2008

Fitment status

Select a vehicle or engine to see whether this part applies to your application.

Application summary

2004 GMC Sierra 1500; 2007-2008 Isuzu NPR; 2007-2008 Isuzu NPR-HD
