Silv-O-lite · 3516HC.5MM
Part #: 3516HC.5MM
UPC: 800745152008
Log in for inventory
Notify me when this item is in stock.
Description: Silv-O-Lite Piston - Chevrolet 364ci/6.0L (V8)
Description:
Description

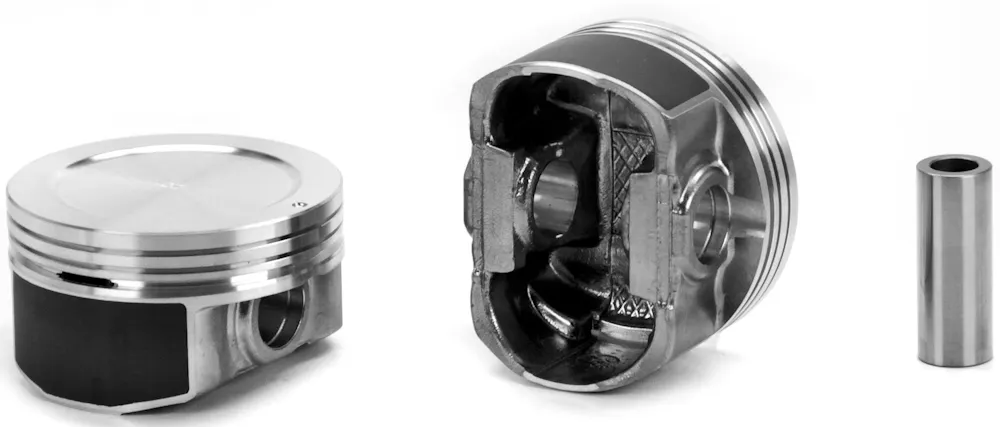

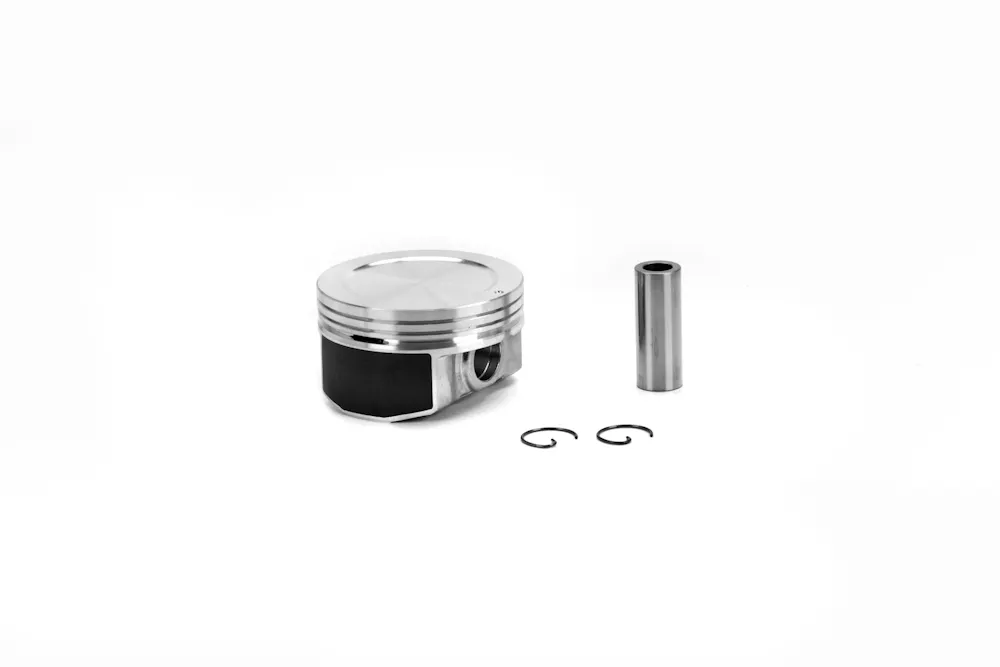

Silv-O-Lite Piston - Chevrolet 364ci/6.0L (V8)
Features & benefits
- Hypereutectic.
- 2.780" diameter recess .058" deep cup.
- LQ4, LYC, L76 GMC Truck, Hummer H2 Engine.
- Coated skirts.
- Floating Pin.
Application summary
| Year | Make / model |
|---|---|
| 2002 | Cadillac Escalade EXT |
| 2004 | Chevrolet Cargo Van |
| 2003-2005 | Chevrolet Express 2500 |
| 2003-2005 | Chevrolet Express 3500 |
| 2002-2003 | Chevrolet Silverado 1500 HD |
| 2005 | Chevrolet Silverado 1500 HD |
| 2002-2004 | Chevrolet Silverado 2500 |
| 2002-2005 | Chevrolet Silverado 2500 HD |
| 2002-2005 | Chevrolet Silverado 3500 |
| 2002-2005 | Chevrolet Suburban 2500 |
| 2003-2008 | Chevrolet W3500 Tiltmaster |
| 2003-2008 | Chevrolet W4500 Tiltmaster |
| 2003-2005 | GMC Savana 2500 |
| 2003-2005 | GMC Savana 3500 |
| 2002-2004 | GMC Sierra 1500 |
| 2002-2003 | GMC Sierra 1500 HD |
| 2005 | GMC Sierra 1500 HD |
| 2002-2004 | GMC Sierra 2500 |
| 2002-2005 | GMC Sierra 2500 HD |
| 2002-2005 | GMC Sierra 3500 |
| 2004-2008 | GMC W3500 Forward |
| 2003-2008 | GMC W4500 Forward |
| 2003-2005 | GMC Yukon |
| 2002-2005 | GMC Yukon XL 1500 |
| 2002-2005 | GMC Yukon XL 2500 |
| 2003-2005 | Hummer H2 |
| 2003-2008 | Isuzu NPR |
| 2003-2008 | Isuzu NPR-HD |
| 2004-2005 | Workhorse FasTrack FT1461 |
| 2004-2005 | Workhorse FasTrack FT1801 |
| 2007-2008 | Workhorse W62 |
Specifications
- GTIN
- 00800745152008
- Weight
- 12 lb
- Height
- 18 in
- Length
- 3.38 in
- Width
- 9 in
- Life cycle
- Available to Order
- AAM brand code
- SOL
- Warehouse brand code
- BCRJ
- AAIA brand code
- BCRJ
Attributes
- Base Number
- 3516HC
- Bore (in)
- 4
- Bore (mm)
- 101.6
- Bore Diameter
- 4
- Compression Ratio
- 9.5
- Crown (cc)
- +6.7cc
- Crown Type
- DISH
- Eng. Disp Liters
- 6.0
- Eng. Disp. In.
- 364
- Eng. Disp. Liters
- 6
- Engine Family
- Chevy Small Block Gen III/IV (LS Based Engine)
- Engine Manufacturer
- Chevrolet
- Lock
- SRW-012
- Oe Assembly
- 89017473
- Oil Ring Thickness
- 3.0000
- Oversize
- .50mm
- Oversized
- Yes
- Oversizes
- STD .25mm .5mm .75mm 1.0mm
- Pin Configuration
- Offset
- Pin Number
- 0943x223A
- Pin Type
- Floating
- Piston Head Type
- Dish
- Piston Material
- Cast 390 Hypereutectic Alloy
- Piston Pin Outside Diameter
- .942
- Ring Pack
- 1.5mm, 1.5mm, 3.0mm Shallow Oil Groove
- Second Compression Ring Thickness
- 1.5
- Sold As
- Complete Piston Set
- Top Compression Ring Thickness
- 1.5
- Top Land
- .218
- Vin Code
- U
- Year From
- 2003
- Year Range
- 2003-2008
- Year To
- 2008
Fitment status
Select a vehicle or engine to see whether this part applies to your application.
Application summary
2002 Cadillac Escalade EXT; 2004 Chevrolet Cargo Van; 2003-2005 Chevrolet Express 2500; 2003-2005 Chevrolet Express 3500; 2002-2003 Chevrolet Silverado 1500 HD; 2005 Chevrolet Silverado 1500 HD; 2002-2004 Chevrolet Silverado 2500; 2002-2005 Chevrolet Silverado 2500 HD; 2002-2005 Chevrolet Silverado 3500; 2002-2005 Chevrolet Suburban 2500; 2003-2008 Chevrolet W3500 Tiltmaster; 2003-2008 Chevrolet W4500 Tiltmaster; 2003-2005 GMC Savana 2500; 2003-2005 GMC Savana 3500; 2002-2004 GMC Sierra 1500; 2002-2003 GMC Sierra 1500 HD; 2005 GMC Sierra 1500 HD; 2002-2004 GMC Sierra 2500; 2002-2005 GMC Sierra 2500 HD; 2002-2005 GMC Sierra 3500; 2004-2008 GMC W3500 Forward; 2003-2008 GMC W4500 Forward; 2003-2005 GMC Yukon; 2002-2005 GMC Yukon XL 1500; 2002-2005 GMC Yukon XL 2500; 2003-2005 Hummer H2; 2003-2008 Isuzu NPR; 2003-2008 Isuzu NPR-HD; 2004-2005 Workhorse FasTrack FT1461; 2004-2005 Workhorse FasTrack FT1801; 2007-2008 Workhorse W62
Equivalent Parts
Silv-O-lite 3516HC.5MM
