Silv-O-lite · 3510HC.5MM

Silv-O-lite 3510HC.5MM

Part #: 3510HC.5MM
UPC: 800745129475

Loading availability... Log in for inventory

Notify me when this item is in stock.

Brand: Silv-O-lite Series: Hypereutectic Dome Coated Skirt Piston Sets

Log in to order

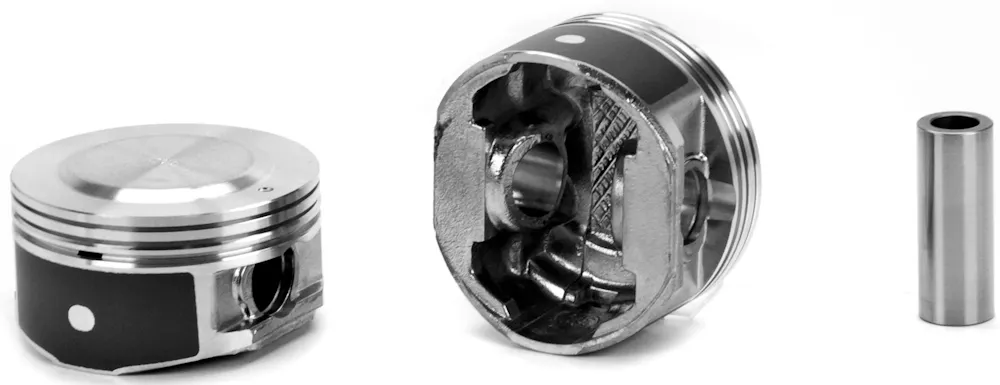

Description: Silv-O-Lite Piston - GM 214ci/3.5L (L5)

Description

Silv-O-Lite Piston - GM 214ci/3.5L (L5)

Features & benefits

- Hypereutectic.
- .095" high dome.
- Coated skirts.
- Floating pin.

Application summary

Year	Make / model
2004-2006	Chevrolet Colorado
2004-2006	GMC Canyon
2006	Hummer H3
2006	Isuzu i-350

Specifications

GTIN: 00800745129475
Weight: 6 lb
Height: 13.63 in
Length: 3.38 in
Width: 9 in
Life cycle: Available to Order
AAM brand code: SOL
Warehouse brand code: BCRJ
AAIA brand code: BCRJ

Attributes

Base Number: 3510HC
Bore (in): 3.6614
Bore (mm): 93
Bore Diameter: 3.6614
Compression Ratio: 10.0
Crown (cc): -6.9cc
Crown Type: DOME
Eng. Disp Liters: 3.5
Eng. Disp. In.: 211
Eng. Disp. Liters: 3.5
Engine Family: GM Inline 5-Cylinder
Engine Manufacturer: GM
Lock: SRW-012
Oe Assembly: 12585784
Oil Ring Thickness: 2.5
Oversize: .50mm
Oversized: Yes
Oversizes: STD .5mm .75mm 1.0mm
Pin Configuration: Offset
Pin Number: 0905x220A
Pin Type: Floating
Piston Head Type: Dome
Piston Material: Cast 390 Hypereutectic Alloy
Piston Pin Outside Diameter: .905
Ring Pack: 1.2mm, 1.5mm, 2.5mm
Second Compression Ring Thickness: 1.5
Sold As: Complete Piston Set
Top Compression Ring Thickness: 1.2
Top Land: .130
Vin Code: 6
Year From: 2004
Year Range: 2004-2006
Year To: 2006

Fitment status

Select a vehicle or engine to see whether this part applies to your application.

Application summary

2004-2006 Chevrolet Colorado; 2004-2006 GMC Canyon; 2006 Hummer H3; 2006 Isuzu i-350

Resources

Retail View

Year	Make/Model
2004-2006	Chevrolet Colorado
2004-2006	GMC Canyon
2006	Hummer H3
2006	Isuzu i-350
