Silv-O-lite · 3497HC-0.5K1
Part #: 3497HC-0.5K1
UPC: 800745317063
Log in for inventory
Notify me when this item is in stock.
Description: Silv-O-Lite Piston & Ring Kit - Cadillac 281ci/4.6L (V8)
Description:
Description

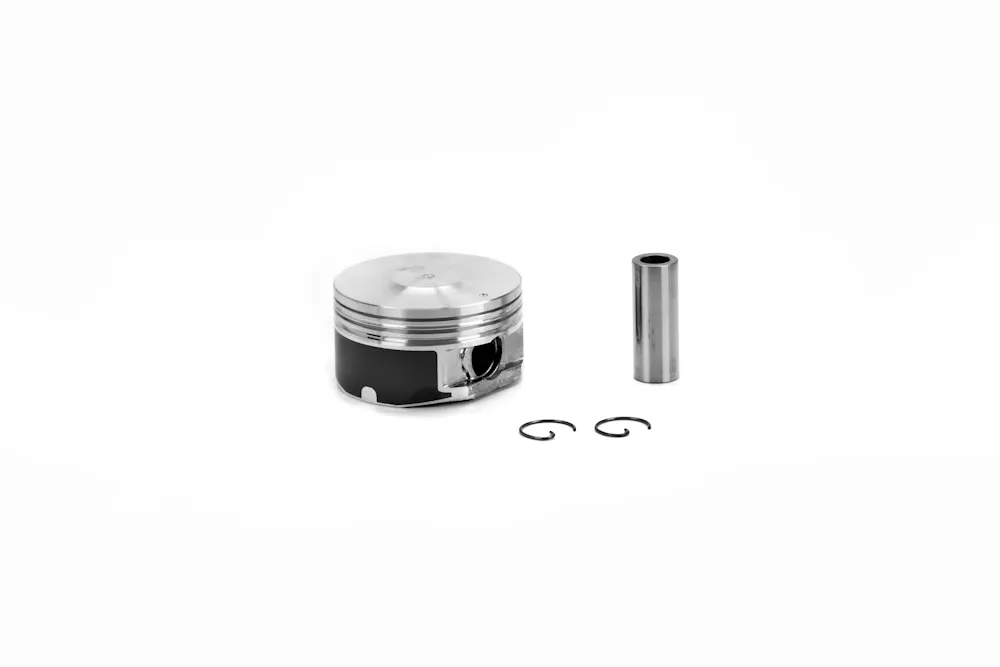

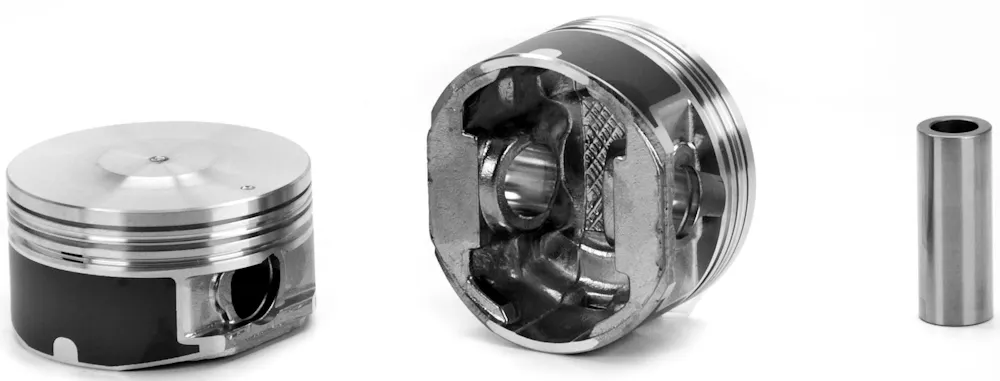

Silv-O-Lite Piston & Ring Kit - Cadillac 281ci/4.6L (V8)
Features & benefits
- Hypereutectic.
- .075" high dome.
- Coated skirts.
- Floating pin.
Application summary
| Year | Make / model |
|---|---|
| 2006-2011 | Buick Lucerne |
| 2000-2005 | Cadillac DeVille |
| 2006-2011 | Cadillac DTS |
| 2000-2002 | Cadillac Eldorado |
| 2000-2004 | Cadillac Seville |
| 2004-2005 | Pontiac Bonneville |
Specifications
- GTIN
- 00800745317063
- Weight
- 18 lb
- Height
- 5.25 in
- Length
- 22.25 in
- Width
- 9.5 in
- Life cycle
- Available to Order
- AAM brand code
- SOL
- Warehouse brand code
- BCRJ
- AAIA brand code
- BCRJ
Attributes
- Base Number
- 3497HC
- Bore (in)
- 3.6614
- Bore (mm)
- 93
- Bore Diameter
- 3.6614
- Compression Ratio
- 10.5
- Crown Type
- DOME
- Eng. Disp. In.
- 281
- Eng. Disp. Liters
- 4.6
- Engine Family
- Cadillac Northstar V8
- Engine Manufacturer
- Cadillac
- Includes Ring Set
- 22007.5MM
- Lock
- SRW-012
- Oe Assembly
- 89017429
- Oil Ring Thickness
- 2.5
- Oversize
- .50mm
- Oversized
- Yes
- Oversizes
- STD .25mm .5mm .75mm 1.0mm
- Pin Configuration
- Offset
- Pin Number
- 0905x220A
- Pin Type
- Floating
- Piston Head Type
- Dome
- Piston Material
- Cast 390 Hypereutectic Alloy
- Piston Pin Outside Diameter
- 0.905
- Piston Rings Included
- Yes
- Ring Pack
- 1.2mm, 1.5mm, 2.5mm
- Second Compression Ring Thickness
- 1.5
- Sold As
- Complete Piston and Ring Kit
- Top Compression Ring Thickness
- 1.2
- Top Land
- 0.2
- Vin Code
- Y
- Year From
- 2003
- Year Range
- 2003-2005
- Year To
- 2005
Fitment status
Select a vehicle or engine to see whether this part applies to your application.
Application summary
2006-2011 Buick Lucerne; 2000-2005 Cadillac DeVille; 2006-2011 Cadillac DTS; 2000-2002 Cadillac Eldorado; 2000-2004 Cadillac Seville; 2004-2005 Pontiac Bonneville
