Silv-O-lite · 3496HC.1.0MM
Part #: 3496HC.1.0MM
UPC: 800745129734
Log in for inventory
Notify me when this item is in stock.
Description: Silv-O-Lite Piston Set- GM 2.8/3.5/4.2L Vortec L4/L5/L6 LK5/L52/LL8 2002-2009
Description:
Description
Silv-O-Lite Piston Set- GM 2.8/3.5/4.2L Vortec L4/L5/L6 LK5/L52/LL8 2002-2009
Features & benefits
- Hypereutectic.
- .095" high dome.
- Coated skirts.
- Floating pin.
Application summary
| Year | Make / model |
|---|---|
| 2004-2005 | Buick Rainier |
| 2002 | Chevrolet Blazer |
| 2002-2005 | Chevrolet Trailblazer |
| 2002-2005 | Chevrolet Trailblazer EXT |
| 2002-2005 | GMC Envoy |
| 2002-2005 | GMC Envoy XL |
| 2004-2005 | GMC Envoy XUV |
| 2003-2005 | Isuzu Ascender |
| 2002-2004 | Oldsmobile Bravada |
| 2005 | Saab 9-7x |
Specifications
- GTIN
- 00800745129734
- Weight
- 10 lb
- Height
- 13.63 in
- Length
- 3.38 in
- Width
- 9 in
- Life cycle
- Available to Order
- AAM brand code
- SOL
- Warehouse brand code
- BCRJ
- AAIA brand code
- BCRJ
Attributes
- Base Number
- 3496HC
- Bore (in)
- 3.6614
- Bore (mm)
- 93
- Bore Diameter
- 3.6614
- Compression Ratio
- 10.1
- Crown (cc)
- -6.9cc
- Crown Type
- DOME
- Eng. Disp Liters
- 4.2
- Eng. Disp. In.
- 256
- Eng. Disp. Liters
- 4.2
- Engine Family
- GM Inline 6-Cylinder
- Engine Manufacturer
- GM
- Lock
- SRW-012
- Oe Assembly
- 12585784
- Oil Ring Thickness
- 2.5
- Oversize
- 1.0mm
- Oversized
- Yes
- Oversizes
- STD .5mm .75mm 1.0mm
- Pin Configuration
- Offset
- Pin Number
- 0905x220A
- Pin Type
- Floating
- Piston Head Type
- Dome
- Piston Material
- Cast 390 Hypereutectic Alloy
- Piston Pin Outside Diameter
- .905
- Ring Pack
- 1.2mm, 1.5mm, 2.5mm
- Second Compression Ring Thickness
- 1.5
- Sold As
- Complete Piston Set
- Top Compression Ring Thickness
- 1.2
- Top Land
- .130
- Vin Code
- S
- Year From
- 2002
- Year Range
- 2002-2005
- Year To
- 2005
Fitment status
Select a vehicle or engine to see whether this part applies to your application.
Application summary
2004-2005 Buick Rainier; 2002 Chevrolet Blazer; 2002-2005 Chevrolet Trailblazer; 2002-2005 Chevrolet Trailblazer EXT; 2002-2005 GMC Envoy; 2002-2005 GMC Envoy XL; 2004-2005 GMC Envoy XUV; 2003-2005 Isuzu Ascender; 2002-2004 Oldsmobile Bravada; 2005 Saab 9-7x

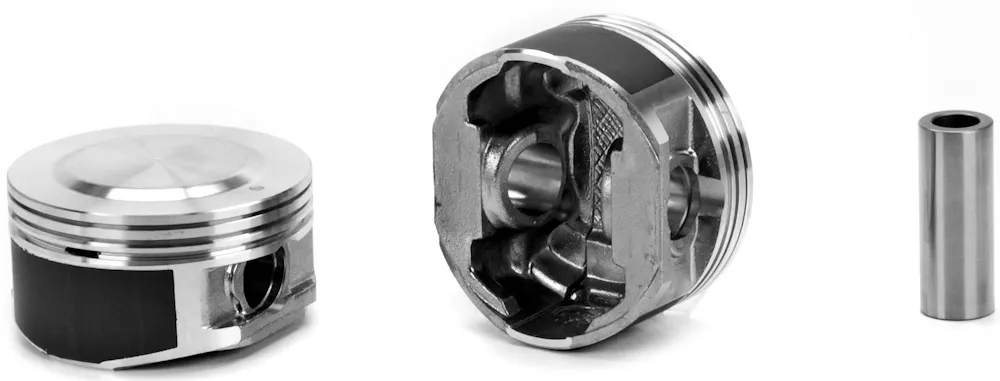

Silv-O-lite 3496HC.1.0MM
