Silv-O-lite · 3494HCA-.060K1
Part #: 3494HCA-.060K1
UPC: 800745303172
Log in for inventory
Notify me when this item is in stock.
Description: Silv-O-Lite Piston & Ring Kit - Chevrolet 496ci/8.1L (V8)
Description:
Description
Silv-O-Lite Piston & Ring Kit - Chevrolet 496ci/8.1L (V8)
Features & benefits
- Hypereutectic. Anodized Crown & Top Ring Groove.
- Flat top. 2 valve reliefs.
- .040" Offeset Floating pin.
- M42 Coated skirts. Piston & Ring Kit
Application summary
| Year | Make / model |
|---|---|
| 2002-2004 | Chevrolet Avalanche 2500 |
| 2001-2002 | Chevrolet B7 |
| 2001-2002 | Chevrolet C3500HD |
| 2001-2002 | Chevrolet Express 3500 |
| 2001-2004 | Chevrolet Silverado 2500 HD |
| 2001-2004 | Chevrolet Silverado 3500 |
| 2001-2004 | Chevrolet Suburban 2500 |
| 2001-2002 | GMC B7 |
| 2001-2002 | GMC C3500HD |
| 2001-2002 | GMC Savana 3500 |
| 2001-2004 | GMC Sierra 2500 HD |
| 2001-2004 | GMC Sierra 3500 |
| 2001-2004 | GMC Yukon XL 2500 |
| 2001-2004 | Workhorse P32 |
| 2001-2004 | Workhorse W20 |
| 2001-2004 | Workhorse W22 |
| 2004 | Workhorse W24 |
Specifications
- GTIN
- 00800745303172
- Weight
- 16 lb
- Height
- 5.25 in
- Length
- 22.25 in
- Width
- 9.5 in
- Life cycle
- Available to Order
- AAM brand code
- SOL
- Warehouse brand code
- BCRJ
- AAIA brand code
- BCRJ
Attributes
- Base Number
- 3494HCA
- Bore (in)
- 4.25
- Bore (mm)
- 108
- Bore Diameter
- 4.25
- Compression Ratio
- 9.1
- Crown Type
- FLAT TOP
- Eng. Disp. In.
- 496
- Eng. Disp. Liters
- 8.1
- Engine Family
- Chevy Big Block Truck
- Engine Manufacturer
- GM
- Includes Ring Set
- 4250SM8.060
- Lock
- SRW-010
- Oe Assembly
- 12569473
- Oil Ring Thickness
- 4
- Oversize
- 0.06
- Oversized
- Yes
- Oversizes
- STD .010 .020 .030 .040 .060
- Pin Configuration
- Offset
- Pin Number
- 1040x219A
- Pin Type
- Floating
- Piston Head Type
- Flat
- Piston Material
- Cast 390 Hypereutectic Alloy
- Piston Pin Outside Diameter
- 1.04
- Piston Rings Included
- Yes
- Ring Pack
- 2.0mm, 2.0mm, 4.0mm Shallow Oil Groove
- Second Compression Ring Thickness
- 2
- Sold As
- Complete Piston and Ring Kit
- Top Compression Ring Thickness
- 2
- Top Land
- 0.2
- Vin Code
- G
- Year From
- 2001
- Year Range
- 2001-2004
- Year To
- 2004
Fitment status
Select a vehicle or engine to see whether this part applies to your application.
Application summary
2002-2004 Chevrolet Avalanche 2500; 2001-2002 Chevrolet B7; 2001-2002 Chevrolet C3500HD; 2001-2002 Chevrolet Express 3500; 2001-2004 Chevrolet Silverado 2500 HD; 2001-2004 Chevrolet Silverado 3500; 2001-2004 Chevrolet Suburban 2500; 2001-2002 GMC B7; 2001-2002 GMC C3500HD; 2001-2002 GMC Savana 3500; 2001-2004 GMC Sierra 2500 HD; 2001-2004 GMC Sierra 3500; 2001-2004 GMC Yukon XL 2500; 2001-2004 Workhorse P32; 2001-2004 Workhorse W20; 2001-2004 Workhorse W22; 2004 Workhorse W24

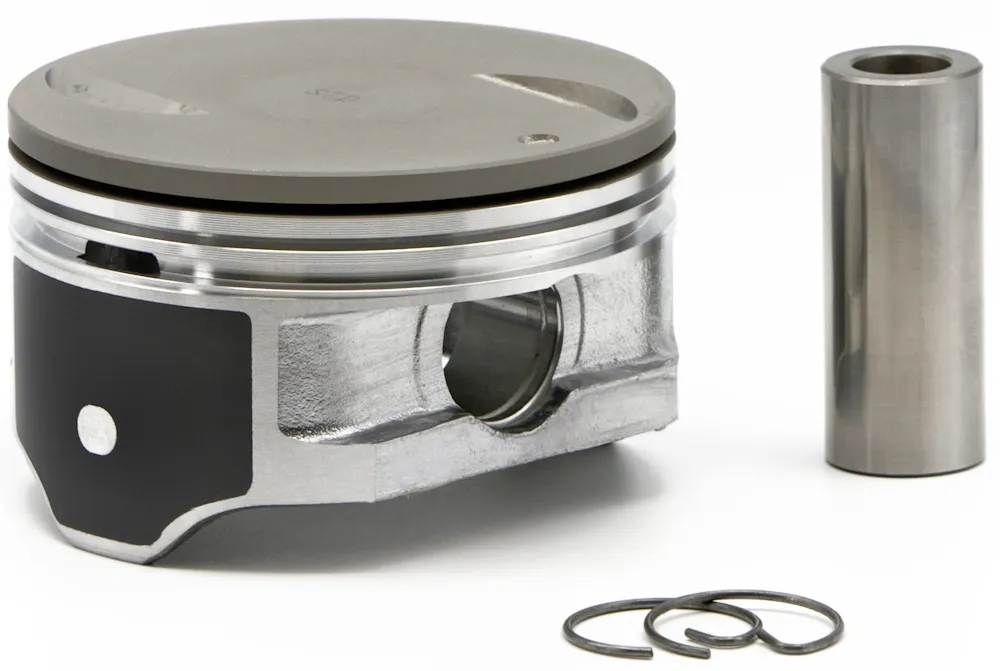

Silv-O-lite 3494HCA-.060K1
