Silv-O-lite / 3487C-.080K1
Part #: 3487C-.080K1
UPC: 800745300072
Loading...
Notify me when this item is in stock.
Description: Silv-O-Lite Piston & Ring Kit - Chevrolet 262ci/4.3L (V6)
Description:
Description
Silv-O-Lite Piston & Ring Kit - Chevrolet 262ci/4.3L (V6)
Features & benefits
- Flat top.
- 4 valve reliefs.
- *Same as 3487 with coated skirts.
- Piston & Ring Kit.
Application summary
| Year | Make / model |
|---|---|
| 1996 | Chevrolet Astro |
| 1996 | Chevrolet Blazer |
| 1996 | Chevrolet C1500 |
| 1996 | Chevrolet Express 1500 |
| 1996 | Chevrolet Express 2500 |
| 1996 | Chevrolet K1500 |
| 1996 | Chevrolet P30 |
| 1996 | Chevrolet S10 |
| 1996 | GMC C1500 |
| 1996 | GMC Jimmy |
| 1996 | GMC K1500 |
| 1996 | GMC P3500 |
| 1996 | GMC Safari |
| 1996 | GMC Savana 1500 |
| 1996 | GMC Savana 2500 |
| 1996 | GMC Sonoma |
| 1996 | Oldsmobile Bravada |
Specifications
- GTIN
- 00800745300072
- Weight
- 12 lb
- Height
- 5.25 in
- Length
- 17.75 in
- Width
- 9.75 in
- Life cycle
- Available to Order
- AAM brand code
- SOL
- Warehouse brand code
- BCRJ
- AAIA brand code
- BCRJ
Attributes
- Base Number
- 3487C
- Bore (in)
- 4
- Bore (mm)
- 101.6
- Bore Diameter
- 4
- Compression Ratio
- 8.8
- Crown Type
- FLAT TOP
- Eng. Disp. In.
- 262
- Eng. Disp. Liters
- 4.3
- Engine Family
- GM V6
- Engine Manufacturer
- Chevrolet
- Includes Ring Set
- 4000AM6.080
- Oe Assembly
- 3911020
- Oil Ring Thickness
- 0.1875
- Oversize
- 0.08
- Oversized
- Yes
- Oversizes
- STD .020 .030 .040 .060 .080
- Pin Configuration
- Offset
- Pin Number
- 0927x300A
- Pin Type
- Press
- Piston Head Type
- Flat
- Piston Material
- Cast 332 Alloy
- Piston Pin Outside Diameter
- 0.927
- Piston Rings Included
- Yes
- Ring Pack
- 5/64, 5/64, 3/16
- Second Compression Ring Thickness
- 0.0781
- Sold As
- Complete Piston and Ring Kit
- Top Compression Ring Thickness
- 0.0781
- Top Land
- 0.245
- Year From
- 1954
- Year Range
- 1954-2018
- Year To
- 2018
Fitment status
Select a vehicle or engine to see whether this part applies to your application.
Application summary
1996 Chevrolet Astro; 1996 Chevrolet Blazer; 1996 Chevrolet C1500; 1996 Chevrolet Express 1500; 1996 Chevrolet Express 2500; 1996 Chevrolet K1500; 1996 Chevrolet P30; 1996 Chevrolet S10; 1996 GMC C1500; 1996 GMC Jimmy; 1996 GMC K1500; 1996 GMC P3500; 1996 GMC Safari; 1996 GMC Savana 1500; 1996 GMC Savana 2500; 1996 GMC Sonoma; 1996 Oldsmobile Bravada

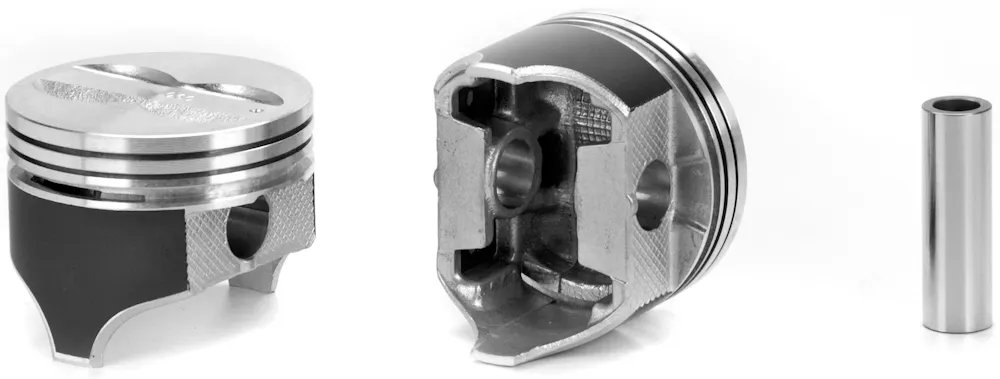

Silv-O-lite 3487C-.080K1
