Silv-O-lite · 3463HC.060
Part #: 3463HC.060
UPC: 800745086273
Log in for inventory
Notify me when this item is in stock.
Description: Silv-O-Lite Piston - Chevrolet 262ci/4.3L (V6)
Description:
Description

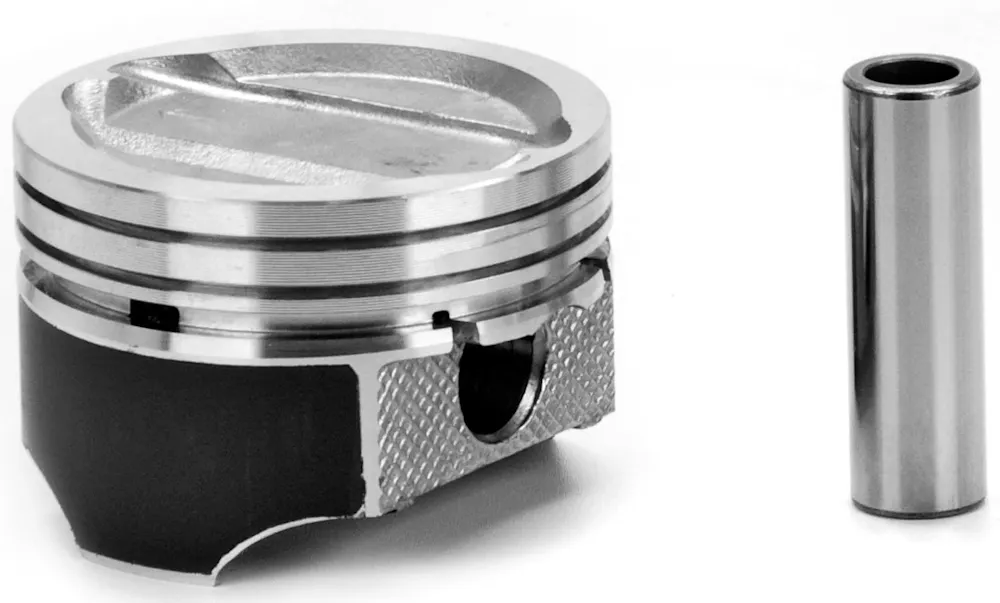

Silv-O-Lite Piston - Chevrolet 262ci/4.3L (V6)
Features & benefits
- Hypereutectic.
- 3.300" diameter recess .185" deep.
- 2 valve reliefs.
- * Same as 3463H with coated skirts.
Application summary
| Year | Make / model |
|---|---|
| 1986-1995 | Chevrolet Astro |
| 1995 | Chevrolet Blazer |
| 1988-1995 | Chevrolet C1500 |
| 1988-1995 | Chevrolet C2500 |
| 1985-1990 | Chevrolet Caprice |
| 1992-1993 | Chevrolet Caprice |
| 1992 | Chevrolet Commercial Chassis |
| 1985-1987 | Chevrolet El Camino |
| 1987-1995 | Chevrolet G10 |
| 1987-1995 | Chevrolet G20 |
| 1987-1995 | Chevrolet G30 |
| 1985 | Chevrolet Impala |
| 1988-1995 | Chevrolet K1500 |
| 1988-1995 | Chevrolet K2500 |
| 1985-1988 | Chevrolet Monte Carlo |
| 1990-1995 | Chevrolet P30 |
| 1985-1990 | Chevrolet P40 |
| 1987 | Chevrolet R10 |
| 1987-1988 | Chevrolet R20 |
| 1988-1995 | Chevrolet S10 |
| 1988-1994 | Chevrolet S10 Blazer |
| 1987 | Chevrolet V10 |
| 1988-1995 | GMC C1500 |
| 1988-1995 | GMC C2500 |
| 1985-1987 | GMC Caballero |
| 1987-1995 | GMC G1500 |
| 1987-1995 | GMC G2500 |
| 1987-1995 | GMC G3500 |
| 1992-1995 | GMC Jimmy |
| 1988-1995 | GMC K1500 |
| 1988-1995 | GMC K2500 |
| 1990-1995 | GMC P3500 |
| 1987-1990 | GMC P4500 |
| 1987 | GMC R1500 |
| 1987 | GMC R2500 |
| 1988-1990 | GMC S15 |
| 1988-1991 | GMC S15 Jimmy |
| 1986-1995 | GMC Safari |
| 1991-1995 | GMC Sonoma |
| 1991 | GMC Syclone |
| 1992-1993 | GMC Typhoon |
| 1987 | GMC V1500 |
| 1991-1994 | Oldsmobile Bravada |
| 1986 | Pontiac Bonneville |
| 1986-1987 | Pontiac Grand Prix |
| 1985-1986 | Pontiac Parisienne |
Specifications
- GTIN
- 00800745086273
- Weight
- 10 lb
- Height
- 13.63 in
- Length
- 3.38 in
- Width
- 9 in
- Life cycle
- Available to Order
- AAM brand code
- SOL
- Warehouse brand code
- BCRJ
- AAIA brand code
- BCRJ
Attributes
- Base Number
- 3463HC
- Bore (in)
- 4
- Bore (mm)
- 101.6
- Bore Diameter
- 4
- Crown Type
- DISH
- Eng. Disp Liters
- 4.3
- Eng. Disp. In.
- 262
- Eng. Disp. Liters
- 4.3
- Engine Family
- GM V6
- Engine Manufacturer
- Chevrolet
- Oil Ring Thickness
- 0.1875
- Oversize
- .060
- Oversized
- Yes
- Oversizes
- STD .020 .030 .040 .060
- Pin Configuration
- Offset
- Pin Number
- 0927x300A
- Pin Type
- Press
- Piston Head Type
- Dish
- Piston Material
- Cast 390 Hypereutectic Alloy
- Piston Pin Outside Diameter
- .927
- Ring Pack
- 5/64, 5/64, 3/16
- Second Compression Ring Thickness
- 0.0781
- Sold As
- Complete Piston Set
- Top Compression Ring Thickness
- 0.0781
- Top Land
- .250
- Year From
- 1985
- Year Range
- 1985-1995
- Year To
- 1995
Fitment status
Select a vehicle or engine to see whether this part applies to your application.
Application summary
1986-1995 Chevrolet Astro; 1995 Chevrolet Blazer; 1988-1995 Chevrolet C1500; 1988-1995 Chevrolet C2500; 1985-1990 Chevrolet Caprice; 1992-1993 Chevrolet Caprice; 1992 Chevrolet Commercial Chassis; 1985-1987 Chevrolet El Camino; 1987-1995 Chevrolet G10; 1987-1995 Chevrolet G20; 1987-1995 Chevrolet G30; 1985 Chevrolet Impala; 1988-1995 Chevrolet K1500; 1988-1995 Chevrolet K2500; 1985-1988 Chevrolet Monte Carlo; 1990-1995 Chevrolet P30; 1985-1990 Chevrolet P40; 1987 Chevrolet R10; 1987-1988 Chevrolet R20; 1988-1995 Chevrolet S10; 1988-1994 Chevrolet S10 Blazer; 1987 Chevrolet V10; 1988-1995 GMC C1500; 1988-1995 GMC C2500; 1985-1987 GMC Caballero; 1987-1995 GMC G1500; 1987-1995 GMC G2500; 1987-1995 GMC G3500; 1992-1995 GMC Jimmy; 1988-1995 GMC K1500; 1988-1995 GMC K2500; 1990-1995 GMC P3500; 1987-1990 GMC P4500; 1987 GMC R1500; 1987 GMC R2500; 1988-1990 GMC S15; 1988-1991 GMC S15 Jimmy; 1986-1995 GMC Safari; 1991-1995 GMC Sonoma; 1991 GMC Syclone; 1992-1993 GMC Typhoon; 1987 GMC V1500; 1991-1994 Oldsmobile Bravada; 1986 Pontiac Bonneville; 1986-1987 Pontiac Grand Prix; 1985-1986 Pontiac Parisienne
