Silv-O-lite / 3457H-.030K1
Part #: 3457H-.030K1
UPC: 800745299536
Loading...
Notify me when this item is in stock.
Description: Silv-O-Lite Piston & Ring Kit - Chevrolet 350ci/5.7L (V8)
Description:
Description

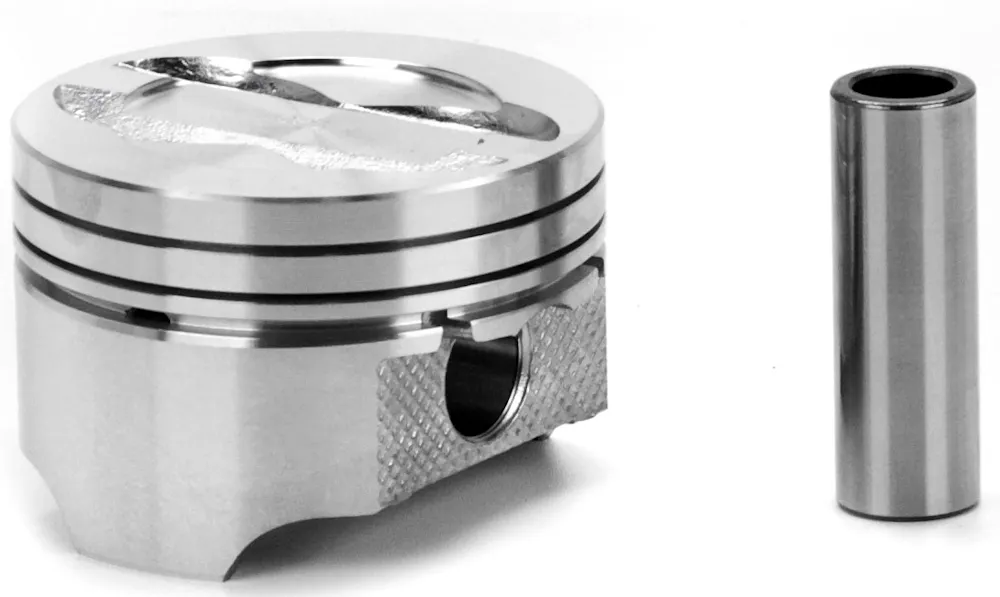

Silv-O-Lite Piston & Ring Kit - Chevrolet 350ci/5.7L (V8)
Features & benefits
- Hypereutectic.
- Marine engine.
- 2.710" diameter recess .082" deep.
- 4 valve reliefs.
- Piston & Ring Kit.
Specifications
- GTIN
- 00800745299536
- Weight
- 18 lb
- Height
- 5.25 in
- Length
- 22.25 in
- Width
- 9.5 in
- Life cycle
- Available to Order
- AAM brand code
- SOL
- Warehouse brand code
- BCRJ
- AAIA brand code
- BCRJ
Attributes
- Base Number
- 3457H
- Bore (in)
- 4
- Bore (mm)
- 101.6
- Bore Diameter
- 4
- Crown Type
- DISH
- Eng. Disp. In.
- 350
- Eng. Disp. Liters
- 5.7
- Engine Family
- Chevy Small Block Gen I
- Engine Manufacturer
- Chevrolet
- Includes Ring Set
- 4000CS8.030
- Oil Ring Thickness
- 3
- Oversize
- 0.03
- Oversized
- Yes
- Oversizes
- STD .020 .030 .040 .060
- Pin Configuration
- Offset
- Pin Number
- 0927x300A
- Pin Type
- Press
- Piston Head Type
- Dish
- Piston Material
- Cast 390 Hypereutectic Alloy
- Piston Pin Outside Diameter
- 0.927
- Piston Rings Included
- Yes
- Ring Pack
- 1.5mm, 1.5mm, 3.0mm Shallow Oil Groove
- Second Compression Ring Thickness
- 1.5
- Sold As
- Complete Piston and Ring Kit
- Top Compression Ring Thickness
- 1.5
- Top Land
- 0.332
- Year From
- 1958
- Year Range
- 1958-2007
- Year To
- 2007
Fitment status
Select a vehicle or engine to see whether this part applies to your application.
Silv-O-lite 3457H-.030K1
