Silv-O-lite / 3452HC-.040K1
Part #: 3452HC-.040K1
UPC: 800745299345
Loading...
Notify me when this item is in stock.
Description: Silv-O-Lite Piston & Ring Kit - Chevrolet 305ci/5.0L (V8)
Description:
Description

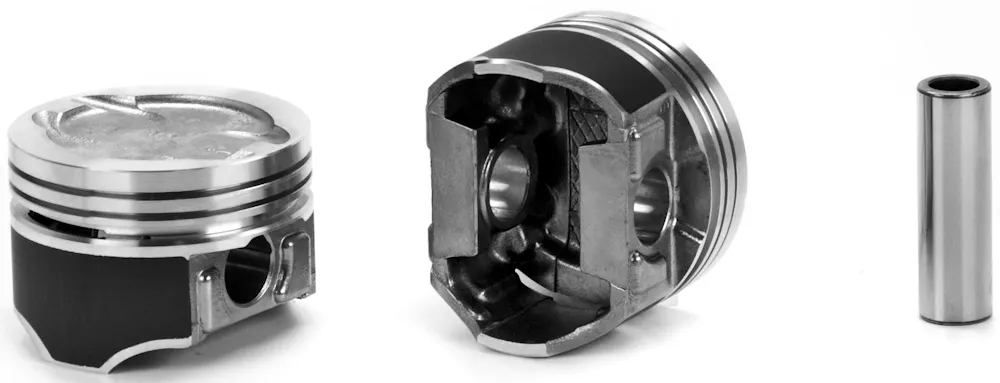

Silv-O-Lite Piston & Ring Kit - Chevrolet 305ci/5.0L (V8)
Features & benefits
- Hypereutectic.
- Marine engine.
- 2.830" diameter recess .140" deep.
- 4 valve reliefs.
- * Same as 3452H with coated skirts.
- Piston & Ring Kit.
Specifications
- GTIN
- 00800745299345
- Weight
- 14 lb
- Height
- 5.25 in
- Length
- 22.25 in
- Width
- 9.5 in
- Life cycle
- Available to Order
- AAM brand code
- SOL
- Warehouse brand code
- BCRJ
- AAIA brand code
- BCRJ
Attributes
- Base Number
- 3452HC
- Bore (in)
- 3.736
- Bore (mm)
- 94.9
- Bore Diameter
- 3.736
- Compression Ratio
- 9.1
- Crown Type
- DISH
- Eng. Disp. In.
- 305
- Eng. Disp. Liters
- 5
- Engine Family
- Chevy Small Block Gen I
- Engine Manufacturer
- Chevrolet
- Includes Ring Set
- 3736AM8.040
- Oil Ring Thickness
- 0.1875
- Oversize
- 0.04
- Oversized
- Yes
- Oversizes
- STD .020 .030 .040 .060
- Pin Configuration
- Offset
- Pin Number
- 0927x300A
- Pin Type
- Press
- Piston Head Type
- Dish
- Piston Material
- Cast 390 Hypereutectic Alloy
- Piston Pin Outside Diameter
- 0.927
- Piston Rings Included
- Yes
- Ring Pack
- 5/64, 5/64, 3/16
- Second Compression Ring Thickness
- 0.0781
- Sold As
- Complete Piston and Ring Kit
- Top Compression Ring Thickness
- 0.0781
- Top Land
- 0.28
- Vin Code
- W, X
- Year From
- 1996
- Year Range
- 1996-2002
- Year To
- 2002
