Silv-O-lite · 3413.020
Part #: 3413.020
UPC: 800745113047
Log in for inventory
Notify me when this item is in stock.
Description: Silv-O-Lite Piston - Chevrolet 327ci/5.4L (V8)
Description:
Description

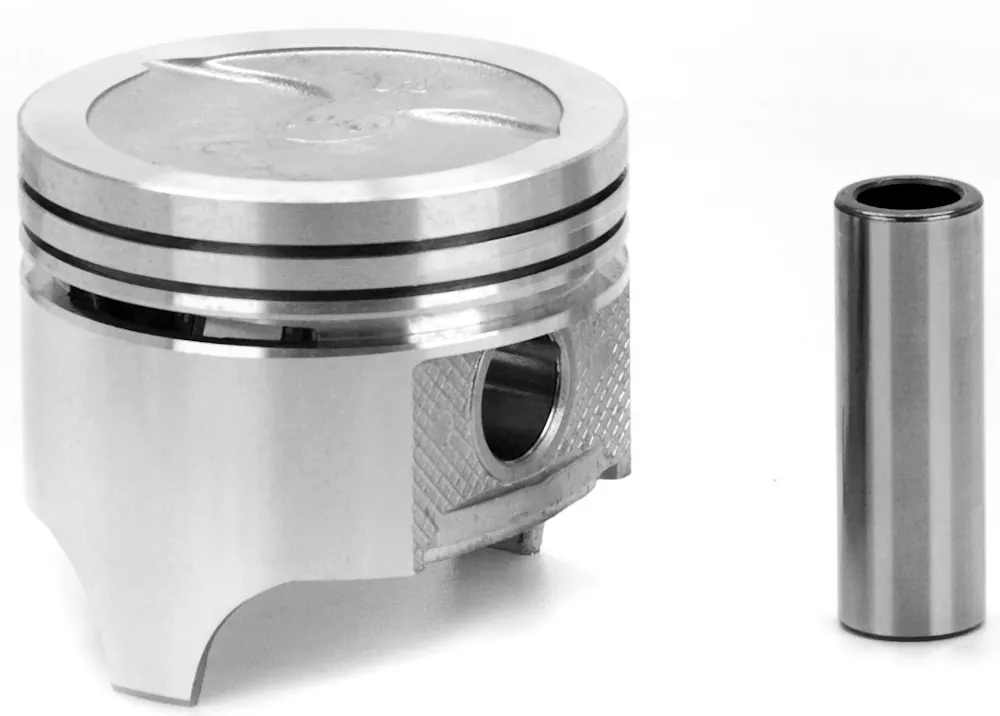

Silv-O-Lite Piston - Chevrolet 327ci/5.4L (V8)
Features & benefits
- 3.150" diameter recess .065" deep.
- 2 valve reliefs.
Application summary
| Year | Make / model |
|---|---|
| 1965-1968 | Bizzarrini GT America |
| 1965-1968 | Bizzarrini GT Strada 5300 |
| 1966-1968 | Checker Aerobus |
| 1965-1968 | Checker Marathon |
| 1962-1968 | Chevrolet Bel Air |
| 1962-1968 | Chevrolet Biscayne |
| 1966-1968 | Chevrolet C10 Pickup |
| 1967-1968 | Chevrolet C10 Suburban |
| 1966-1968 | Chevrolet C20 Pickup |
| 1967-1968 | Chevrolet C20 Suburban |
| 1966-1968 | Chevrolet C30 Pickup |
| 1962-1968 | Chevrolet C50 |
| 1962-1968 | Chevrolet C60 |
| 1967-1968 | Chevrolet Camaro |
| 1966-1968 | Chevrolet Caprice |
| 1964-1968 | Chevrolet Chevelle |
| 1965-1968 | Chevrolet Chevy II |
| 1962-1968 | Chevrolet Corvette |
| 1964-1968 | Chevrolet El Camino |
| 1962-1968 | Chevrolet Impala |
| 1966-1968 | Chevrolet K10 Pickup |
| 1967-1968 | Chevrolet K10 Suburban |
| 1967 | Chevrolet K20 Panel |
| 1966-1968 | Chevrolet K20 Pickup |
| 1967-1968 | Chevrolet K20 Suburban |
| 1968 | Chevrolet K30 Pickup |
| 1966 | Chevrolet Suburban |
| 1965-1968 | Excalibur Phaeton |
| 1967-1968 | GMC C15/C1500 Pickup |
| 1967-1968 | GMC C15/C1500 Suburban |
| 1967-1968 | GMC C25/C2500 Pickup |
| 1967-1968 | GMC C25/C2500 Suburban |
| 1967-1968 | GMC C35/C3500 Pickup |
| 1967 | GMC G15/G1500 Van |
| 1967 | GMC G25/G2500 Van |
| 1967-1968 | GMC K15/K1500 Pickup |
| 1967-1968 | GMC K15/K1500 Suburban |
| 1967-1968 | GMC K25/K2500 Pickup |
| 1967-1968 | GMC K25/K2500 Suburban |
| 1968 | GMC K35/K3500 Pickup |
| 1964-1967 | Gordon-Keeble GK1 |
| 1964-1967 | Gordon-Keeble IT |
| 1965-1968 | Iso Grifo |
| 1963-1968 | Iso Rivolta |
| 1967-1968 | Iso S4 Fidia |
| 1965-1968 | Pontiac Acadian |
| 1964-1968 | Pontiac Beaumont |
| 1962-1968 | Pontiac Laurentian |
| 1962-1968 | Pontiac Parisienne |
| 1962-1968 | Pontiac Strato-Chief |
Specifications
- GTIN
- 00800745113047
- Weight
- 16 lb
- Height
- 18 in
- Length
- 3.38 in
- Width
- 9 in
- Life cycle
- Available to Order
- AAM brand code
- SOL
- Warehouse brand code
- BCRJ
- AAIA brand code
- BCRJ
Attributes
- Base Number
- 3413
- Bore (in)
- 4
- Bore (mm)
- 101.6
- Bore Diameter
- 4
- Compression Ratio
- 8.0
- Crown (cc)
- +10cc
- Crown Type
- DISH
- Eng. Disp Liters
- 5.4
- Eng. Disp. In.
- 327
- Eng. Disp. Liters
- 5.4
- Engine Family
- Chevy Small Block Gen I
- Engine Manufacturer
- Chevrolet
- Oe Assembly
- 3816974
- Oil Ring Thickness
- 0.1875
- Oversize
- .020
- Oversized
- Yes
- Oversizes
- STD .020 .030 .040 .060
- Pin Configuration
- Centered
- Pin Number
- 0927x300A
- Pin Type
- Press
- Piston Head Type
- Dish
- Piston Material
- Cast 332 Alloy
- Piston Pin Outside Diameter
- .927
- Ring Pack
- 5/64, 5/64, 3/16
- Second Compression Ring Thickness
- 0.0781
- Sold As
- Complete Piston Set
- Top Compression Ring Thickness
- 0.0781
- Top Land
- .310
- Year From
- 1962
- Year Range
- 1962-1968
- Year To
- 1968
Fitment status
Select a vehicle or engine to see whether this part applies to your application.
Application summary
1965-1968 Bizzarrini GT America; 1965-1968 Bizzarrini GT Strada 5300; 1966-1968 Checker Aerobus; 1965-1968 Checker Marathon; 1962-1968 Chevrolet Bel Air; 1962-1968 Chevrolet Biscayne; 1966-1968 Chevrolet C10 Pickup; 1967-1968 Chevrolet C10 Suburban; 1966-1968 Chevrolet C20 Pickup; 1967-1968 Chevrolet C20 Suburban; 1966-1968 Chevrolet C30 Pickup; 1962-1968 Chevrolet C50; 1962-1968 Chevrolet C60; 1967-1968 Chevrolet Camaro; 1966-1968 Chevrolet Caprice; 1964-1968 Chevrolet Chevelle; 1965-1968 Chevrolet Chevy II; 1962-1968 Chevrolet Corvette; 1964-1968 Chevrolet El Camino; 1962-1968 Chevrolet Impala; 1966-1968 Chevrolet K10 Pickup; 1967-1968 Chevrolet K10 Suburban; 1967 Chevrolet K20 Panel; 1966-1968 Chevrolet K20 Pickup; 1967-1968 Chevrolet K20 Suburban; 1968 Chevrolet K30 Pickup; 1966 Chevrolet Suburban; 1965-1968 Excalibur Phaeton; 1967-1968 GMC C15/C1500 Pickup; 1967-1968 GMC C15/C1500 Suburban; 1967-1968 GMC C25/C2500 Pickup; 1967-1968 GMC C25/C2500 Suburban; 1967-1968 GMC C35/C3500 Pickup; 1967 GMC G15/G1500 Van; 1967 GMC G25/G2500 Van; 1967-1968 GMC K15/K1500 Pickup; 1967-1968 GMC K15/K1500 Suburban; 1967-1968 GMC K25/K2500 Pickup; 1967-1968 GMC K25/K2500 Suburban; 1968 GMC K35/K3500 Pickup; 1964-1967 Gordon-Keeble GK1; 1964-1967 Gordon-Keeble IT; 1965-1968 Iso Grifo; 1963-1968 Iso Rivolta; 1967-1968 Iso S4 Fidia; 1965-1968 Pontiac Acadian; 1964-1968 Pontiac Beaumont; 1962-1968 Pontiac Laurentian; 1962-1968 Pontiac Parisienne; 1962-1968 Pontiac Strato-Chief
