Silv-O-lite · 3411H.STD
Part #: 3411H.STD
UPC: 800745027887
Log in for inventory
Notify me when this item is in stock.
Description: Silv-O-Lite Piston - Chevrolet 262ci/4.3L (V6)
Description:
Description
Silv-O-Lite Piston - Chevrolet 262ci/4.3L (V6)
Features & benefits
- Hypereutectic.
- 3.100" diameter recess .080" deep.
- 4 valve reliefs.
Application summary
| Year | Make / model |
|---|---|
| 1995-2005 | Chevrolet Astro |
| 1995-2005 | Chevrolet Blazer |
| 1996 | Chevrolet C1500 |
| 1996-2002 | Chevrolet Express 1500 |
| 2005-2009 | Chevrolet Express 1500 |
| 1996 | Chevrolet Express 2500 |
| 1996 | Chevrolet K1500 |
| 1996 | Chevrolet P30 |
| 1996-1997 | Chevrolet S10 |
| 2004 | Chevrolet S10 |
| 2005-2006 | Chevrolet Silverado 1500 |
| 2007 | Chevrolet Silverado 1500 Classic |
| 1996 | GMC C1500 |
| 1998 | GMC C1500 |
| 1995-2001 | GMC Jimmy |
| 1996 | GMC K1500 |
| 1996 | GMC P3500 |
| 1995-2005 | GMC Safari |
| 1996-2002 | GMC Savana 1500 |
| 2005-2009 | GMC Savana 1500 |
| 1996 | GMC Savana 2500 |
| 2005-2006 | GMC Sierra 1500 |
| 2007 | GMC Sierra 1500 Classic |
| 1996-1997 | GMC Sonoma |
| 2004 | GMC Sonoma |
| 1996-2001 | Oldsmobile Bravada |
Specifications
- GTIN
- 00800745027887
- Weight
- 10 lb
- Height
- 13.63 in
- Length
- 3.38 in
- Width
- 9 in
- Life cycle
- Available to Order
- AAM brand code
- SOL
- Warehouse brand code
- BCRJ
- AAIA brand code
- BCRJ
Attributes
- Base Number
- 3411H
- Bore (in)
- 4
- Bore (mm)
- 101.6
- Bore Diameter
- 4
- Compression Ratio
- 9.1
- Crown (cc)
- +12cc
- Crown Type
- DISH
- Eng. Disp Liters
- 4.3
- Eng. Disp. In.
- 262
- Eng. Disp. Liters
- 4.3
- Engine Family
- GM V6
- Engine Manufacturer
- Chevrolet
- Oe Assembly
- 14099017, 10181389
- Oil Ring Thickness
- 4.0000
- Oversize
- STD
- Oversized
- No
- Oversizes
- STD .020 .030 .040 .060
- Pin Configuration
- Offset
- Pin Number
- 0927x300A
- Pin Type
- Press
- Piston Head Type
- Dish
- Piston Material
- Cast 390 Hypereutectic Alloy
- Piston Pin Outside Diameter
- .927
- Ring Pack
- 2.0mm, 1.5mm, 4.0mm Shallow Oil Groove
- Second Compression Ring Thickness
- 1.5
- Sold As
- Complete Piston Set
- Top Compression Ring Thickness
- 2.0000
- Top Land
- .227
- Vin Code
- W, Z
- Year From
- 1992
- Year Range
- 1992-1996
- Year To
- 1996
Fitment status
Select a vehicle or engine to see whether this part applies to your application.
Application summary
1995-2005 Chevrolet Astro; 1995-2005 Chevrolet Blazer; 1996 Chevrolet C1500; 1996-2002 Chevrolet Express 1500; 2005-2009 Chevrolet Express 1500; 1996 Chevrolet Express 2500; 1996 Chevrolet K1500; 1996 Chevrolet P30; 1996-1997 Chevrolet S10; 2004 Chevrolet S10; 2005-2006 Chevrolet Silverado 1500; 2007 Chevrolet Silverado 1500 Classic; 1996 GMC C1500; 1998 GMC C1500; 1995-2001 GMC Jimmy; 1996 GMC K1500; 1996 GMC P3500; 1995-2005 GMC Safari; 1996-2002 GMC Savana 1500; 2005-2009 GMC Savana 1500; 1996 GMC Savana 2500; 2005-2006 GMC Sierra 1500; 2007 GMC Sierra 1500 Classic; 1996-1997 GMC Sonoma; 2004 GMC Sonoma; 1996-2001 Oldsmobile Bravada

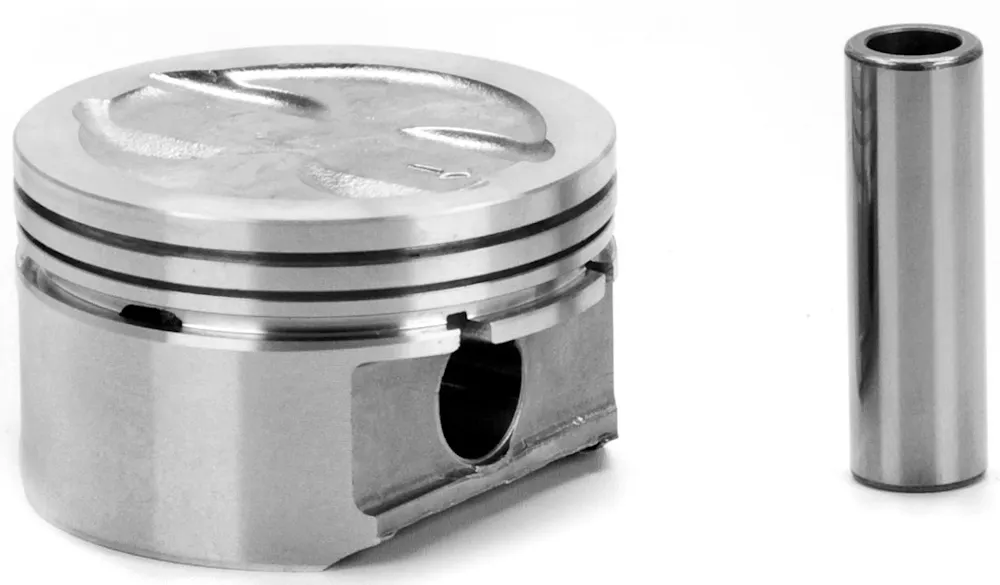

Silv-O-lite 3411H.STD
